Description
Insert plates for the handy handyman or for the professional can be found in the complete range of Deurklinkenshop.be - AGB ECLIPSE 2.0 110x30
Article code: 1192

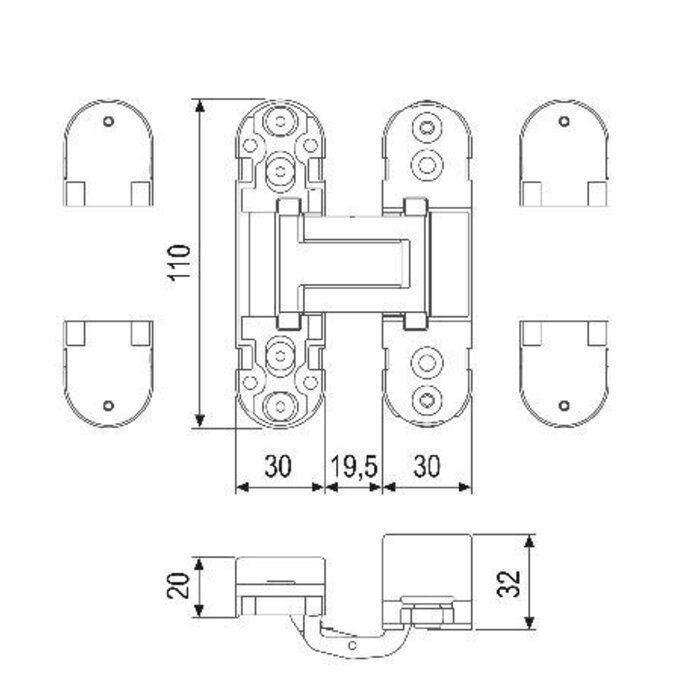

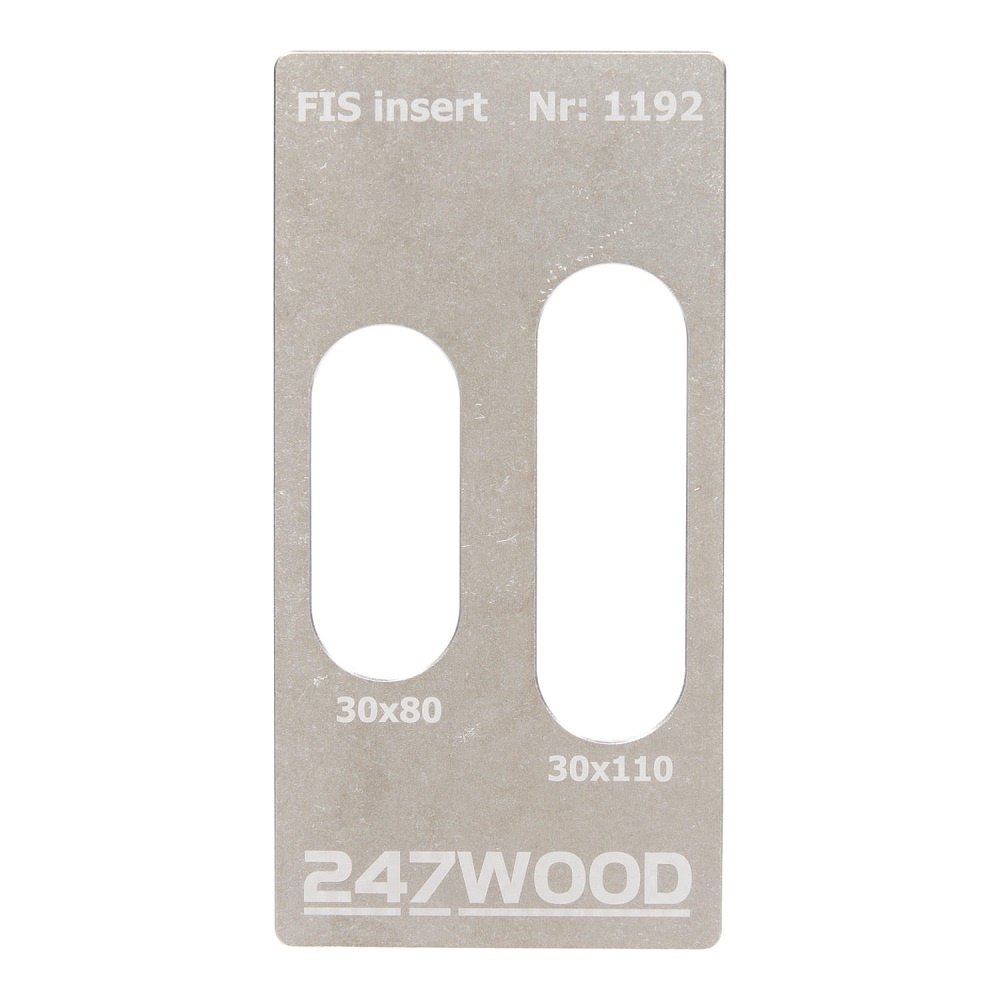

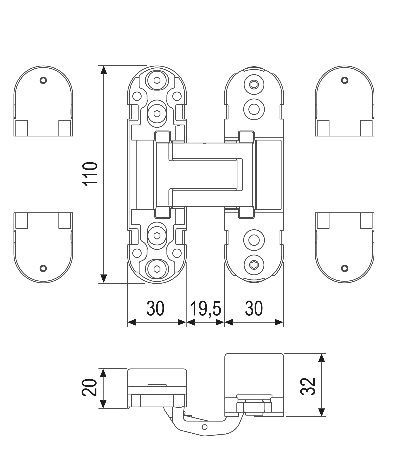

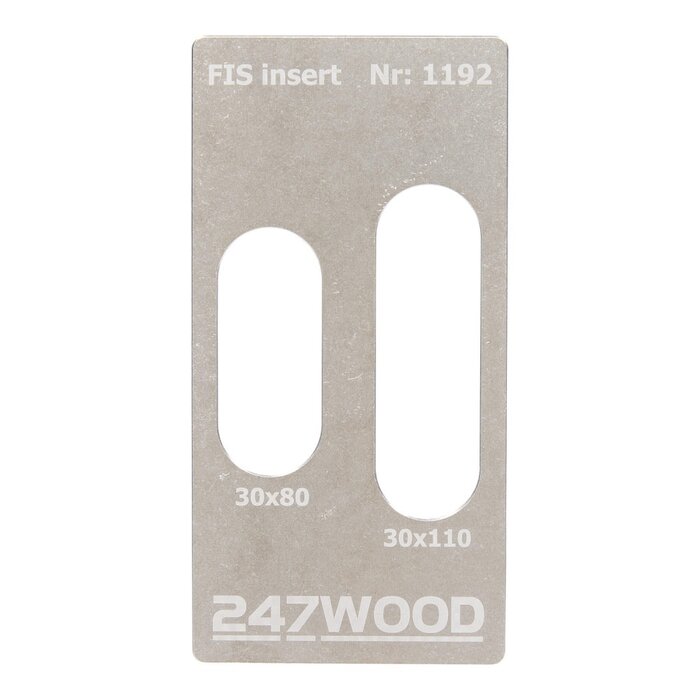

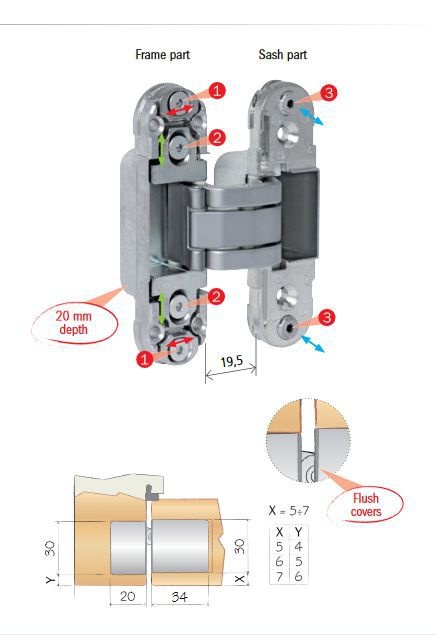

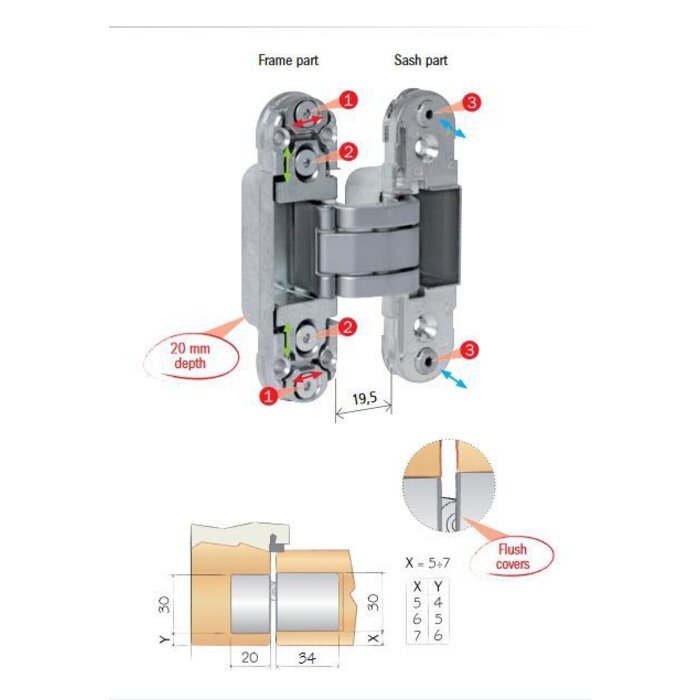

This milling template insert for milling out AGB ECLIPSE 2 110x30mm for invisible hinges can only be used in combination with our Milling Jig FIS Basic.
The Hornbach/Pertura and Austria SWING Eclipse VS-19 hinges can also be milled with this insert plate.
The milling template insert is made of high-quality aluminum which undergoes an anodizing process after CNC machining. This process not only produces a beautiful color but also provides a very hard and wear-resistant surface.
With this insert plate you can recess both the part that is visible from the hinge and the stepped part with almost any type of router and the associated 24mm copy ring.
Always read the instructions carefully before starting work.
Characteristics:
- To be used in combination with our Milling Jig FIS Basic.
- Copy ring 24mm to be used
- Milling chisel to be used 18mm (see related products)
- Works with almost any router
- Milling jig FIS Basic not included.
