Description

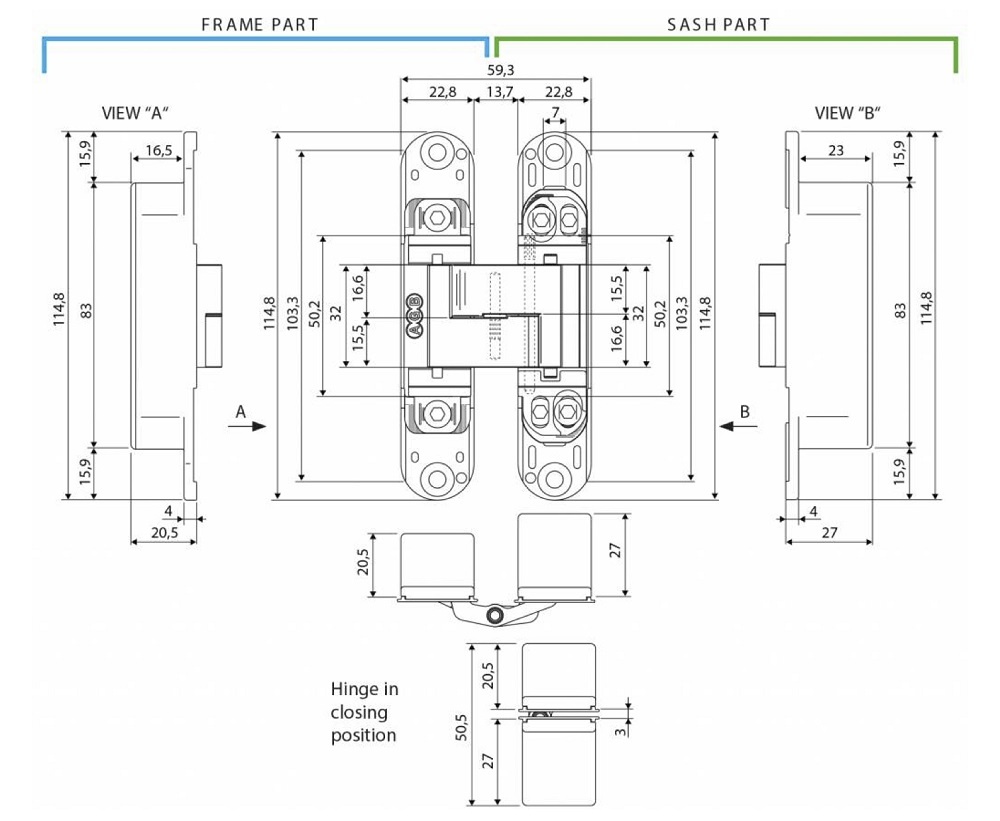

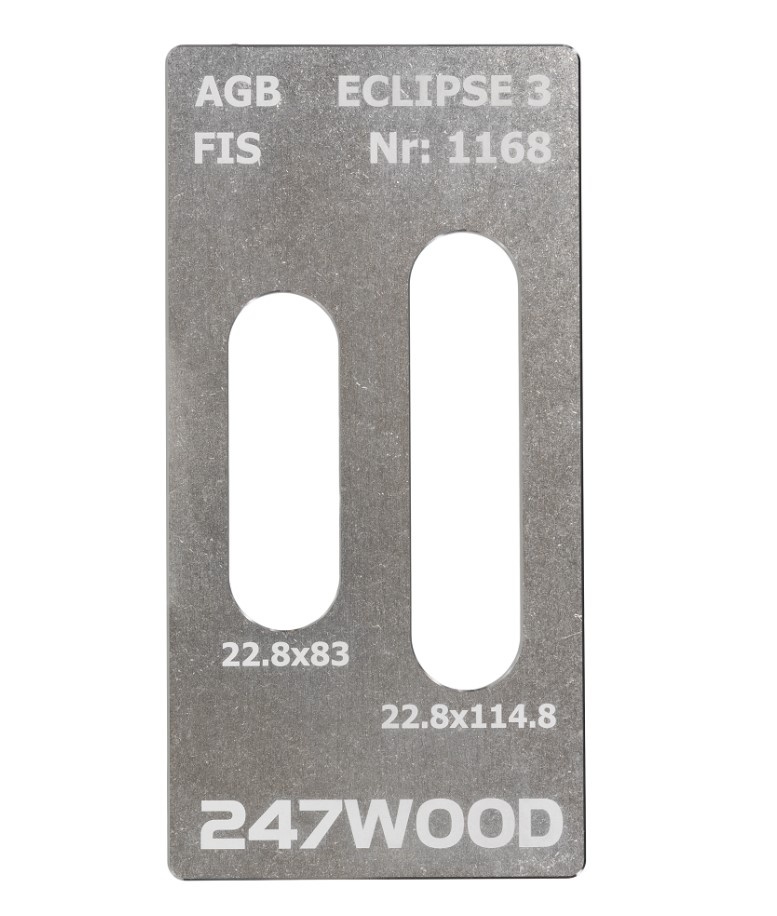

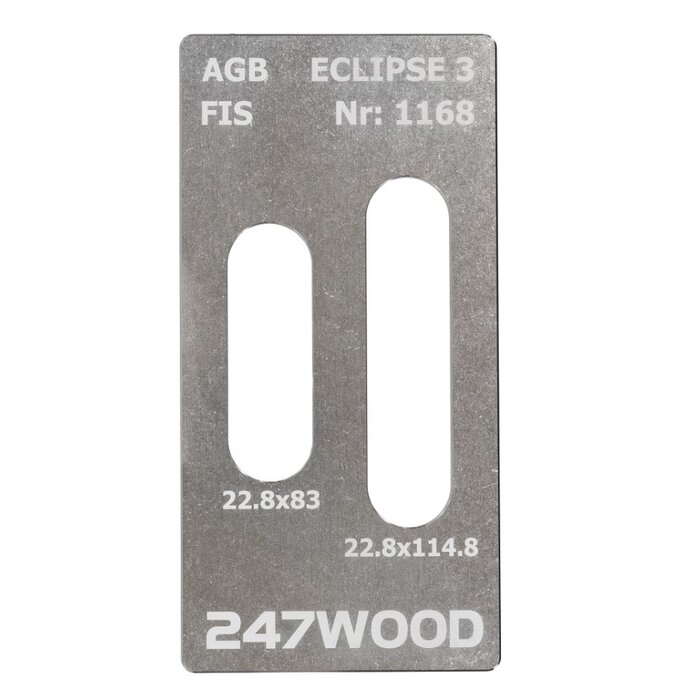

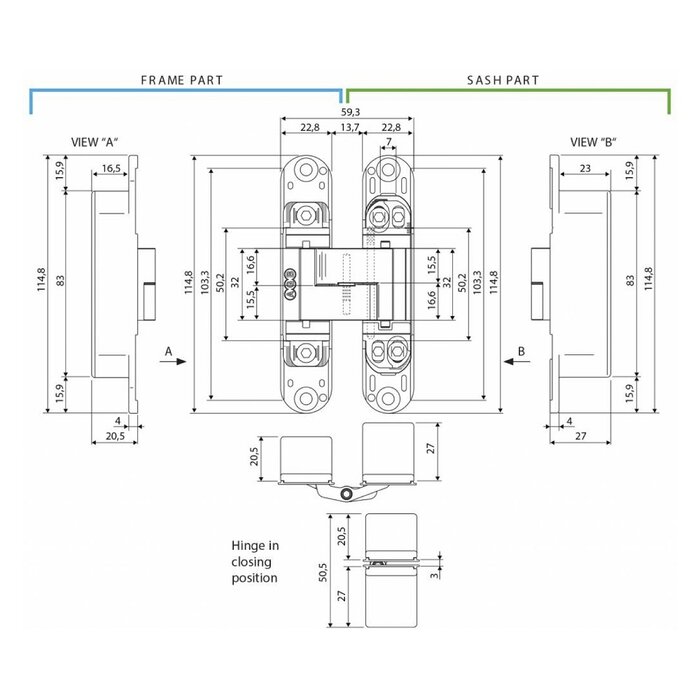

Insert plates for basic milling template 247wood for 3D hinge AGB ECLIPSE 3.0 115x23
Article code: 1168
This milling template insert for milling out AGB ECLIPSE 3 INOX invisible hinges can only be used in combination with our Milling Jig FIS Basic (see related products).
The milling template insert is made of high-quality aluminum which undergoes an anodizing process after CNC machining. This process not only produces a beautiful color, but also provides a very hard and wear-resistant surface.
With this insert plate you can recess both the part that is visible from the hinge and the stepped part with almost any type of router and the associated 24mm copy ring.
Always read the instructions carefully before starting work.
Characteristics:
- To be used in combination with our Milling Jig FIS Basic.
- Copy ring 24mm to be used
- Milling chisel to be used 18mm (see related products)
- Works with almost any router
- Milling jig FIS Basic not included.
