Description
Aprile window handle ERBA on a rectangular rosette with a flat handle of 18 x14 mm in a matt black version
Article code: AT O ERBA Q BLACK-L

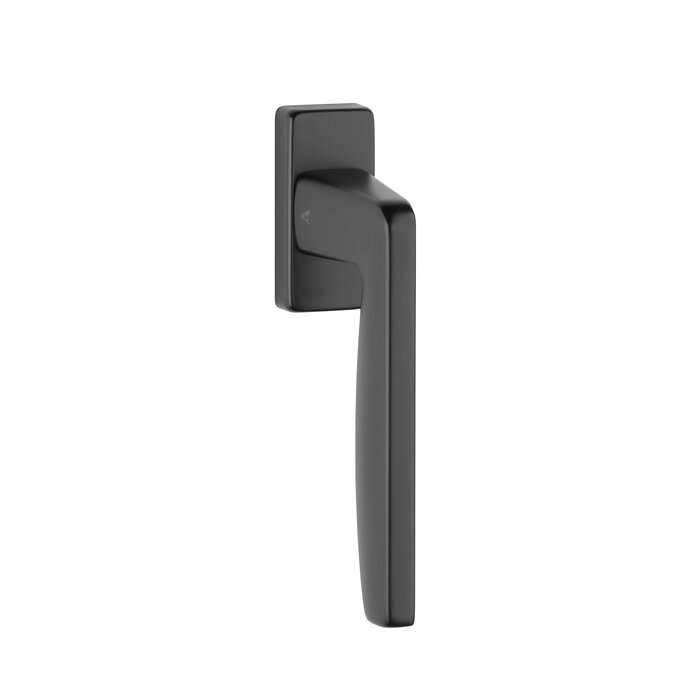

The matte black window handle ERBA in turn-tilt design has a flat L-shaped handle that is straight at the front and curved at the back. This makes this window handle extra comfortable to hold
The window handle consists of solid zamak finished with a matte black anodized coating.

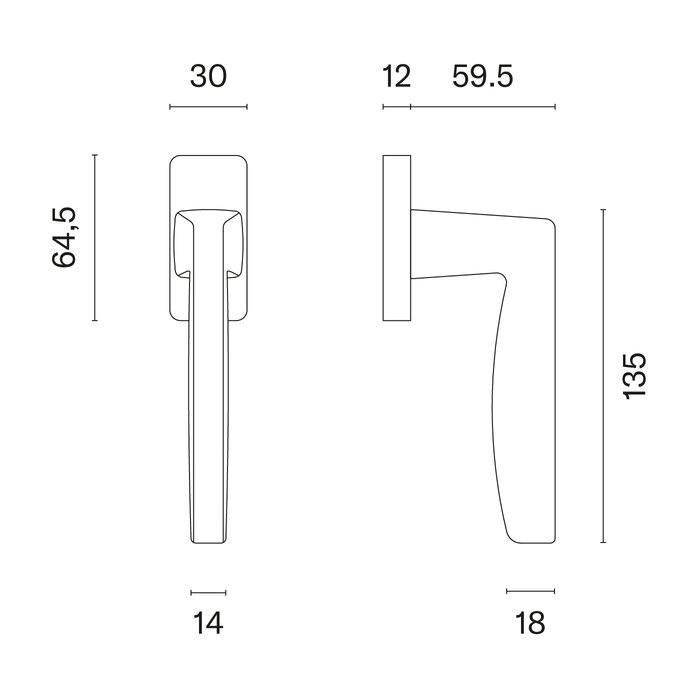

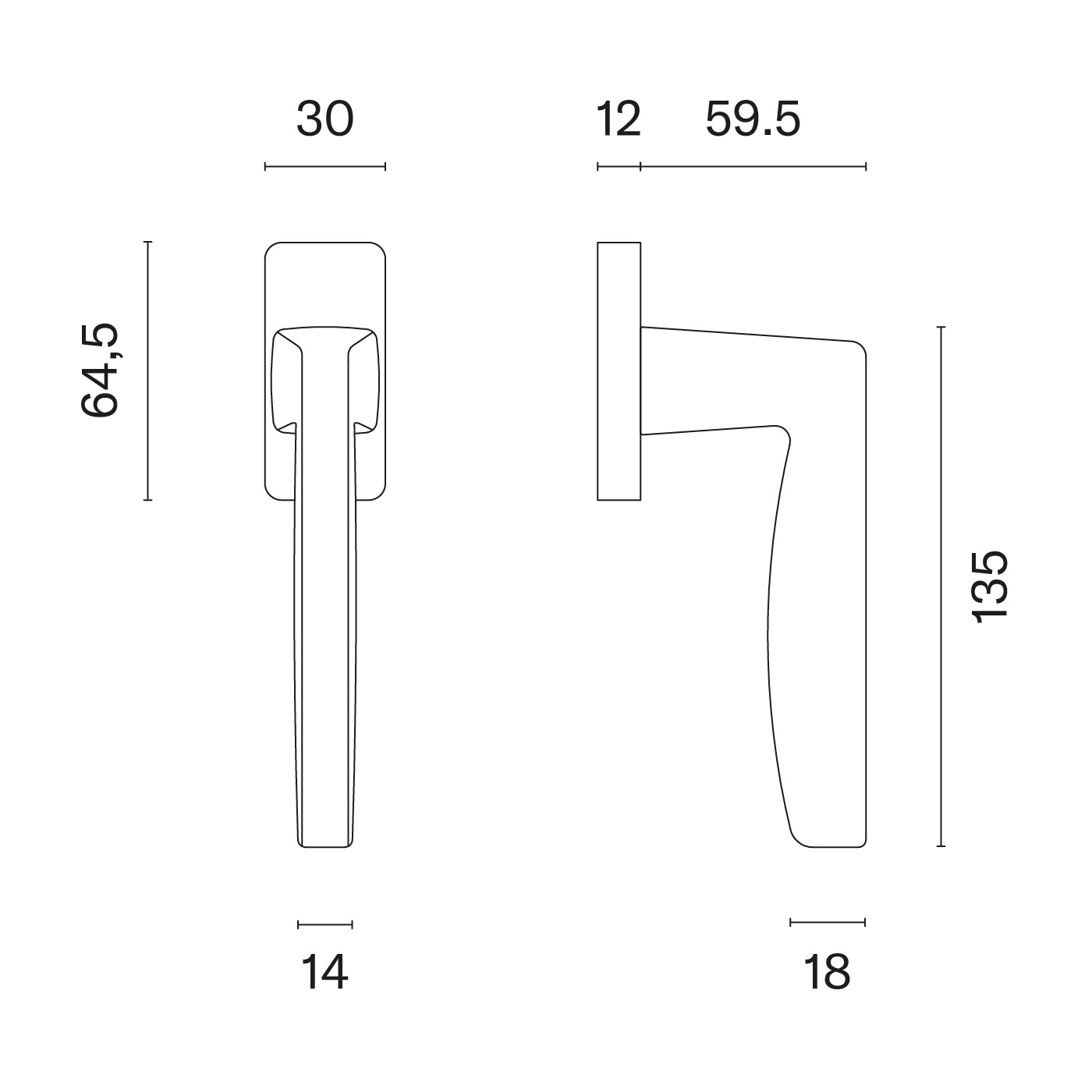

This handle of 18x14 mm stands on a rectangular rosette of 64.5x30 mm.
The solid window handle with the Aprile logo is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine these window handles with the matching door handles from Aprile and your interior is finished in style.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the position of the Aprile logo.
With a left window handle the Aprile logo is on the left, with a right window handle the Aprile logo is on the right.
| base | solid zamac |
| performance | turn-tilt function |
| colour | matt black (anodised) |
| dimensions rosette | 64.5x30x12mm |
| depth | 71.5mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle size | 18x14mm |
| mounting material | 2 bolts M5 x 40 mm included |
