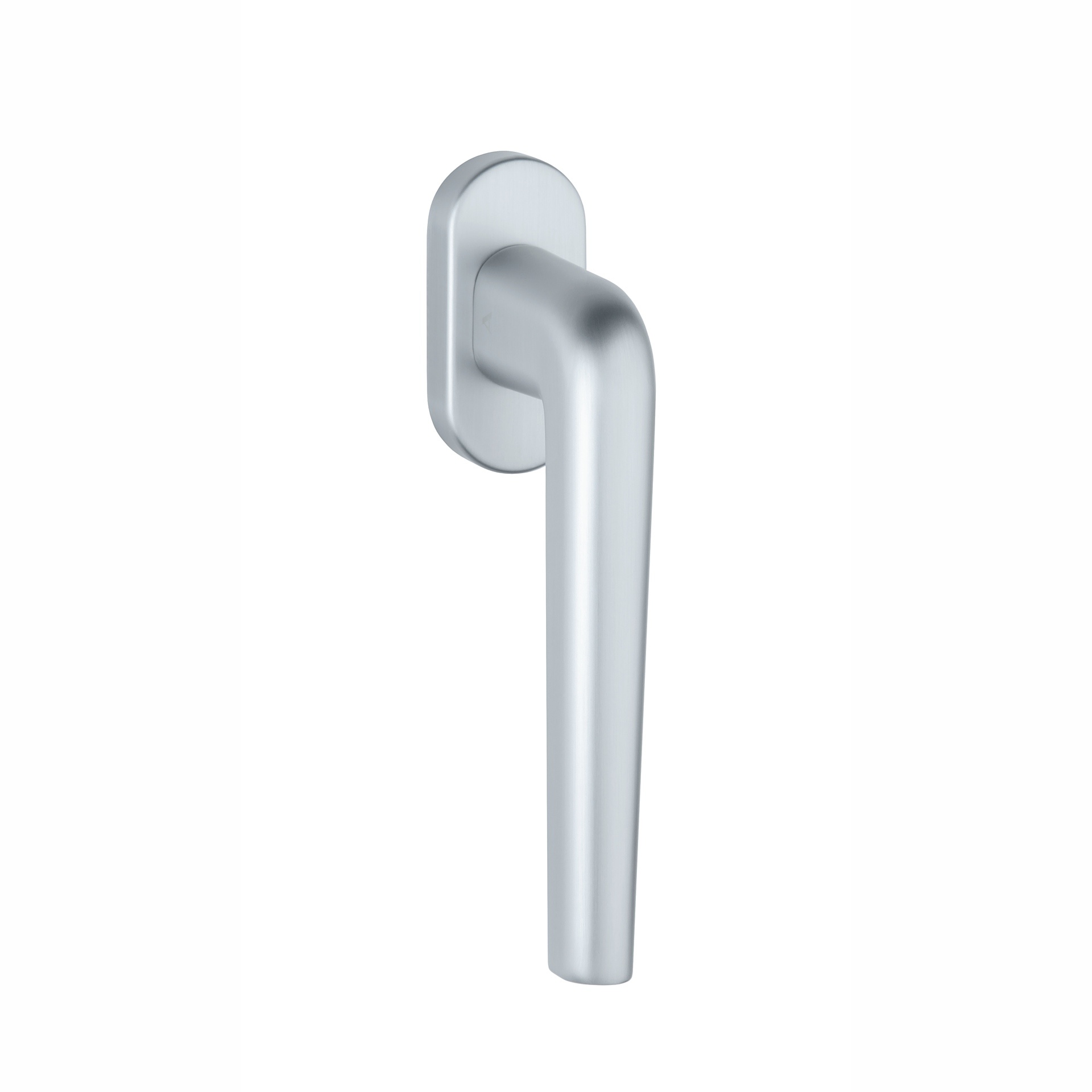

The Chrome Satiné window handle FUNKIA in turn-tilt version has an L-shaped handle at an angle of 90°.
The window handle consists of solid zamac finished with a matte chrome coating.

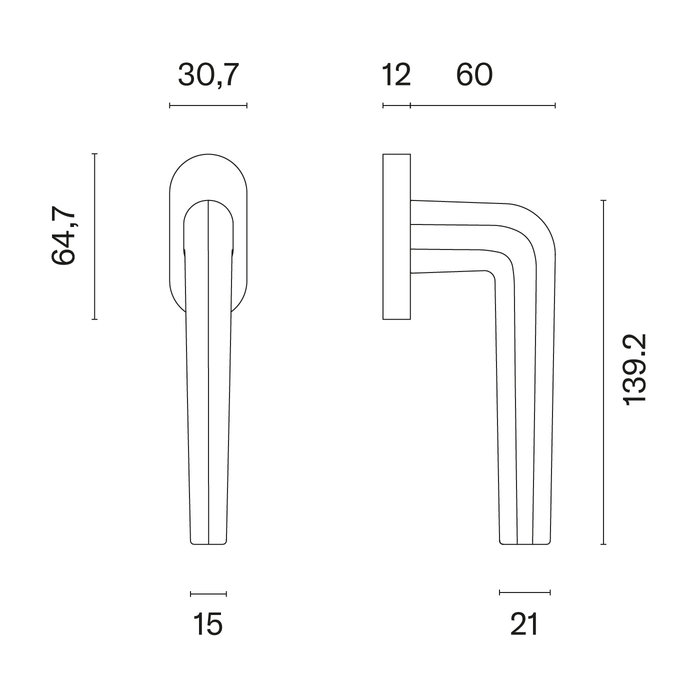

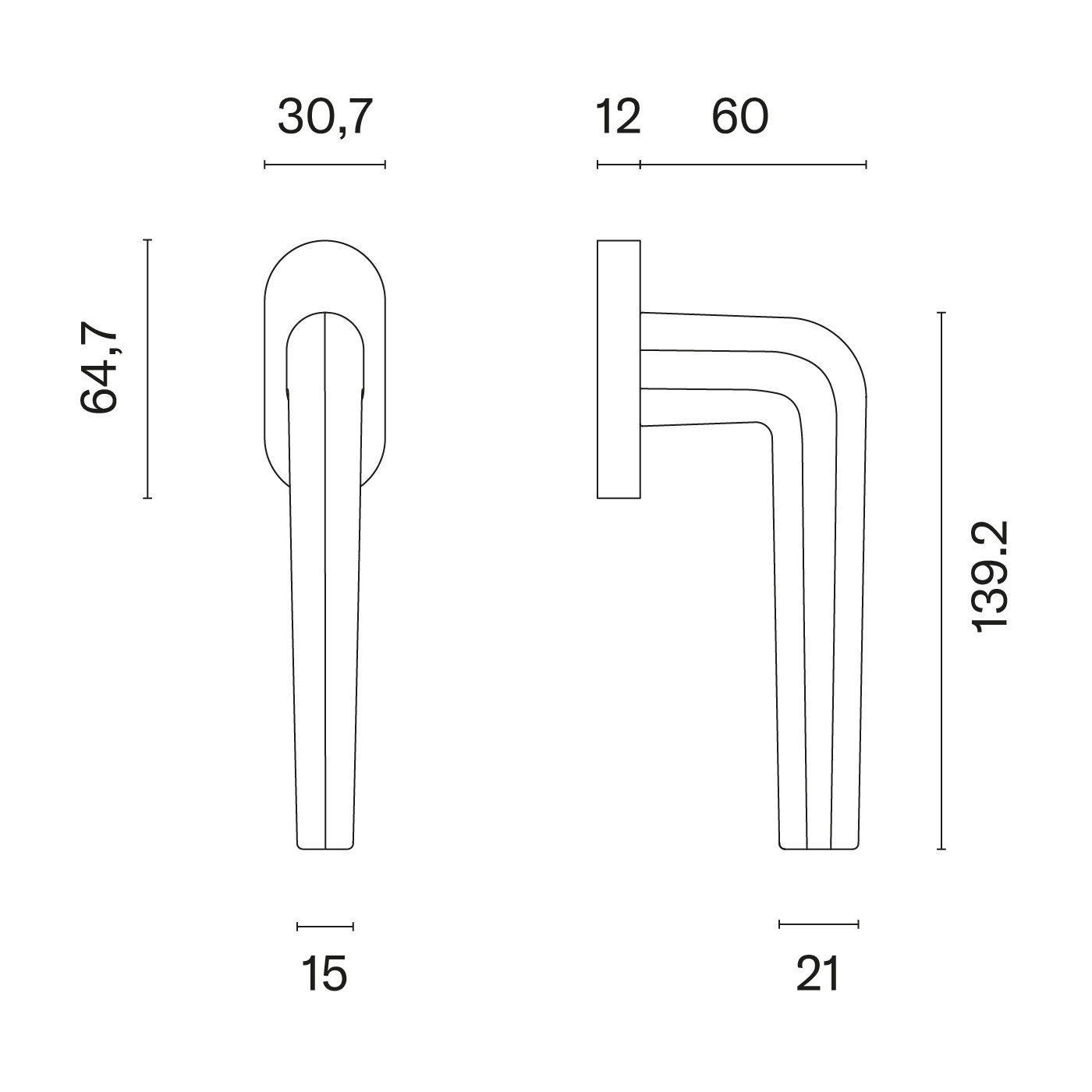

The window handle, with a rounded corner, extends from 21 to 15 mm, which ensures a nice sleek design.
The solid window handle with the Aprile logo is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
With these sleek design window handles you can finish your interior perfectly in style.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the position of the Aprile logo.
With a left window handle the Aprile logo is on the left, with a right window handle the Aprile logo is on the right.
base | solid zamak |
performance | turn-tilt function |
colour | Chrome Satiné (matt) |
dimensions rosette | 64.7x30.7x12mm |
depth | 72mm |
drilling distance | 43mm |
marker | 7x7x35mm |
handle dimensions | 21x15mm |
mounting material | 2 bolts M5 x 40 mm included |
