Description

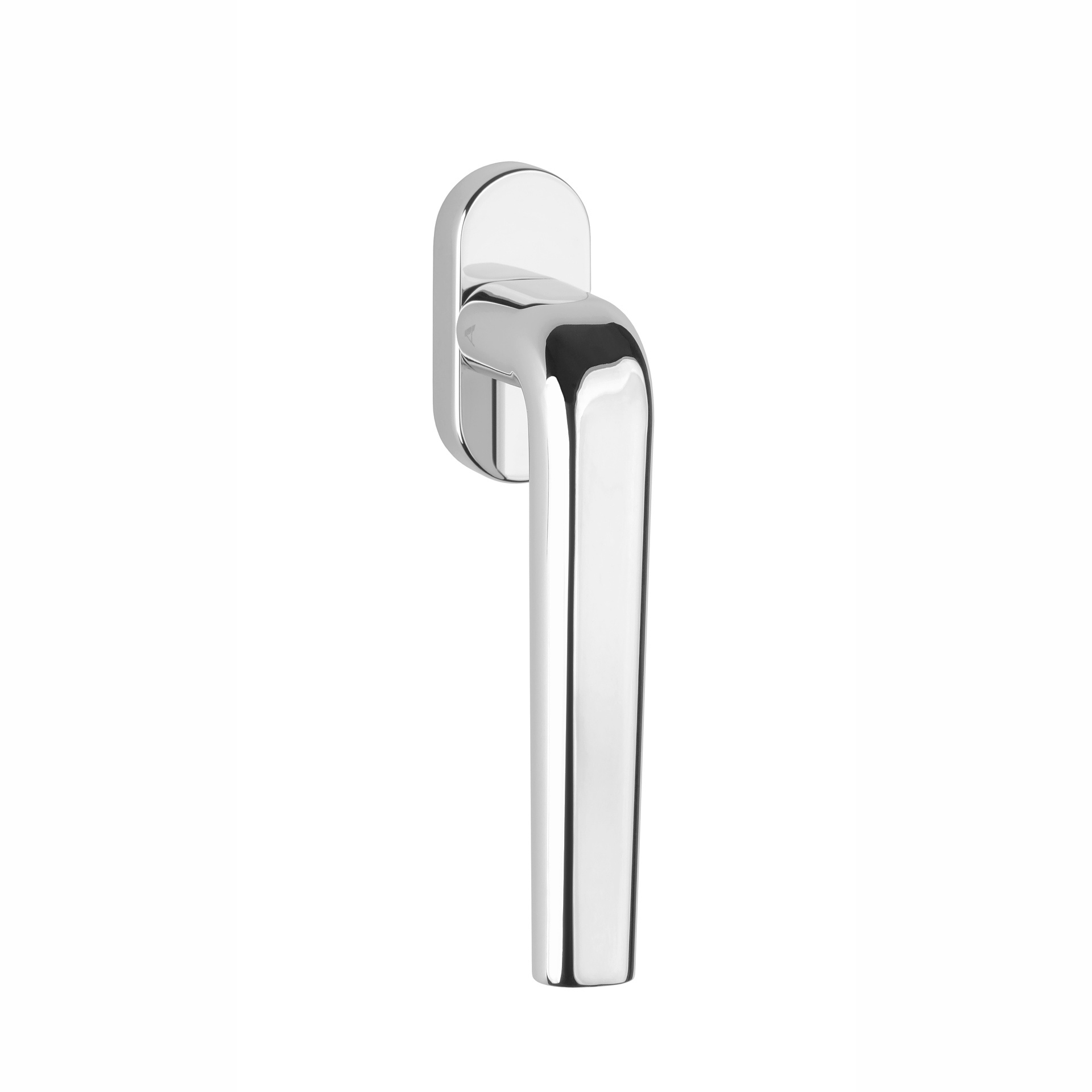

Chrome polished Aprile window handle INULA on an oval rosette with a flared handle
Article code: AT O INULA R CP-L
The chrome-polished window handle INULA in turn-tilt version has a flared L-shaped handle with a curved angle of 90°.
The window handle consists of solid zamac finished with a shiny chrome polished coating.

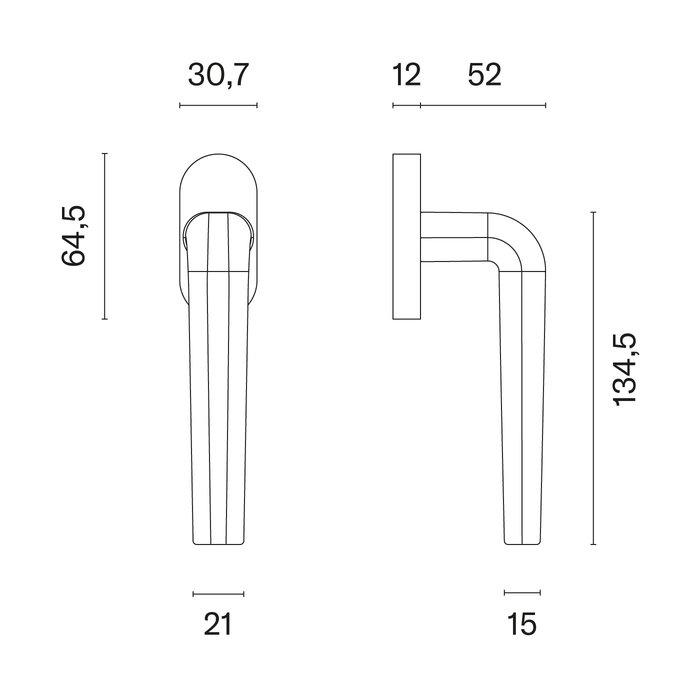

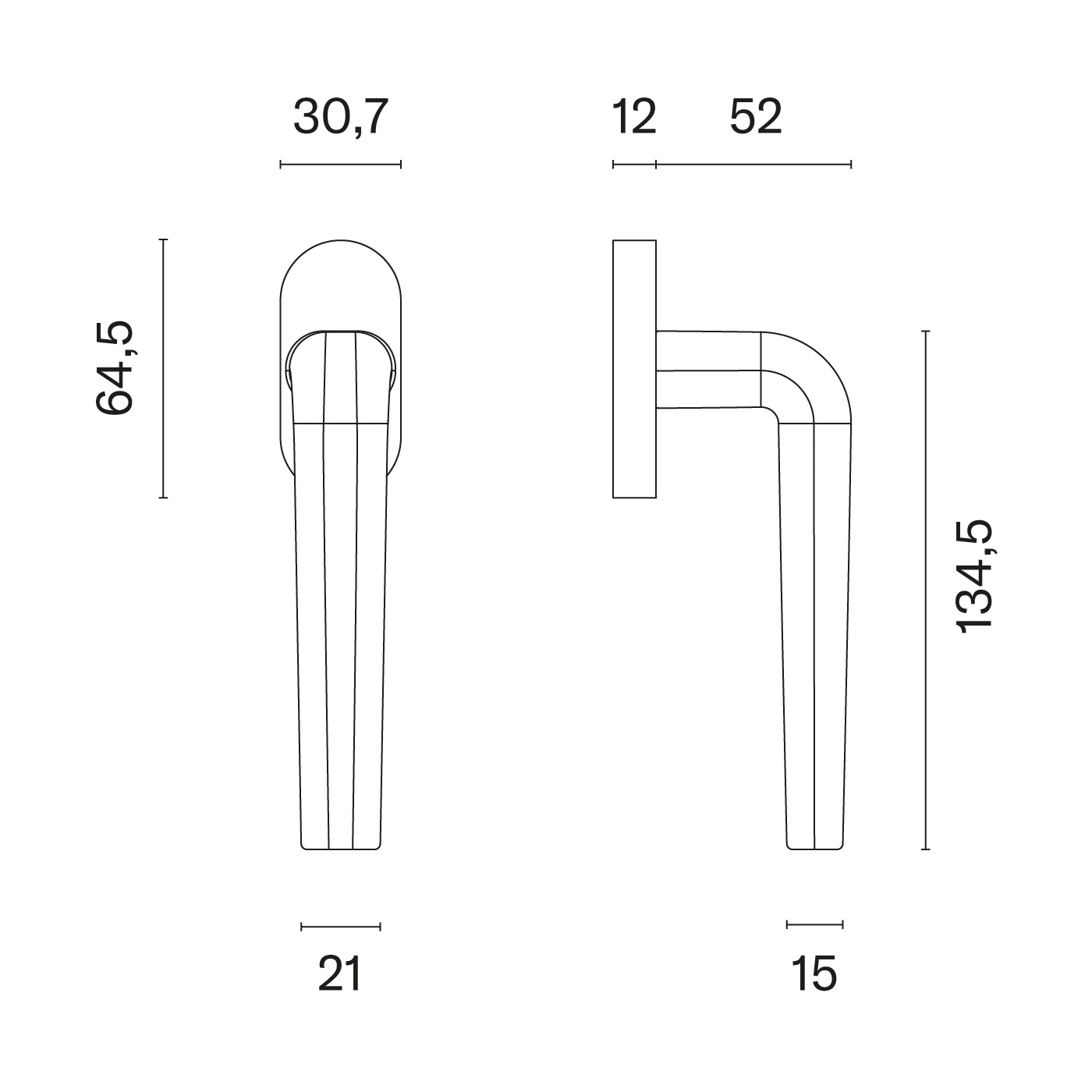

The handle, which is 21 mm wide and ends in a thickness of 15 mm, stands on an oval rosette of 64.5x30.7 mm.
The solid window handle with the Aprile logo is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine these window handles with the matching Aprile door handles and you have a beautiful interior in the same style.
base | solid zamac |
performance | turn-tilt function |
colour | Chrome polished |
dimensions rosette | 64.5x30.7x12mm |
depth | 64mm |
drilling distance | 43mm |
marker | 7x7x35mm |
handle width | 21mm |
mounting material | 2 bolts M5 x 40 mm included |
