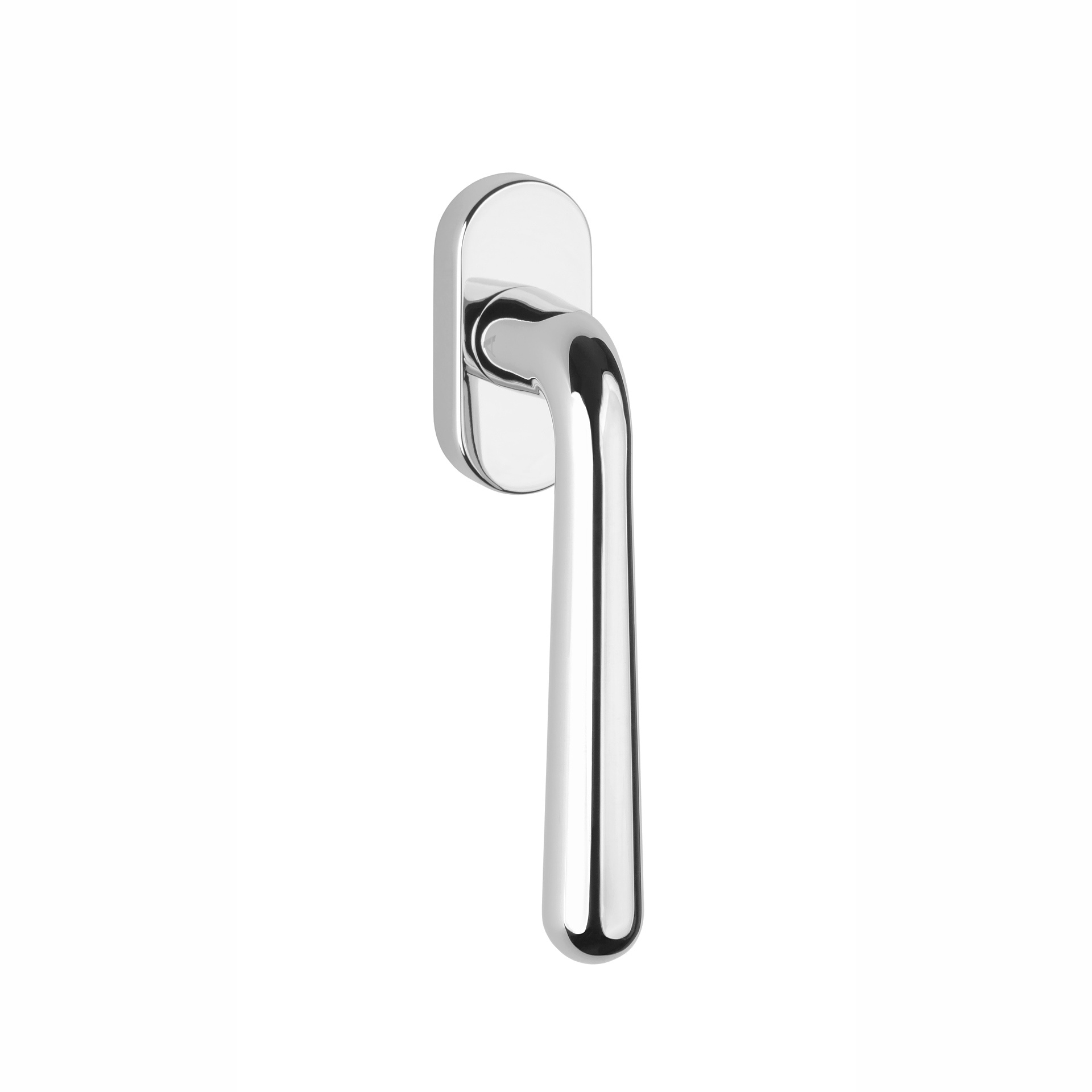

The chrome-polished window handle IRGA in turn-tilt version has an L-shaped handle with a curved angle of 90°.
The window handle consists of solid zamac finished with a shiny chrome polished coating.

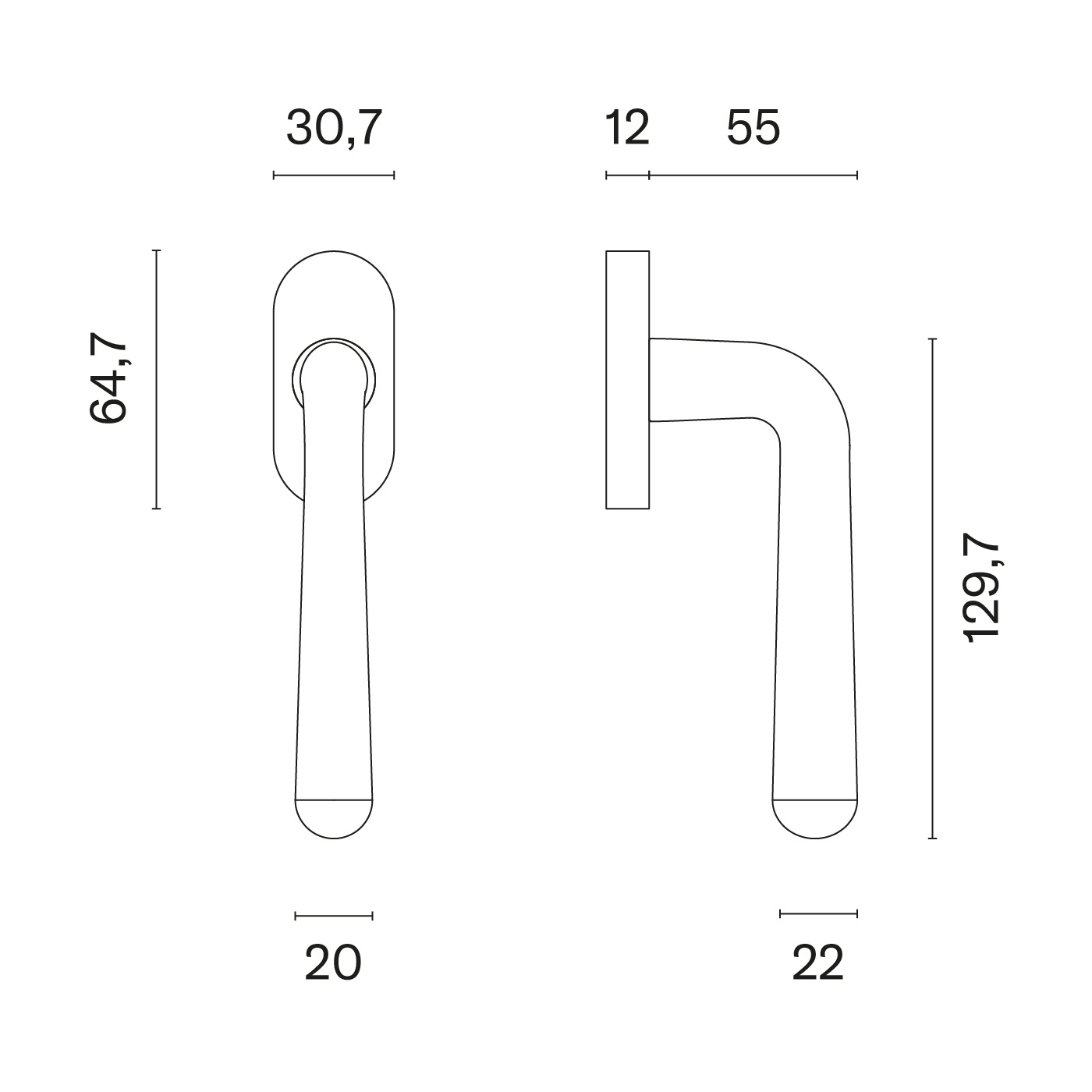

The pear-shaped handle has a Ø of 22 mm and stands on an oval rosette of 64.7x30.7 mm.
The solid window handle with the Aprile logo is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine these window handles with the matching Aprile door handles and you have a beautiful interior in the same style.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the position of the Aprile logo.
With a left window handle the Aprile logo is on the left, with a right window handle the Aprile logo is on the right.
base | solid zamac |
performance | turn-tilt function |
colour | Chrome polished |
dimensions rosette | 64.7x30.7x12mm |
depth | 67mm |
drilling distance | 43mm |
marker | 7x7x35mm |
thickness handle | diameter 22mm |
mounting material | 2 bolts M5 x 40 mm included |
