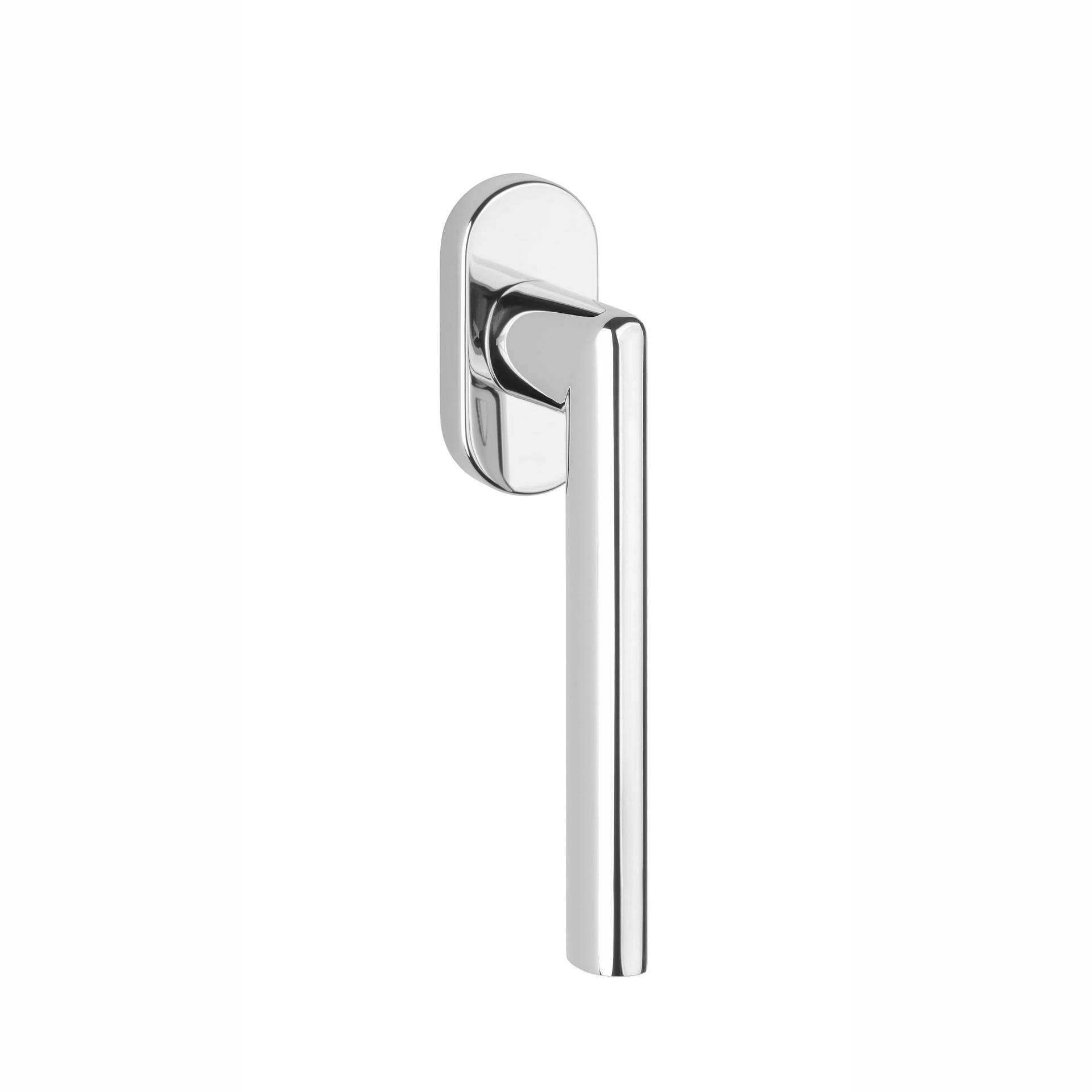

The chrome-polished window handle KALMIA in turn-tilt version has a flat rounded L-shaped handle with a curved angle of 90°.
The window handle consists of solid zamac finished with a shiny chrome polished coating.

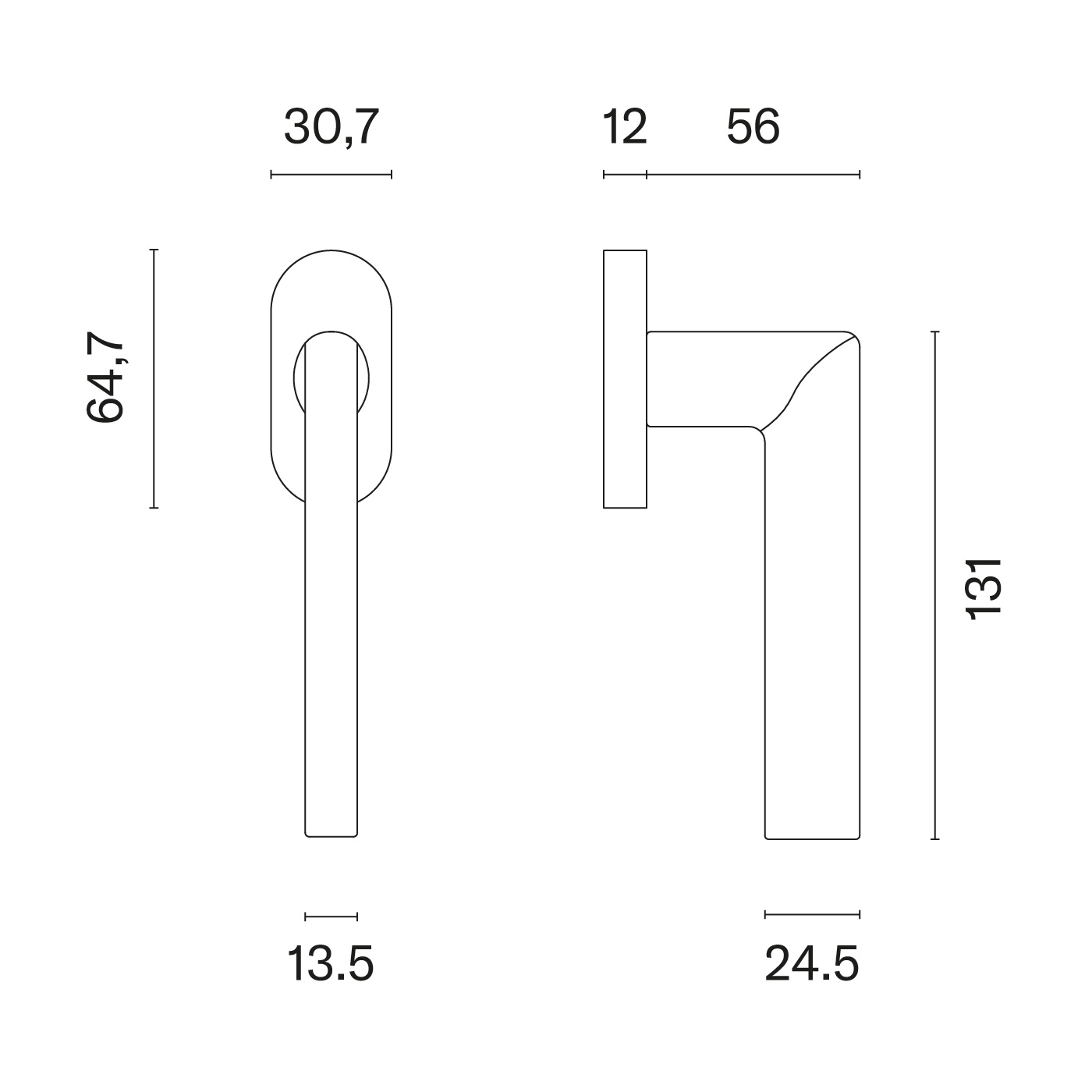

The handle, which is 24.5x13.5 mm wide, stands on an oval rosette of 64.7x30.7 mm.
The solid window handle with the Aprile logo is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combining these window handles with the matching door handles from Aprile will ensure the interior of your dreams.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the position of the Aprile logo.
With a left window handle the Aprile logo is on the left, with a right window handle the Aprile logo is on the right.
base | solid zamak |
performance | turn-tilt function |
colour | Chrome polished |
dimensions rosette | 64.7x30.7x12mm |
depth | 68mm |
drilling distance | 43mm |
marker | 7x7x35mm |
handle dimensions | 24.5x13.5mm |
mounting material | 2 bolts M5 x 40 mm included |
