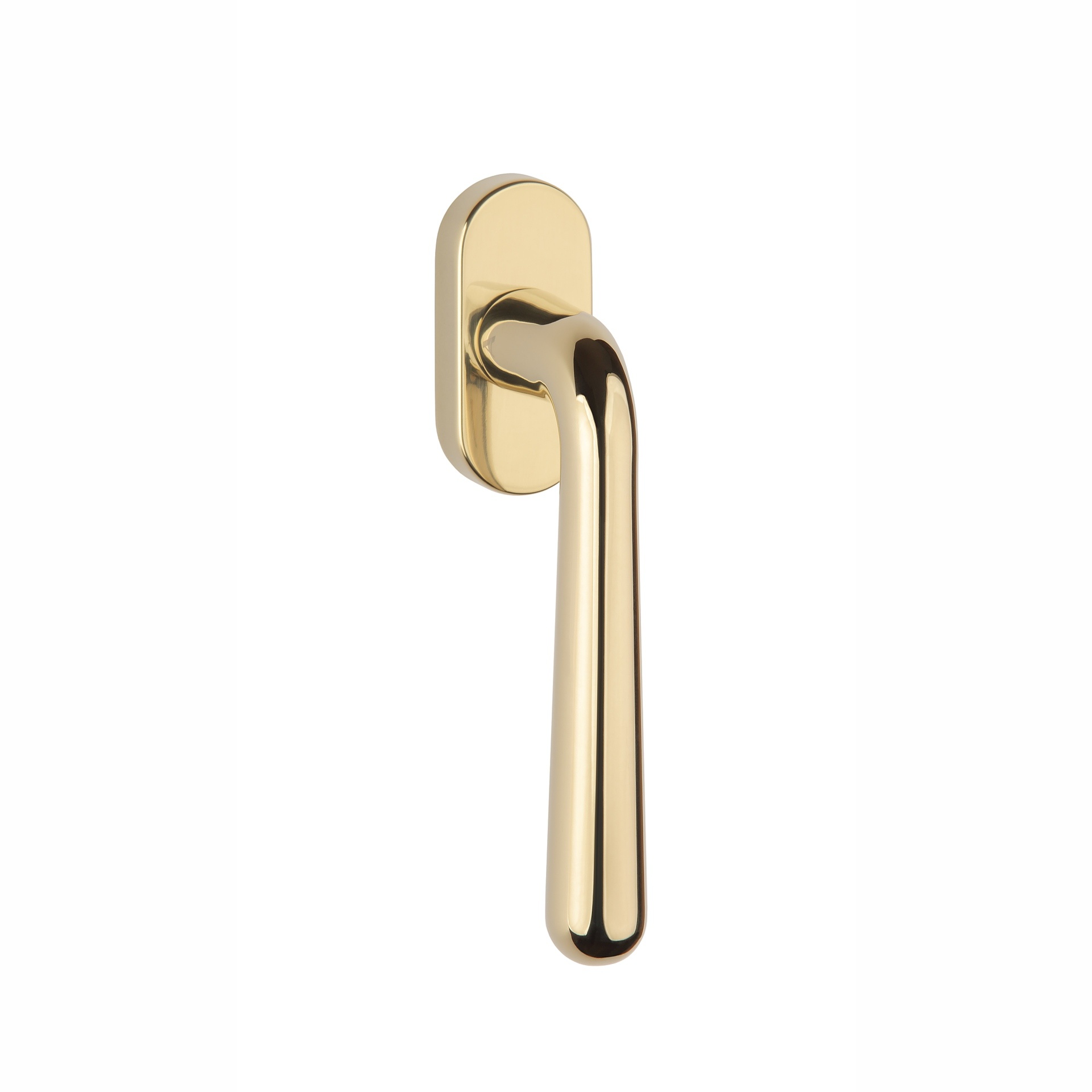

The Gold PVD window handle IRGA in turn-tilt version has an L-shaped handle with a beautiful curved angle of 90°.
The window handle consists of solid zamak finished with a strong glossy gold PVD coating.

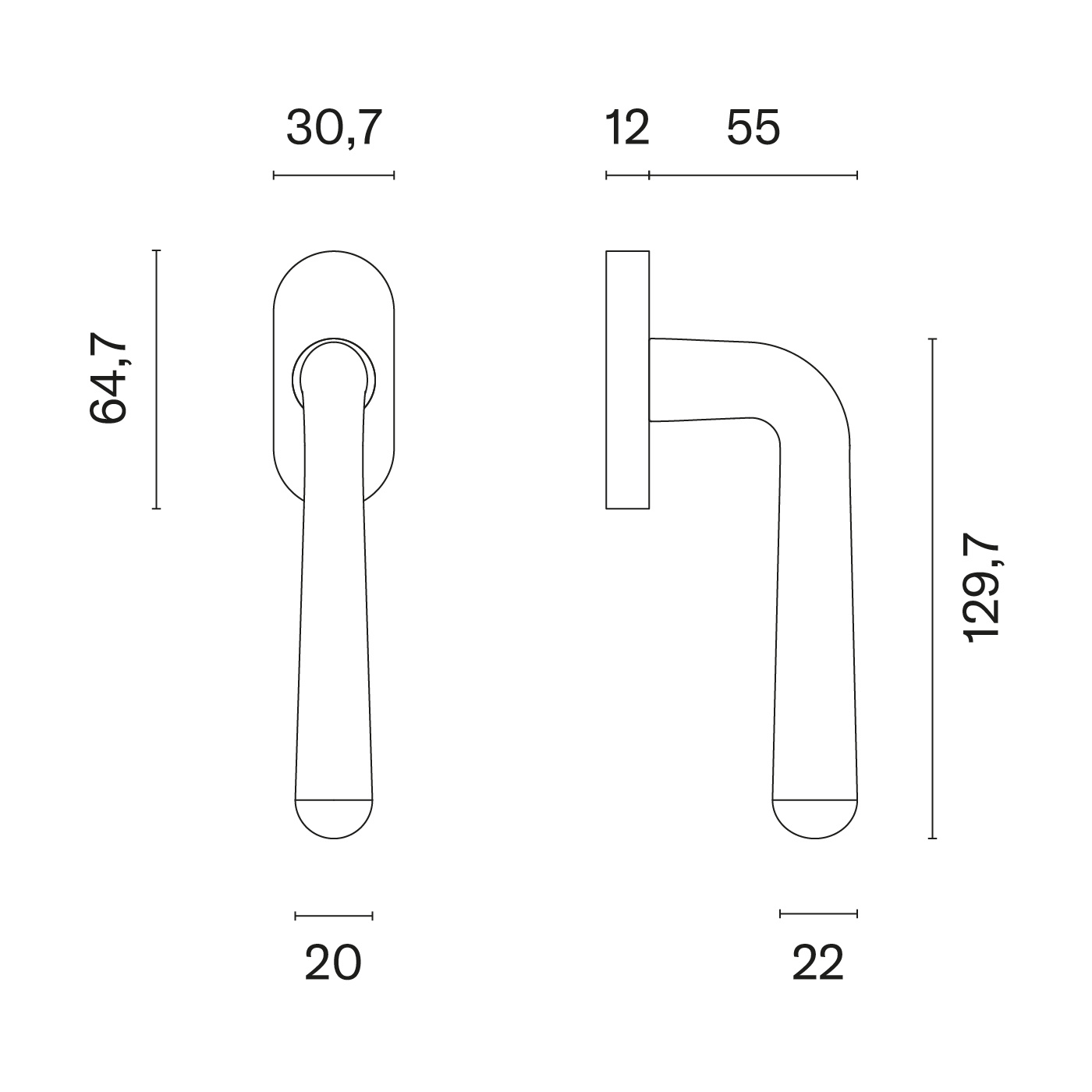

This pear-shaped handle has a Ø of 22 mm and stands on an oval rosette of 64.7x30.7 mm.
The solid window handle with the Aprile logo is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
With these modern design window handles you can finish your interior perfectly in style.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the position of the Aprile logo.
With a left window handle the Aprile logo is on the left, with a right window handle the Aprile logo is on the right.
base | solid zamac |
performance | turn-tilt function |
colour | gold PVD (glossy) |
dimensions rosette | 64.7x30.7x12mm |
depth | 67mm |
drilling distance | 43mm |
marker | 7x7x35mm |
handle dimensions | diameter 22mm |
mounting material | 2 bolts M5 x 40 mm included |
