Description

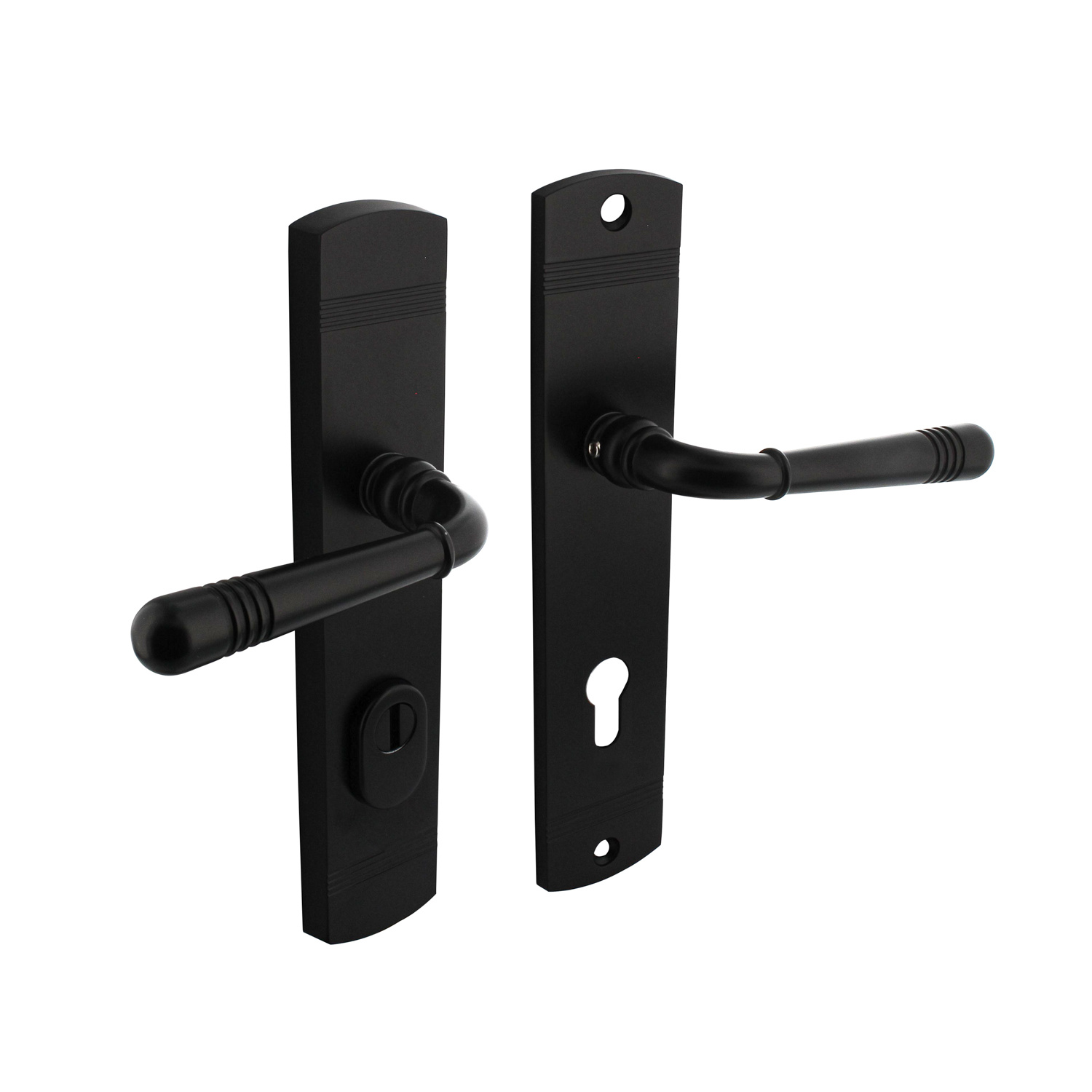

Intersteel back door fitting 'Helena' on plate with an axle size of 72 mm or 92 mm in matt black - handle/handle
Article code: 0023.377736

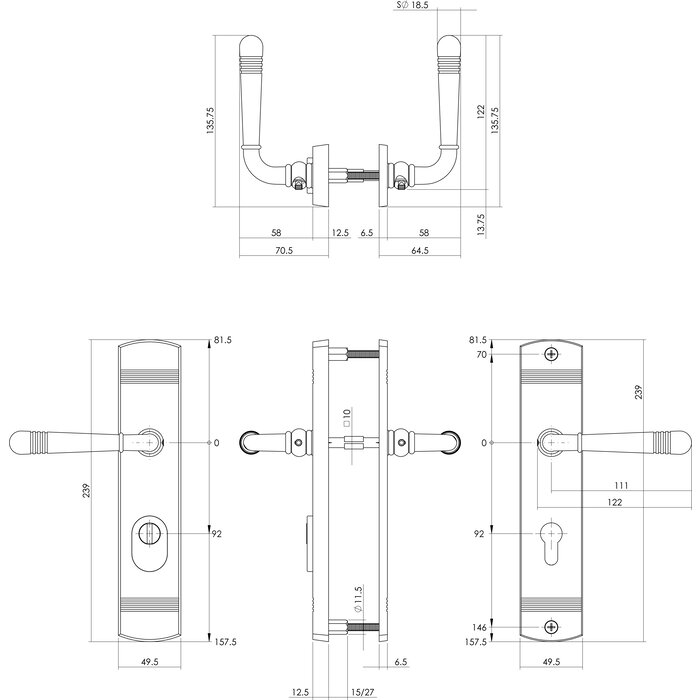

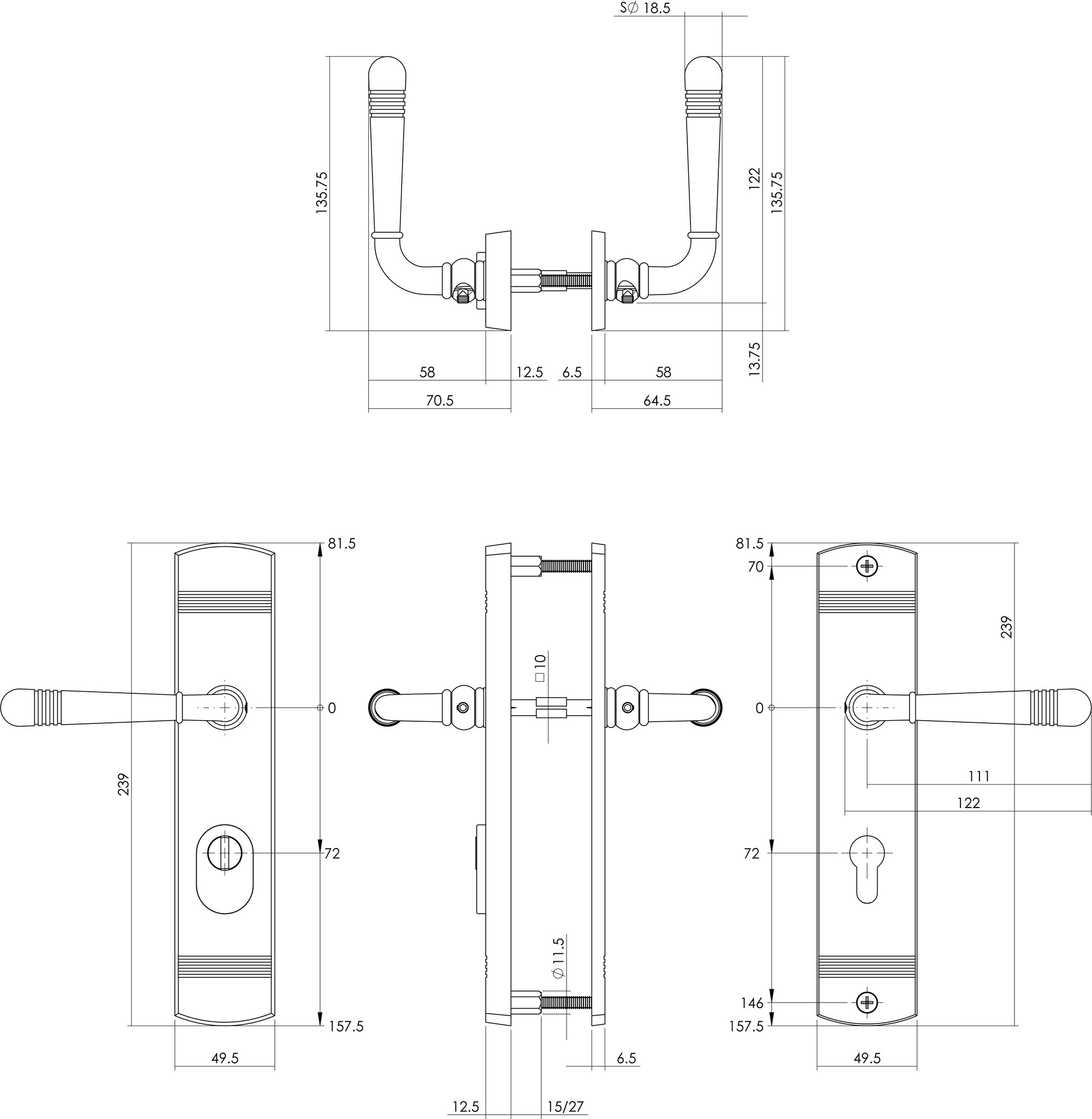

With this set of back door fittings "Helena" you have a handle both inside and outside. The outside shield is 239x49.5x12.5 mm. The inside shield is 239x49.5x6.5 mm. The set is made of Zamak with an extra strong matt black finish coating.
This back door fitting is equipped with core pull protection to prevent drilling and pulling out the cylinder lock. The axle dimension of the cylinder is 72 mm.
The advantage of door fittings on a shield is often that they neatly cover the holes that are already in the door from the previous fitting.
The matt black set is supplied per pair including the necessary mounting materials and pin of 8X8mm. The screw holes are already provided in the inner shield.
This matt black composition is available with an axle size of 72mm or 92mm. Make your choice in the scroll menu at the top right.
Features:
Suitable for door thickness: | 38-90mm |
Cylinder overhang | Min. 12mm - Max. 15.5mm |
cylinder hole size | 72-92 mm |
