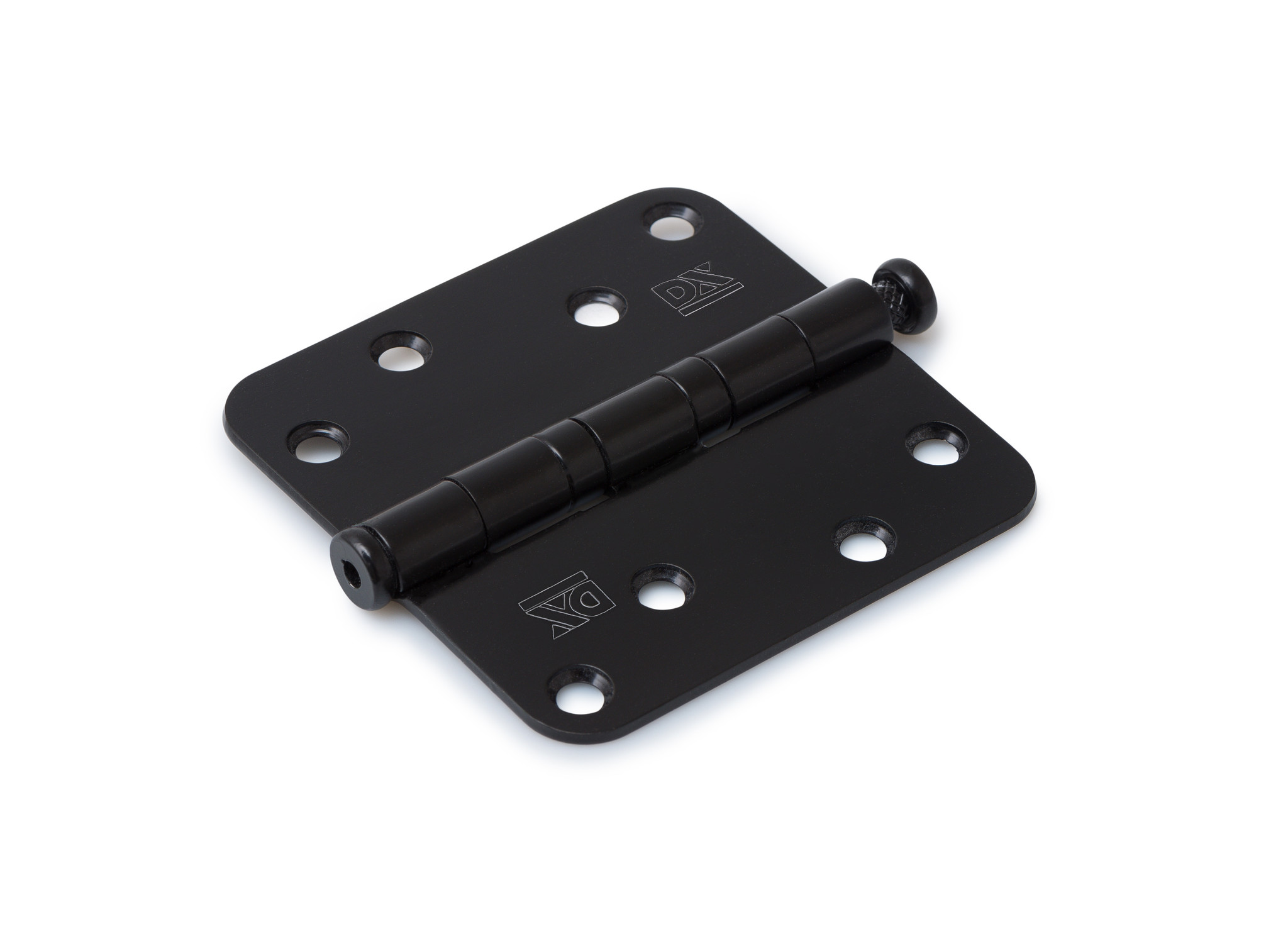

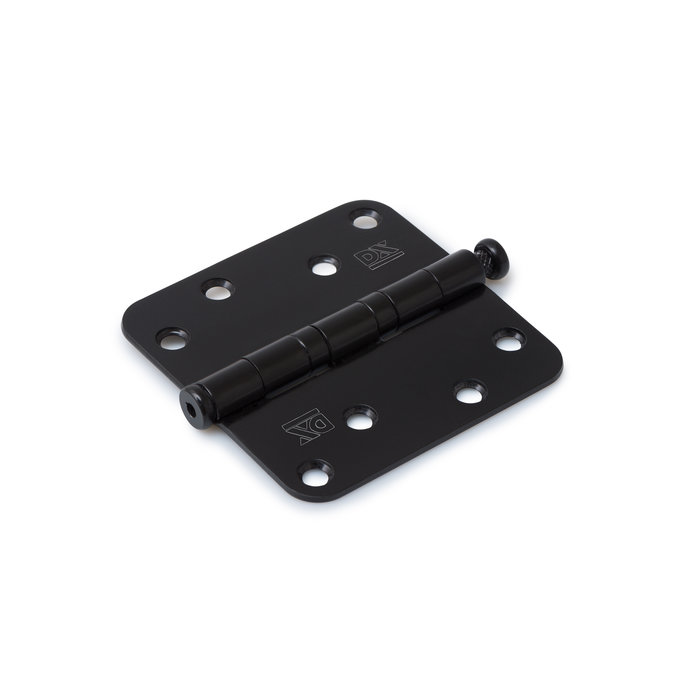

This Black stainless steel ball bearing hinge DX CE marked is suitable for interior and exterior doors. Before these hinges are provided with a black finish, they are first brushed to give them an elegant appearance.
The hinge has rounded corners, making them very suitable for machining with a milling cutter. The loose pin of this hinge has a serrated edge so that the pin does not creep upwards. There is also a hole in the pen that allows quick disassembly if you are going to paint BV. You can easily tap the top pin up through this hole.
To ensure proper functioning of the hinge, it is recommended to lubricate the bearings annually with a silicone-based spray or ball bearing grease.
This hinge is supplied per piece excluding mounting material .
Material | stainless steel |
Finish | Brushed stainless steel, black lacquered |
Pin version | Ball bearing knurled pin |
Finishing corner | Round corners |
Recommended Micrometer | 4.5 x 40mm (not included) |
Certification | CE |

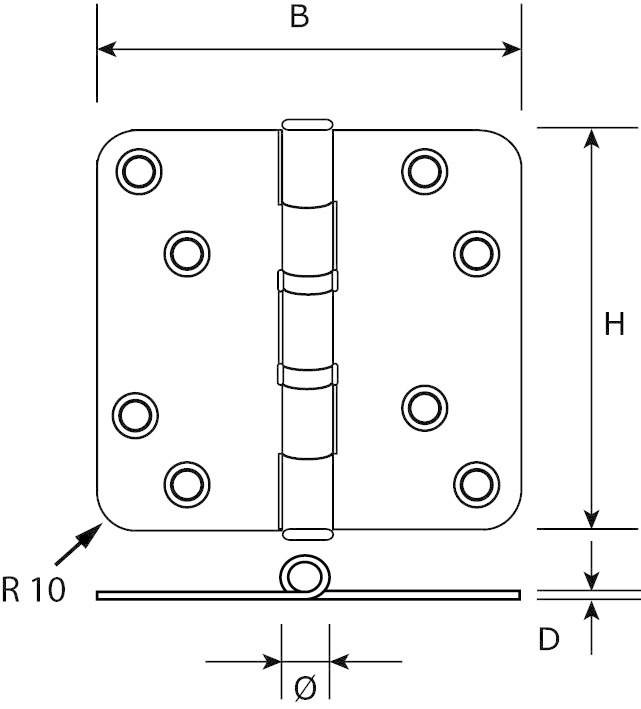

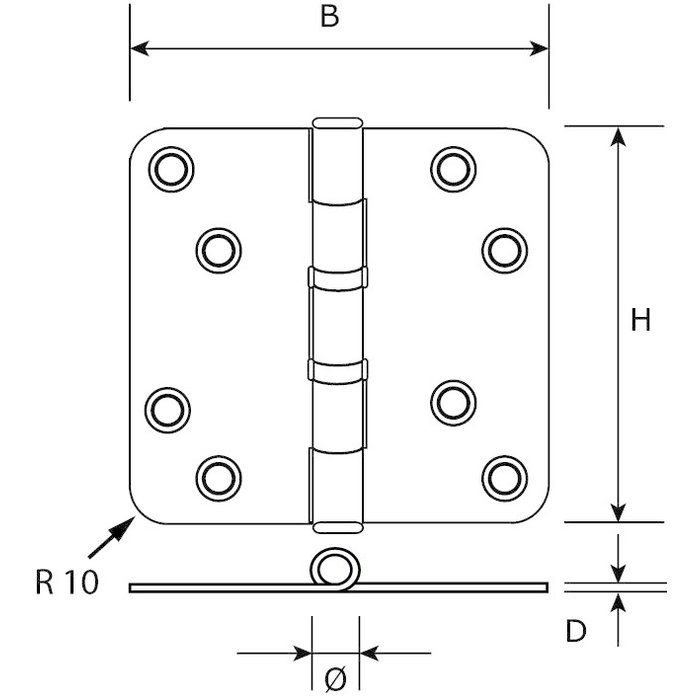

H (mm) |
89 |
B (mm) |
89 |
D (mm) |
2.4 |
Ø (mm) |
12 |
Load capacity per 3 (Kg) | 70 |
Load capacity per 4 (Kg) | 80 |
