Description

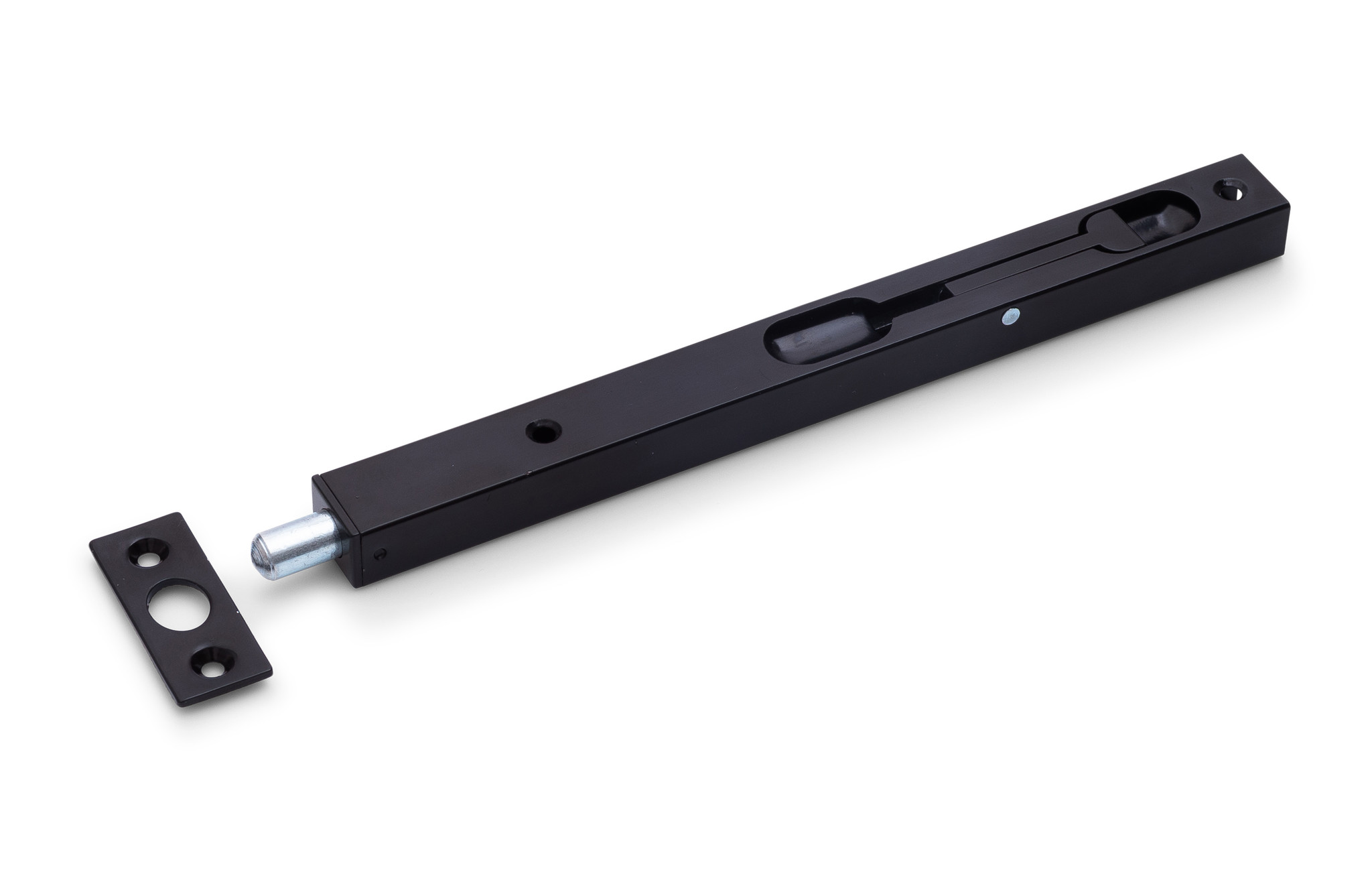

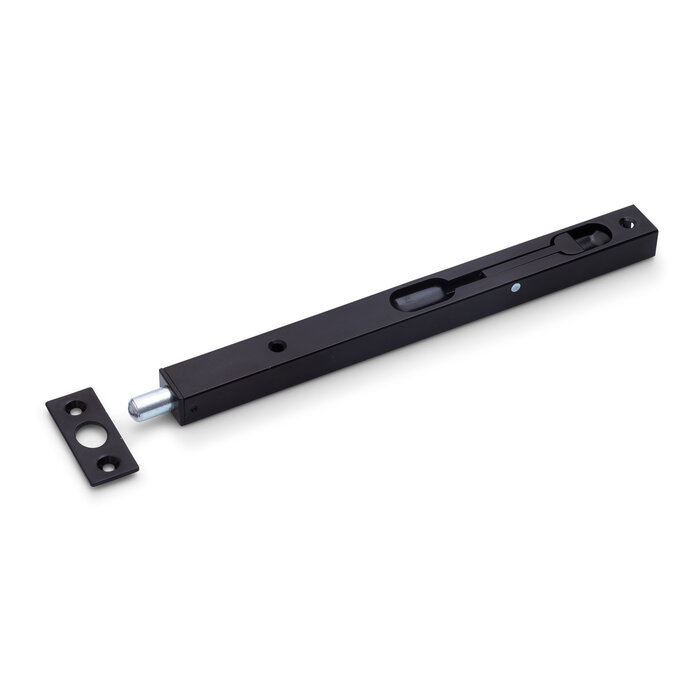

Four-sided closed black bascule side slide of 400 x 20 x 15 mm, type 816
Article code: DS0602.947.4026
With a double door it is easy if you can secure one side. This can easily be done with a bascule side scraper. A bascule side slide works with a lever mechanism that blocks the bolt.
This black steel bascule edge slide is supplied per piece including closing plate, but excluding mounting material.
Material | Steel |
Finish | Painted black |
Performance | 4-sided closed tube |
accessories | Closing plate (included) |

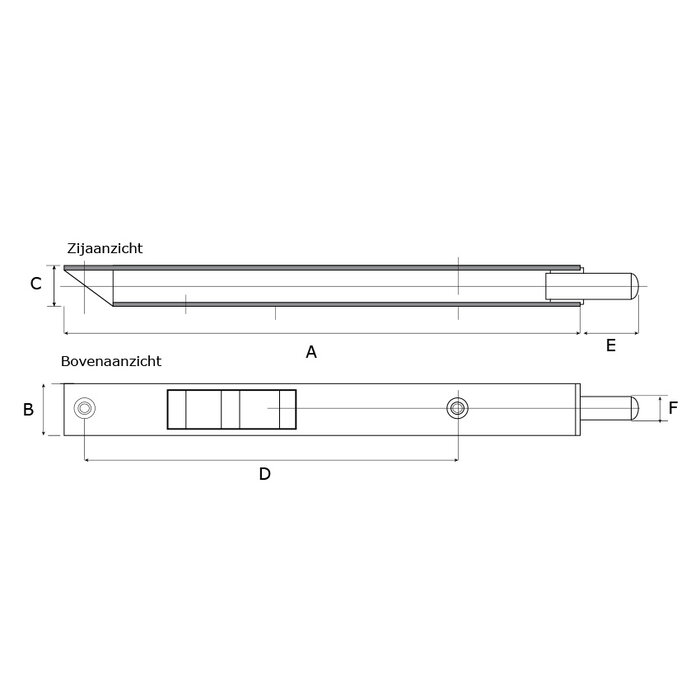

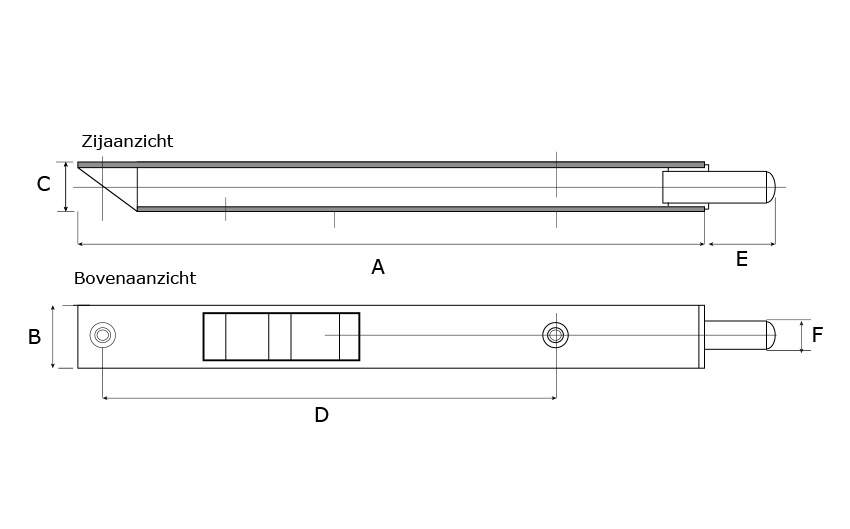

A (mm) |
400 |
B (mm) |
20 |
C (mm) |
15 |
D (mm) |
338 |
E (mm) |
16 |
F (mm) |
10 |
