Description

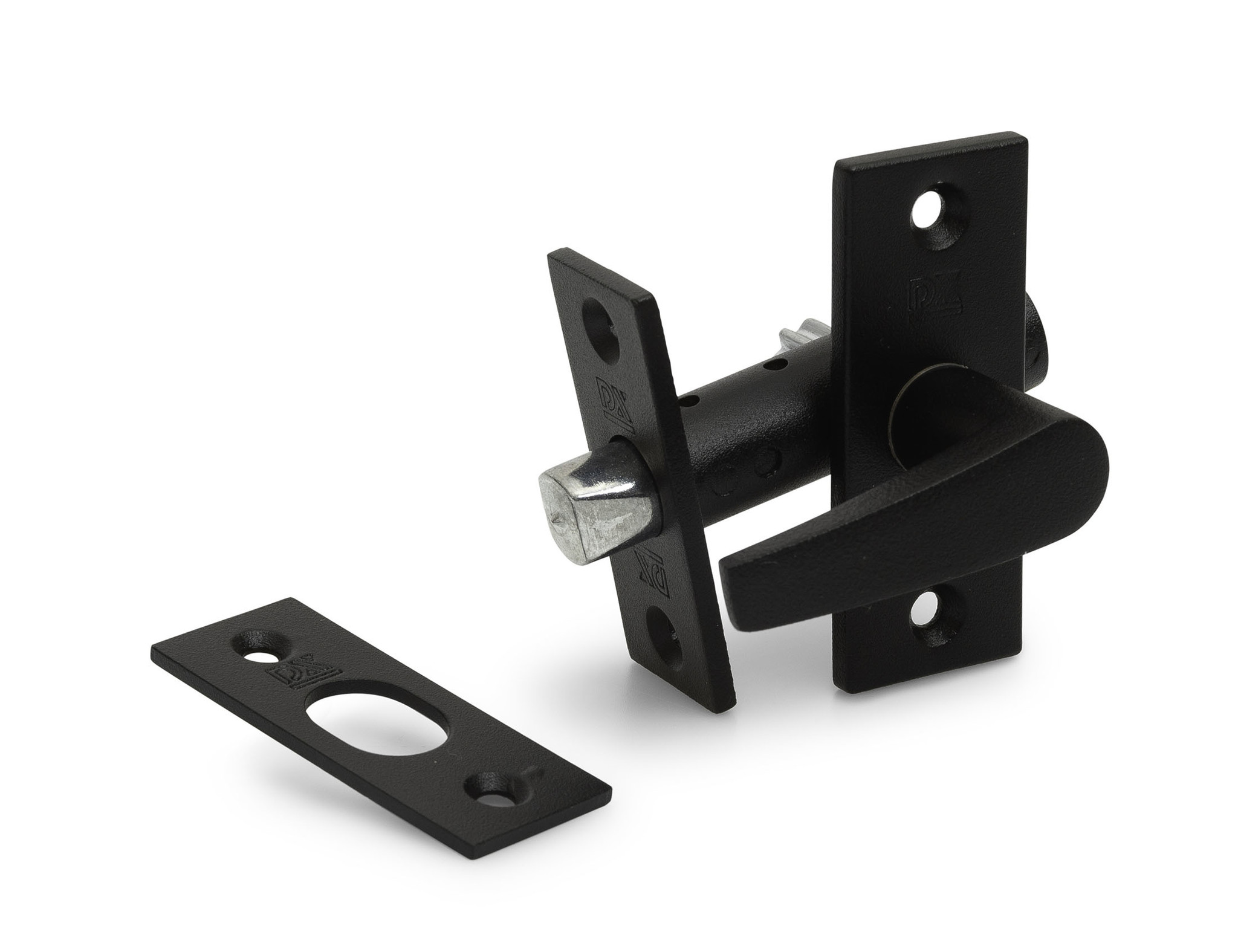

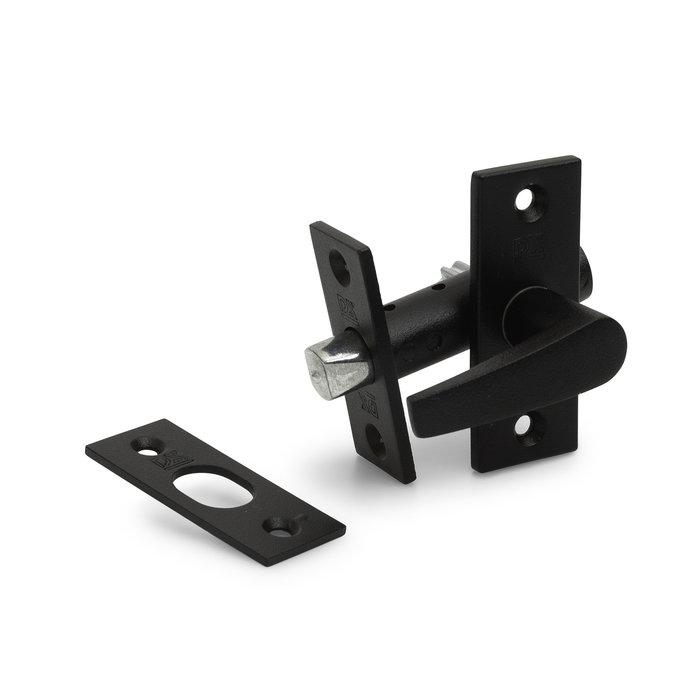

Black mortise bolt with striker plate length 70 mm for locking a window or door
Article code: DS0160.104.0500
Mortise bolts are used for locking windows and doors.
Due to its common dimensions, these black mortise bolts can be used for both renovation and new construction projects and on both inward and outward opening windows and doors.
Material | Zamac |
Finish | Black |
Lockout | cut |
Diameter (mm) | 18 |
School result (mm) | 13 |
Spindle length (mm) | 25 |
Fixing material | Included |
accessories | Strike plate (included) |
Application | Windows and exterior doors |

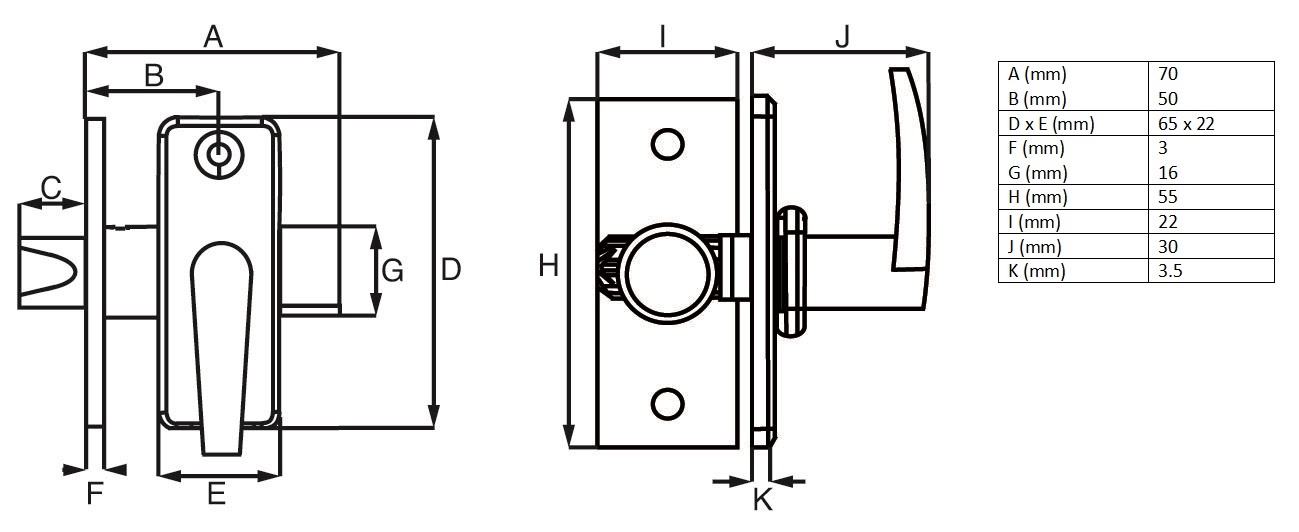

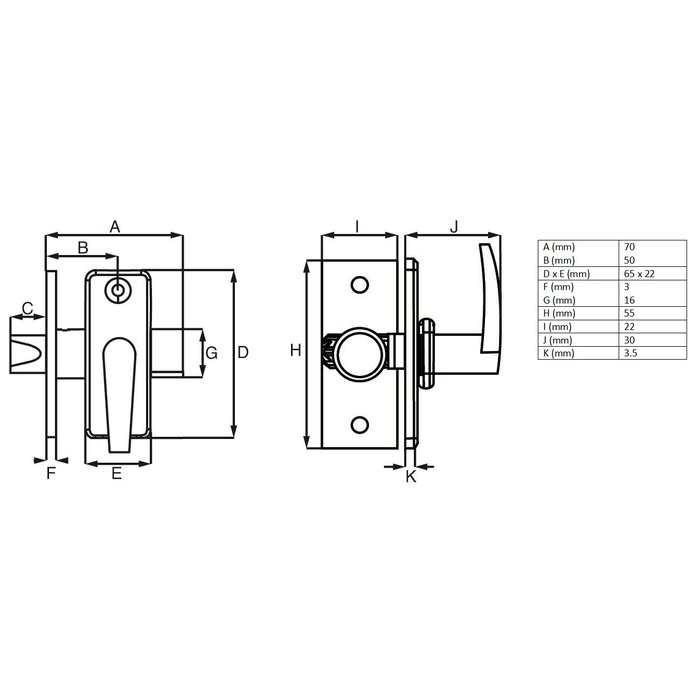

A (mm) |
70 |
B (mm) |
50 |
D x E (mm) |
65 x 22 |
F (mm) |
3 |
G (mm) |
16 |
H (mm) |
55 |
I (mm) |
22 |
J (mm) |
30 |
K (mm) |
3.5 |
