Description

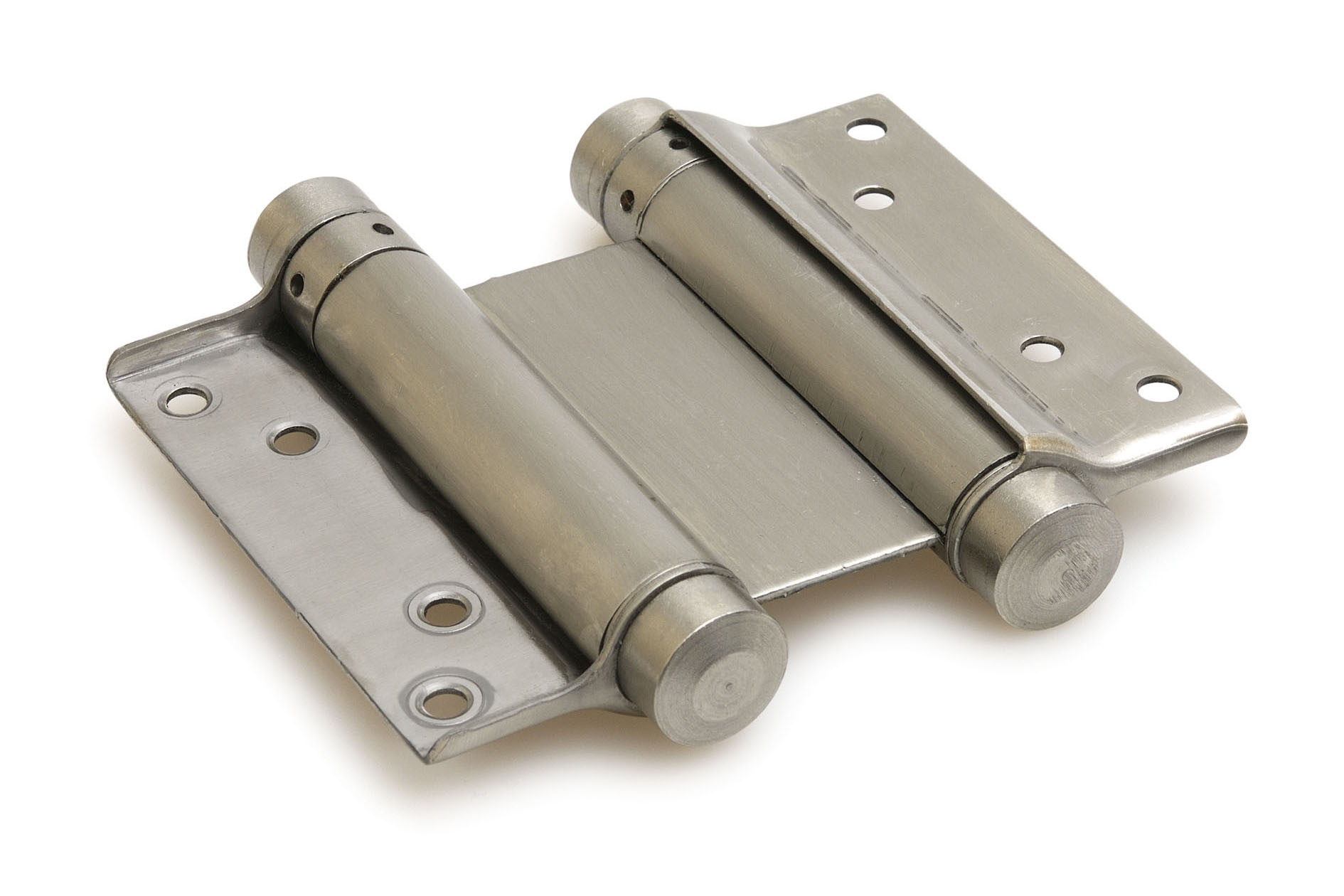

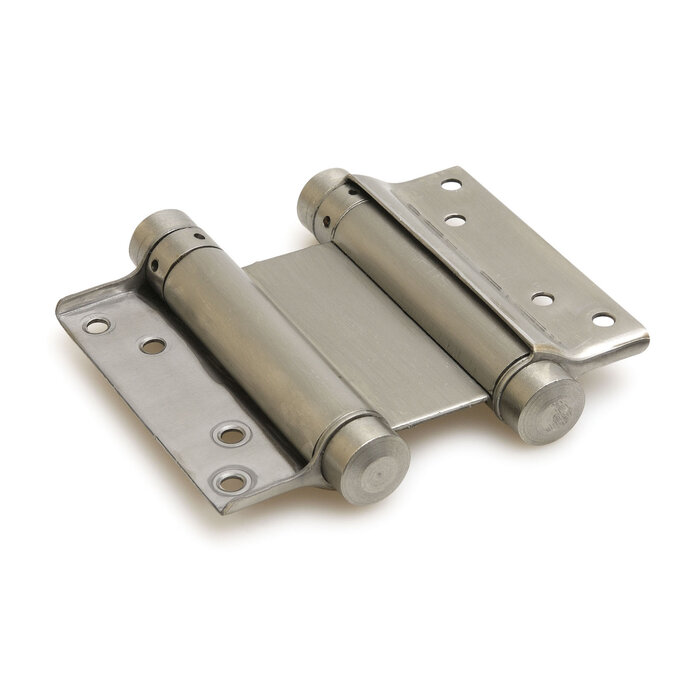

Nickel-plated steel double-acting Bommer hinges 33-125 mm with countersunk screw holes
Article code: DS0535.125.0200-2
The Bommer hinge owes its name to the American lockmaker Bommer who invented this type of hinge.
These double-acting hinges are mainly used in passageways where there is a lot of foot traffic. We are mainly thinking of the catering industry or hospitals where swing doors are often installed.
This Bommer hinge has a built-in spring so that the door closes automatically after you open it. It is recommended to spray the spring mechanism before use with IBFM spray that you can find with the related products.
These bomber hinges are supplied per 2 pieces excluding mounting material .
Performance | Double acting |
Material | Steel |
Finish | Nickel plated |
Screw holes | Recessed |
Application | Wooden swing doors |

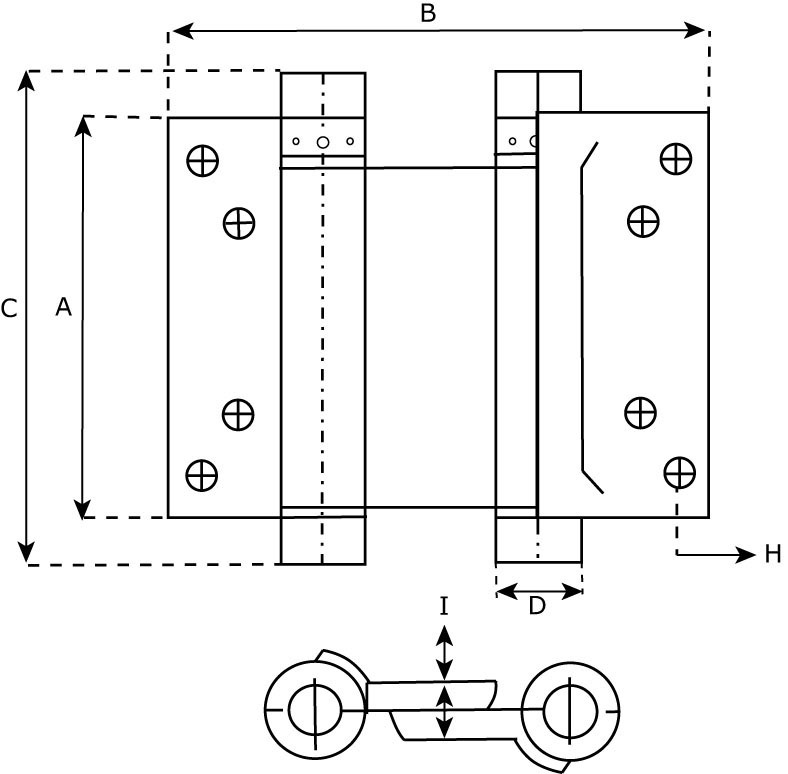

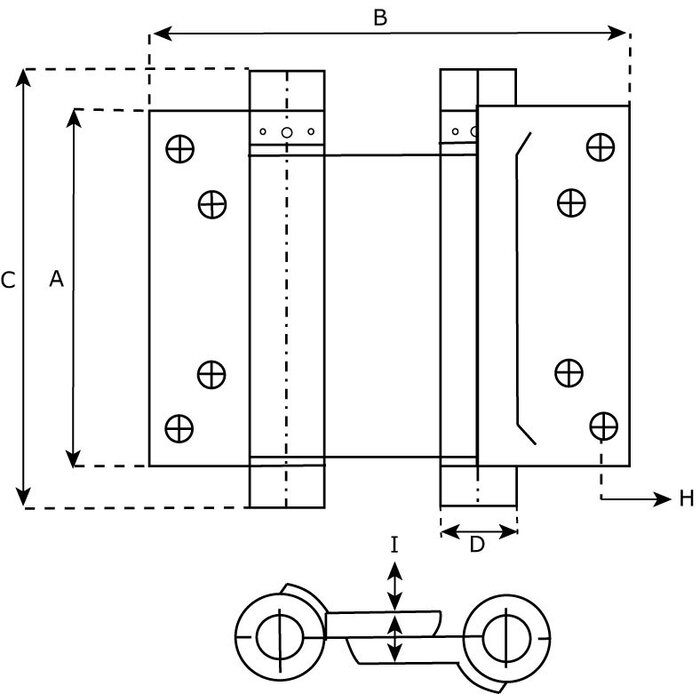

A (mm) |
125 |
B (mm) |
161 |
C (mm) |
147 |
D (mm) |
21 |
H Ø (mm) |
5.5 |
I (mm) |
13 |
Door width(mm) | 700 |
Door thickness (mm) | 30-35 |
Load capacity per 2 (kg) | 27 |
