Description

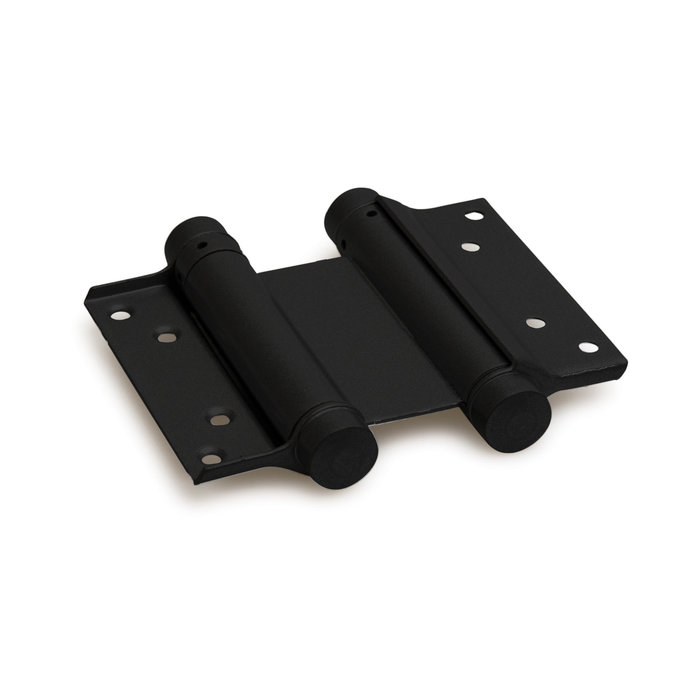

Black painted steel double-acting bomber hinges 30-100 mm with countersunk screw holes (2 pieces)
Article code: DS0535.100.0203-2
The Bommer hinge owes its name to the American lockmaker Bommer who invented this type of hinge.
These double-acting black painted hinges are mainly used in passageways where there is a lot of foot traffic. We are mainly thinking of the catering industry or hospitals where swing doors are often installed.
These Bommer hinges have a built-in spring so that the door closes automatically after you open it. It is recommended to spray the spring mechanism before use with IBFM spray that you can find with the related products.
These black bomber hinges are supplied in pairs , excluding mounting material .
Performance | Double acting |
Material | Steel |
Finish | Painted black |
Screw holes | Recessed |
Application | Wooden swing doors |

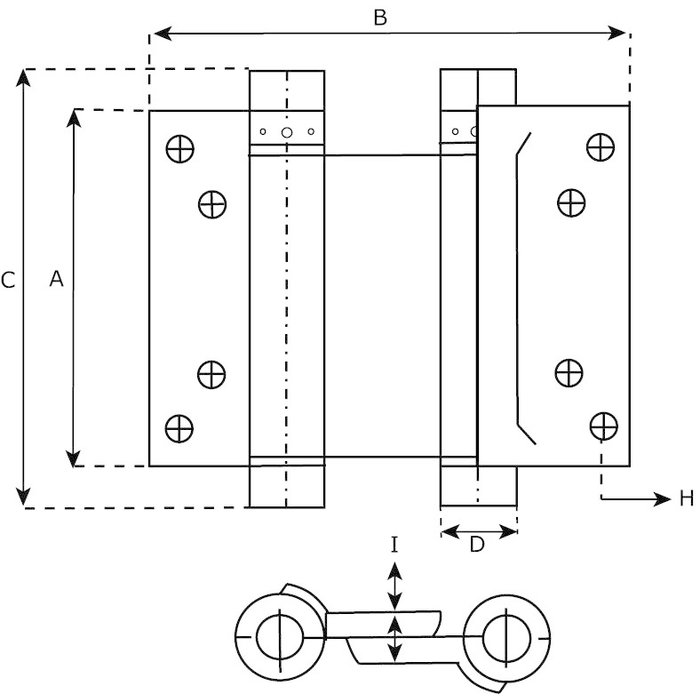

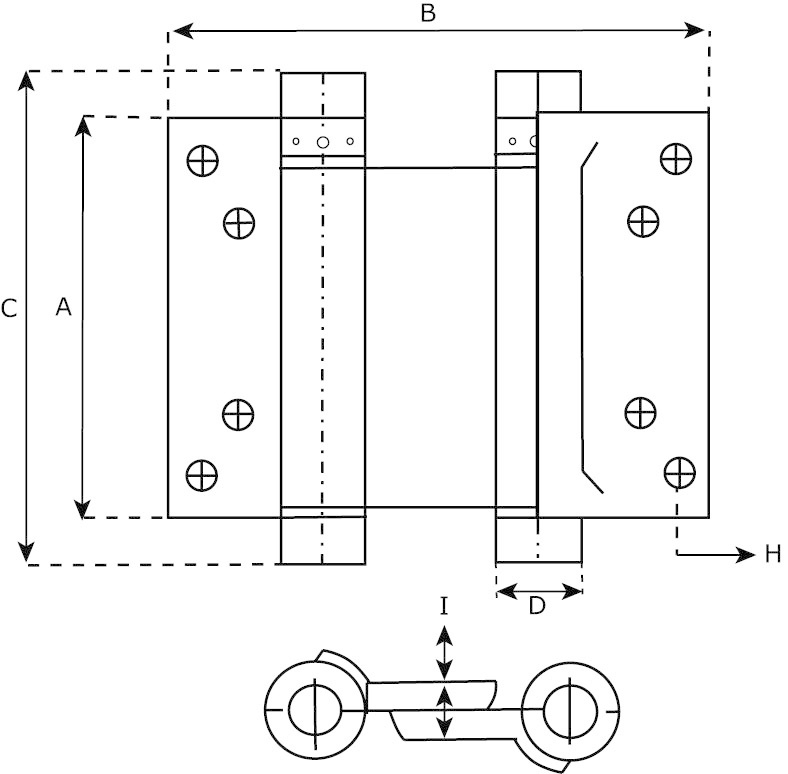

A (mm) |
100 |
B (mm) |
134 |
C (mm) |
122 |
D (mm) |
21 |
H Ø (mm) |
5.5 |
I (mm) |
13 |
Door width(mm) | 700 |
Door thickness (mm) | 25-35 |
Load capacity per 2 (kg) | 22 |
