Description

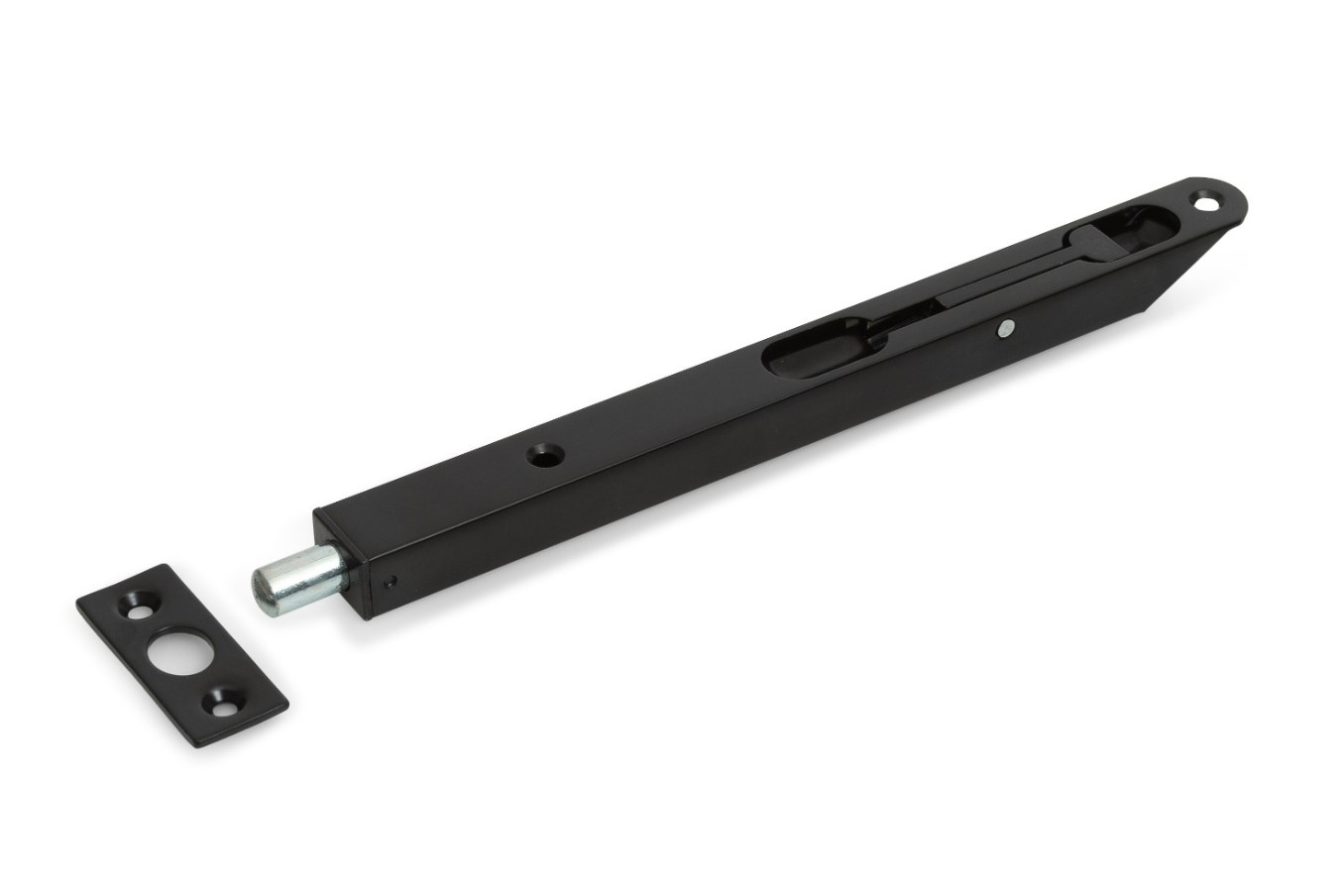

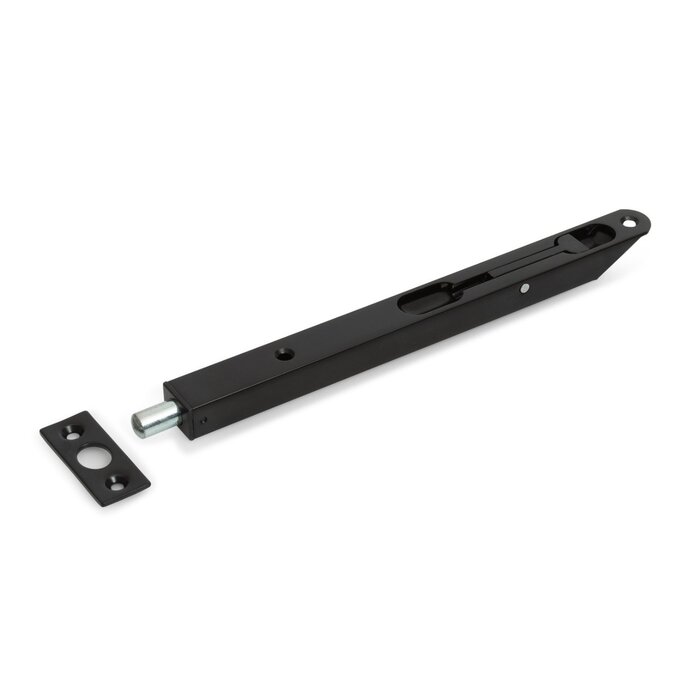

Four-sided closed black bascule edge slide 200x17x15mm type 892 beveled
Article code: DS0634.017.2006
With a double door it is easy if you can secure one side. This can easily be done with a bascule side scraper. A bascule side slide works with a lever mechanism that blocks the bolt.
This type has a round bevel at the top, which makes milling easier.
This black steel bascule edge slide is supplied per piece including closing plate, but excluding mounting material.
Material | Steel |
Finish | Painted black |
Performance | 4-sided closed tube |
accessories | Closing plate (supplied) |

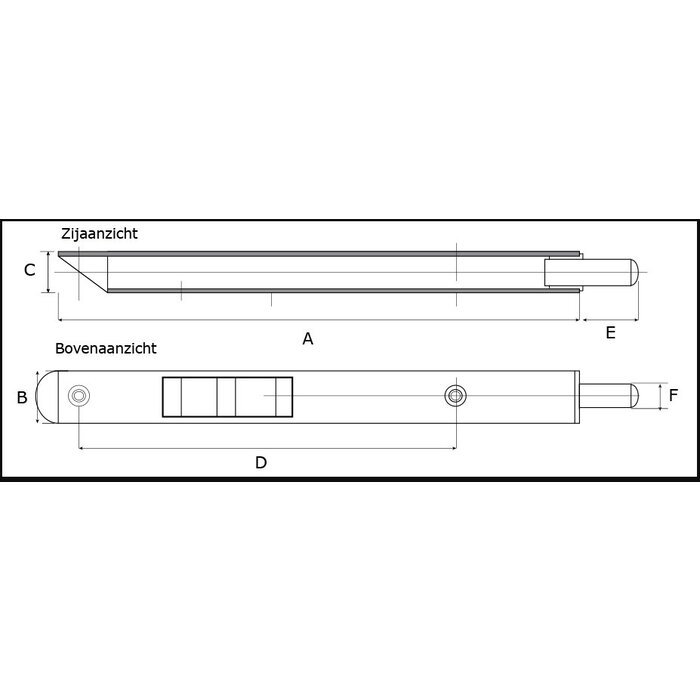

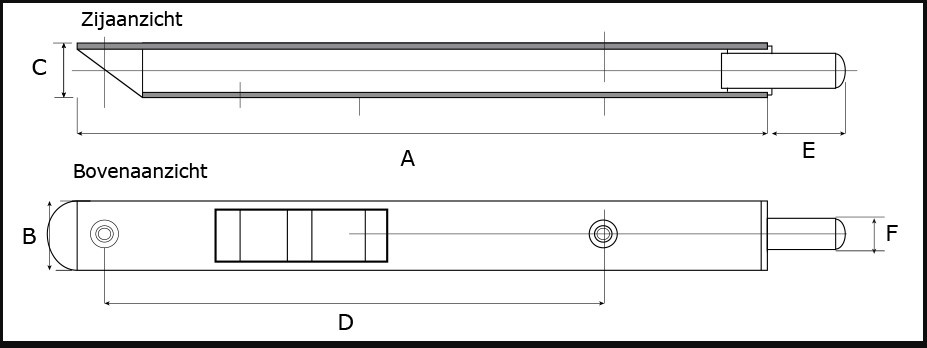

A (mm) |
200 |
B (mm) |
17 |
C (mm) |
15 |
D (mm) |
150 |
E (mm) |
16 |
F (mm) |
7.5 |
