Description

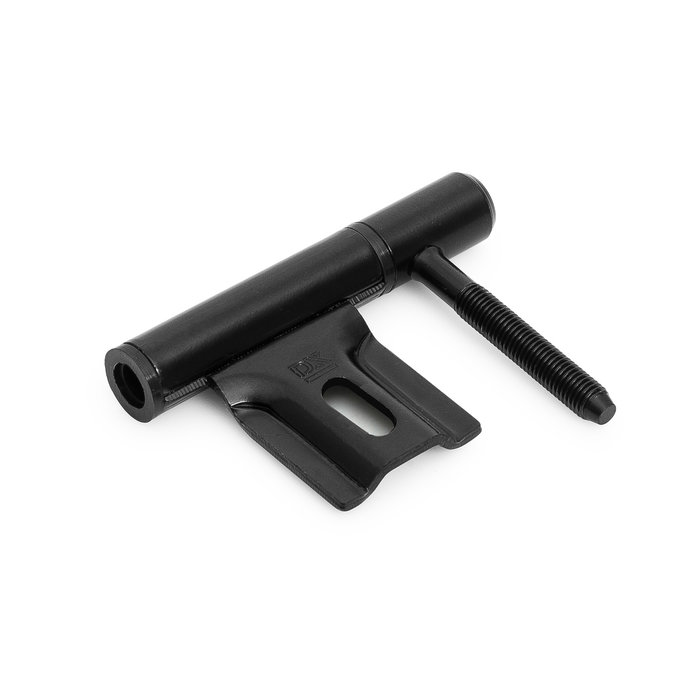

Steel black lacquered drill-in hinge 14mm for metal mounting frames with nylon ring
Article code: DS6001.481.5443

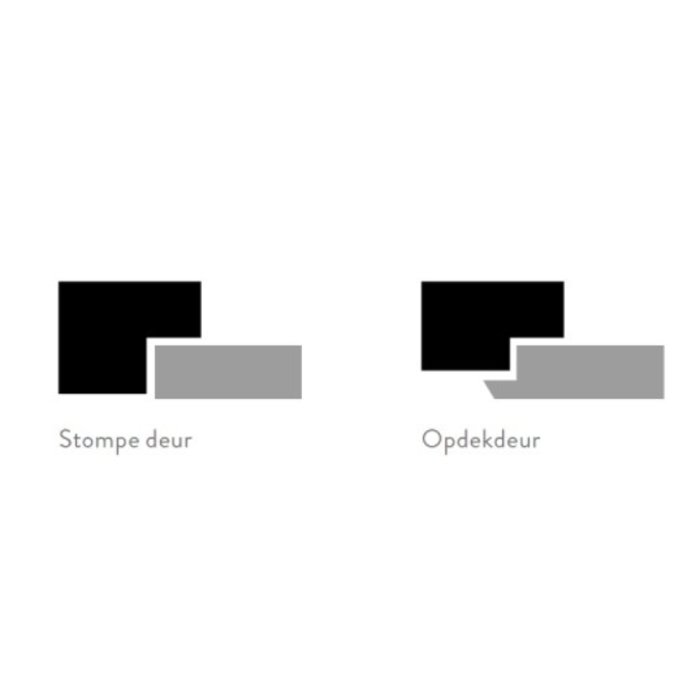

Built-in hinges are for hanging rebated doors. A rebated door falls on the frame, while a blunt door falls into the frame (see images).
This model is specially designed for hanging rebated doors in steel Theuma Solid (formerly Polynorm) in masonry frames or to replace existing hinges.
The hinges can be used on both left and right rebated rebated doors that are used indoors.
This hinge is fitted with a black nylon ring, which ensures a long-lasting and silent operation. Moreover, the Paumelle is maintenance-free.
This hinge is supplied per piece excluding mounting material .
Material | Steel |
Finish | Black lacquered |
Ring type | Nylon |
Type of frame | Steel mounting frame |
Application | for rebated doors |

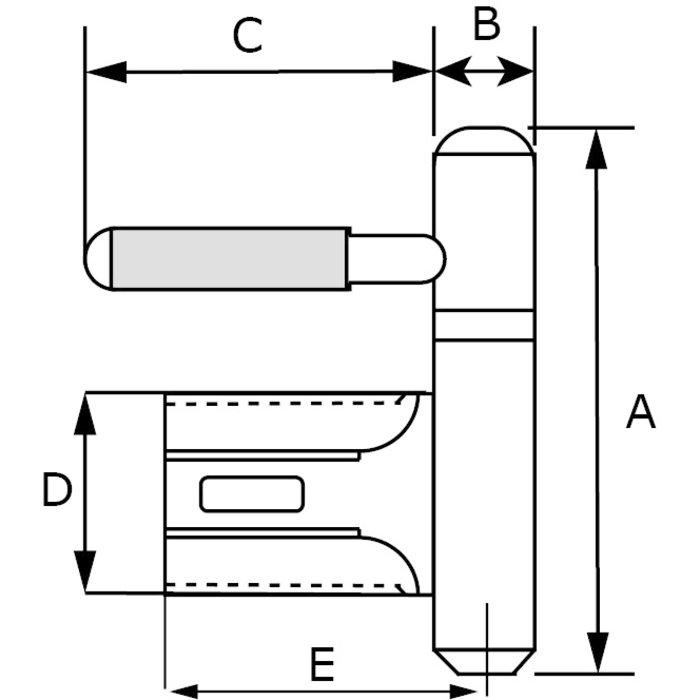

A (mm) |
78 |
B (mm) |
14 |
C (mm) |
50 |
D (mm) |
32 |
E (mm) |
45 |
Carrying capacity per piece | 20 KG |
