Description

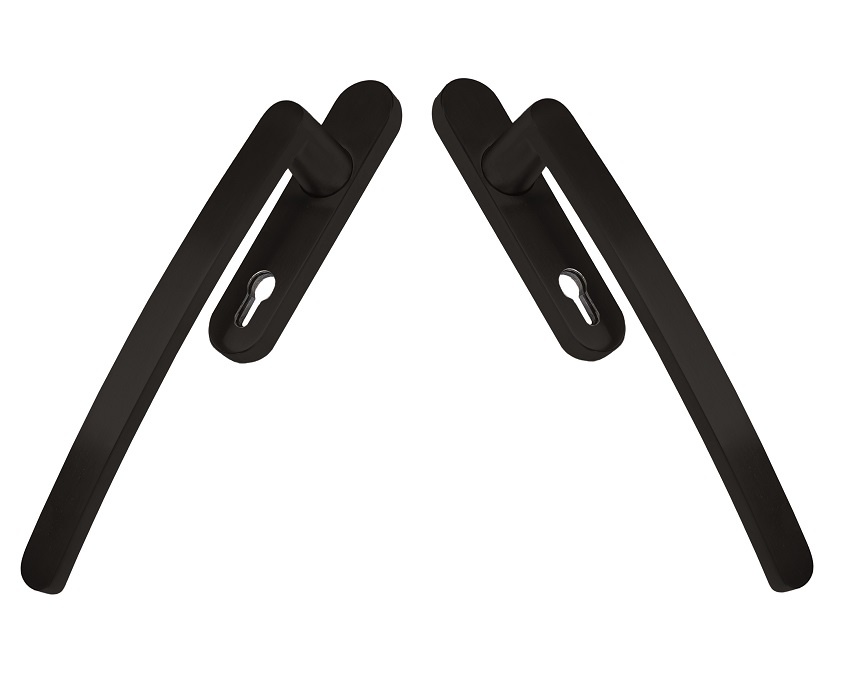

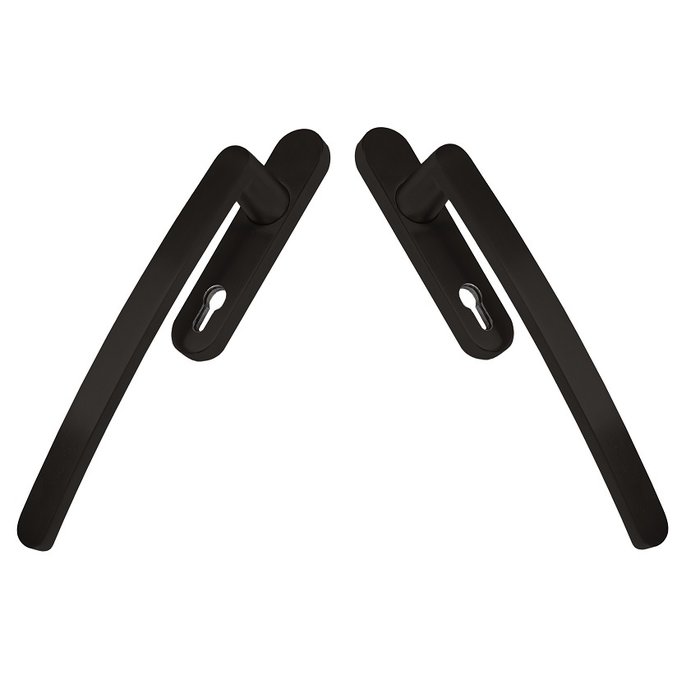

Pair of lift/slide door handles oval C-SHAPE in black with cylinder opening
Article code: 2383091
This lift/slide door system is specially designed for sliding doors. In both shields an opening is provided for a cylinder lock.

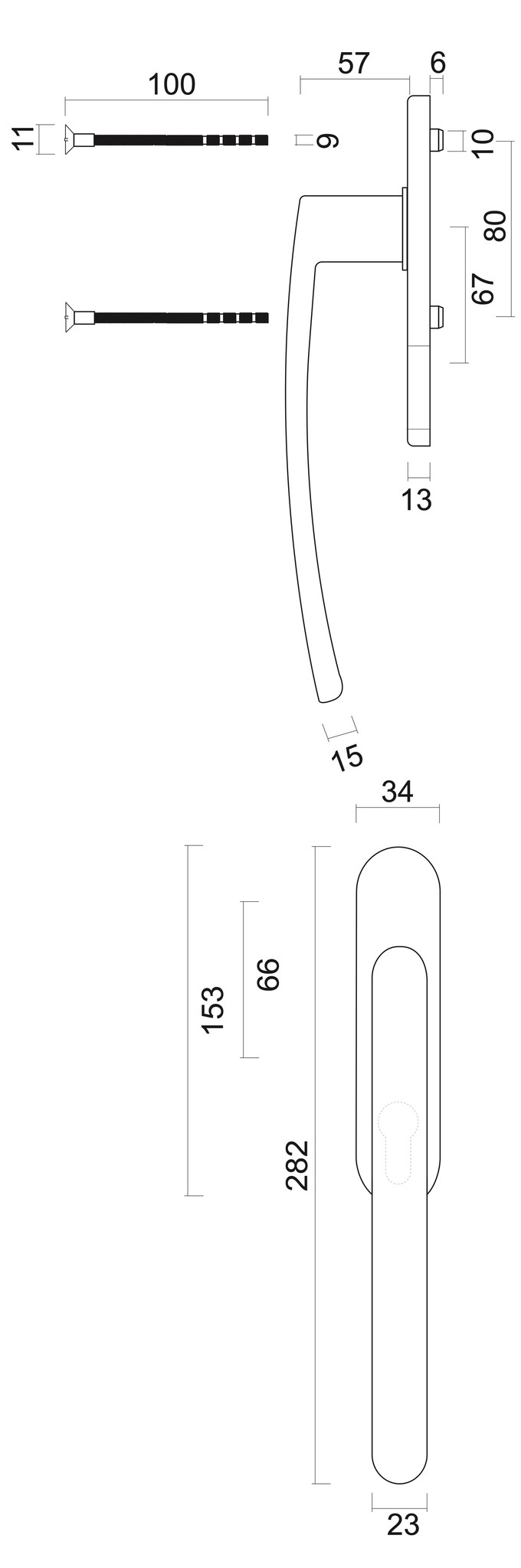

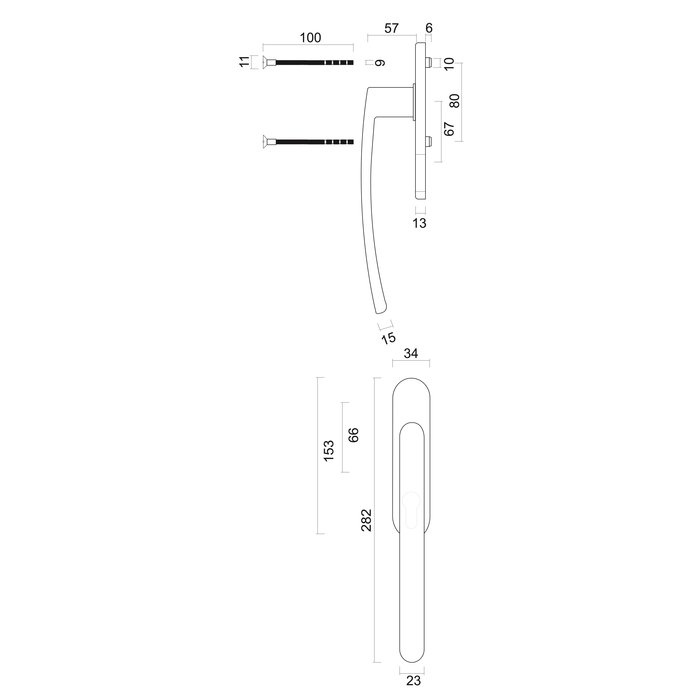

This set has slightly curved handles of 23 mm wide with a brass base, finished with a black coating. The oval shield is 34x153 mm and protrudes 13 mm.
The lever system is supplied in pairs with mounting hardware for continuous mounting. If the supplied bolts are too long, you can shorten them.
unit | couple |
base | brass |
colour | black |
spacing screw holes | 80mm |
shield dimensions | 153x34mm |
thickness shield | 13mm |
mounting material | included (2x M6-100mm long) |
door thickness | up to 90mm |
