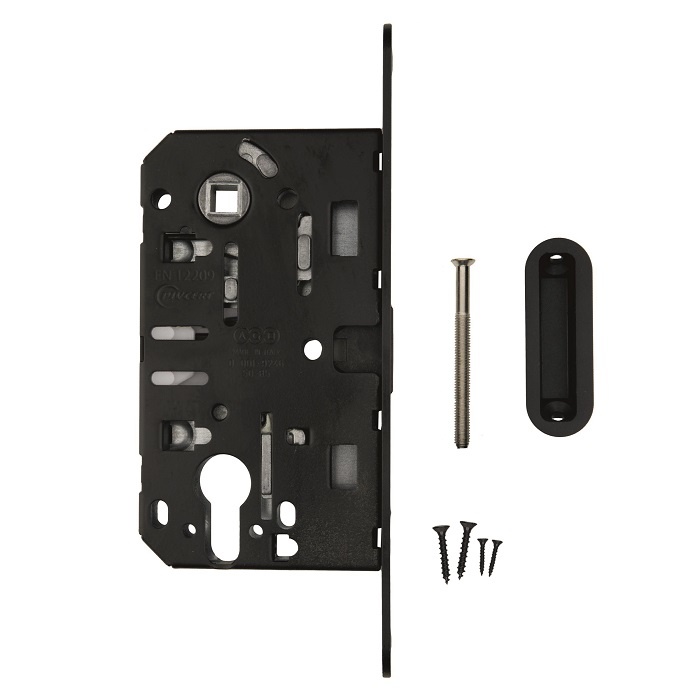

This magnetic lock from AGB has a black front plate with a width of 18 mm and a height of 195 mm. The axle size is 90 mm and the pin is 50 mm.
Magnetic locks have the advantage that there is no protruding latch, so you can't get caught on it when the door is open. If you have your hands full, you can close the door without having to move the handle.
This black magnetic lock with cylinder opening can be used for both left and right turning doors and is supplied individually with a counter plate.
base | brass |
unit | piece |
colour | black (Ral 9005) |

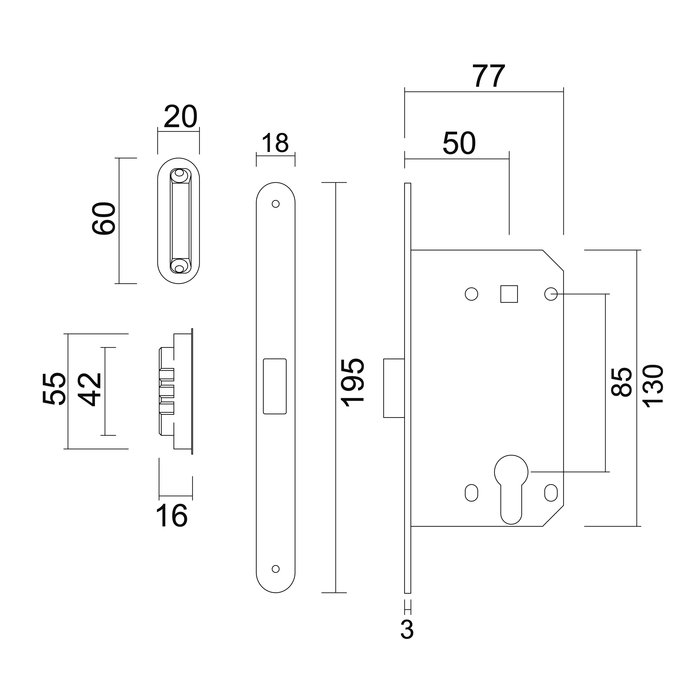

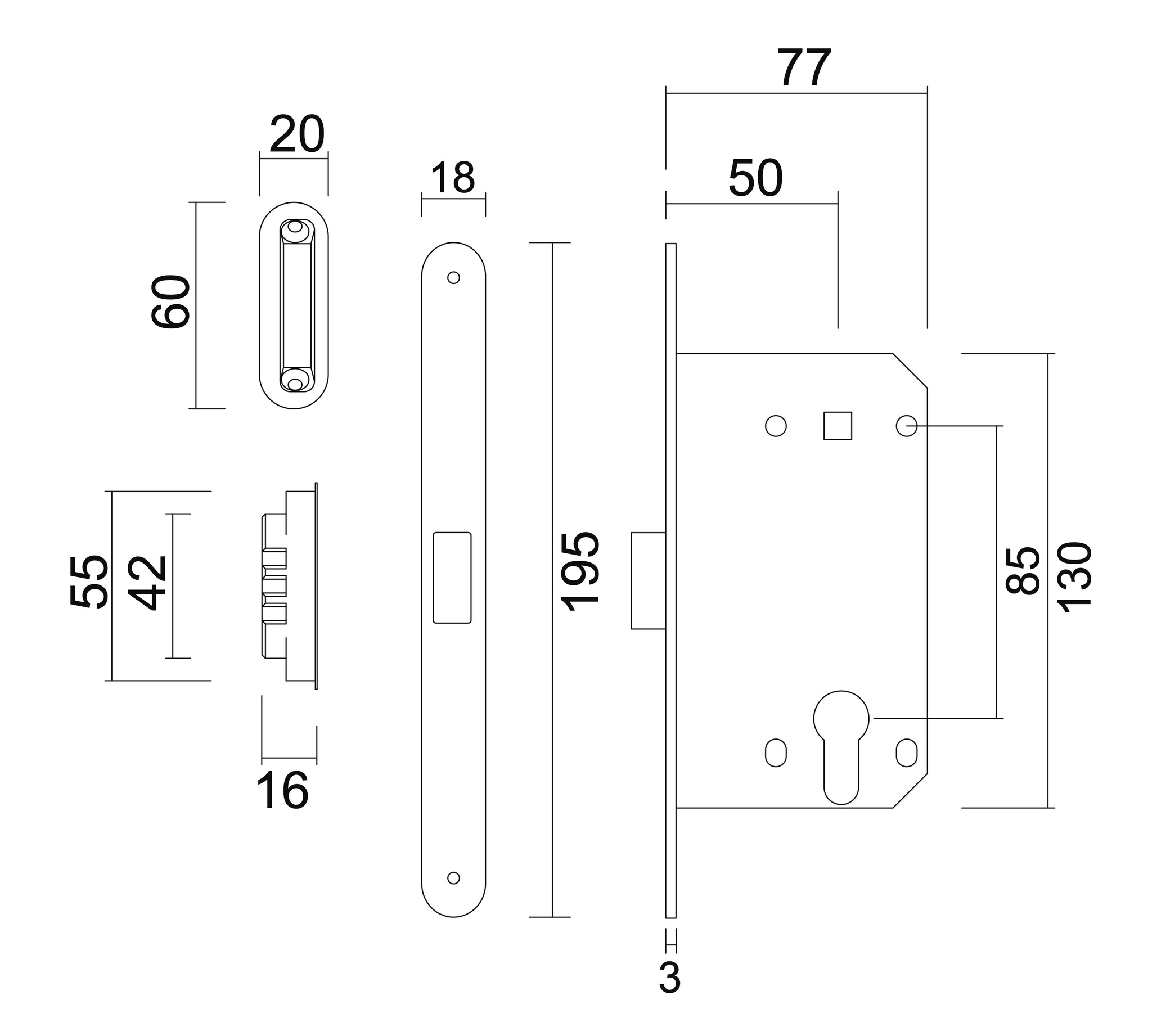

front plate dimensions | 195x18 mm |
cylinder axle size | 85 mm |
thorn size | 50 mm |
opening crank hole | 8x8 mm |
execution | for left & right turning doors |
mounting material | not included |
