Description

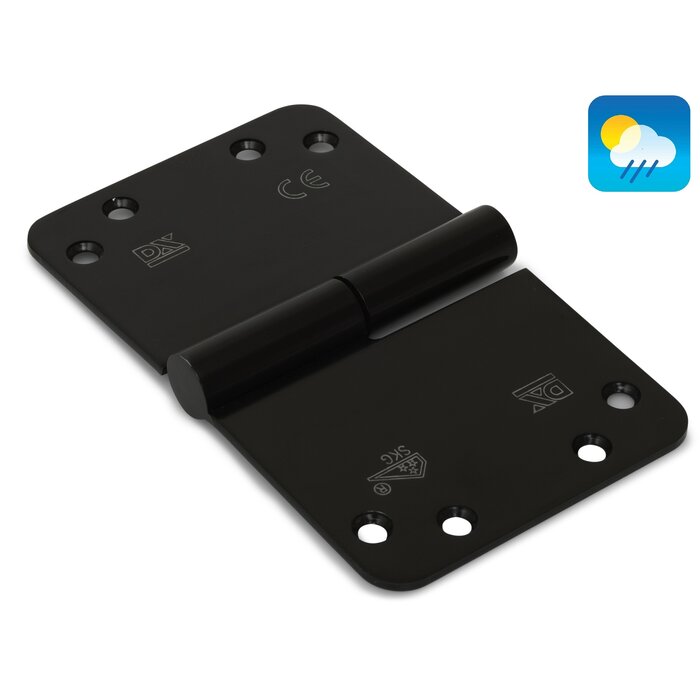

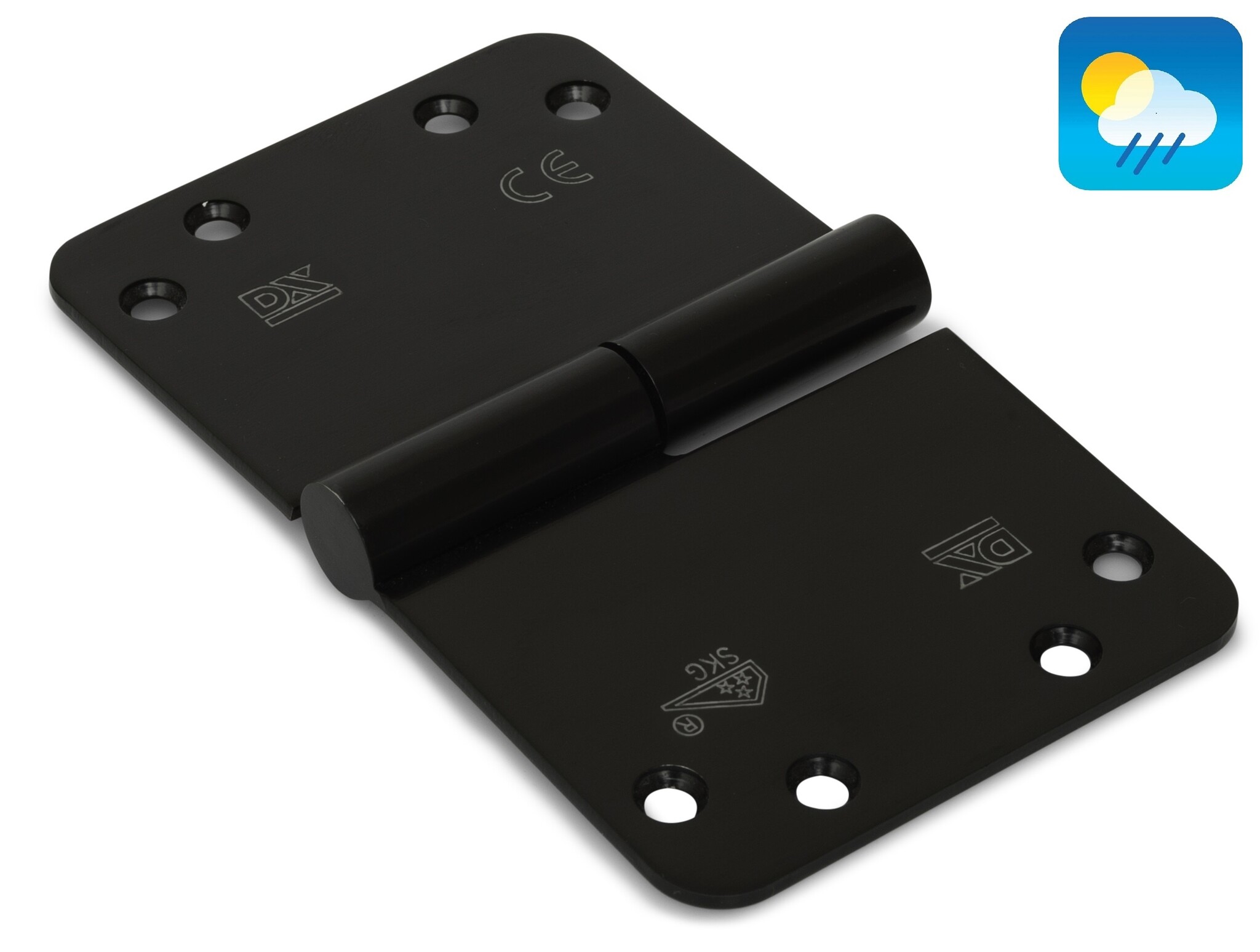

Black hinge SKG***® 89 x 150 x 3.0 mm made of stainless steel with rounded corners available in 2 versions: DIN right - Belgian left or DIN left - Belgian right
Article code: DS6937.134.8915-0
The hinge leaf buttons are completely closed at the top and bottom so that the butt hinge cannot be forced. As a result, despite the fact that it has no anti-theft pin, it is still burglar-resistant and has the SKG*** quality mark.
Due to its rounded corners, this hinge is suitable for milling. This hinge, with its sleek design and beautifully finished buttons, fits perfectly into a modern interior. The hinges can be used for interior and exterior doors.

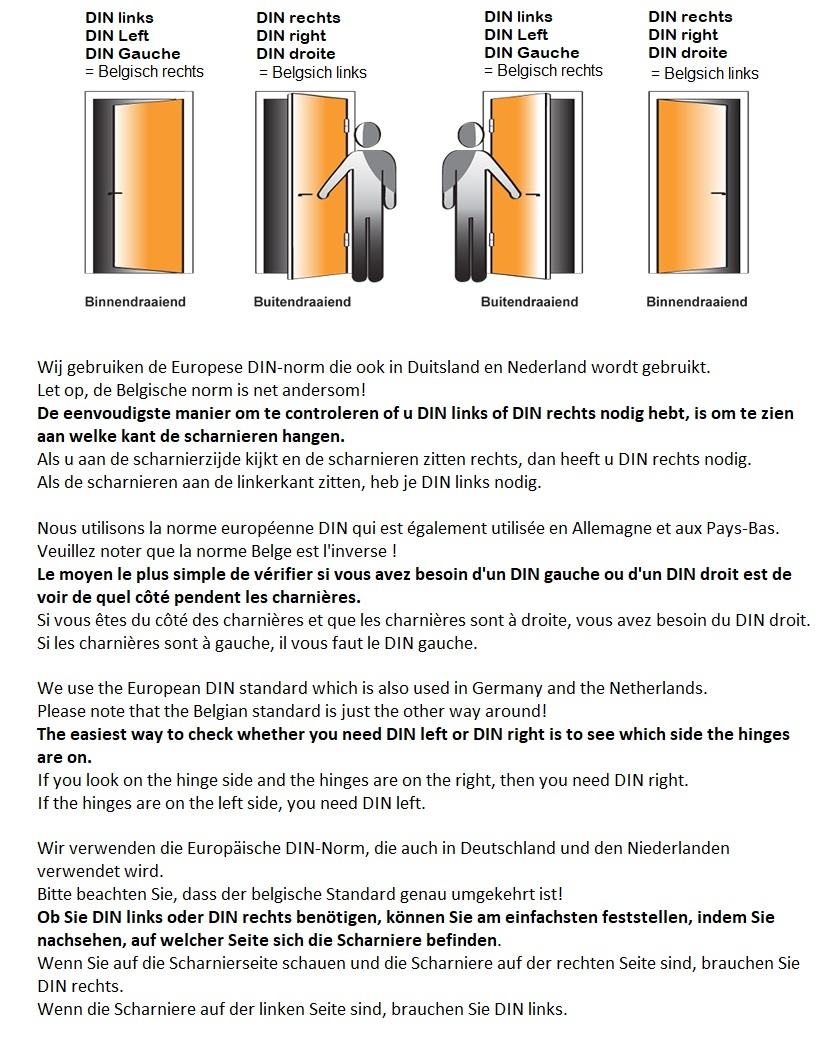

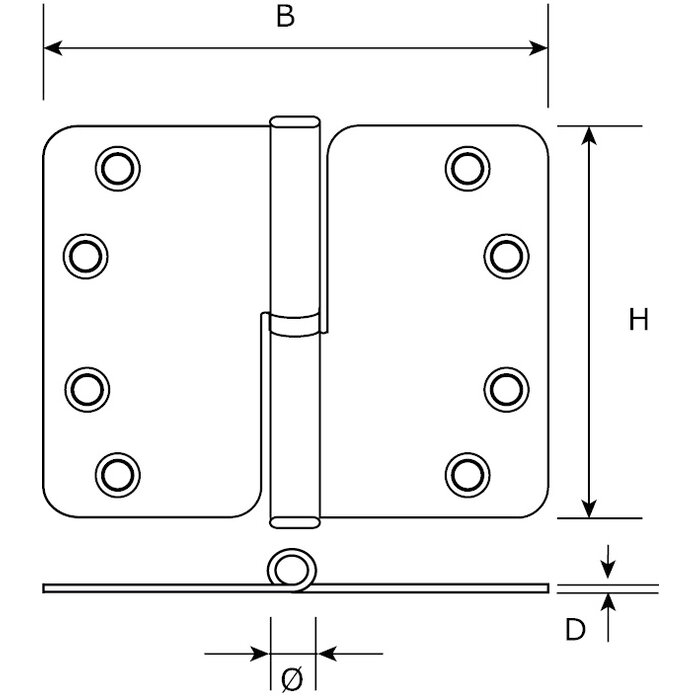

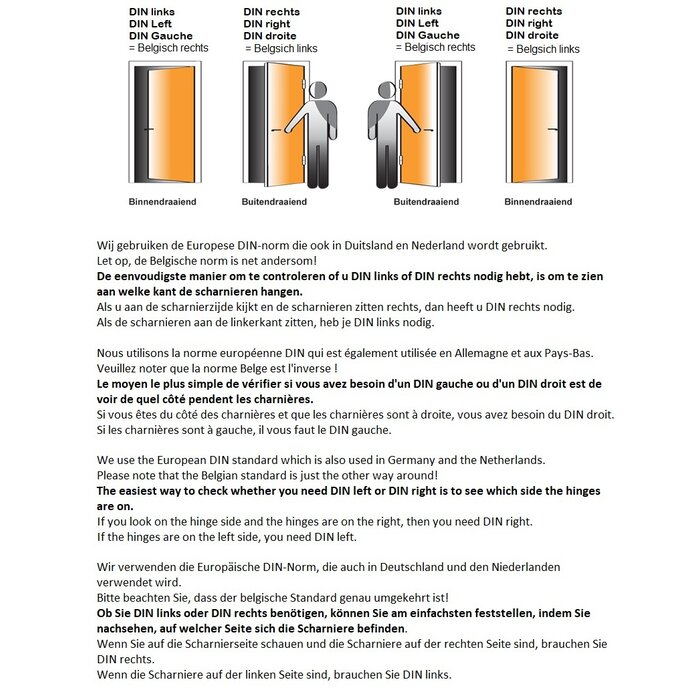

This article is a DIN left - Belgian right hinge. Look carefully at the attached drawing so that you certainly order the correct hinge.
The hinge is supplied per piece, excluding mounting material .
Material | Stainless steel |
Finish | Stainless steel brushed black lacquered |
Finishing corner | Round corners |
Standardization | SKG***® |
Certification | CE / SKH |
H (mm) |
89 |
B (mm) |
150 |
D (mm) |
3.0 |
Direction of rotation | Right(=DIN Left) |
Ø (mm) |
16 |
Load capacity per 3 (Kg) | 50 |
Load capacity per 4 (Kg) | 65 |
Mounting material | Not included |
Application | Inside and outside |
