Description

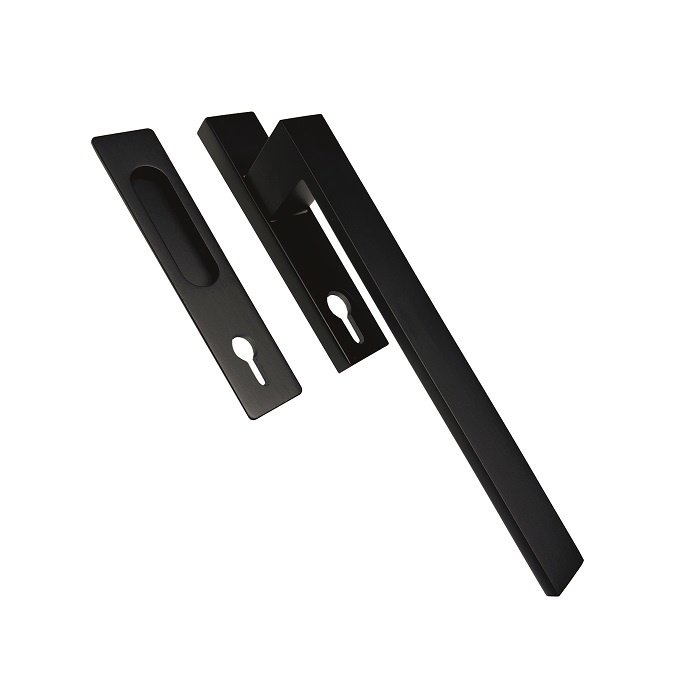

COSMIC lift/slide door handles in black with handle and sliding door bowl, both with an opening for a cylinder lock
Article code: 2352091
This combined lift/slide door system is specially designed for sliding doors. On one side there is the trade and on the other side a sliding door bowl, both of which have an opening for a cylinder lock.

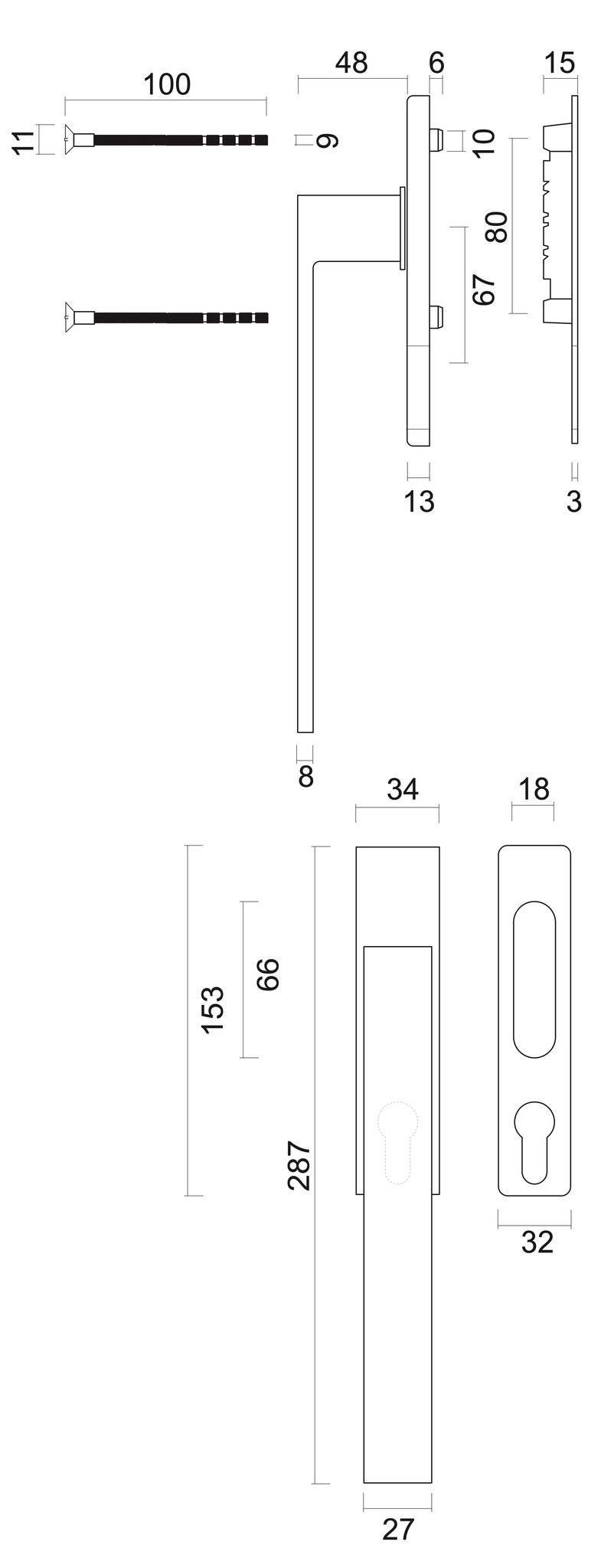

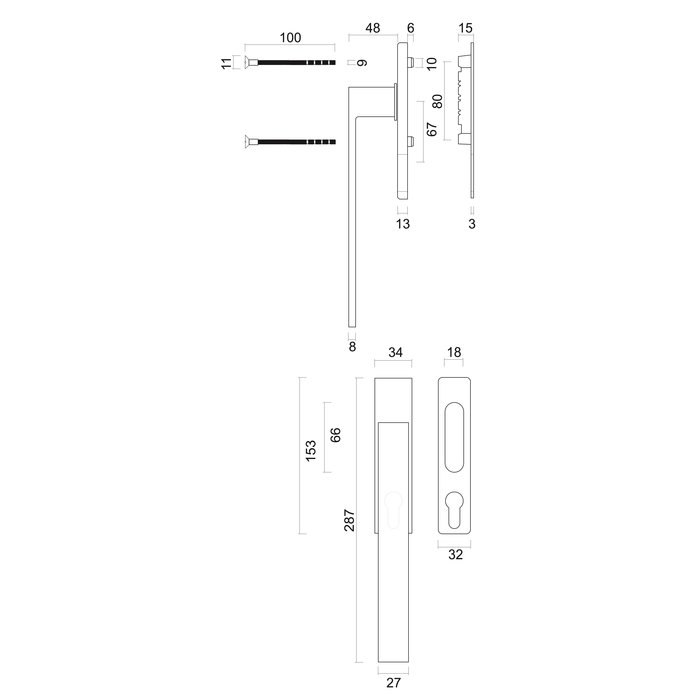

The black handle is slightly curved and 27 mm wide. The basis of this set is brass, finished with a black coating. The dimensions of the handle and the bowl can be found on the enclosed technical drawing.
The lever system is supplied per set with mounting material for continuous mounting. If the supplied bolts are too long, you can shorten them.
unit | set (lever & bowl) |
base | brass |
colour | black |
spacing screw holes | 80mm |
shield dimensions | 153x34x13mm |
bowl dimensions | 32x153x3mm |
mounting material | included (2x M6-100mm long) |
door thickness | up to 90mm |
