Description
Matte black Aprile window handle ARABIS on an oval rosette with a round handle of Ø 19 mm
Article code: AT O ARABIS R BLACK-L

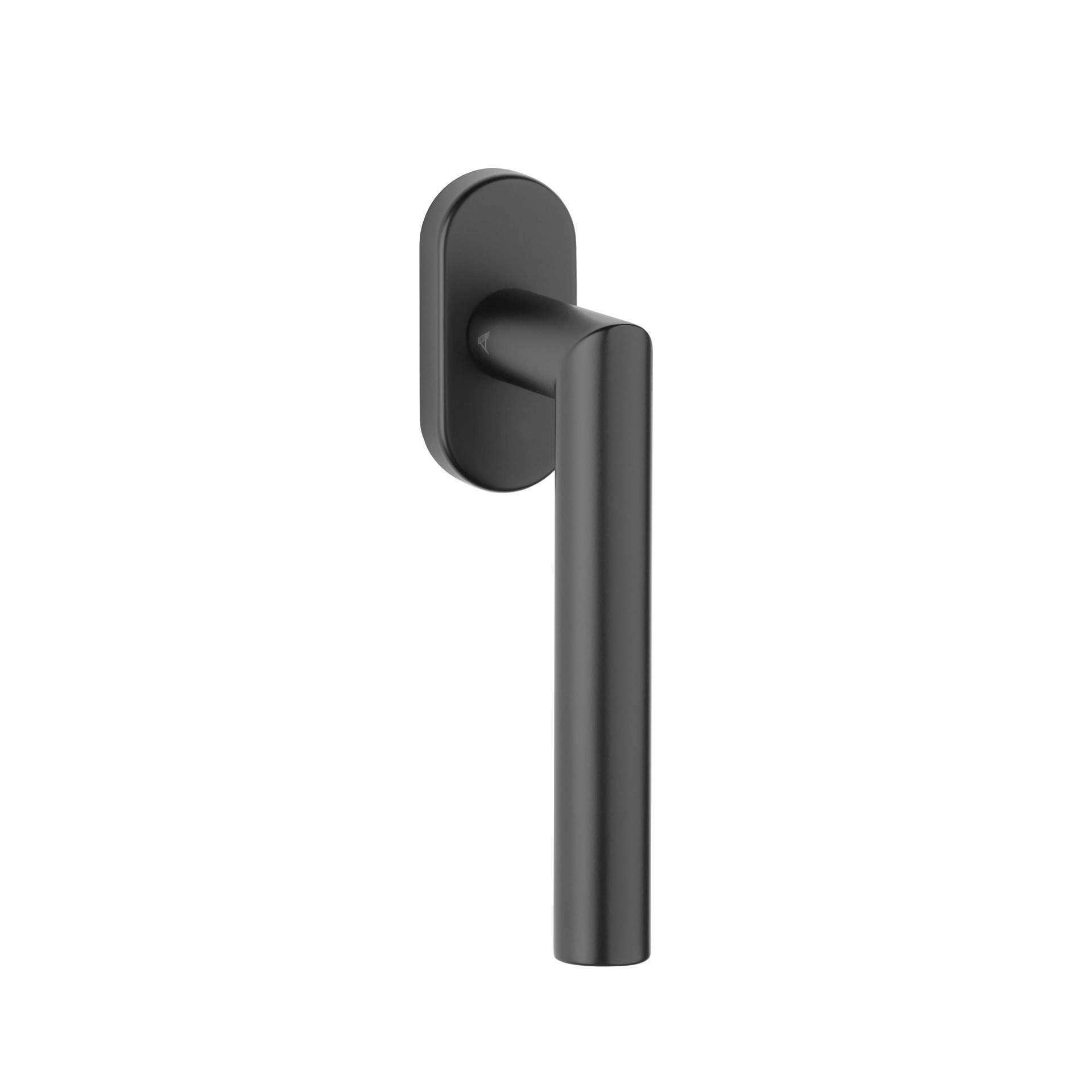

The matt black window handle ARABIS in turn-tilt version has a sleek L-shaped handle at an angle of 90°.
The window handle consists of solid zamac finished with an anodized black coating.

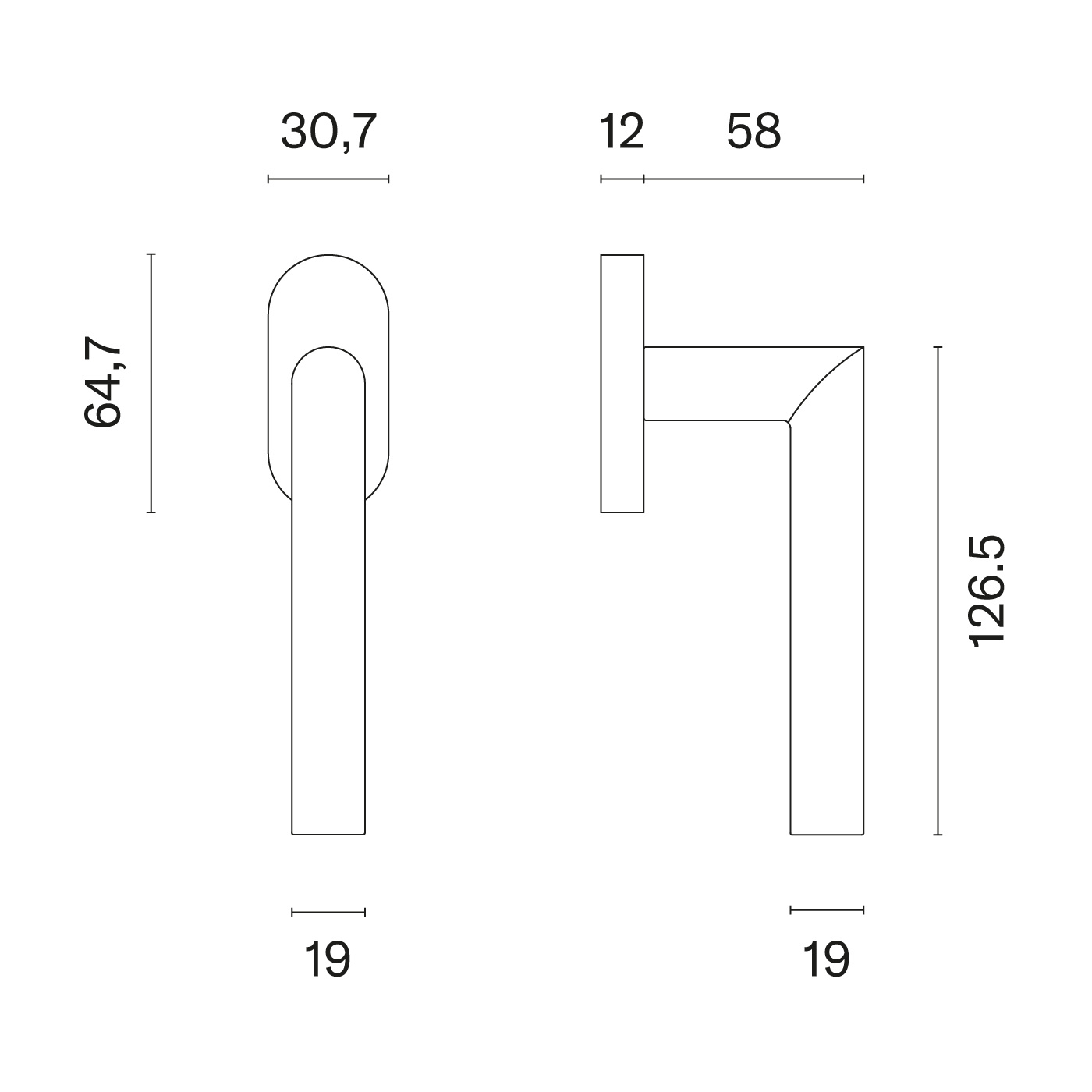

The L-shaped handle has a Ø of 19 mm and stands on an oval rosette of 64.7 x 30.7 mm.
The solid window handle with the Aprile logo is supplied per piece including mounting materials and a pin of 7 X 7 X 35 mm. The mounting holes are spaced 43 mm apart
Combine these window handles with the matching door handles from Aprile to furnish your interior in the same style.
base | zamak |
performance | turn-tilt |
colour | matt black (anodised) |
dimensions rosette | 64.7x30.7x12mm |
depth | 70mm |
drilling distance | 43mm |
marker | 7x7x35mm |
thickness handle | diameter 19mm |
mounting material | 2 bolts M5 x 40 mm included |
