Description

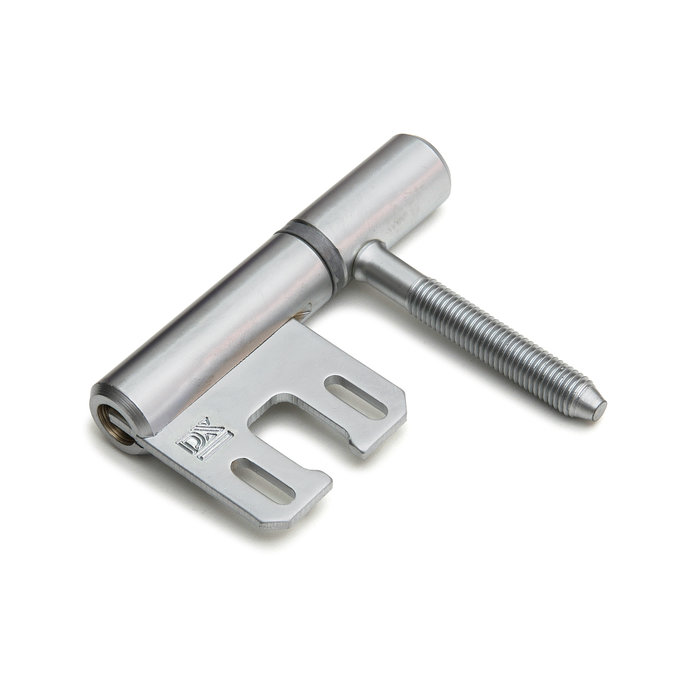

Steel chrome-plated drill hinge 14mm for metal Hörmann masonry frames with nylon ring
Article code: DS6001.482.5643

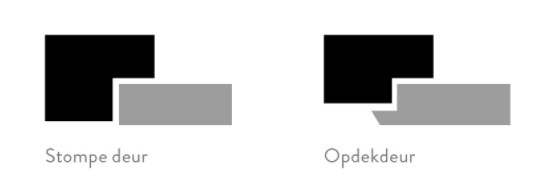

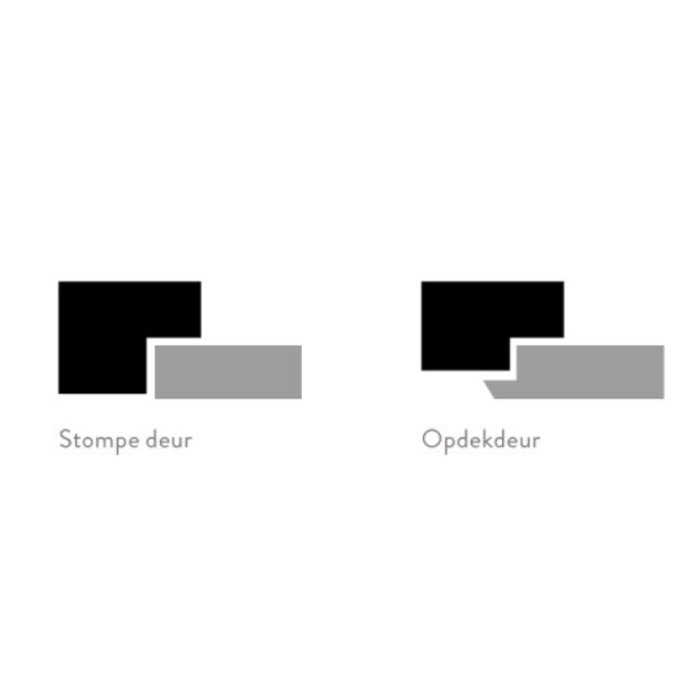

Built-in hinges are for hanging rebated doors. A rebated door falls on the frame, while a blunt door falls into the frame. (see images)
This model is especially suitable for hanging rebated doors in Hörmann steel masonry frames or to replace existing hinges.
The hinges can be used on both left and right rebated rebated doors that are used indoors.
This hinge is provided with a nylon ring, which ensures a long-lasting and silent operation. Moreover, the hinge is maintenance-free!
These drill-in hinges are supplied per piece.
Material | Steel |
Finish | Satin chrome plated |
Type of frame | Steel masonry frame Hörmann |
Ring type | Nylon Gray |
Application | for rebated doors |

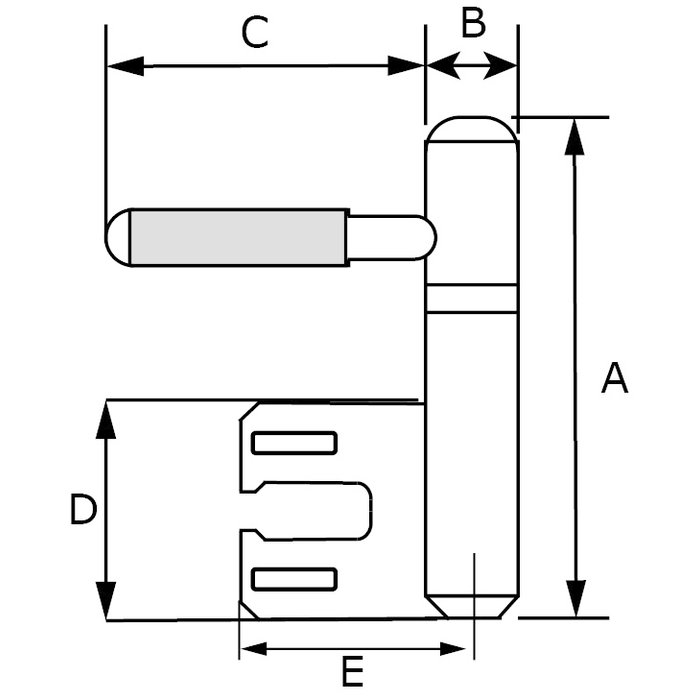

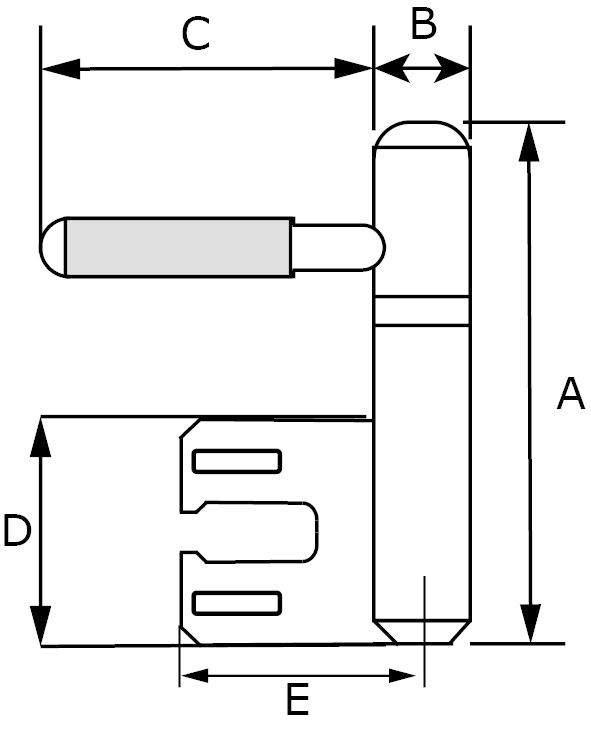

A (mm) |
75 |
B (mm) |
14 |
C (mm) |
50 |
D (mm) |
34 |
E (mm) |
33 |
Carrying capacity per piece | 20 KG |
