Description

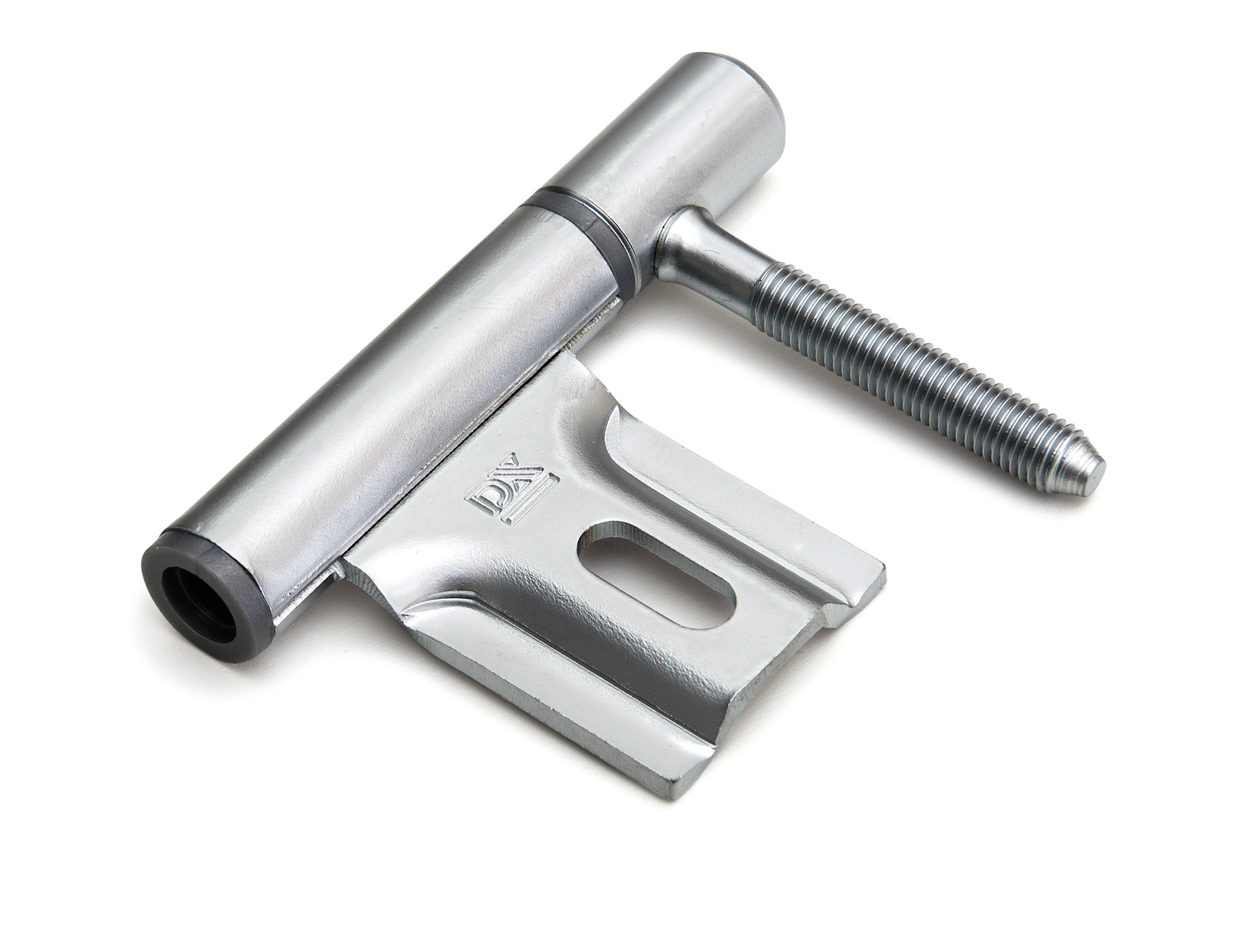

Steel chrome-plated drill hinge 14mm for metal mounting frames with nylon ring
Article code: DS6001.481.5643

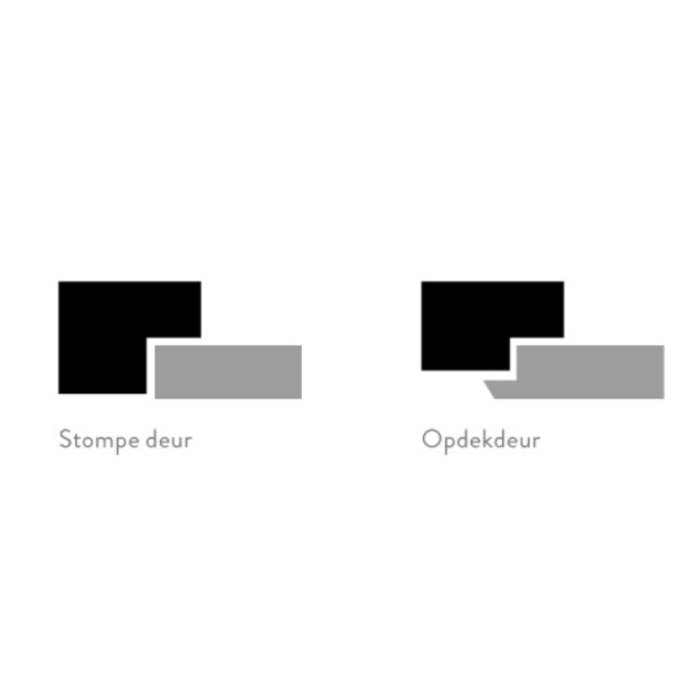

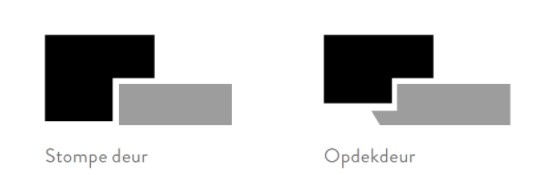

Built-in hinges are for hanging rebated doors. A rebated door falls on the frame, while a blunt door falls into the frame (see images).
This model is specially designed for hanging rebated doors in steel Theuma Solid (formerly Polynorm) in masonry frames or to replace existing hinges.
The hinges can be used on both left and right rebated rebated doors that are used indoors.
This hinge is provided with a nylon ring, which ensures a long-lasting and silent operation. Moreover, the hinge is maintenance-free!
This drill-in hinge is supplied per piece.
Material | Steel |
Finish | Satin chrome plated |
Type of frame | Steel mounting frame |
Ring type | Nylon Gray |
Application | for rebated doors |

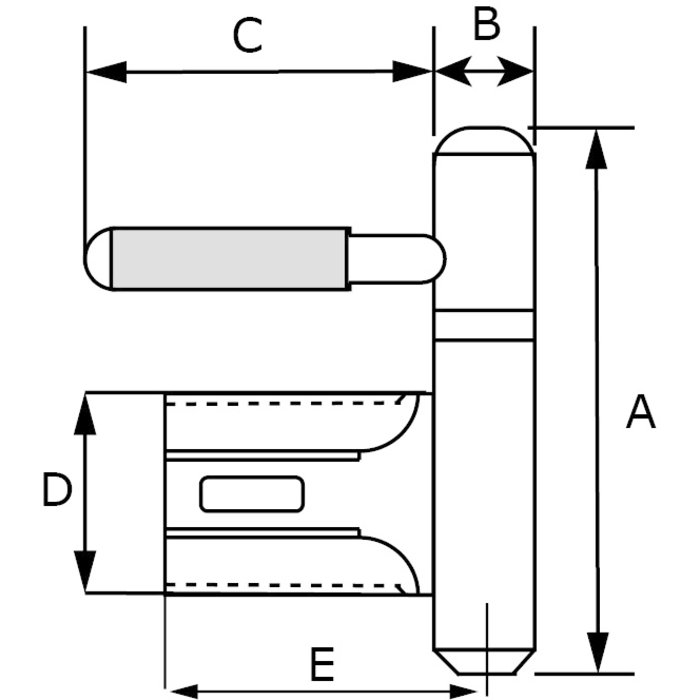

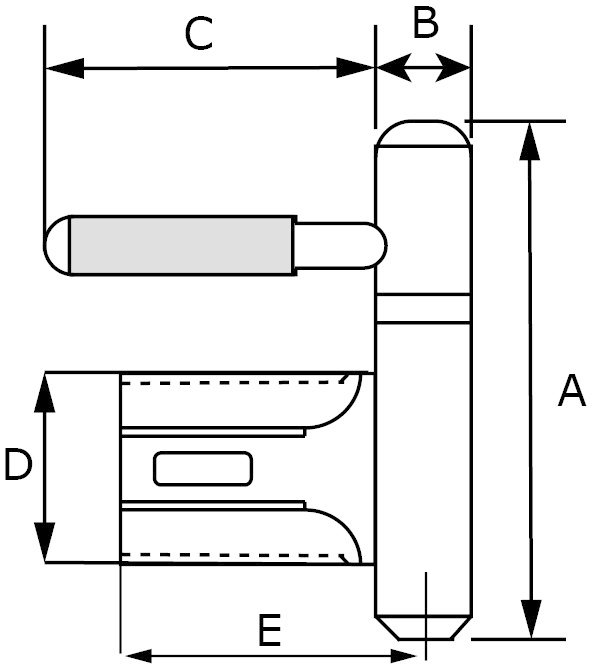

A (mm) |
78 |
B (mm) |
14 |
C (mm) |
50 |
D (mm) |
32 |
E (mm) |
45 |
Carrying capacity per piece | 20 KG |
