Description

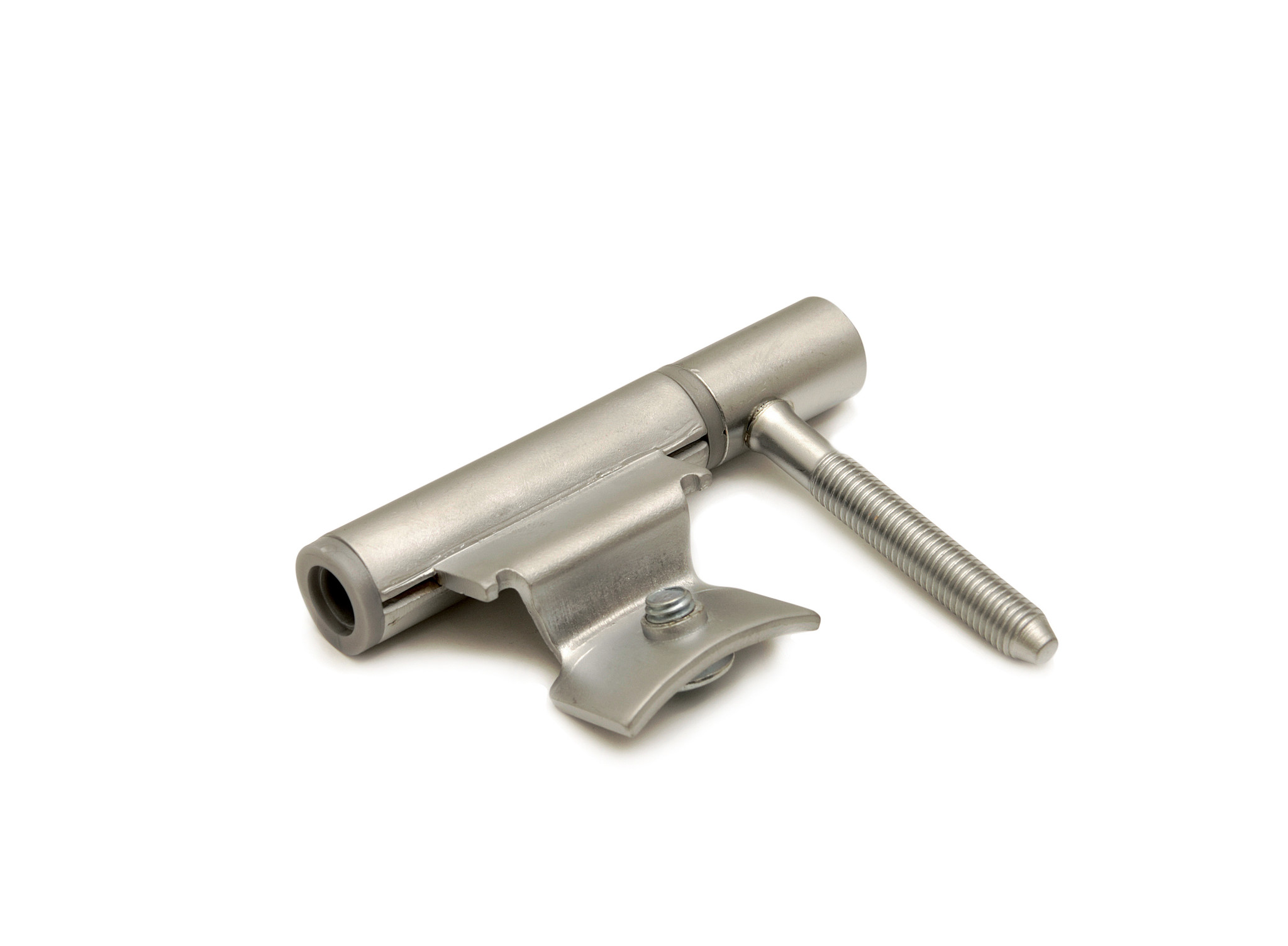

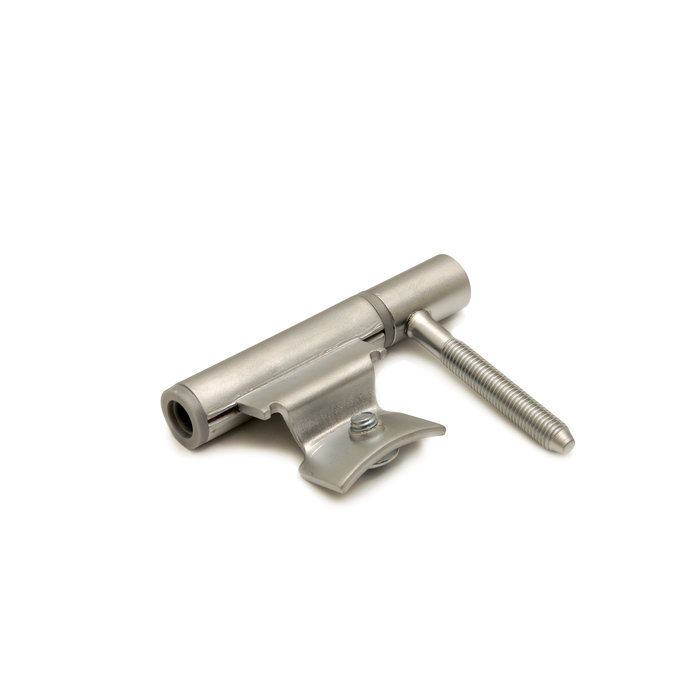

Steel drill-in hinge chrome plated 14mm for masonry frame with nylon ring
Article code: DS6001.480.5643

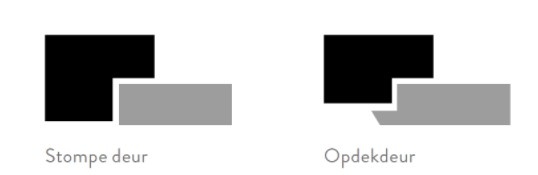

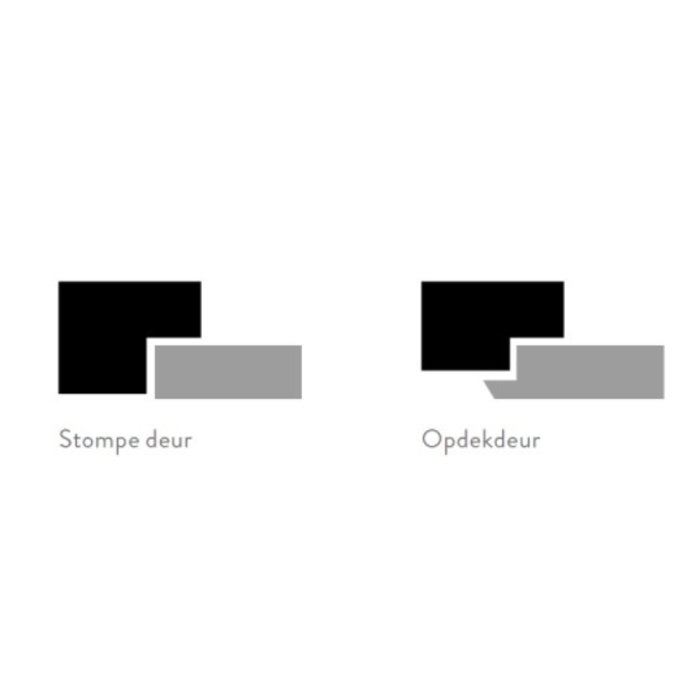

Built-in hinges are for hanging rebated doors. A rebated door falls on the frame, while a blunt door falls into the frame. (see images)
This model is specially designed for hanging rebated doors in steel Theuma Solid (formerly Polynorm Z) in masonry frames or to replace existing Z hinges.
The hinges can be used on rebated doors that open to the left or to the right that are used indoors.
This hinge is provided with a nylon ring, which ensures a long-lasting and silent operation.
This hinge is supplied per piece excluding mounting material .
Material | Steel |
Finish | Satin chrome plated |
Type of frame | Steel masonry frame |
Ring type | Nylon Gray |
Application | for rebated doors |

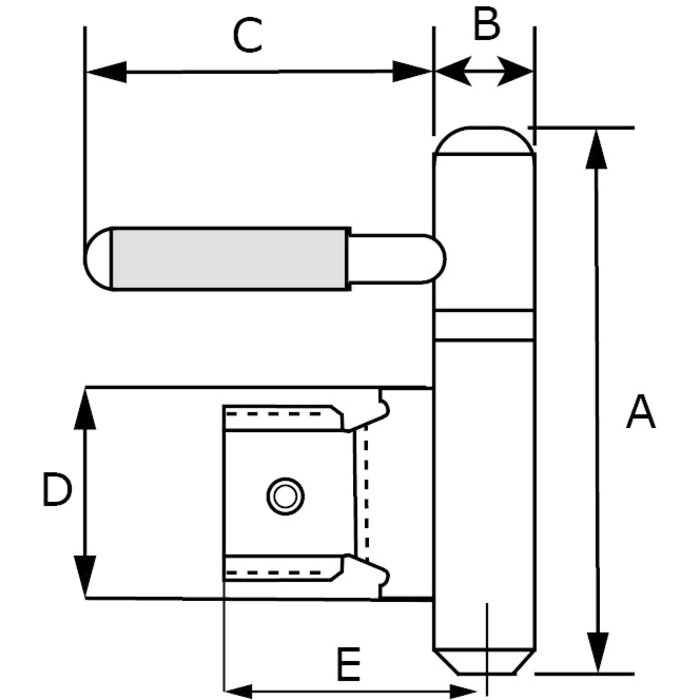

A (mm) |
78 |
B (mm) |
14 |
C (mm) |
50 |
D (mm) |
34 |
E (mm) |
33 |
Carrying capacity per piece | 20 KG |
