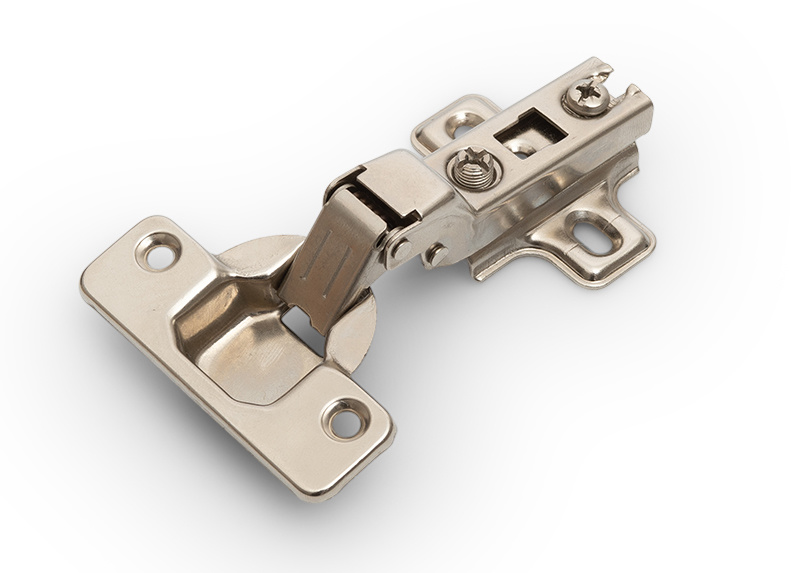

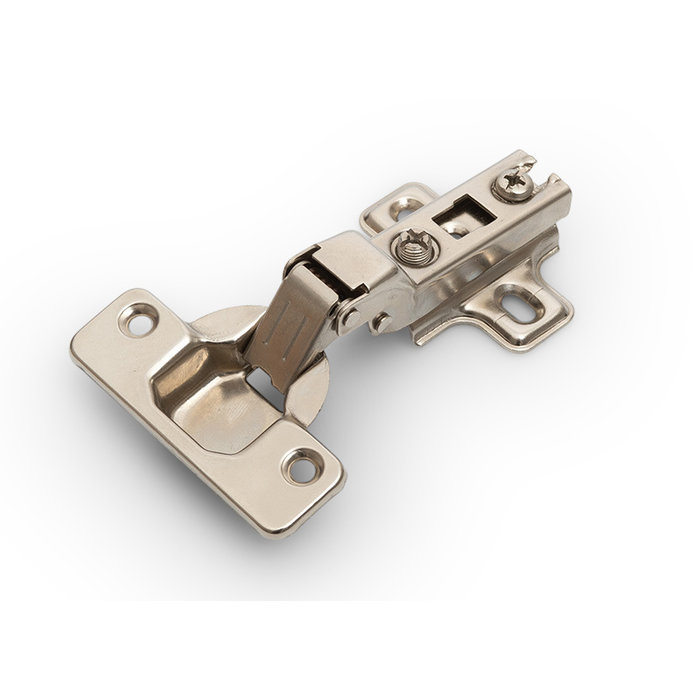

Drill-in cabinet hinge made of steel that is later nickel-plated. This article concerns a concealed hinge with a drilling diameter of 35 mm. The mounting holes are recessed so that the mounting screws can fall in nicely.

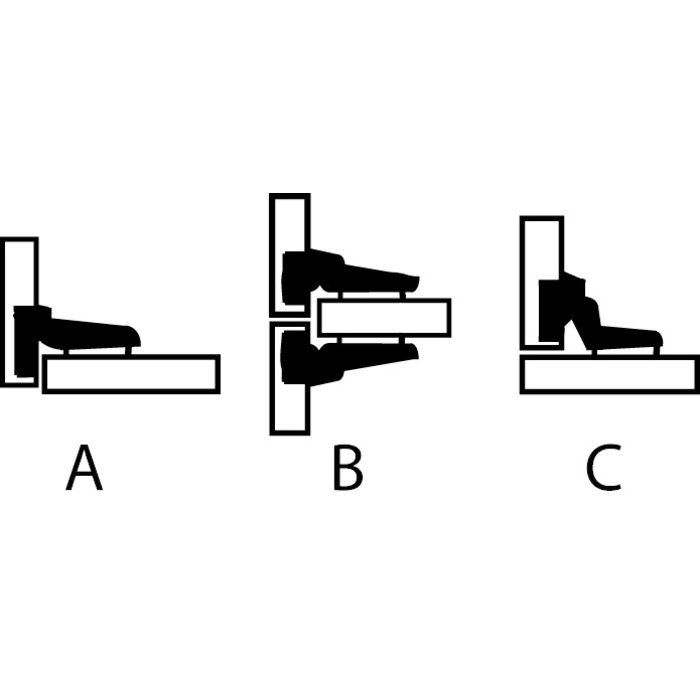

This hinge is for half overlay doors as you can see in the attached image under B.
A built-in spring ensures that your door stays closed. Because these hinges are drilled in on the inside, you have nice continuous doors on the outside.
The maximum opening of your cabinet door is 95°.
These hinges are supplied individually excluding mounting materials.
