Description
Overlay nickel-plated drill-in cabinet hinge with a drilling diameter of 35 mm and countersunk screw holes
Article code: DS0312.100.1112
Drill-in cabinet hinge made of steel that is later nickel-plated. This article concerns a concealed hinge with a drilling diameter of 35 mm. The mounting holes are recessed so that the mounting screws can fall in nicely.

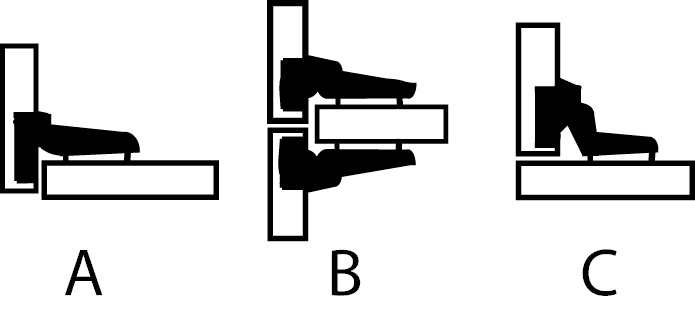

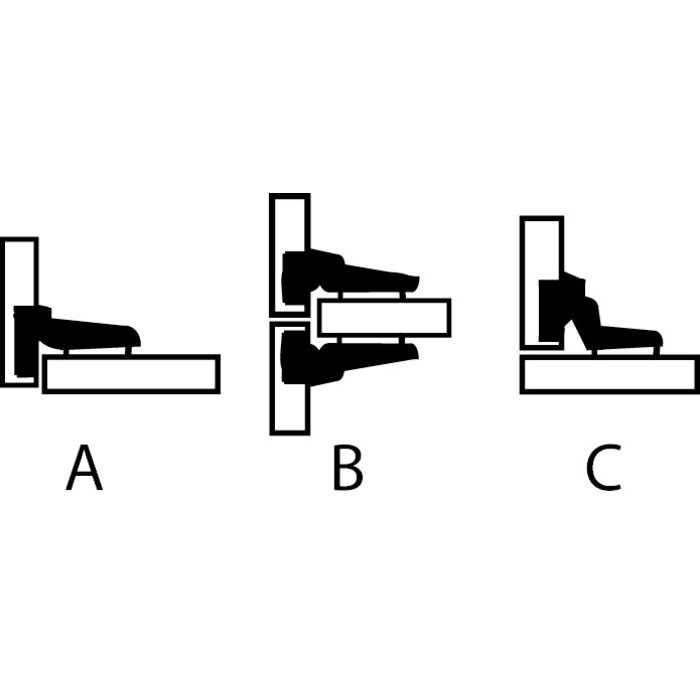

This hinge is for fully surface-mounted doors as you can see in the attached image under A.
A built-in spring ensures that your door stays closed. Because these hinges are drilled in on the inside, you have beautiful continuous doors on the outside.
The maximum opening of your cabinet door is 95°.
These hinges are supplied individually excluding mounting materials.
