DOM half cylinder K1

The DOM K1 stock cylinder is a standard cylinder which is provided with a drilling barrier and an anti-knock system. So it is a better 'yard cylinder'.

This DOM K1 cylinder can be used as a temporary cylinder or for areas where security is less important. Think of doors inside a building such as an office, apartment, ...

Half cylinders are often used for garage doors or other applications where the cylinder should not protrude.

The cylinders are available in different lengths. The cylinder starts at 30 / 10mm as standard and furthermore it can be extended by 5mm on the outside (A).

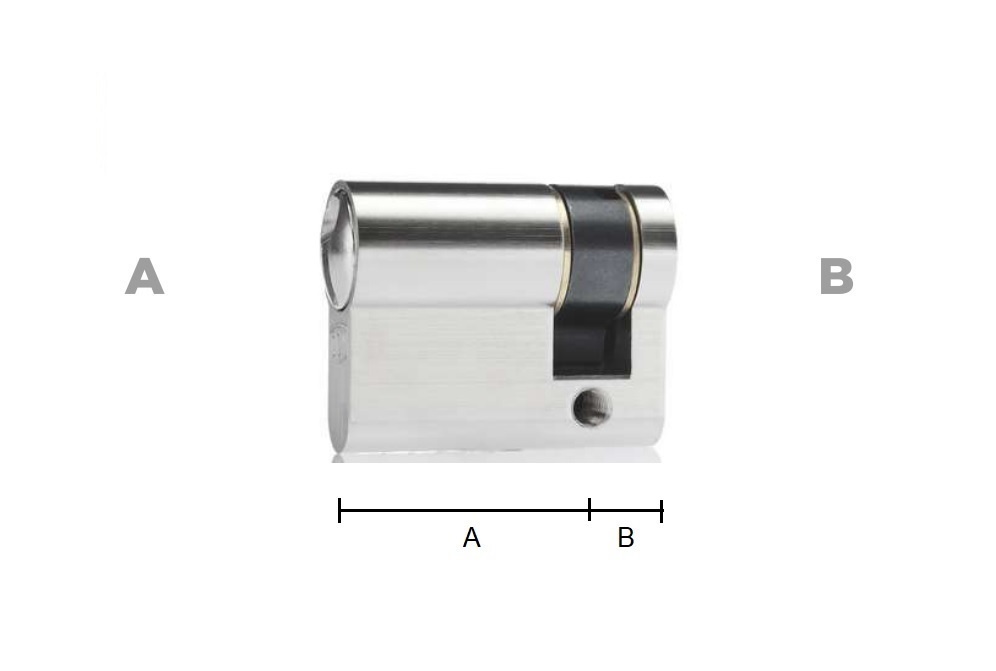

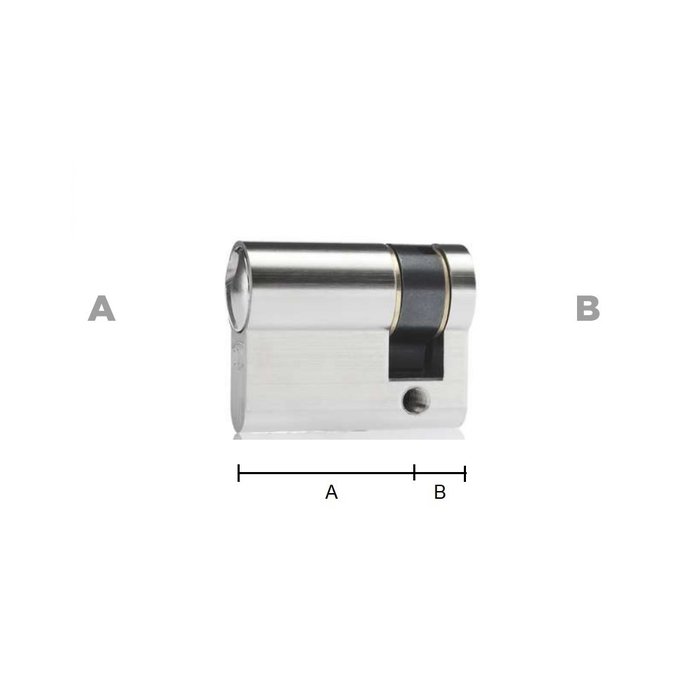

How do you measure your cylinder? It is best to measure from the center of the screw, on the side of the cylinder, to the outside (A).

Above in the scroll menu you can select the desired size.

Do you need multiple cylinders and do you want to be able to open them with the same key? Please indicate this above in the box 'open with the same keys'.

You can also order extra keys if desired. 3 keys per cylinder are already included as standard.

The DOM K1 cylinders are equipped with 5 sprung pins, 2 of which are extra hardened steel pins. The cylinder comes without a certificate of ownership along with 3 keys.

The DOM K1 cylinders have the following advantages:

• Drilling obstruction
• anti-knock system (bumping)
• easy key entry through funnel in the convex warhead
• easy to reorder because there is no certificate of ownership for this

The DOM K1 cylinders have an EN 1303 classification with the following characteristics:

• category 2 Durability: Class 6 = minimum 100,000 cycles
• category 4 Fire resistance: Class 1 = minimum 90min
• category 7 Security: Class 4 = minimum 30,000 closures
