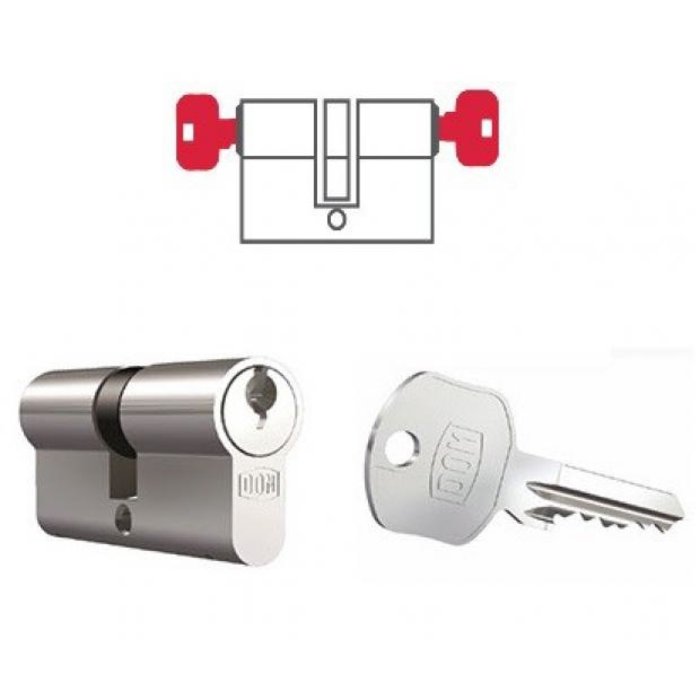

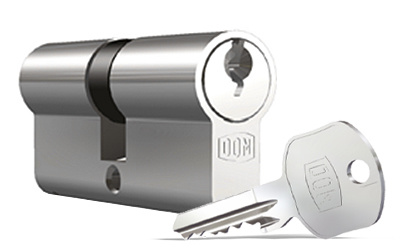

DOM standard stock cylinder K1

The DOM K1 stock cylinder is a standard cylinder which is provided with a drilling barrier and an anti-knock system. So it is a better 'yard cylinder'.

This DOM K1 cylinder can be used as a temporary cylinder or for areas where security is less important. Think of doors inside a building such as an office, apartment, ...

The cylinders are available in different lengths. The cylinder starts at 30 / 30mm by default and can be extended by 5mm each time.

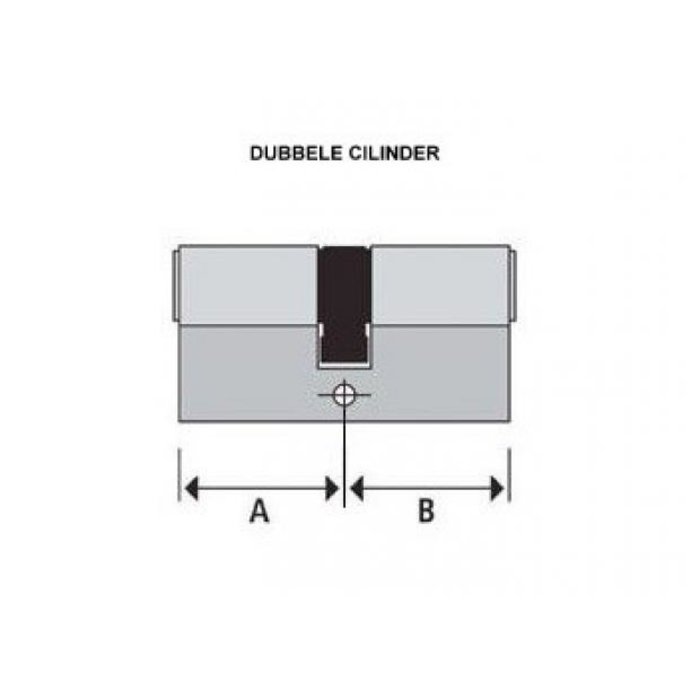

How do you measure your cylinder? It is best to measure from the center of the screw, on the side of the cylinder, to each end. Left and right does not matter since you can turn the cylinder.

Above in the scroll menu you can choose the desired size.

Do you need multiple cylinders and do you want to be able to open them with the same key? Please indicate this above in the box 'closing immediately'.

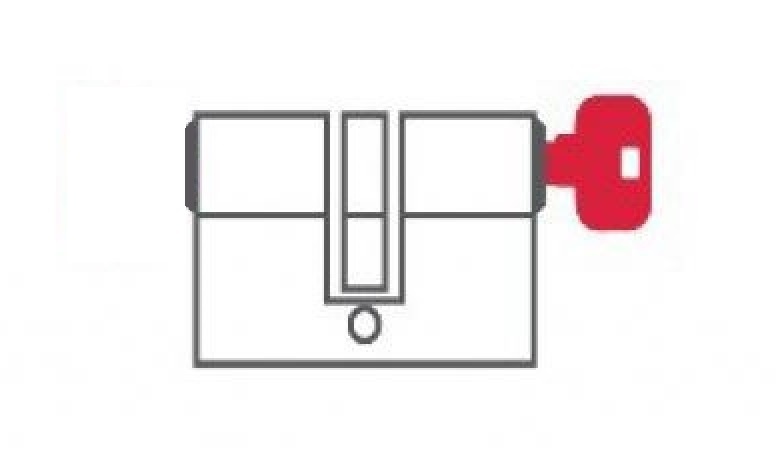

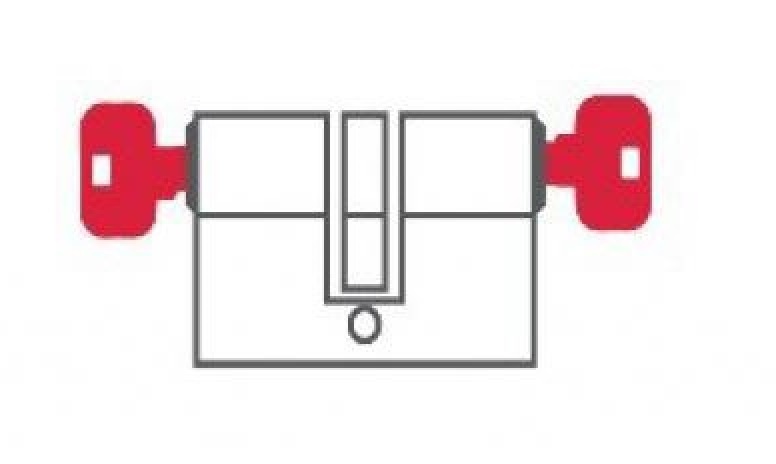

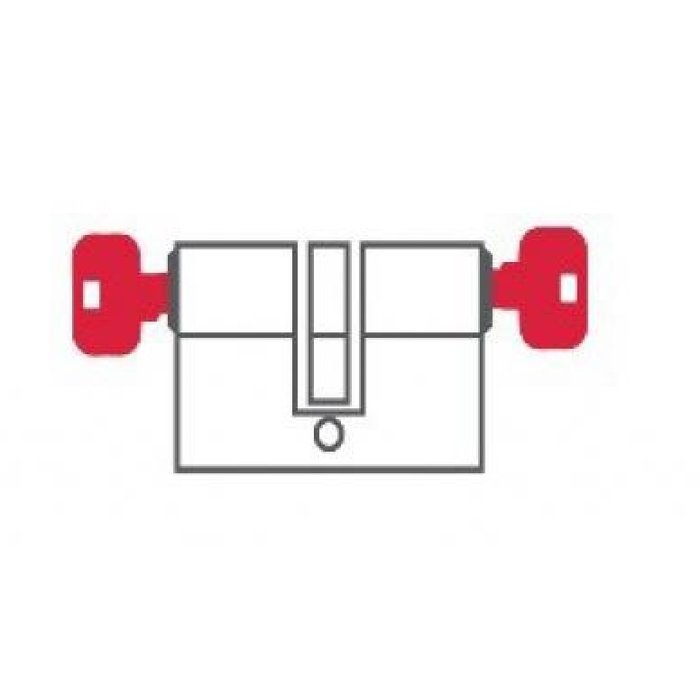

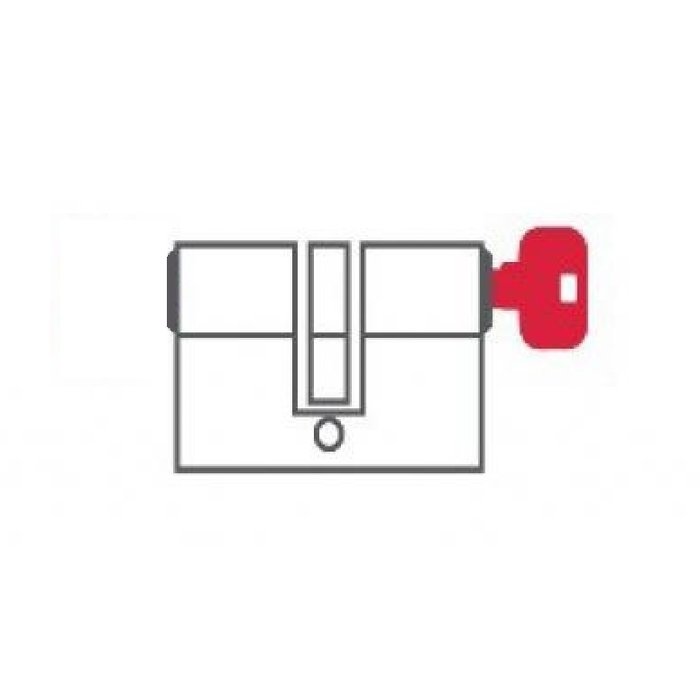

You can also indicate whether you want to provide the cylinder with a DUO function, also known as a panic or hotel function.

With this option you can still operate your door from the outside, even when there is a key on the inside. That way you can never shut yourself out.

The DOM K1 cylinders are equipped with 5 sprung pins, 2 of which are extra hardened steel pins. The cylinder comes without a certificate of ownership along with 3 keys.

The DOM K1 cylinders have the following advantages:

• Drilling obstruction
• anti-knock system (bumping)
• easy key entry through funnel in the convex warhead
• easy to reorder because there is no certificate of ownership for this

The DOM K1 cylinders have an EN 1303 classification with the following characteristics:

• category 2 Durability: Class 6 = minimum 100,000 cycles
• category 4 Fire resistance: Class 1 = minimum 90min
• category 7 Security: Class 4 = minimum 30,000 closures
