Description
Black door closer with sliding arm suitable for mounting on inward and outward opening interior doors
Article code: 1328090
With a door closer you ensure that a door closes automatically after opening.

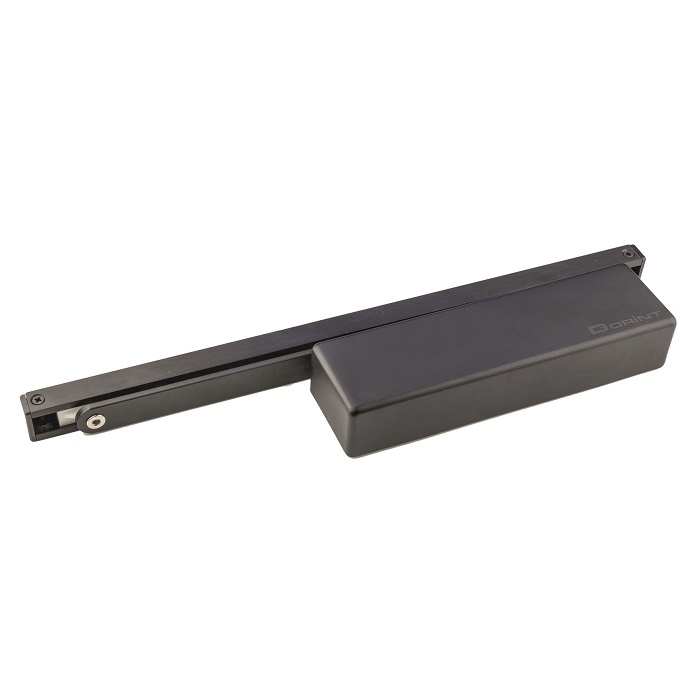

The DORINT IT920 hydraulic door closer made of stainless steel and finished with a black coating has a slide arm and is suitable for use on both left and right opening interior doors.
This door closer is classified in closing force classes 2 to 4 according to EN 1154 standards. The closing force is set with a spring and the door pump is suitable for doors with a weight of 60 to 100 kg and a door width of 95 cm to 125 cm.
A black cover is placed over the door closer, giving it a very nice finish.

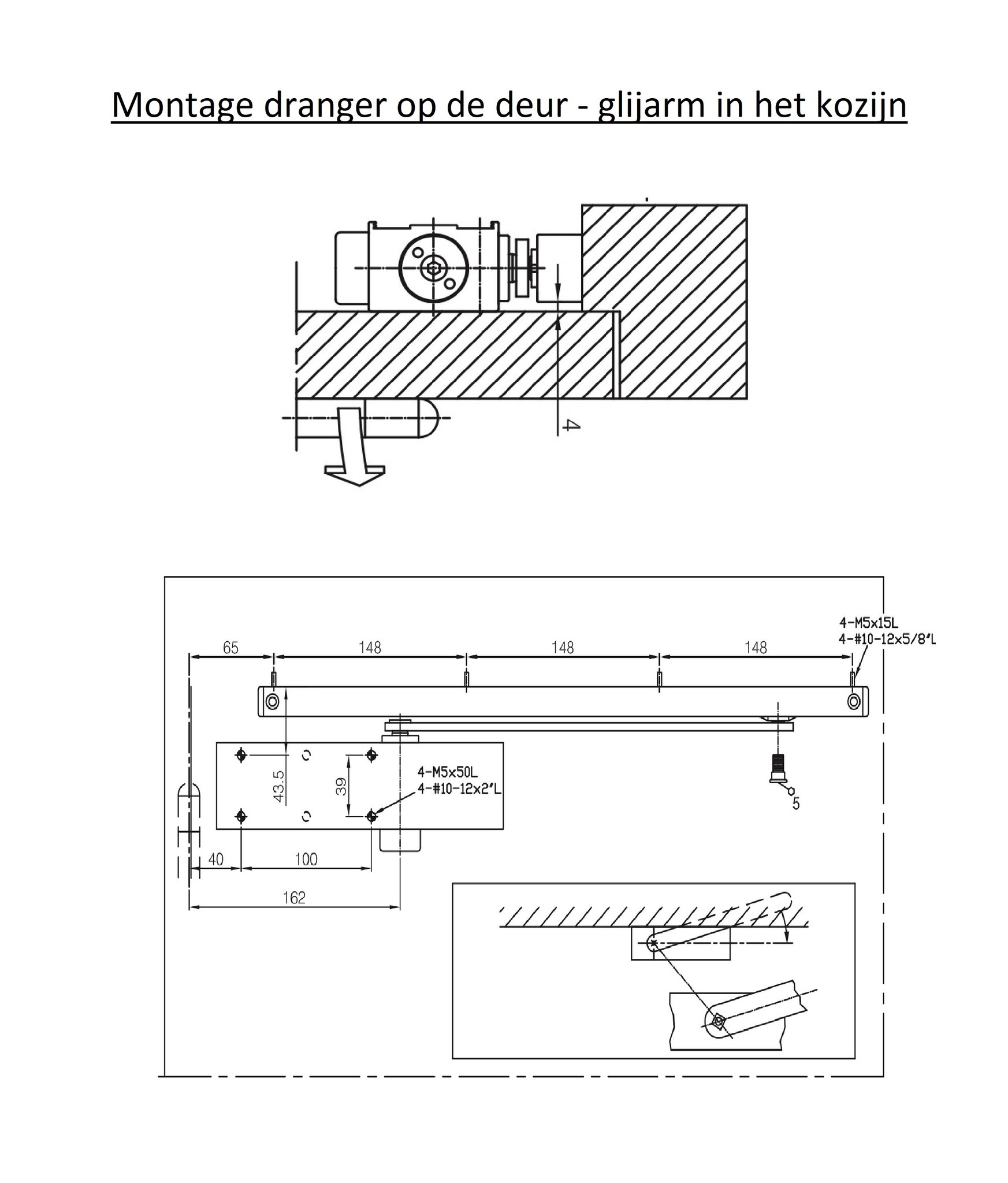

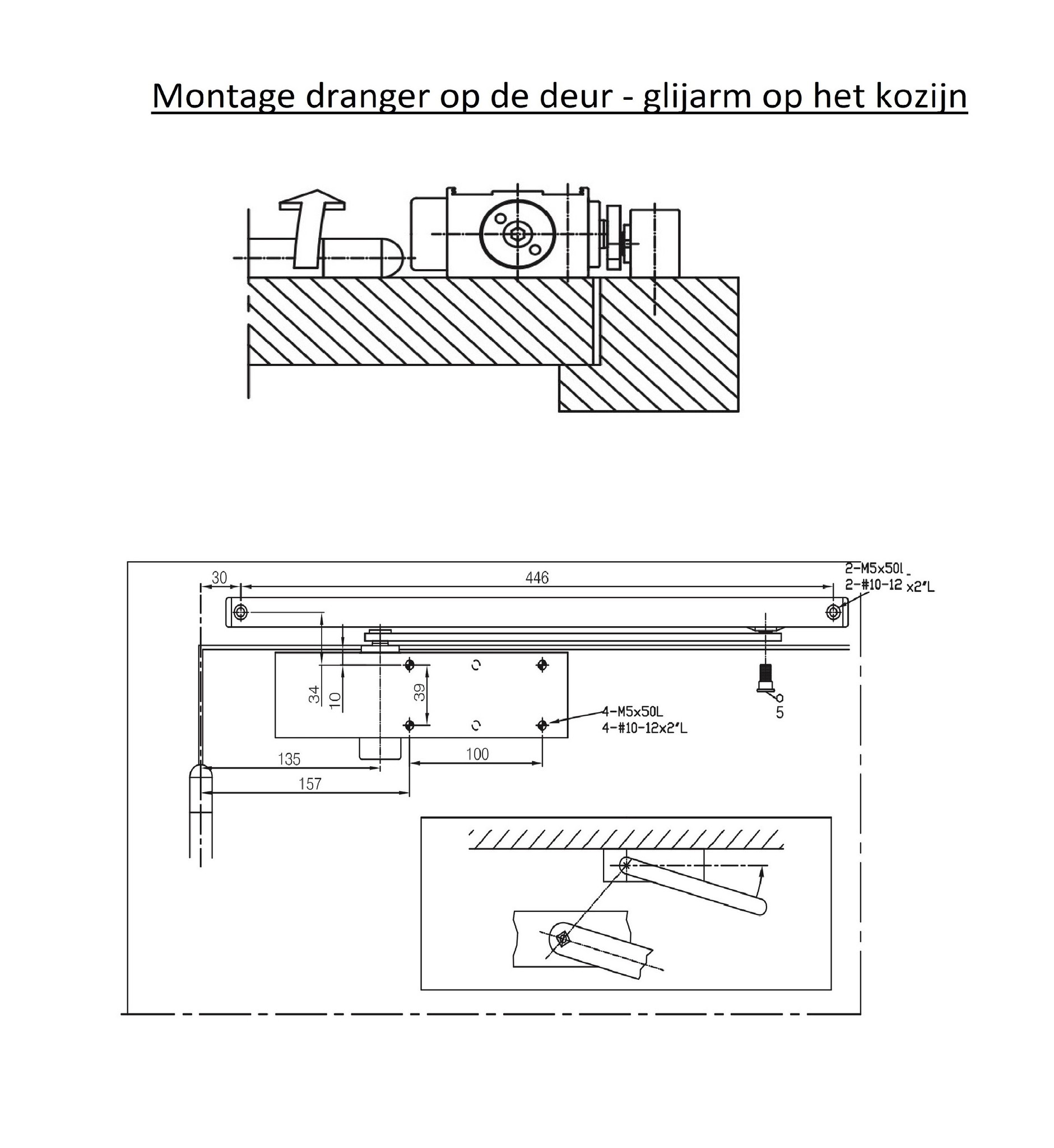

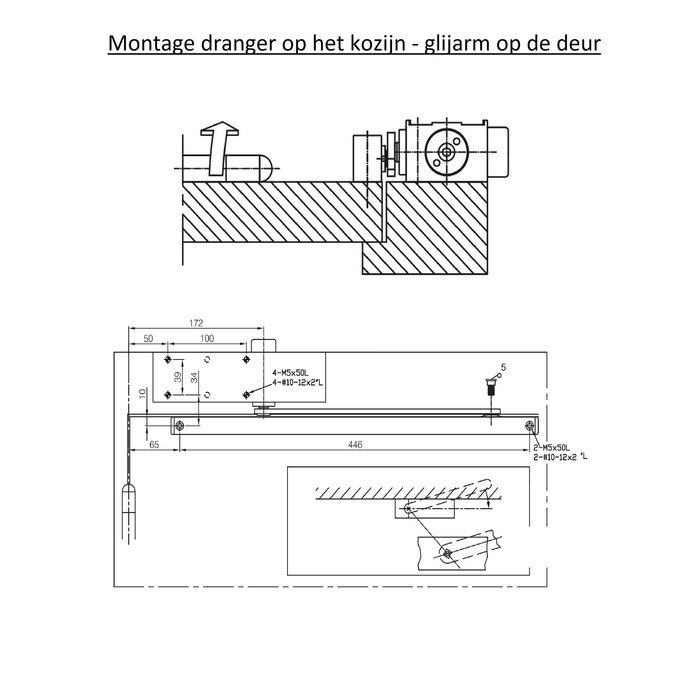

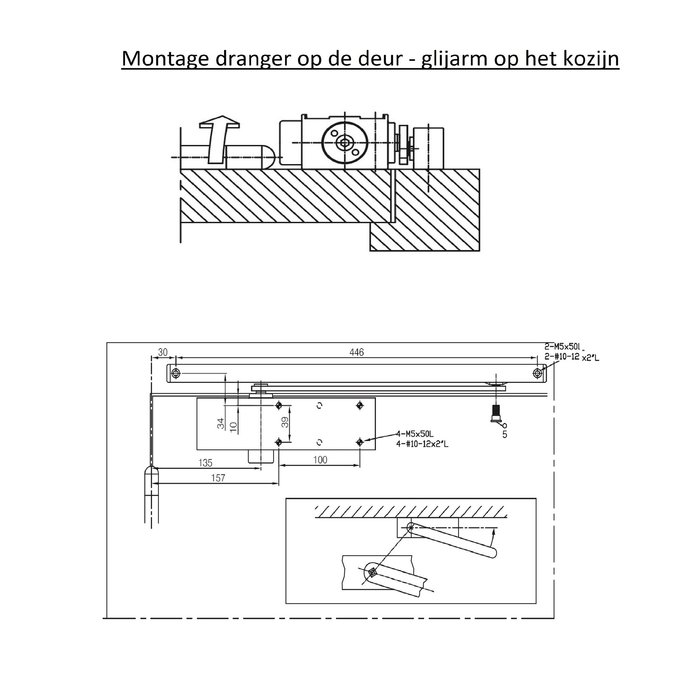

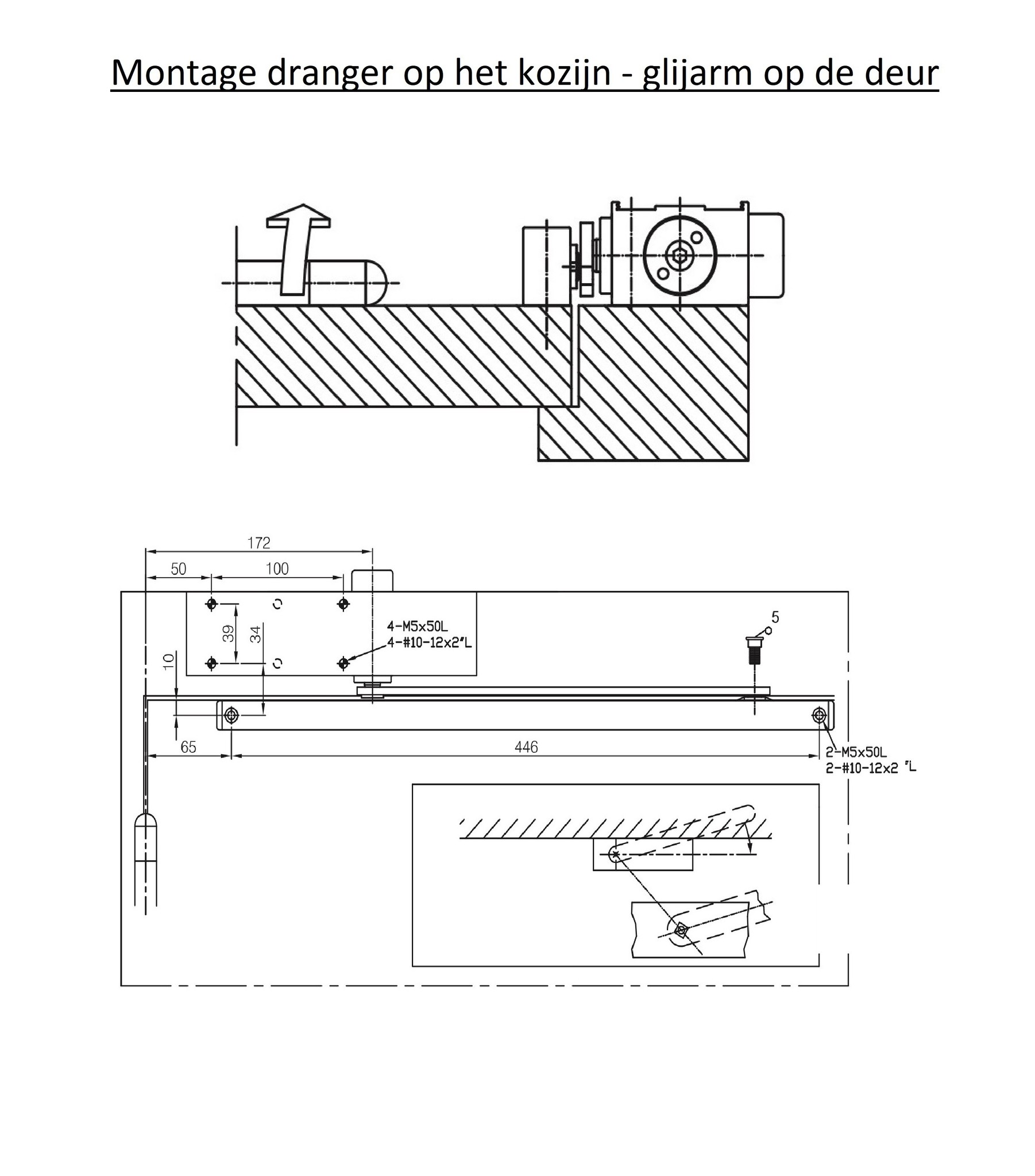

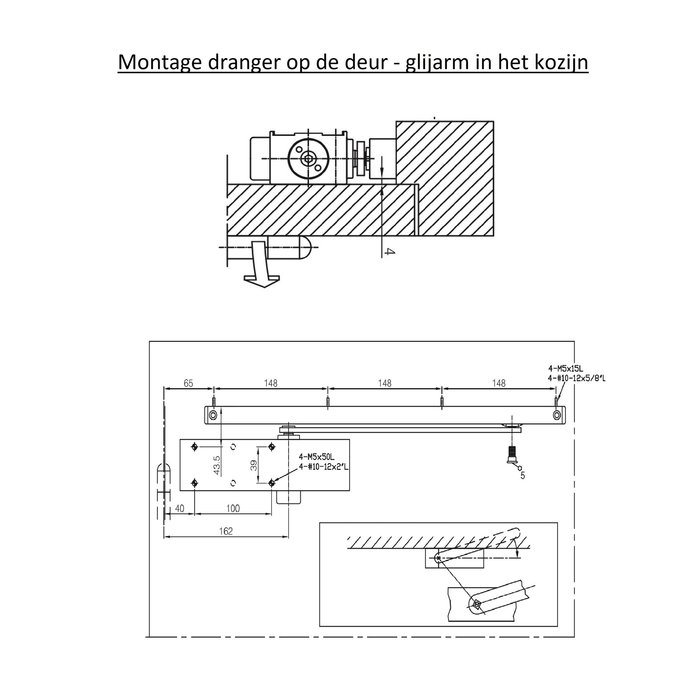

This door closer can be mounted in three different ways, namely with the door closer on the door and the arm on the frame, with the door closer on the frame and the arm on the door, and with the door carrier on the door and the arm in the windowframe. See attached images for the three options.
The black door closer is supplied per piece including mounting materials and installation instructions.
If desired, an extra mounting plate can be ordered for more sturdiness.
These are available in 2 thicknesses (5mm or 8mm) and can be found under related products.
Characteristics:
suitable for doors up to 1250 mm wide |
suitable for doors up to 100 kg |
adjustable strength (2 ~ 4) |
adjustable closing speed (180°-15°) |
adjustable final speed (15°-0°) |
