Description
Door closer with sliding arm suitable for mounting on inward and outward opening interior doors
Article code: 1328010
With a door closer you ensure that a door closes automatically after opening.

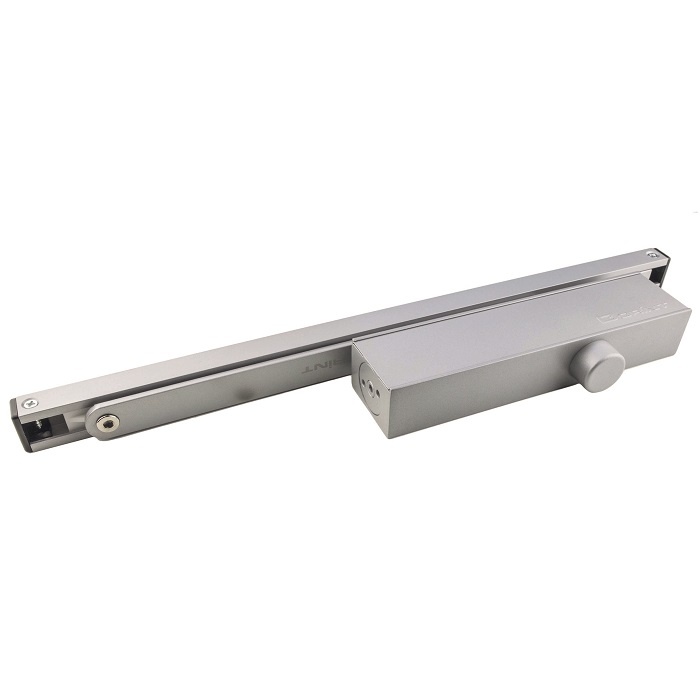

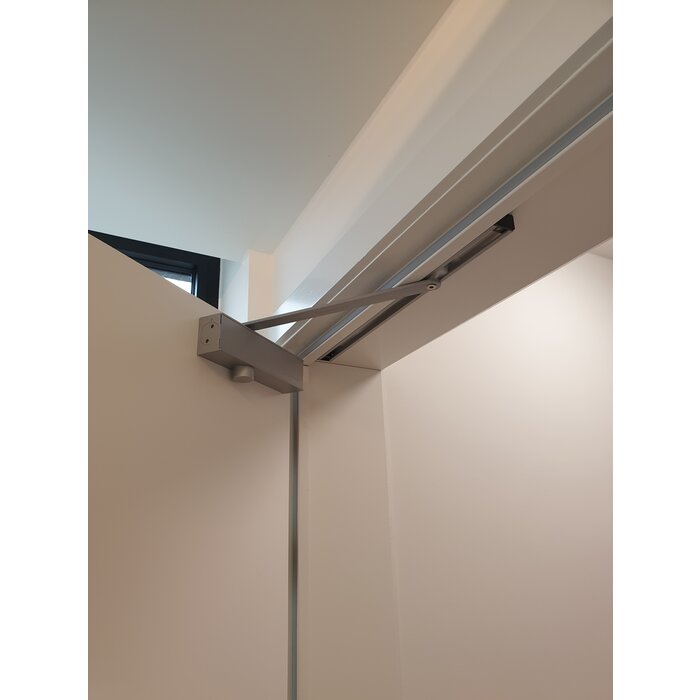

The hydraulic door closer DORINT IT920 in aluminum look has a sliding arm and is suitable for use on both left and right opening interior doors.
This door closer is classified in closing force classes 2 to 4 according to EN 1154 standards. The closing force is set with a spring and the door pump is suitable for doors with a weight of 60 to 100 kg and a door width of 95 cm to 125 cm.

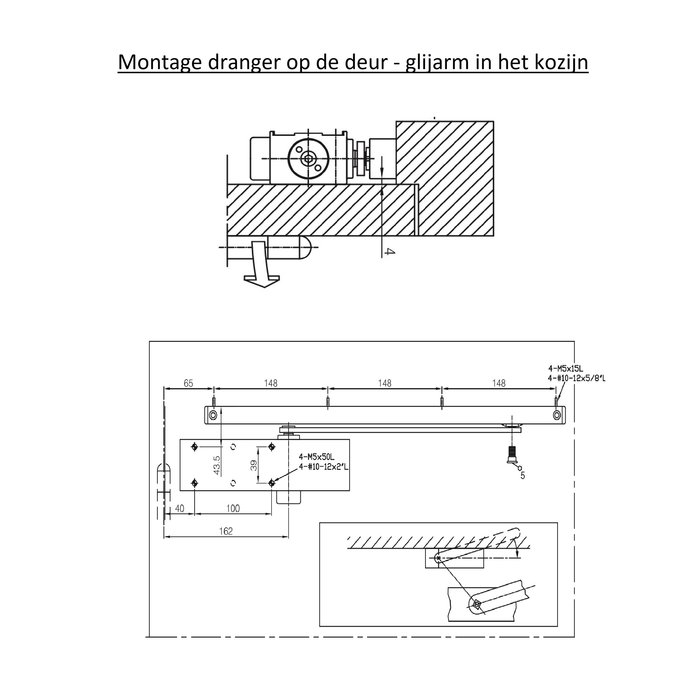

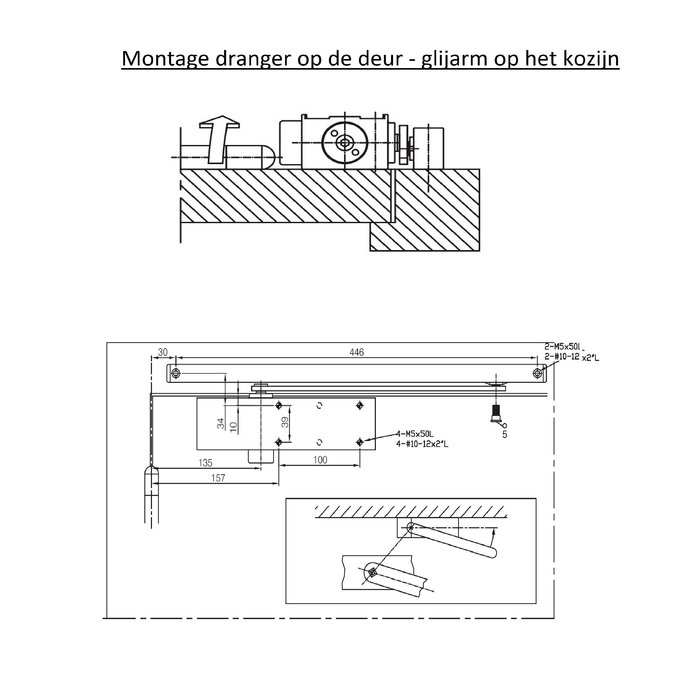

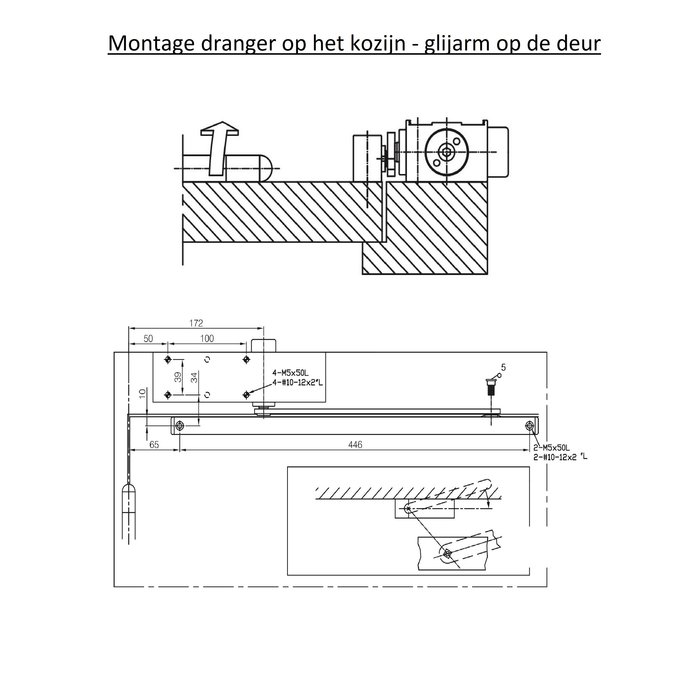

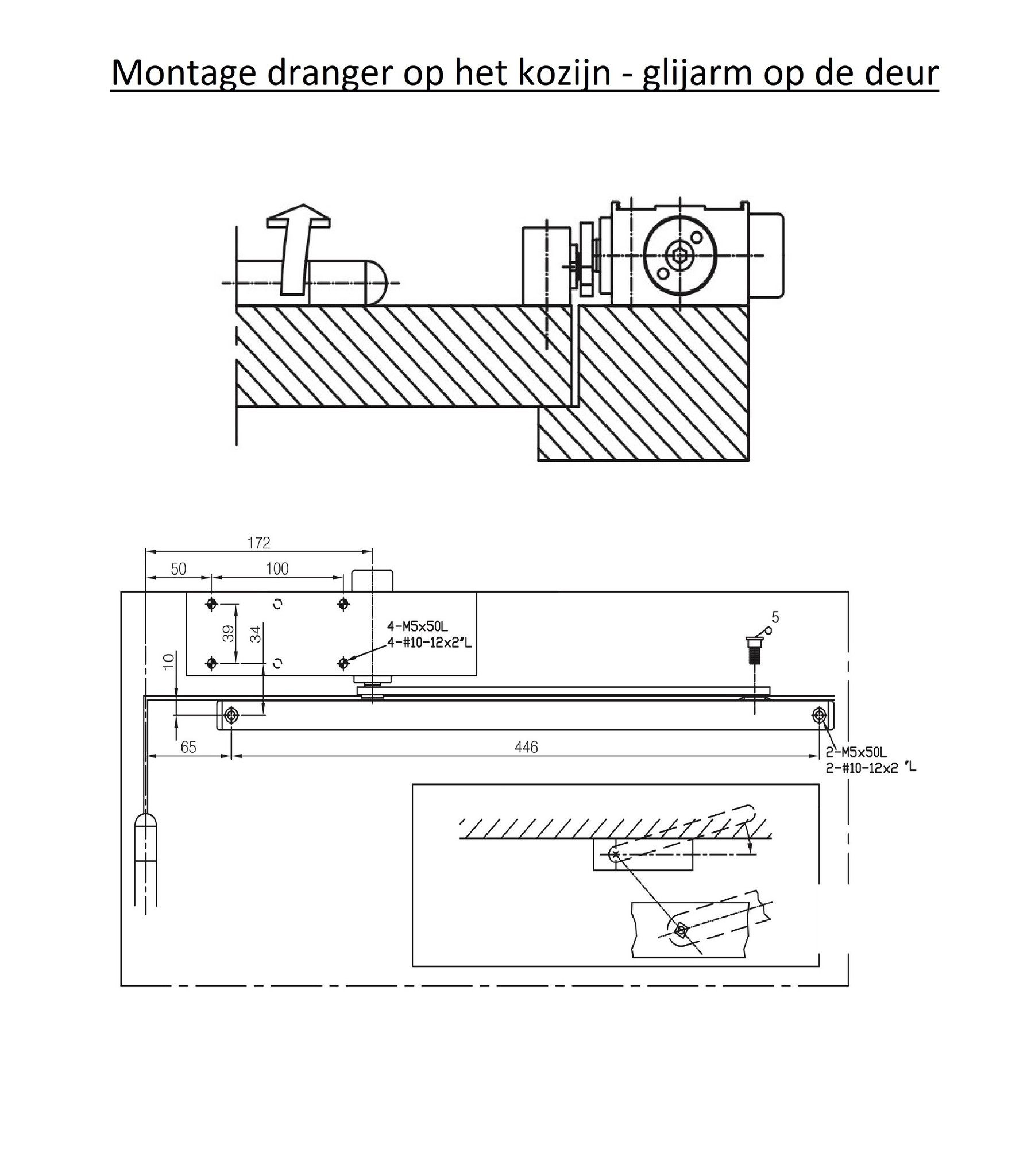

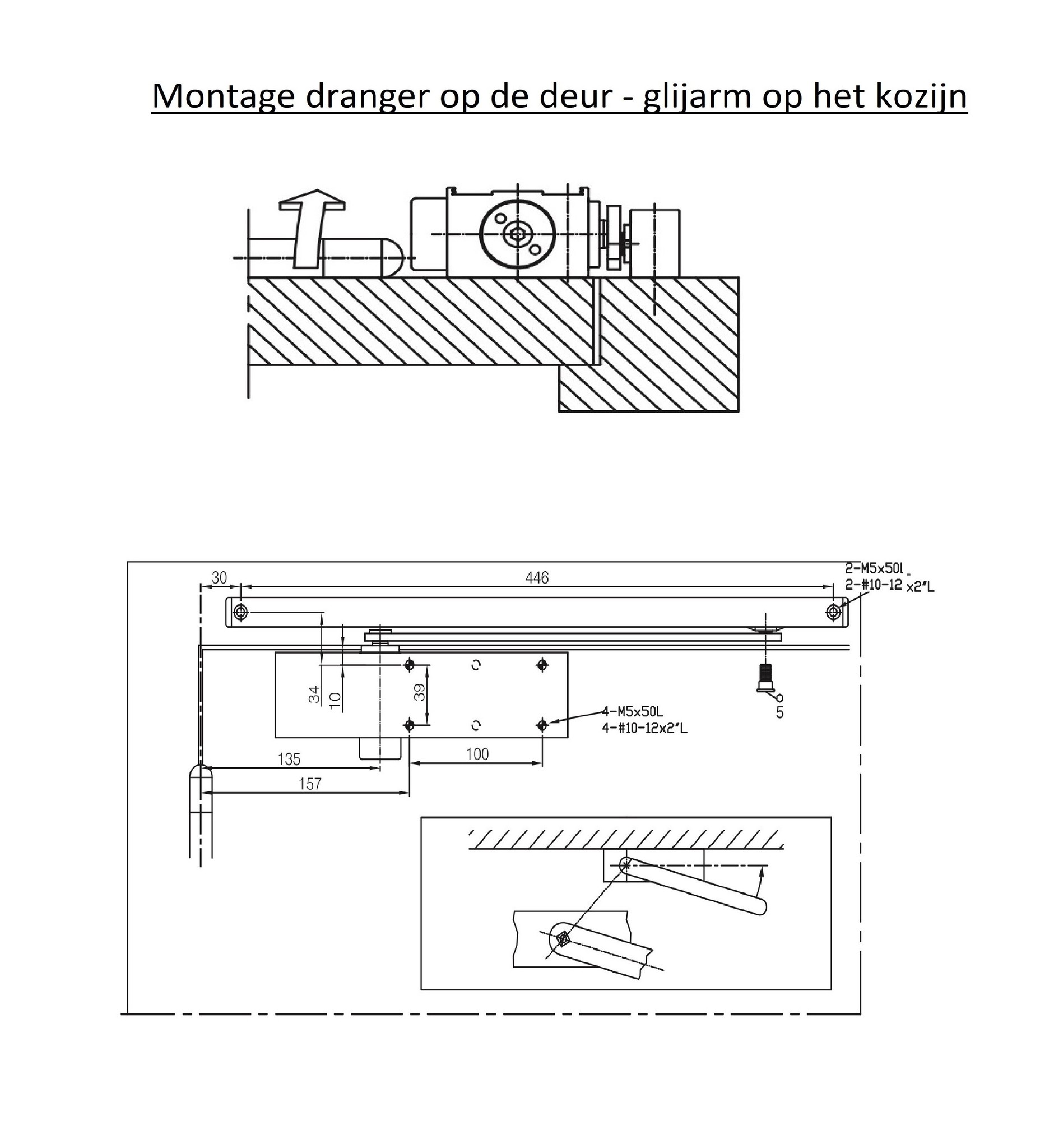

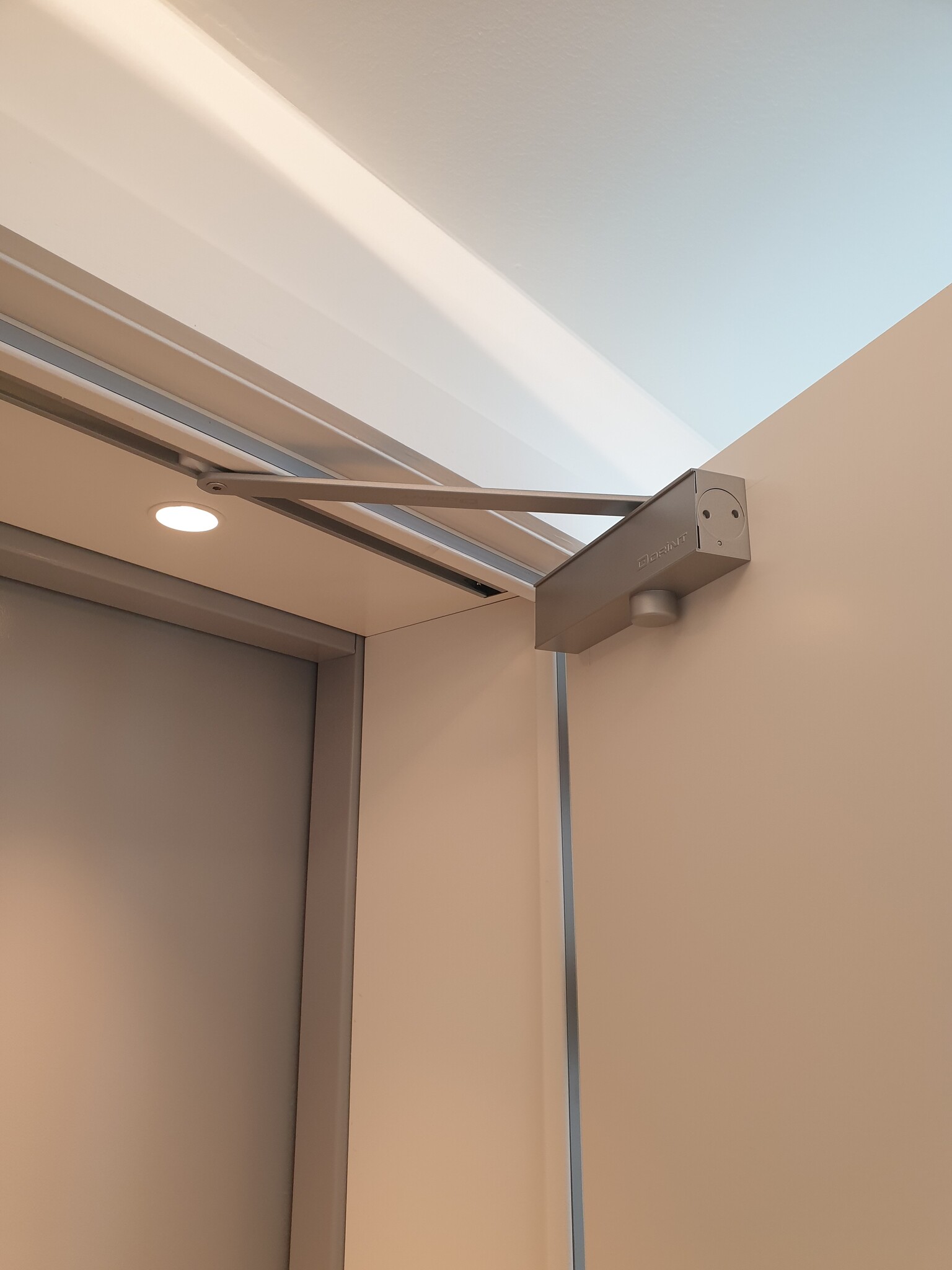

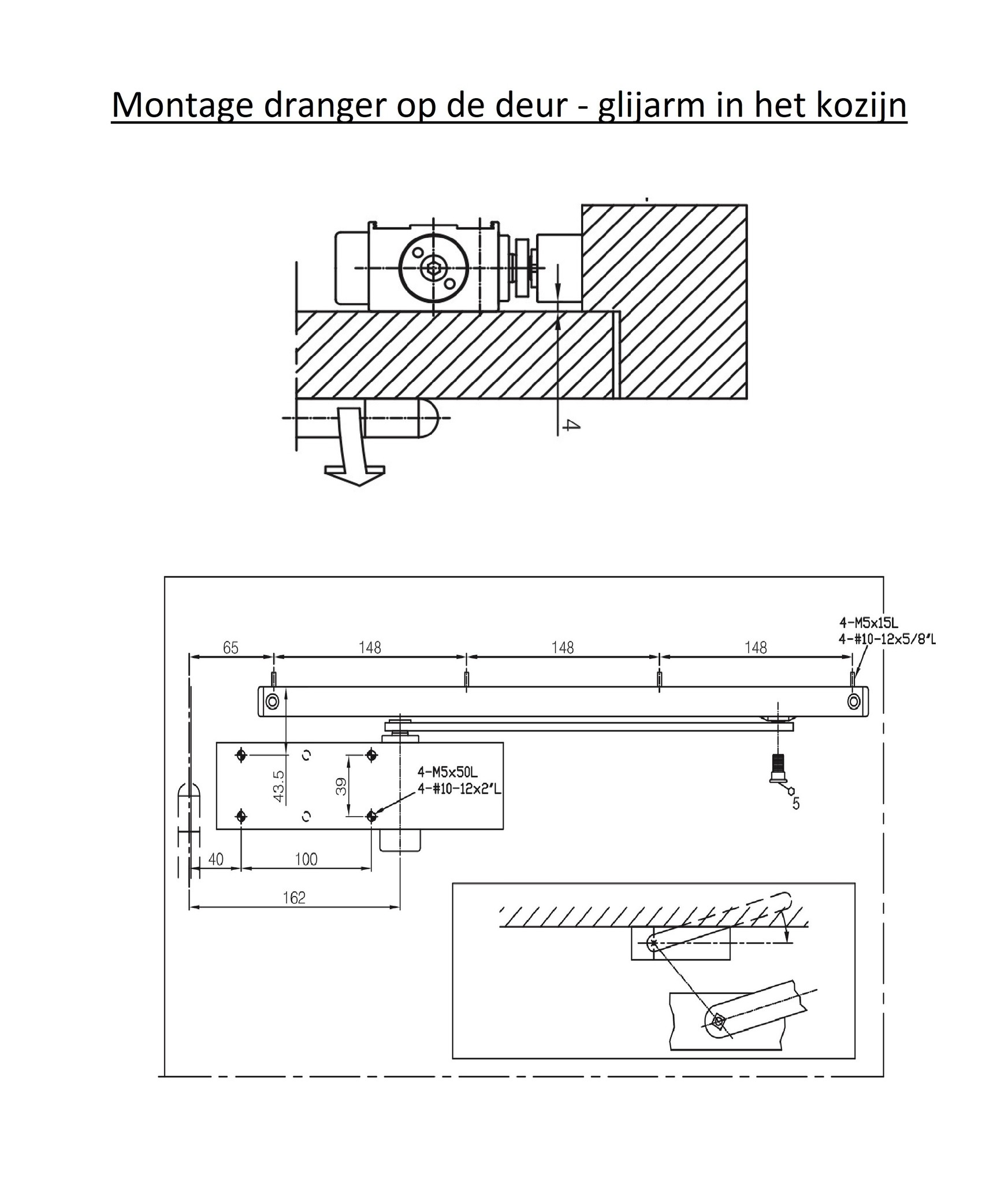

This door closer can be mounted in three different ways, namely with the door closer on the door and the arm on the frame, with the door closer on the frame and the arm on the door, and with the door carrier on the door and the arm in the windowframe. See attached images for the three options.
The requirements and test methods for door closers are laid down in European Norm 1154, which the door closer complies with.
The door closer in aluminum look is supplied per piece including mounting materials and installation instructions.
If desired, an extra mounting plate can be ordered for more sturdiness.
These are available in 2 thicknesses (5mm or 8mm) and can be found under related products.
Characteristics:
suitable for doors up to 1250 wide |
suitable for doors up to 100 kg |
adjustable strength (2 ~ 4) |
adjustable closing speed (180°-15°) |
adjustable final speed (15°-0°) |
