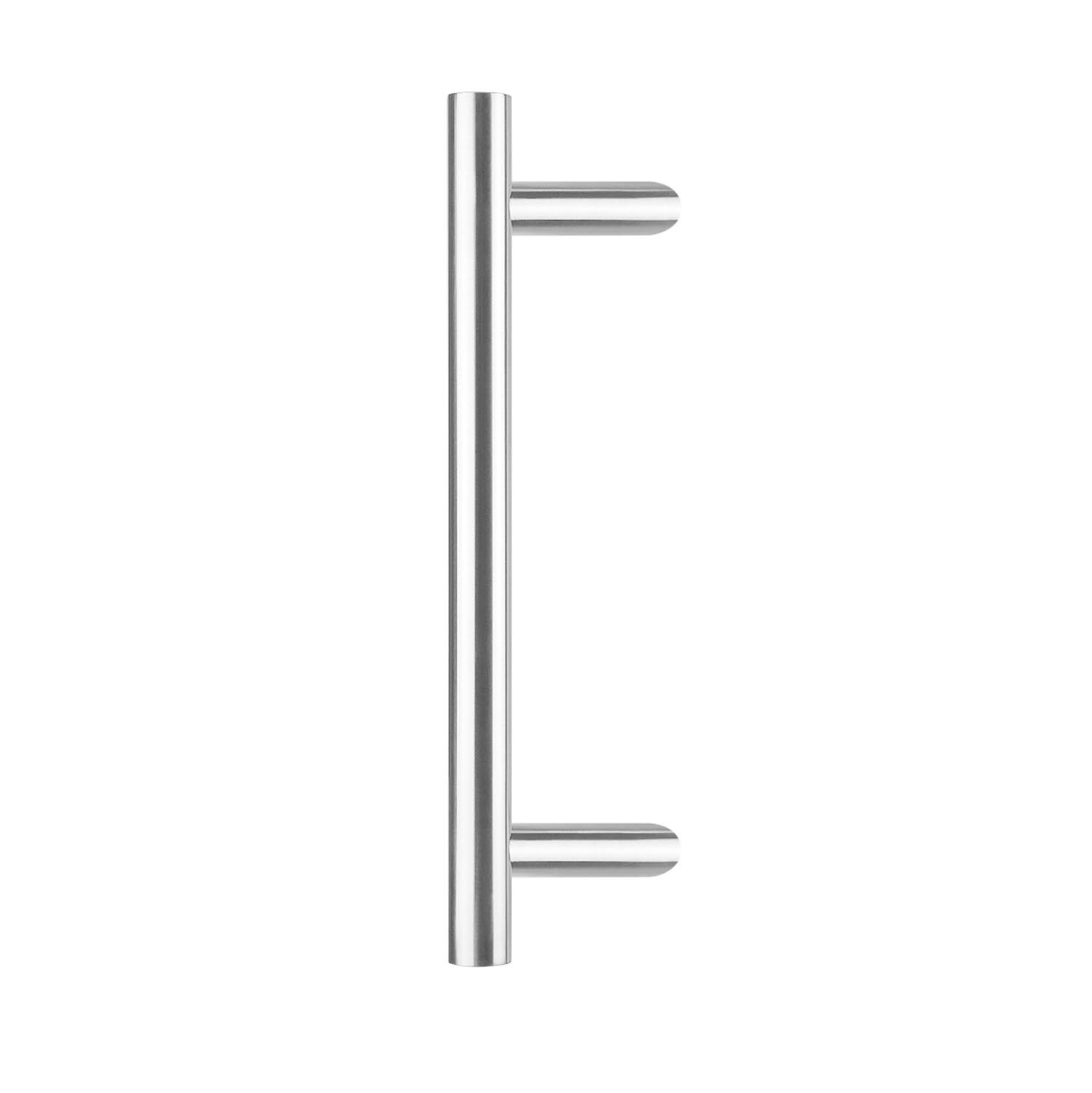

This stainless steel door handle with a total length of 700 mm has a slanted foot, which makes it very suitable for a front door. Also, these handles are often used in public buildings such as hospitals etc.

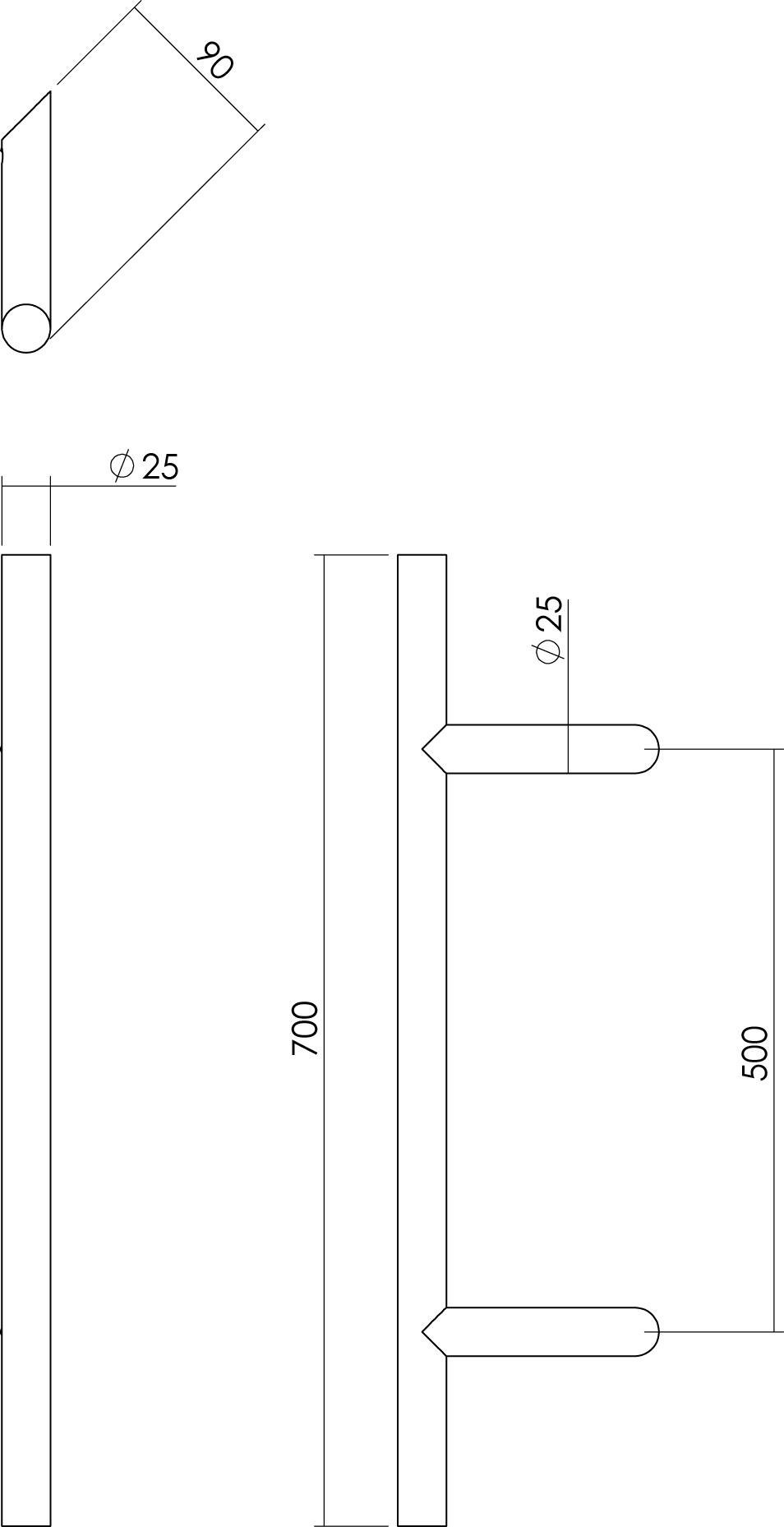

The stainless steel handle has a diameter of 25 mm and the center-to-center size is 500 mm. The door handle is mounted blind and then protrudes 90 mm.
Due to the use of stainless steel, this angled handle has a long life.
The slanted foot ensures that you can easily reach the cylinder to open your door.

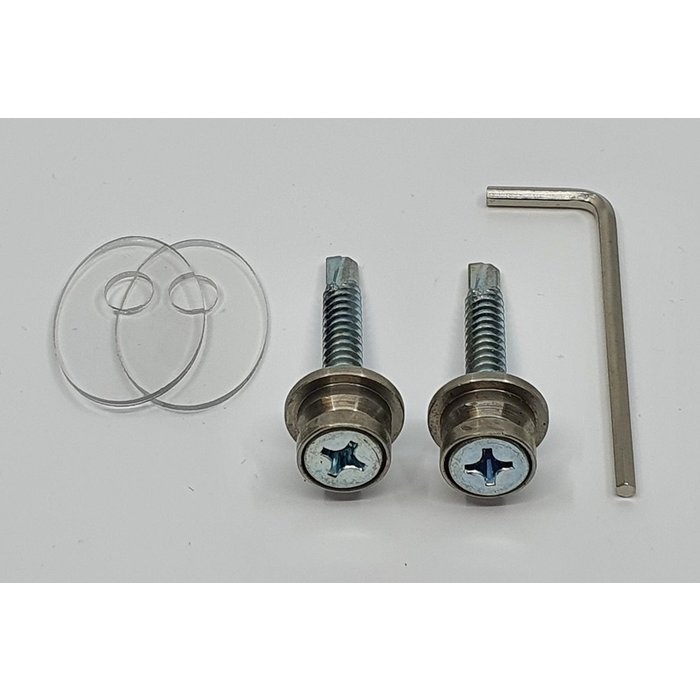

This handle is supplied per piece including mounting material for one-sided mounting.
These are 2 sleeves that you screw against the door on the corresponding shaft size (see technical drawing) where you then slide the door handle over and secure it with the Allen screws.
As a result, you will not see any confirmation on the inside.
