Description

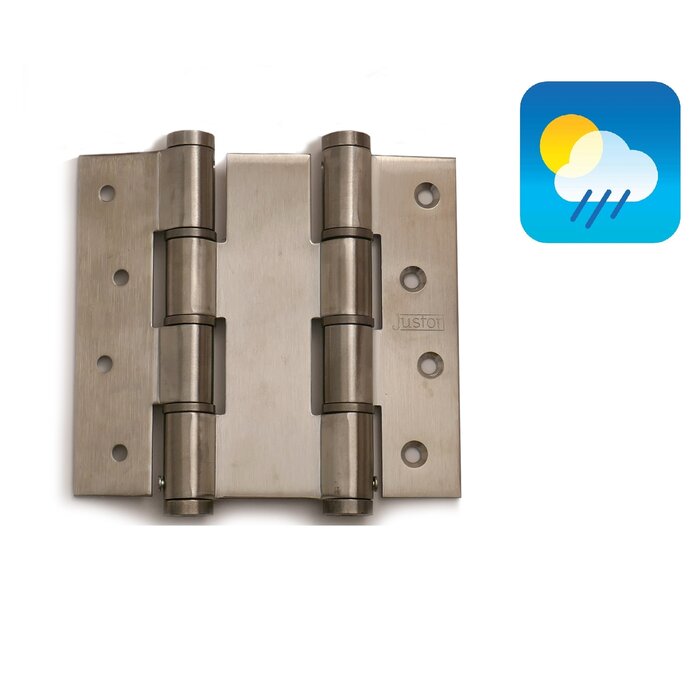

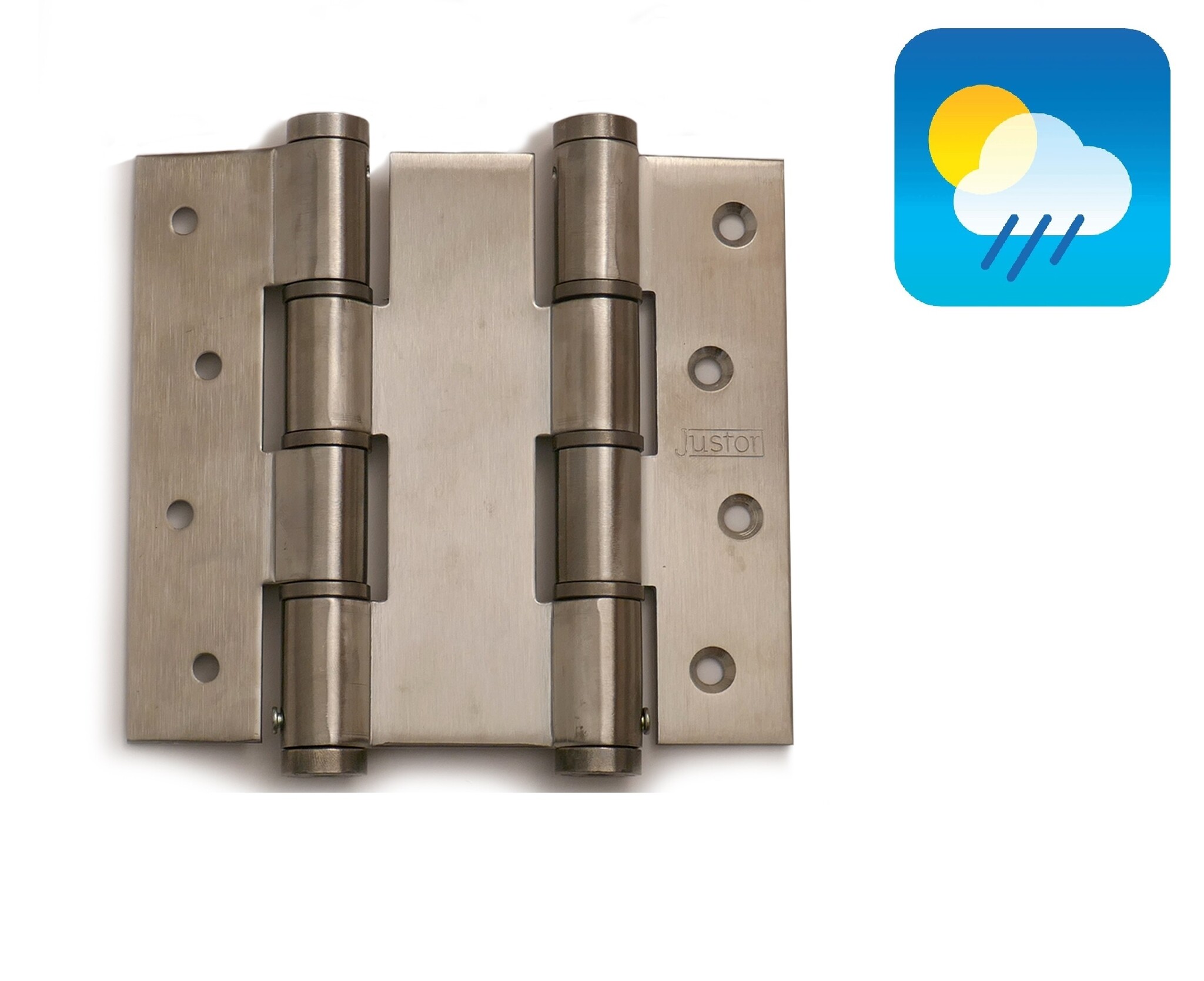

2 Double-acting door spring hinges for doors with a maximum thickness of 40 mm, made of full stainless steel AISI 316
Article code: DS0540.120.0406
This double-acting door spring hinge is a good solution for (double) doors in, for example, a restaurant or hotel where people walk in and out all day long. The big advantage of this hinge is that the doors can be opened to both sides and close again automatically at a closing speed that you can set. This way you can be sure that the door will not be left open unintentionally.
Because this hinge is made entirely of high-quality stainless steel, it can be used both indoors and outdoors .
These hinges are supplied per 2 pieces excluding mounting material.
Download the installation instructions here
material | anodized aluminum |
finish | polished |

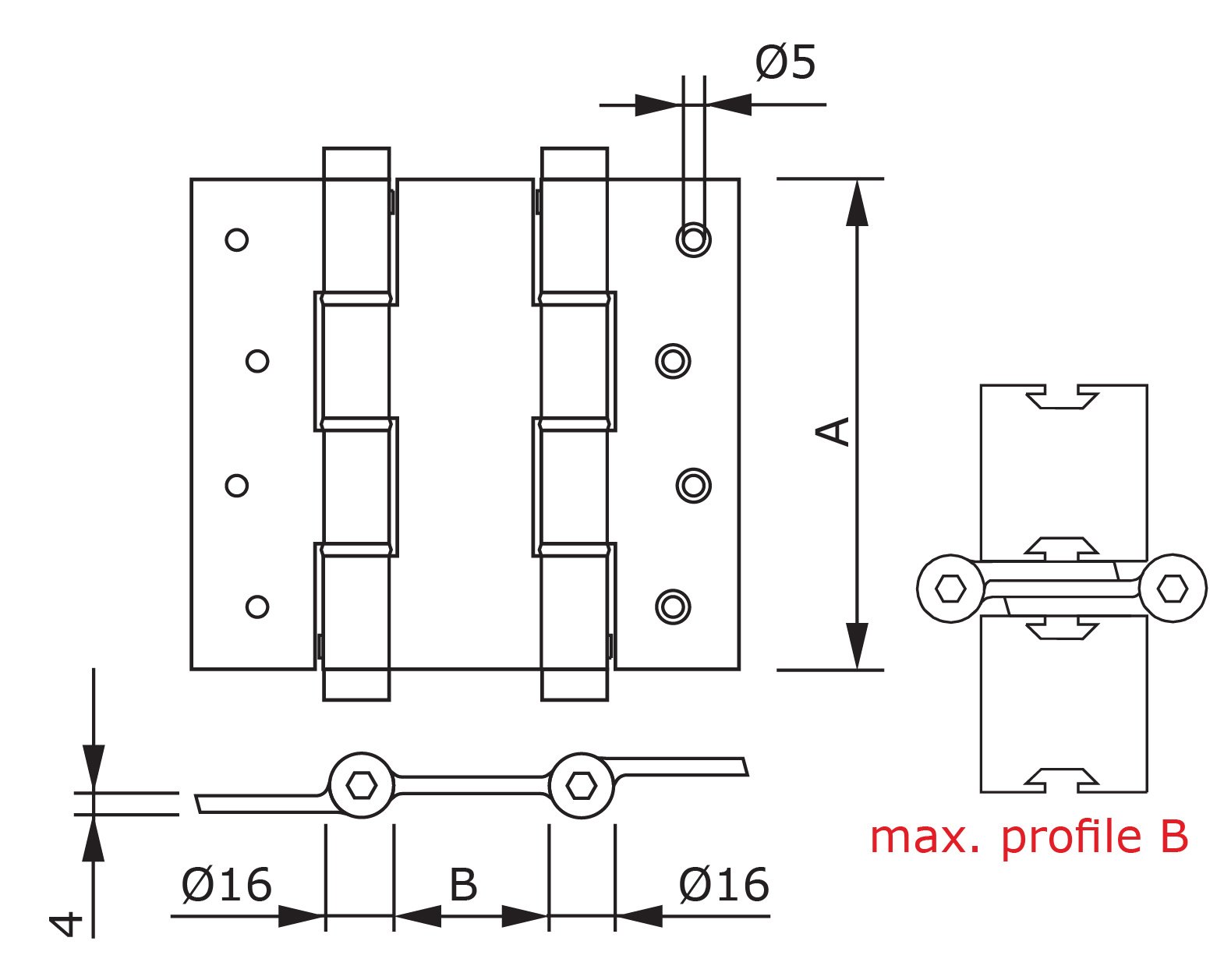

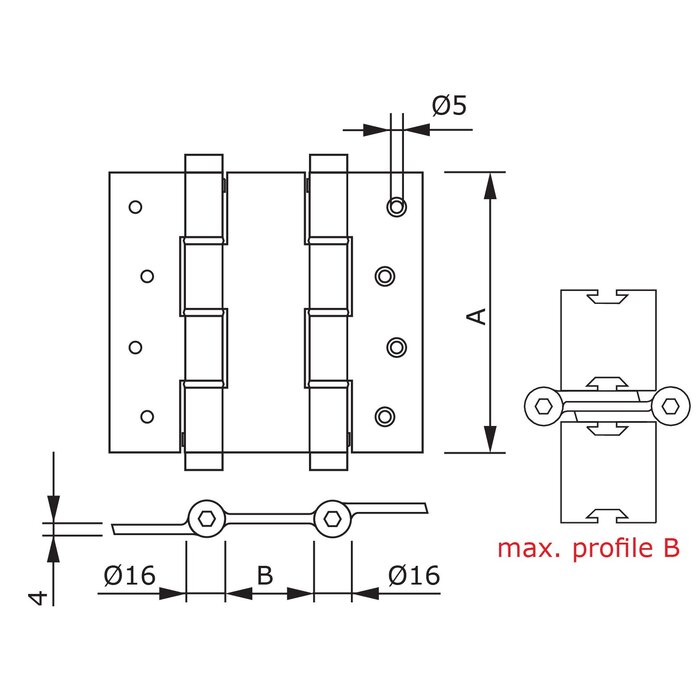

L (mm) | 120 |
A (mm) | 37 |
max. Profile B (mm) | 40 |
maximum door width (mm) | 1000 |
performance | double acting |
maximum opening | 180° |
material adjustable cap |
Stainless steel AISI 316
|
material inside axle | Stainless steel AISI 316 |
spring material |
Stainless steel AISI 301 protective grease
|

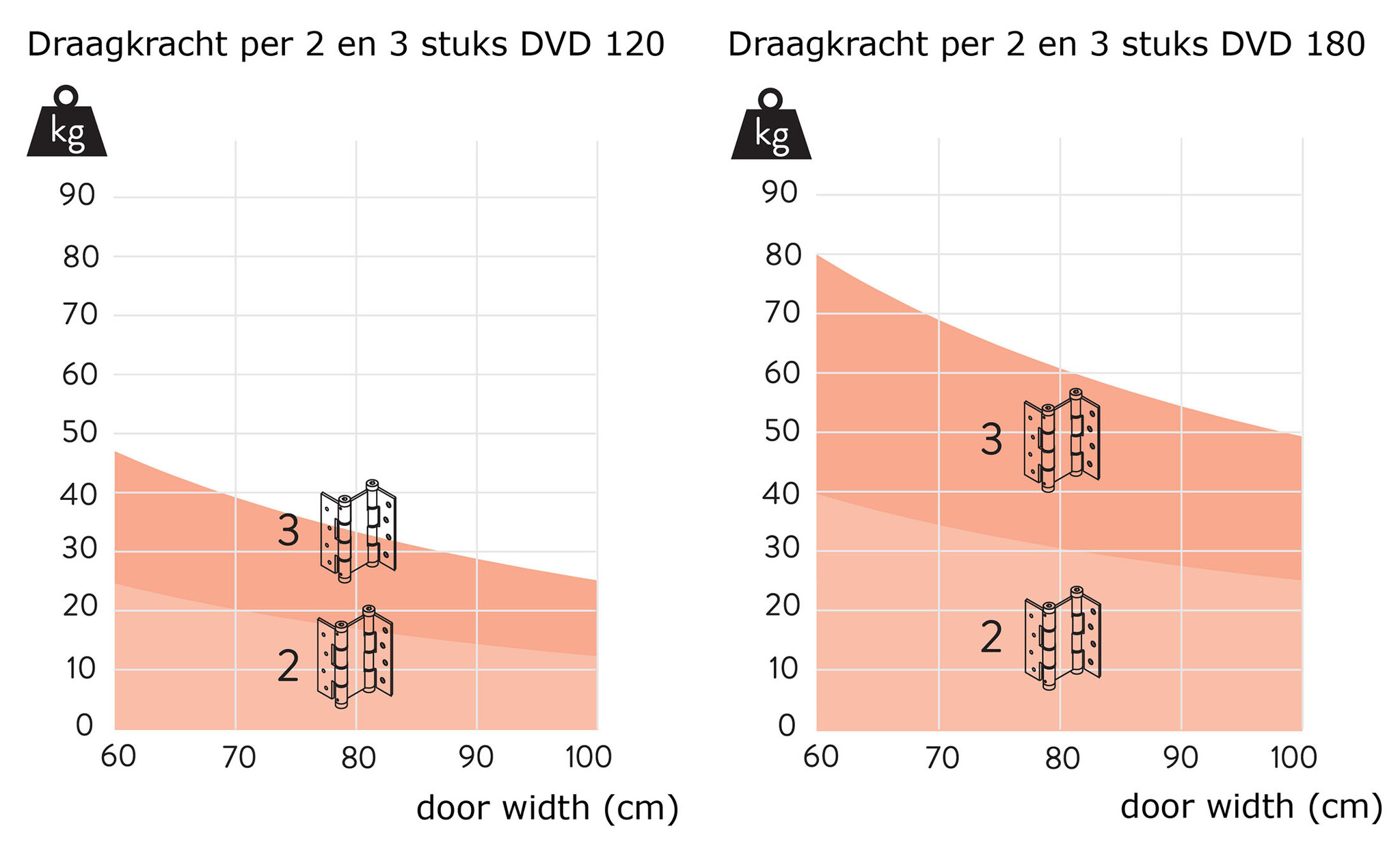

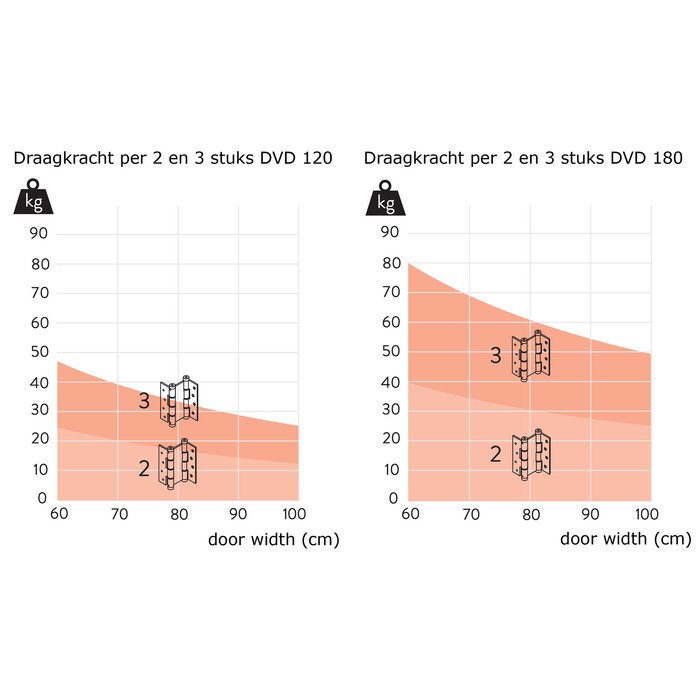

carrying capacity | See attached picture |
particularities |
unique spring mechanism tested up to 500,000 cycles
|
mounting material | Not included |
application | inside and outside |
