Description
2 Double-acting door spring hinges for doors with a maximum profile of 30 mm thick are available in silver gray
Article code: DS0540.180.0402
This double-acting door spring hinge is a good solution for (double) doors in, for example, a restaurant or hotel where people walk in and out all day long. The big advantage of this hinge is that the doors can be opened to both sides and close again automatically at a closing speed that you can set. This way you can be sure that the door will not be left open unintentionally.
Because this hinge is made of anodized aluminum, it can be used both indoors and outdoors .
These hinges are supplied per 2 pieces excluding mounting material.
Download the installation instructions here

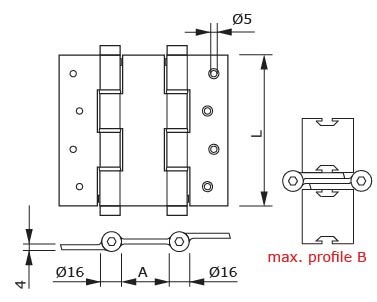

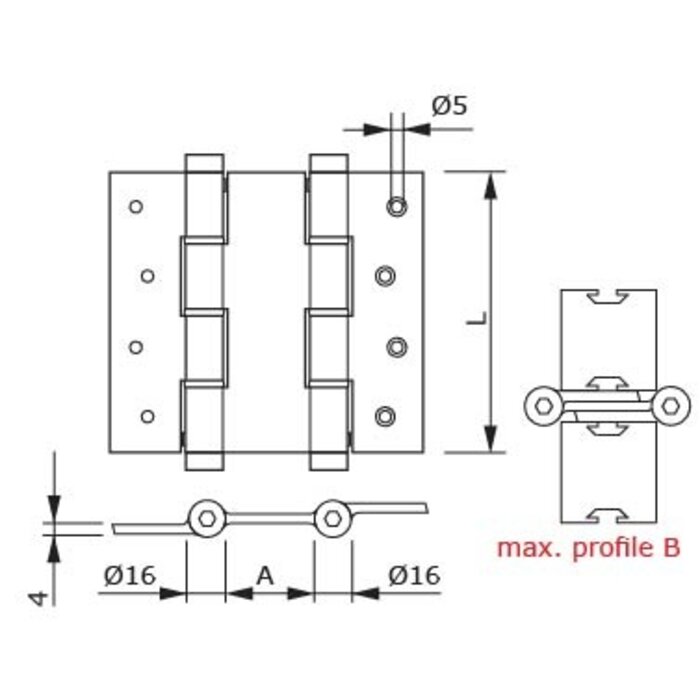

material | anodized aluminum |
finish | Silver gray |
L (mm) | 180 |
A (mm) | 26 |
max; Profile B (mm) | 30 |
maximum door width (mm) | 1000 |
performance | double acting |
maximum opening | 180° |
material adjustable cap | chrome-plated zamak |
material inside axle | Stainless steel AISI304 |
spring material | steel with protective grease |

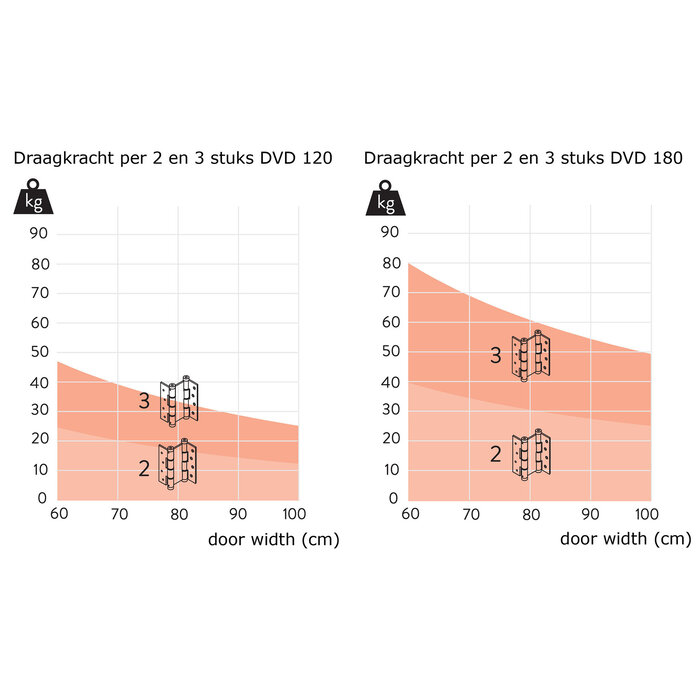

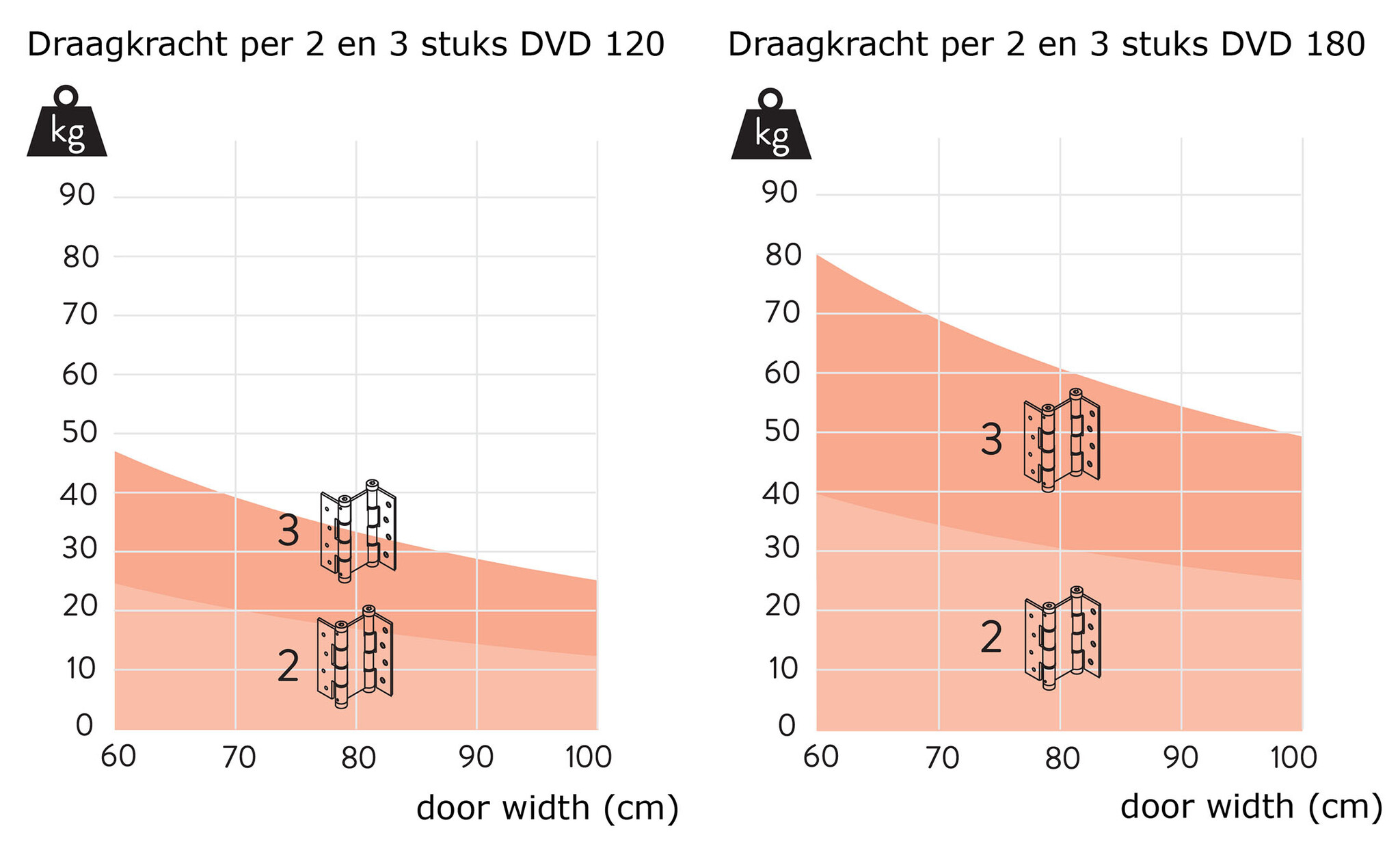

carrying capacity | See attached picture |
particularities |
unique spring mechanism tested up to 500,000 cycles
|
mounting material | Not included |
application | inside and outside |
