Description

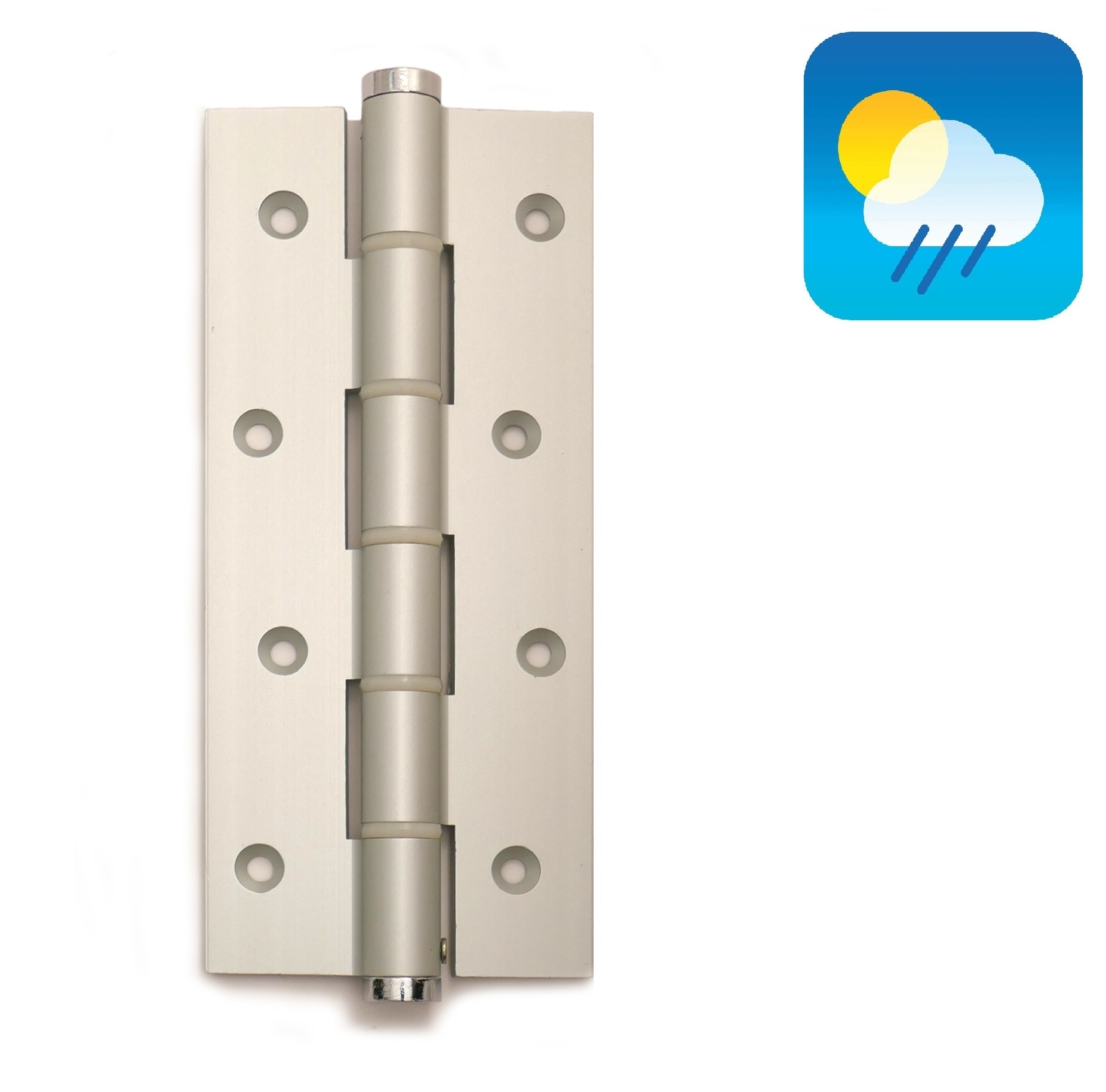

2 Single-action door spring hinges for doors that are at least 30 mm thick in silver gray
Article code: DS0540.180.0102
A single-acting door spring hinge is a good solution for, for example, a shop door or catering business where people walk in and out all day long. A door can be opened up to 180° and the door closes automatically thanks to the spring, which can be adjusted to your desired closing speed. This way you can be sure that your guests will not be caught in the draft.
Because this hinge is made of anodized aluminum, it can be used both indoors and outdoors .
These hinges are supplied per 2 pieces excluding mounting material.
Download the installation instructions here
material | anodized aluminum |
finish | silver gray |
L (mm) | 180 |
door thickness from (mm) | 30 |
maximum door width (mm) | 1000 |
performance | single-acting |
maximum opening | 180° |
material adjustable cap | chrome-plated zamak |
material inside axle | Stainless steel AISI304 |
spring material | steel with protective grease |

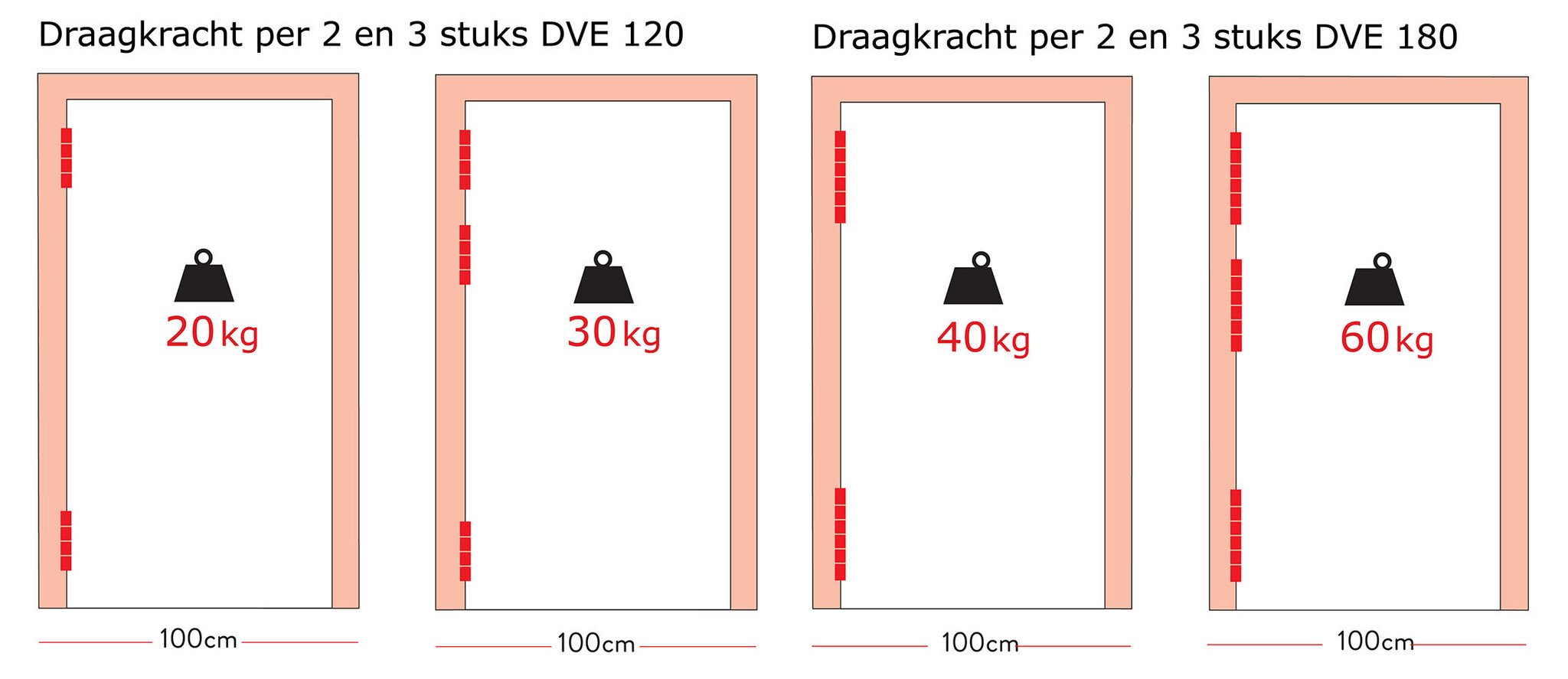

carrying capacity | See attached picture |
particularities |
unique spring mechanism tested up to 500,000 cycles
|
mounting material | Not included |
application | inside and outside |
