Description

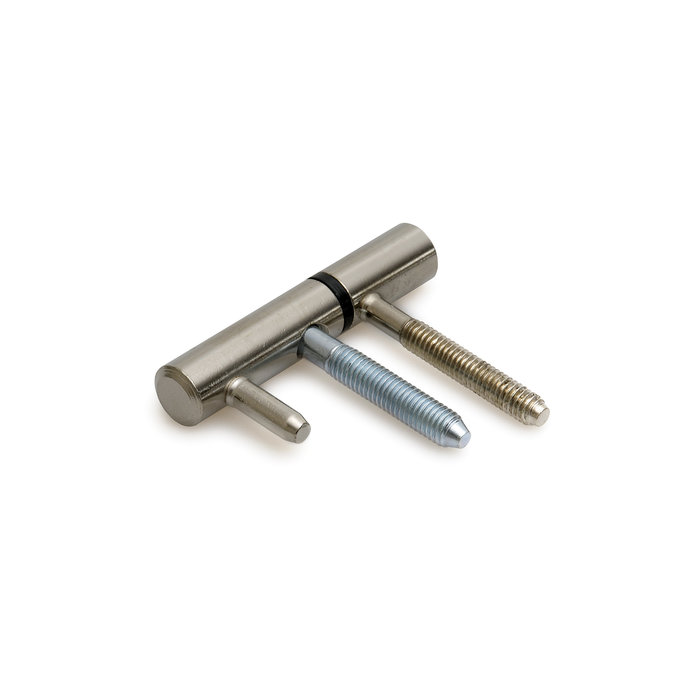

Steel drill-in hinge 14mm with stainless steel finish for wooden frame with nylon ring
Article code: DS6001.475.5543

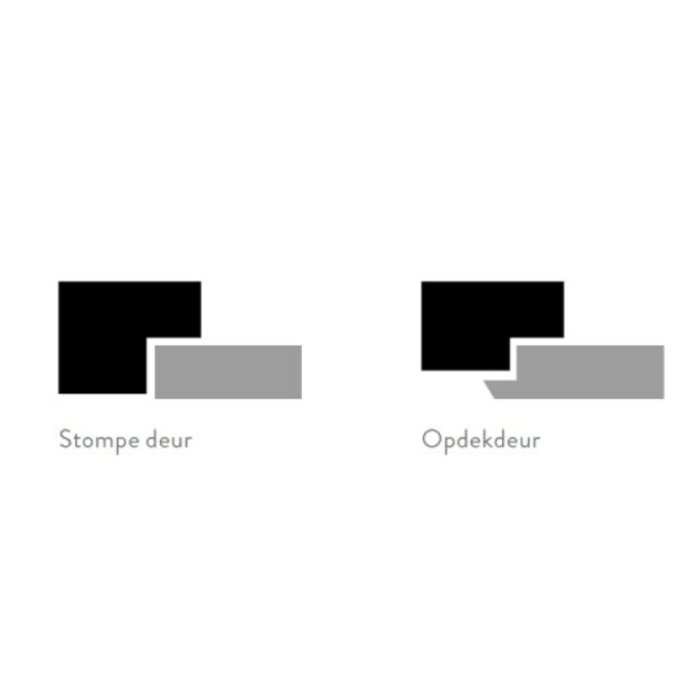

Built-in hinges are specially designed for hanging rebated doors in wooden frames. A rebated door falls on the frame, while a blunt door falls into the frame (see images).
Due to the model and the dimensions, this hinge can be universally applied to wooden frames.
Rebated doors are used indoors. Whether you have a basic, industrial or classic interior, these paumelles fit perfectly.
By using a black nylon ring you are assured of a long-lasting and silent operation.
This hinge is supplied per piece excluding mounting material .
Material | Steel |
Finish | stainless steel |
Type of frame | Wood |
Ring type | Black Nylon |
Application | for rebated doors |

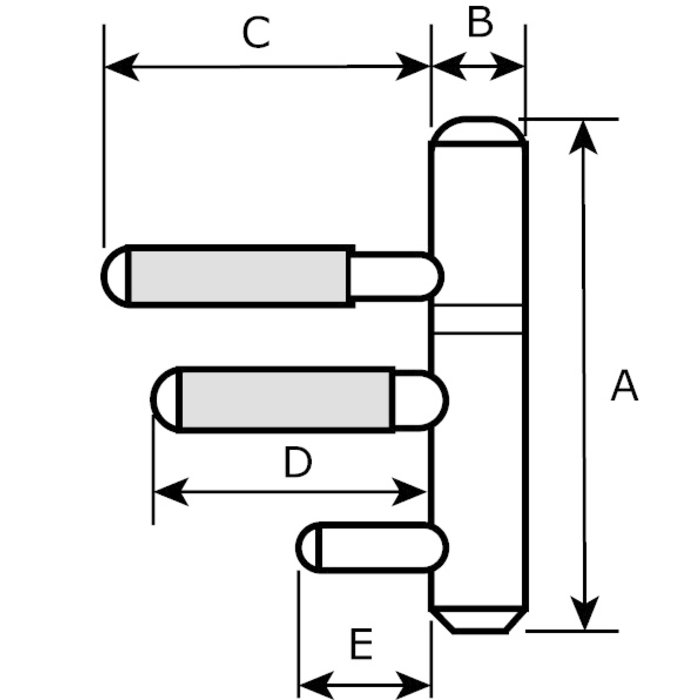

A (mm) |
75 |
B (mm) |
14 |
C (mm) |
50 |
D (mm) |
43 |
E (mm) |
20 |
Carrying capacity per piece | 20 KG |
