Description
Intersteel front door fitting 'Helena' on a shield with an axle dimension of 72 mm or 92 mm in matt black with core pull protection
Article code: 0023.377836

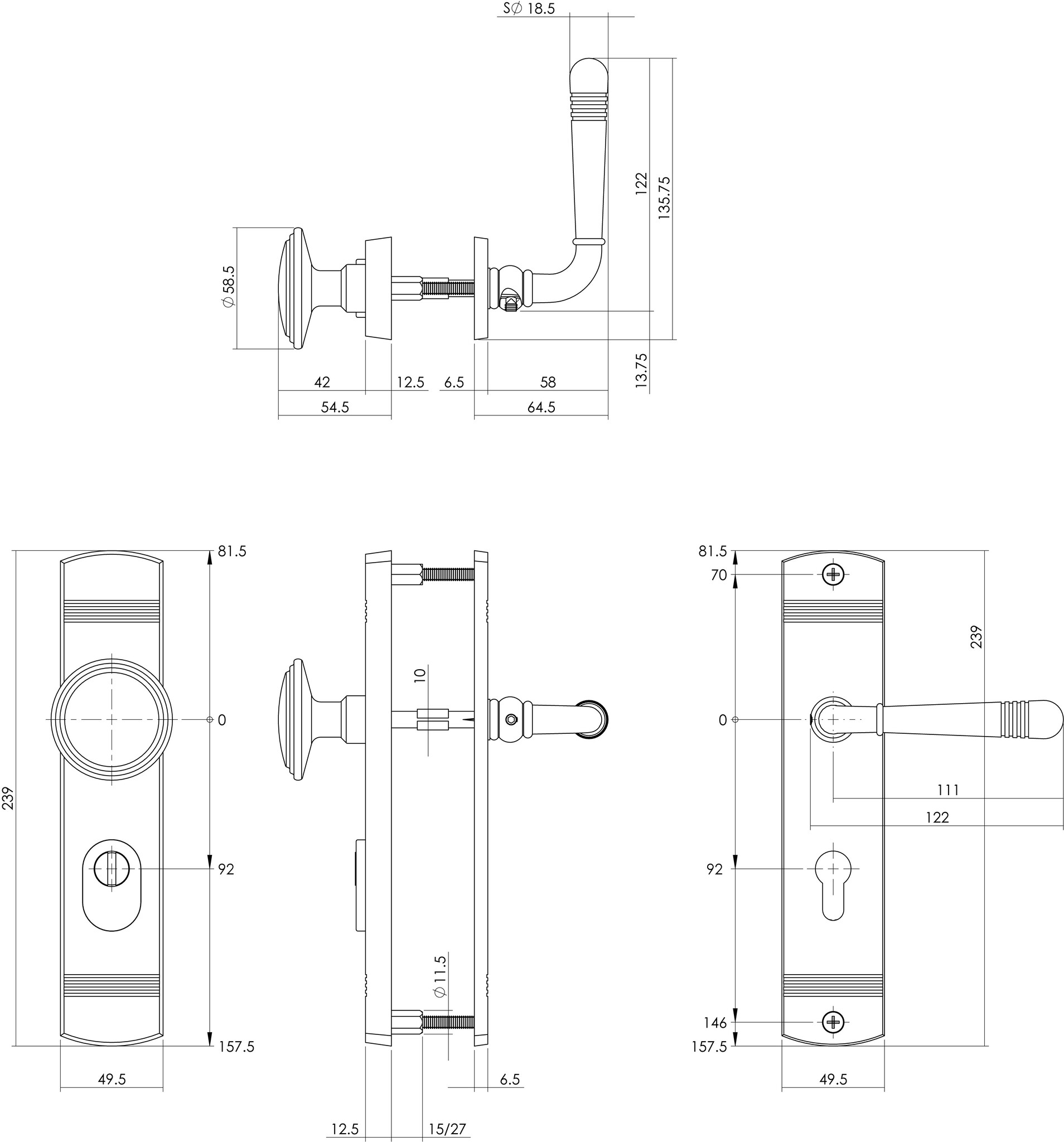

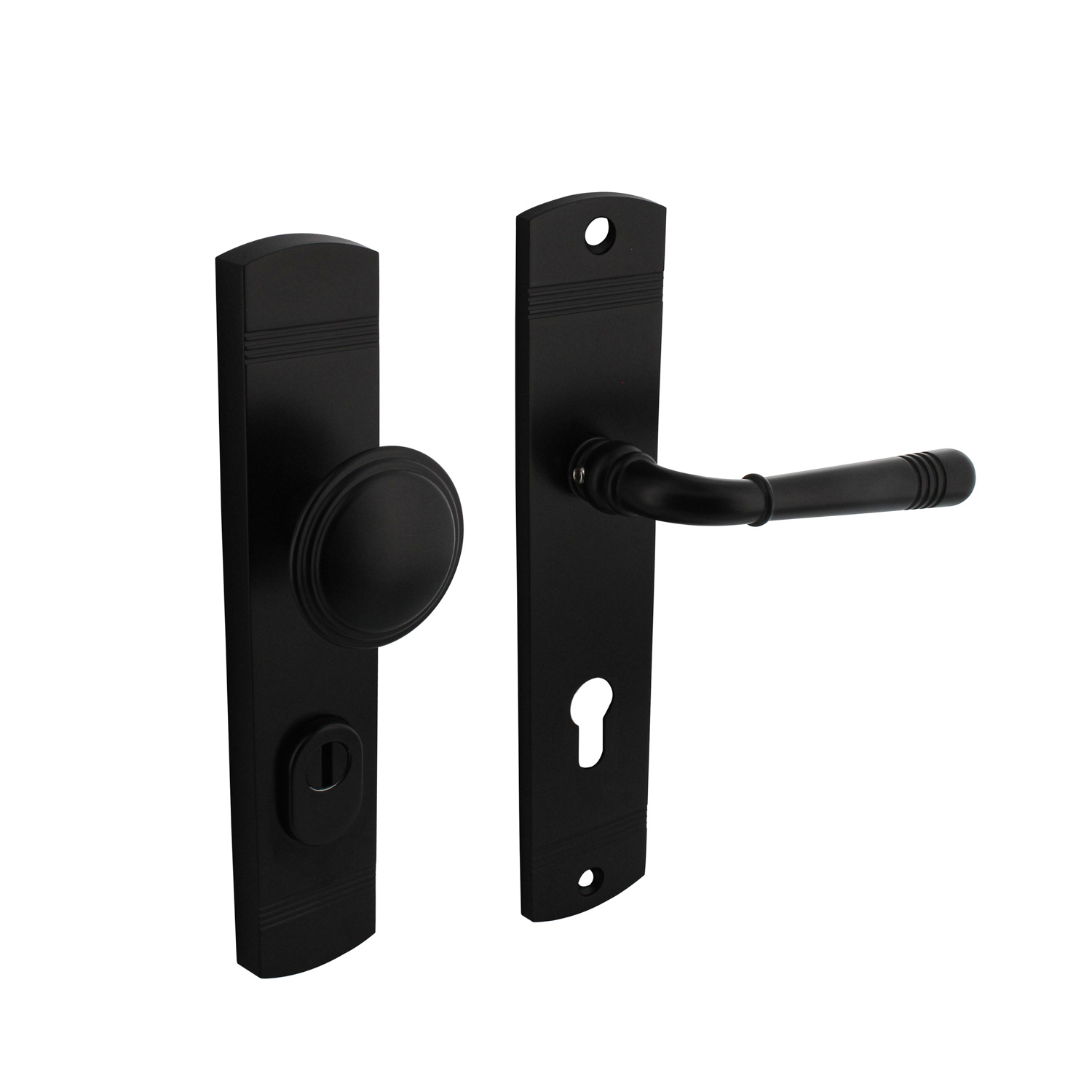

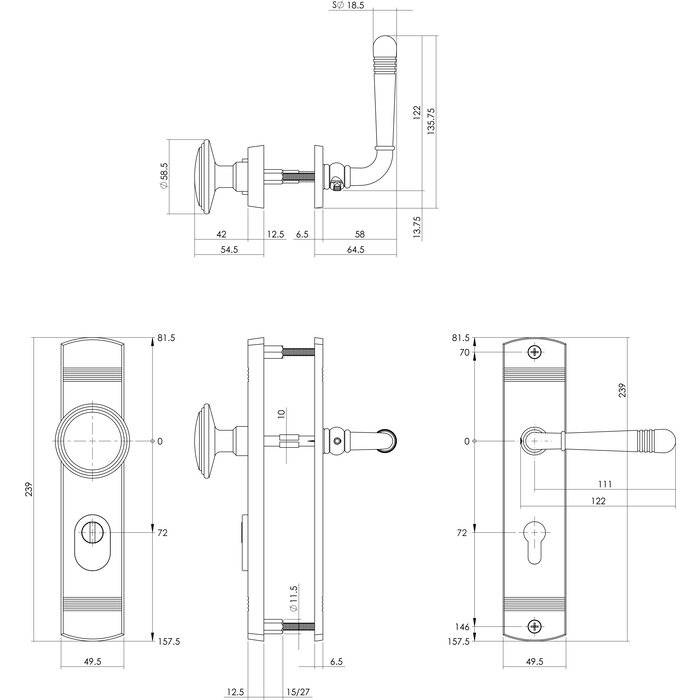

This set of front door fittings "Helena" is equipped with a fixed knob on the outside, which is on a shield of 239x49.5x12.5 mm. The door handle on the inside is on a shield of 239x49.5x6.5 mm.
The set is made of Zamak with an extra strong matt black finish.
This front door fitting is equipped with core pull protection to prevent drilling and pulling out the cylinder lock. The advantage of door fittings on a shield is often that they neatly cover the holes that are already in the door from the previous fitting.
The set is supplied per pair including the necessary mounting materials and pin of 8X8mm. The screw holes are already provided in the inner shield.
The black set is available with an axle distance of 72 or 92 mm. Make your choice in the scroll menu at the top right.
Features:
Suitable for door thickness: | 38-90mm |
Cylinder overhang | Min. 12mm - Max. 15.5mm |
cylinder hole size | 72-92 mm |
