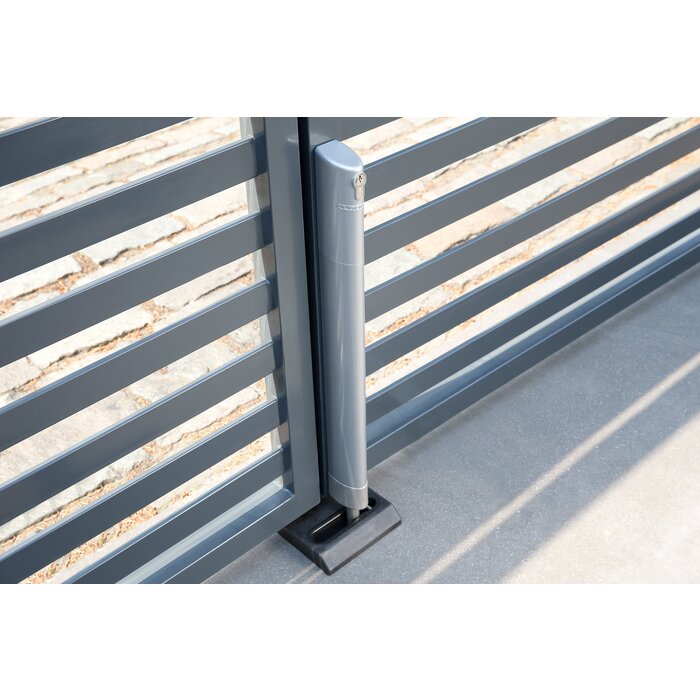

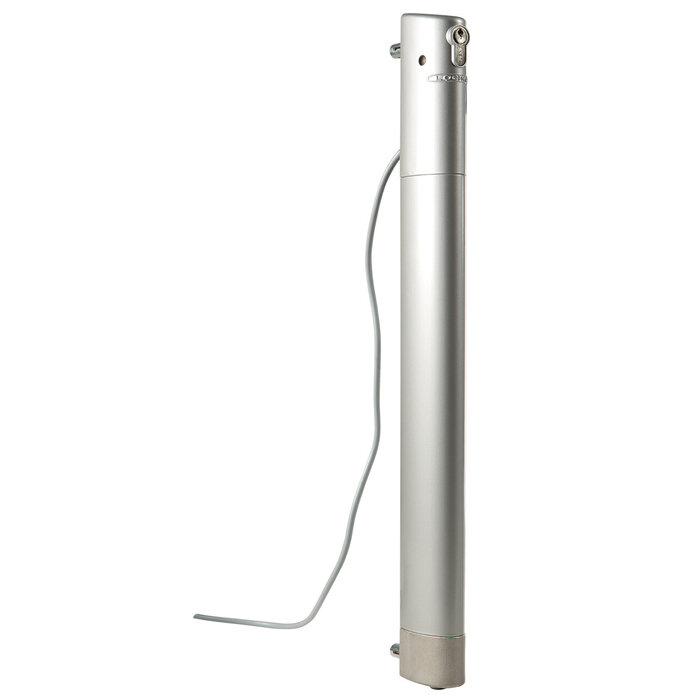

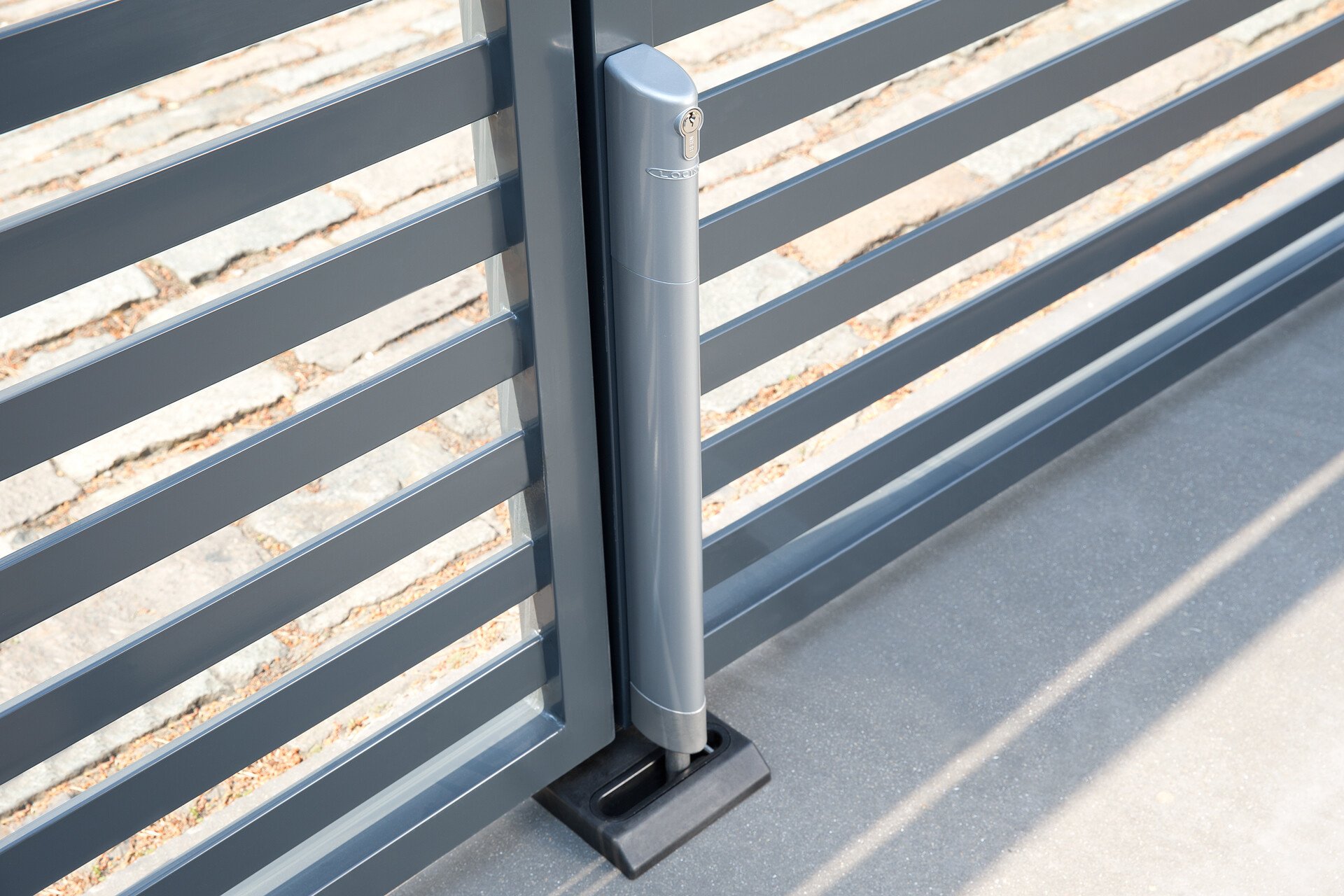

Locinox motorized ground bolt ELECTRADROP-E with Fail Close

Improve the security and efficiency of your access control system with our motorized ground bolt.

This advanced solution equipped with Fail Close functionality provides reliable security for your assets.

The motorized operation makes opening and closing effortless. In the event of a power outage or emergency, the Fail Close functionality ensures that the bolt remains securely locked.

Invest in peace of mind and enhanced security with our motorized ground bolt.

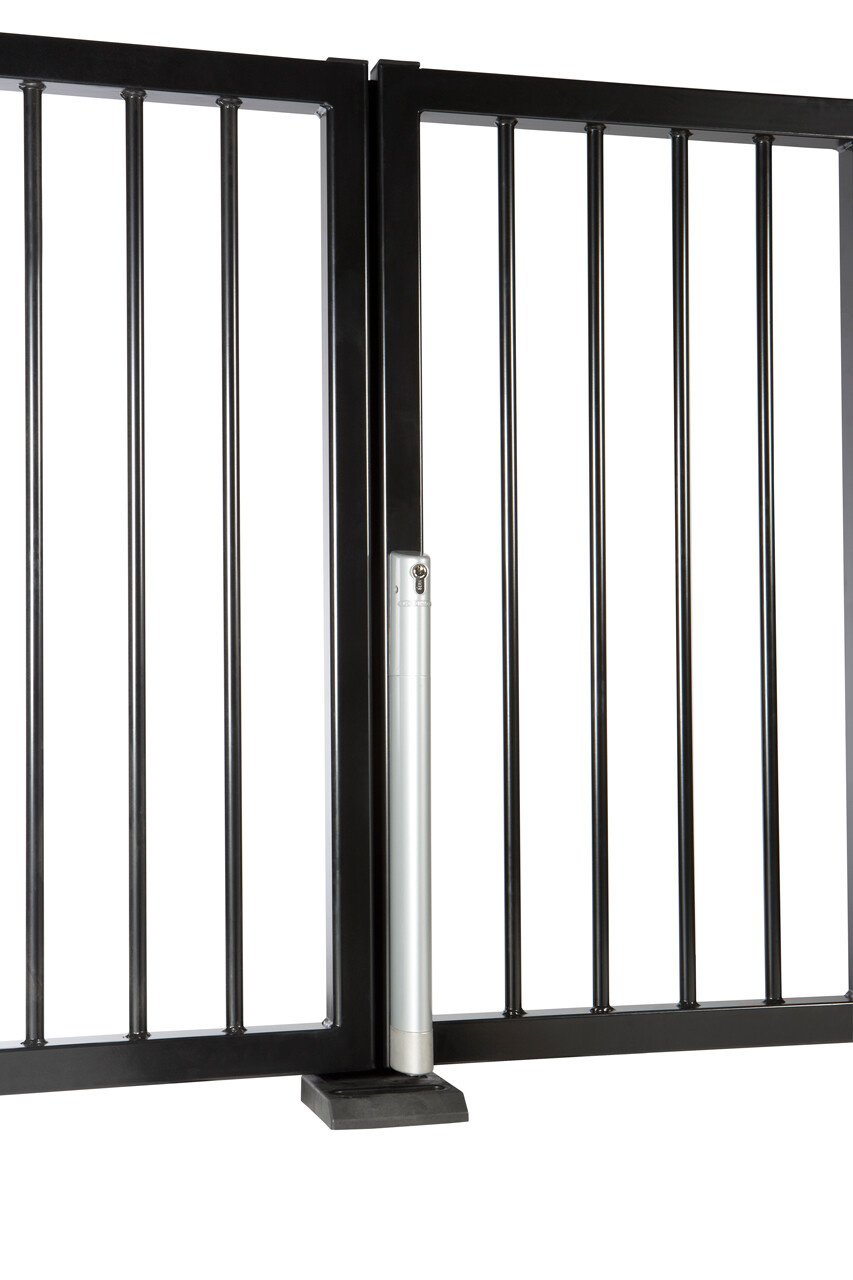

The latch is available in two colors (black and silver) that you can select in the scrolling menu at the top right

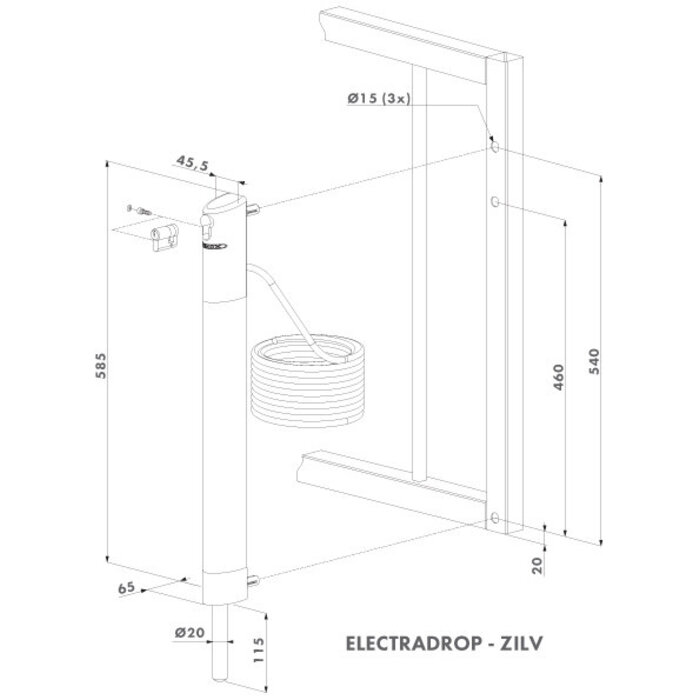

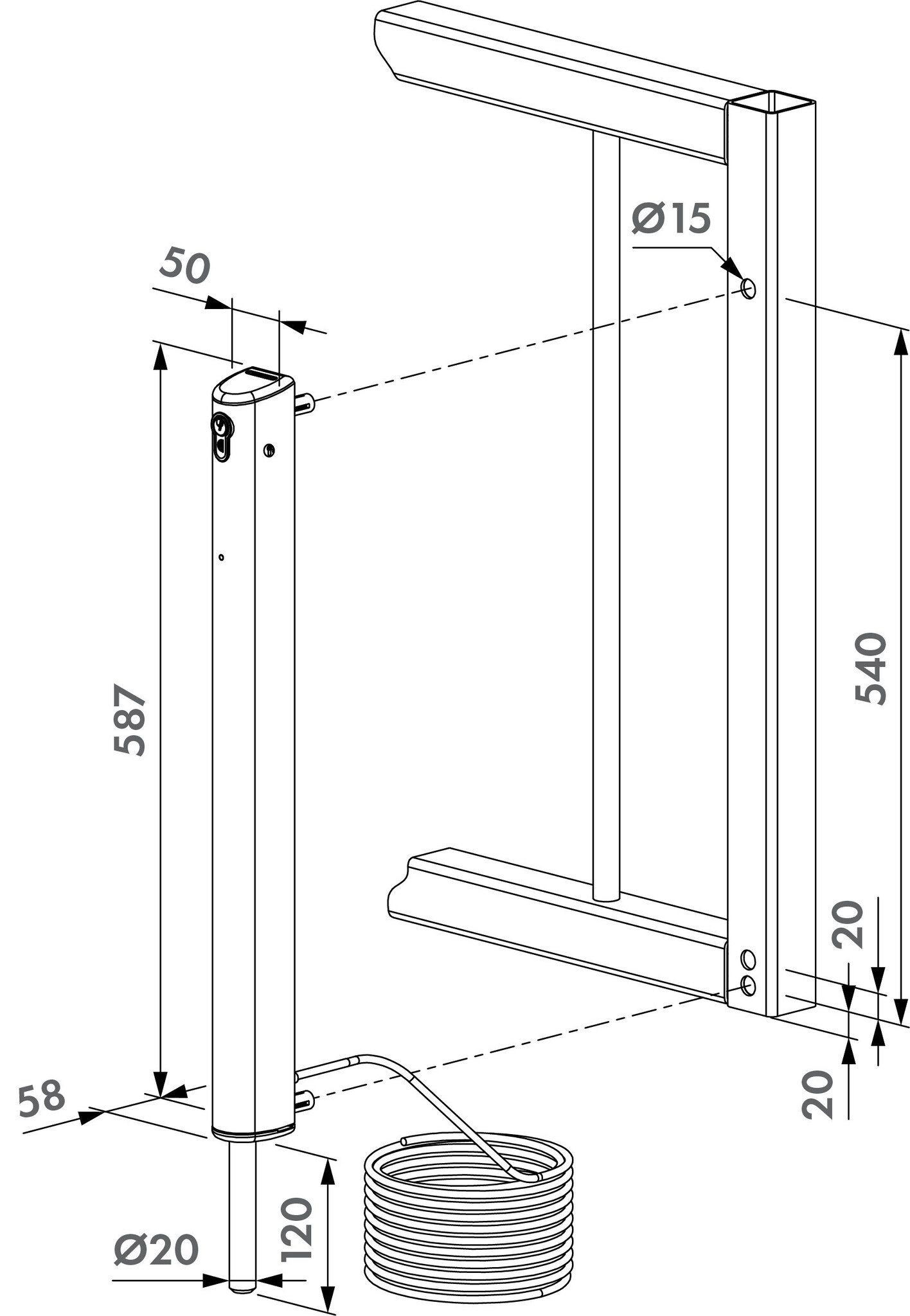

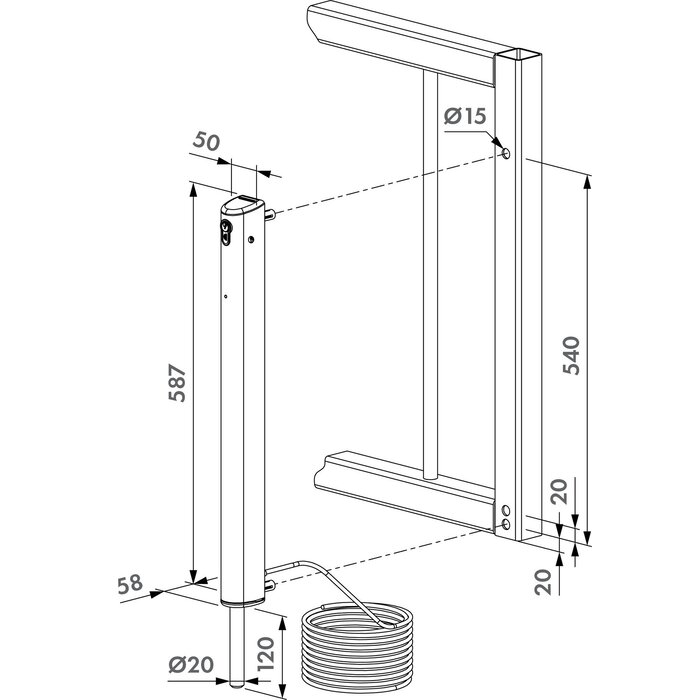

You will find all dimensions on the attached drawing.

Download the manual here.

Read the specific features below:

• Vandal-resistant, powder-coated aluminum housing
• Can be connected to the flashing light function of an automated gate (min. 3 sec pre-flashing required) or directly to the gate automation
• Automatic detection and memorization of continuous or pulse signal
• Mechanical unlocking by means of cylinder possible in case of emergency
• To prevent injuries, the integrated obstacle detection automatically stops the movement of the ground bolt in the event of overpressure.
• Depth lock: 120 mm (with the exception of Electradrop-ZILV: 115 mm)
• Bolt diameter: 20 mm
• For gate profiles from 40 mm
• Consumption in operation: 25 W / Peak: 55 W / Sleep consumption: 0.2 W
• 5 m connection cable included
• 3012-37-STD cylinder included
• Can be connected to Locinox Powerstone 60W power supply (not included)
