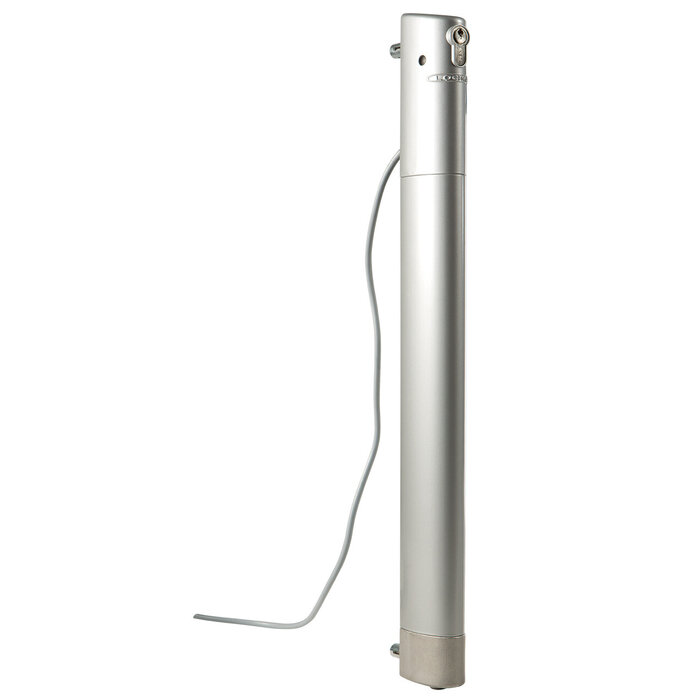

Locinox motorized ground bolt ELECTRADROP-RP with bolt detection + emergency battery

Discover the ultimate motorized ground bolt with advanced functionalities that take your safety to the next level.

This innovative ground bolt is equipped with a bolt position detection system, so you are always aware of the status of your security. Whether at home, in the office or elsewhere, this ground bolt provides peace of mind and reliability.

Thanks to the integrated emergency batteries, operation is guaranteed, even during power outages. With its robust construction and user-friendly operation, this ground bolt is a must-have for anyone who values safety and convenience. Protect your assets with the power of technological advancement.

The latch is available in two colors (black and silver) that you can select in the scrolling menu at the top right

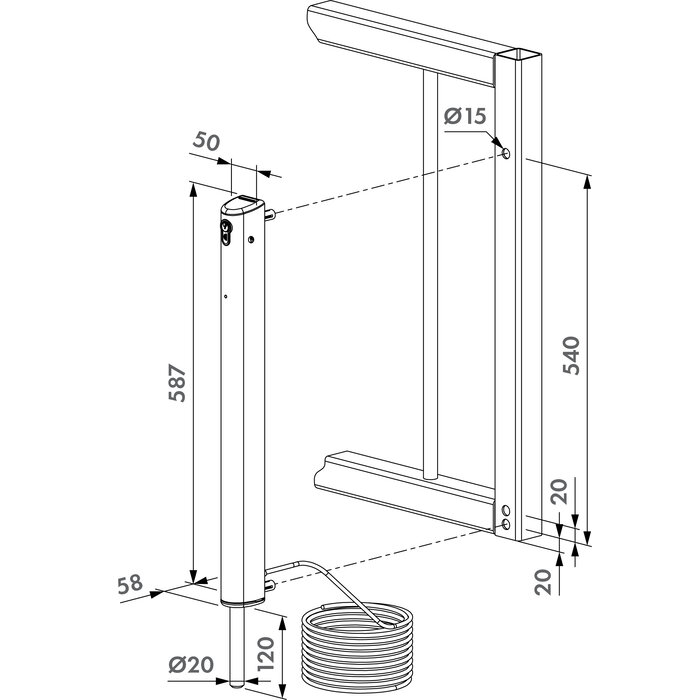

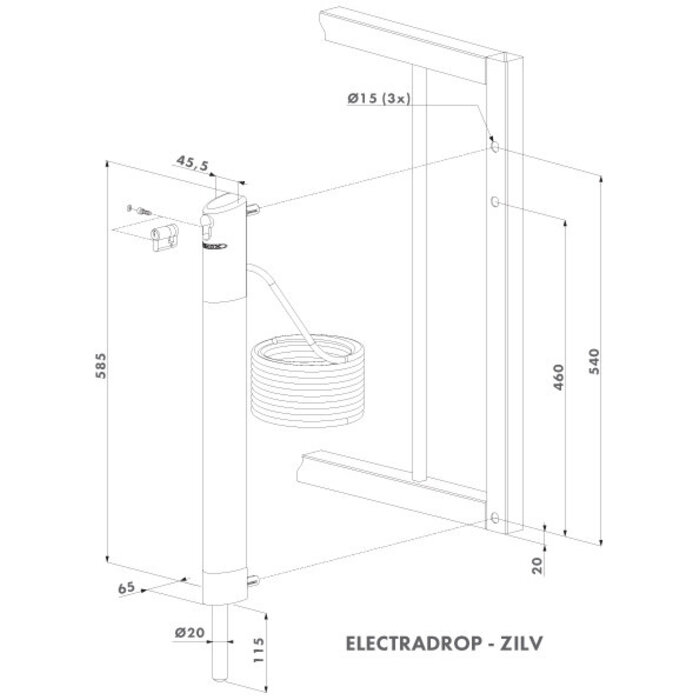

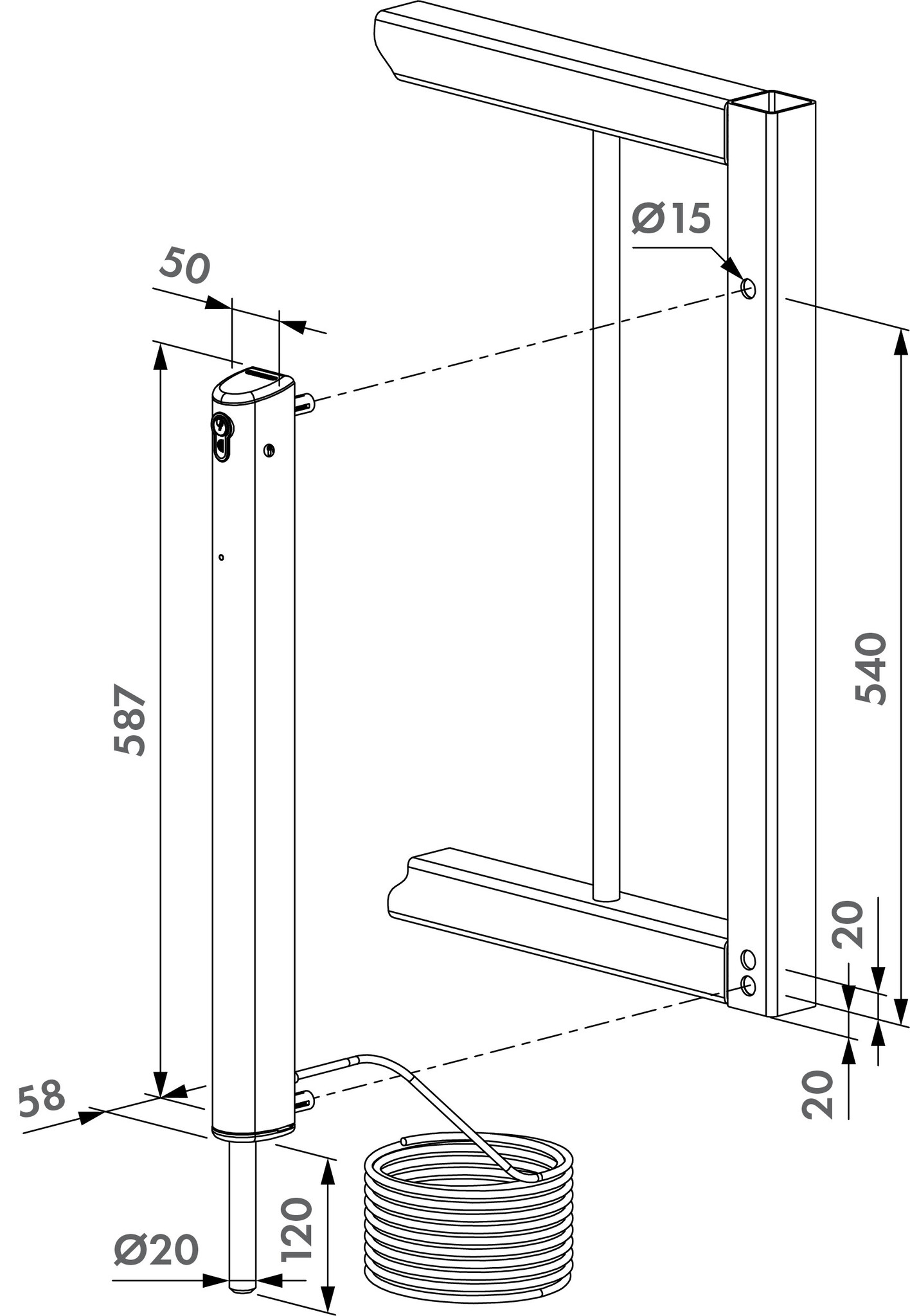

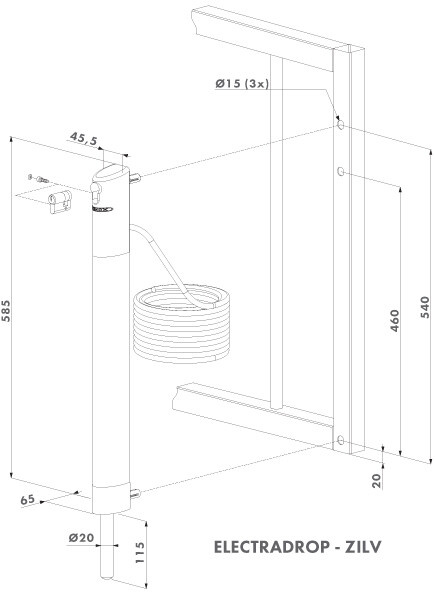

You will find all dimensions on the attached drawing.

Download the manual here.

Read the specific features below:

• Vandal-resistant, powder-coated aluminum housing
• Can be connected to the flashing light function of an automated gate (min. 3 sec pre-flashing required) or directly to the gate automation
• Automatic detection and memorization of continuous or pulse signal
• Mechanical unlocking by means of cylinder possible in case of emergency
• To prevent injuries, the integrated obstacle detection automatically stops the movement of the ground bolt in the event of overpressure.
• Depth lock: 120 mm (with the exception of Electradrop-ZILV: 115 mm)
• Bolt diameter: 20 mm
• For gate profiles from 40 mm
• Consumption in operation: 25 W / Peak: 55 W / Sleep consumption: 0.2 W
• 5 m connection cable included
• 3012-37-STD cylinder included
• Can be connected to Locinox Powerstone 60W power supply (not included)
