Hinge 140 x 70 x 3.0 mm galvanized steel with straight corners available in 2 versions: DIN right - Belgian left or DIN left - Belgian right
Article code: DS6810.115.1470
French or hamburger hinges are suitable for several wooden doors indoors. Think for example of a wooden cabinet door of a classic piece of furniture.
The installation of this hinge is easy because the two parts can be attached separately. A big advantage of this hinge is that the door can be easily lifted in and out of the frame.
In the scroll menu at the top right, select a DIN left hinge (Belgian right) or a DIN right hinge (Belgian left)

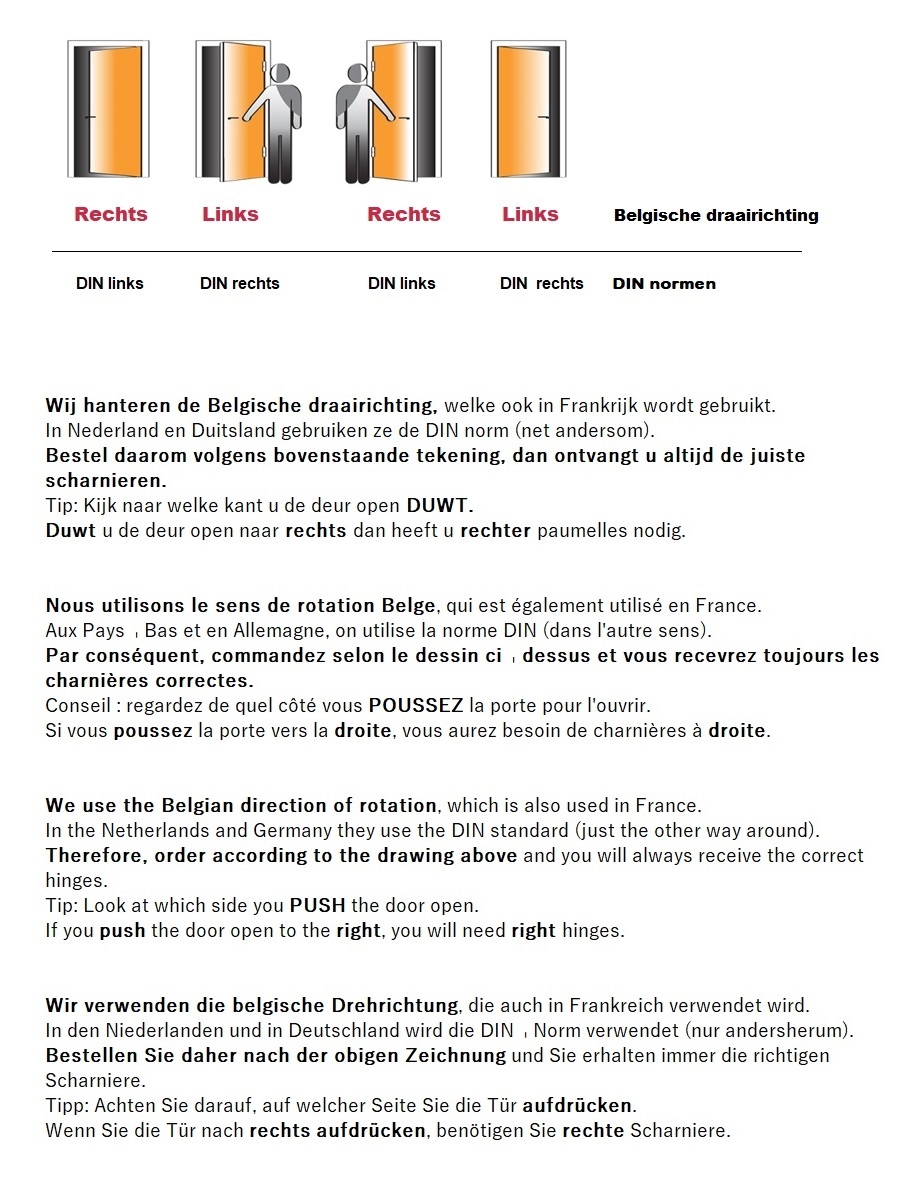

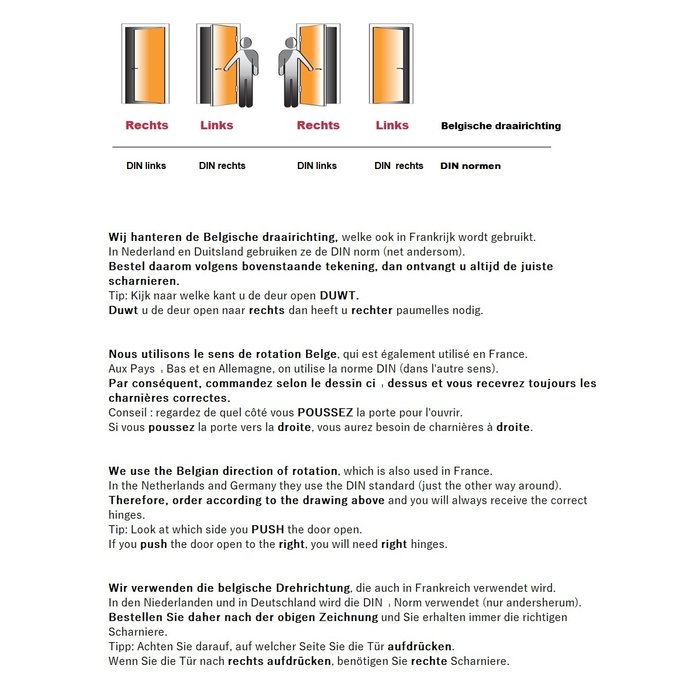

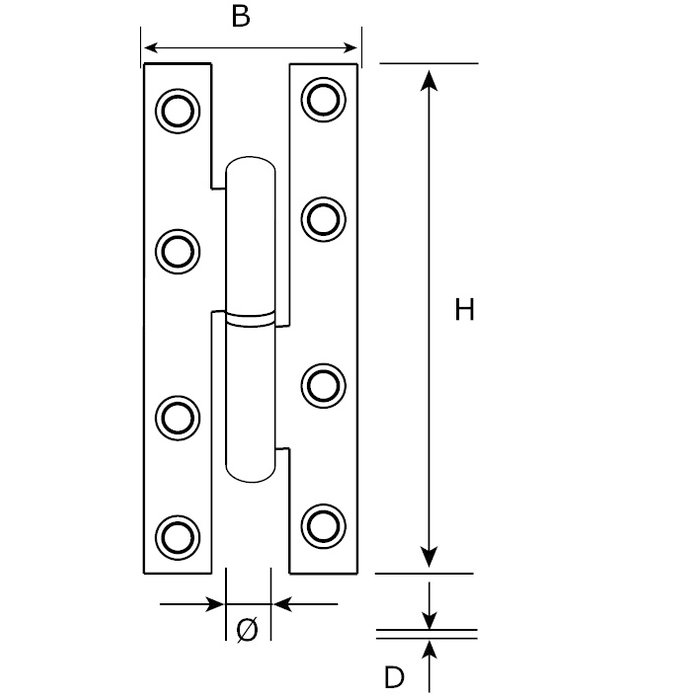

Please check the attached drawing carefully to ensure you order the correct hinge as these are not reversible.
This hinge is supplied per piece, excluding mounting material .

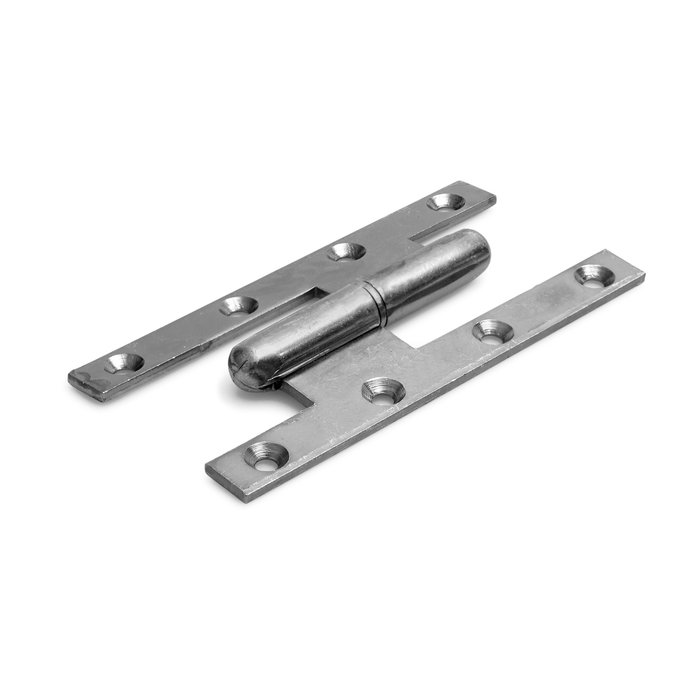

PS: the picture is of a DIN left - Belgian right hinge
Material | Steel |
Finish | Bright galvanized |
Finishing corner | Right angles |
Application | For various purposes |
H (mm) |
140 |
B (mm) |
70 |
D (mm) |
3.0 |
Direction of rotation | see menu selection |
Ø (mm) |
14 |
Mounting material | Not included |
