Description

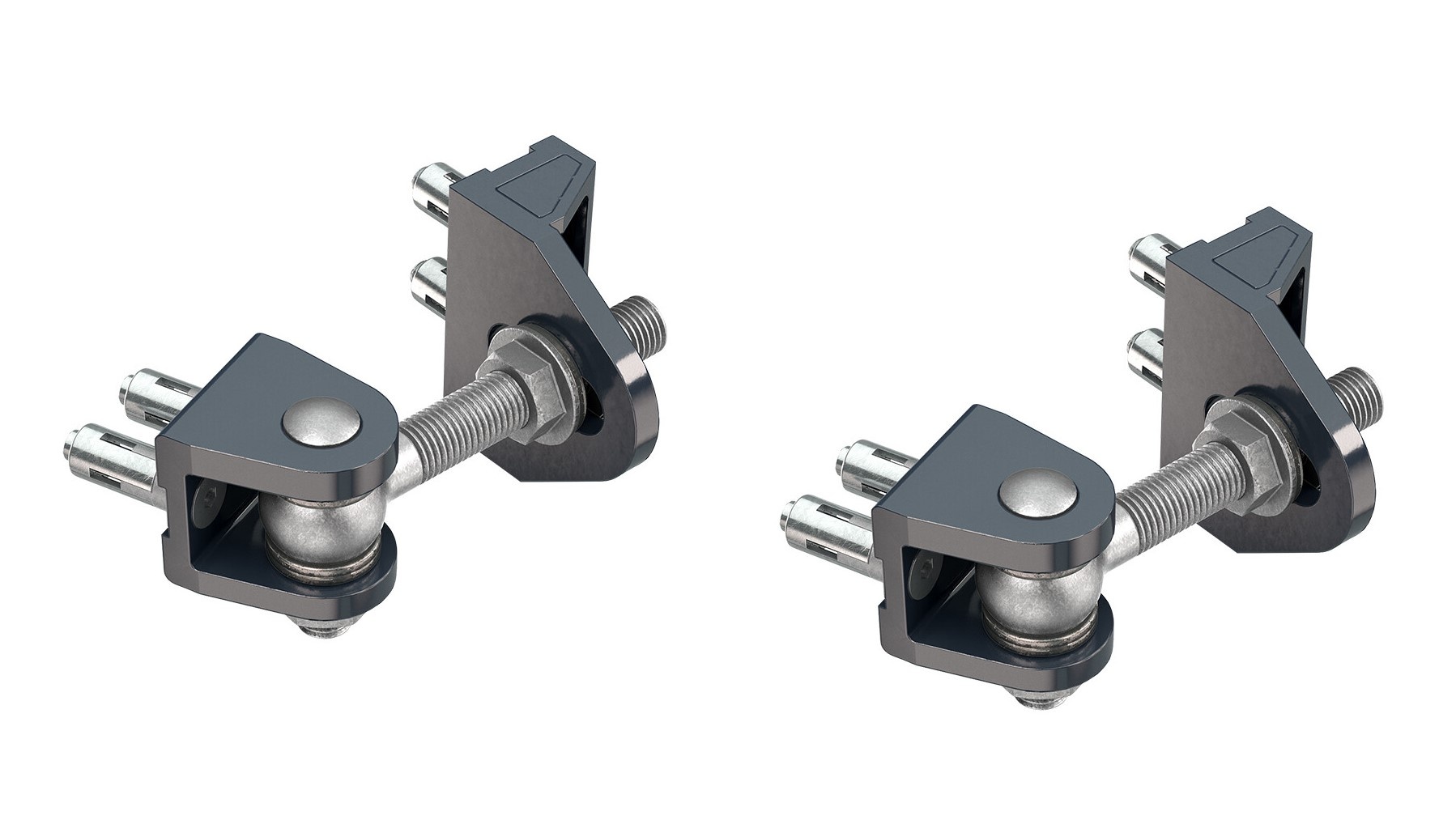

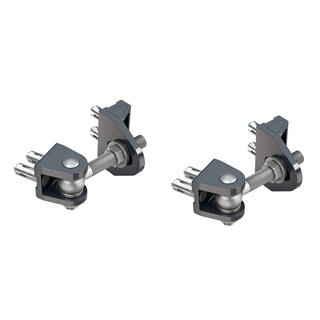

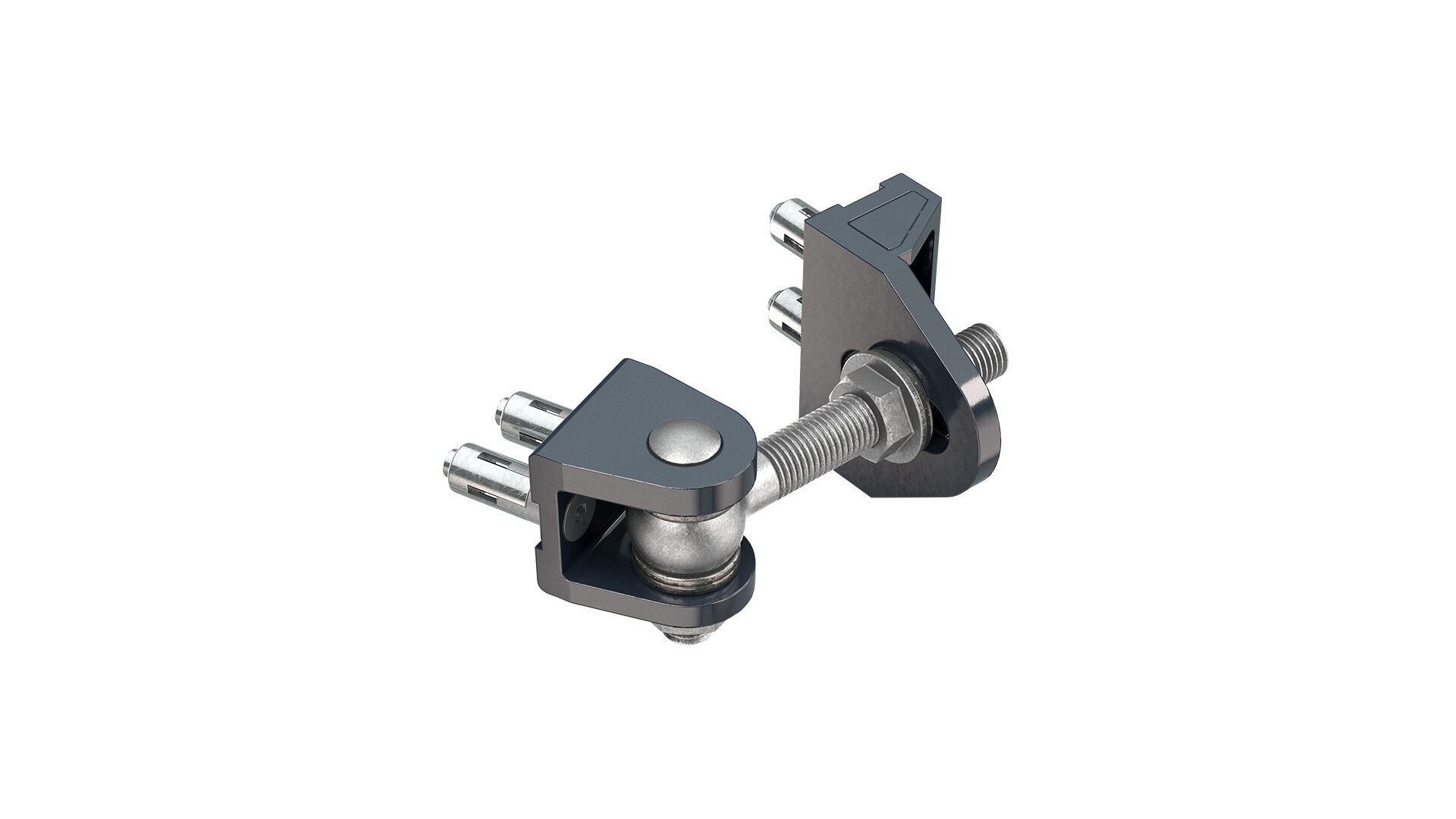

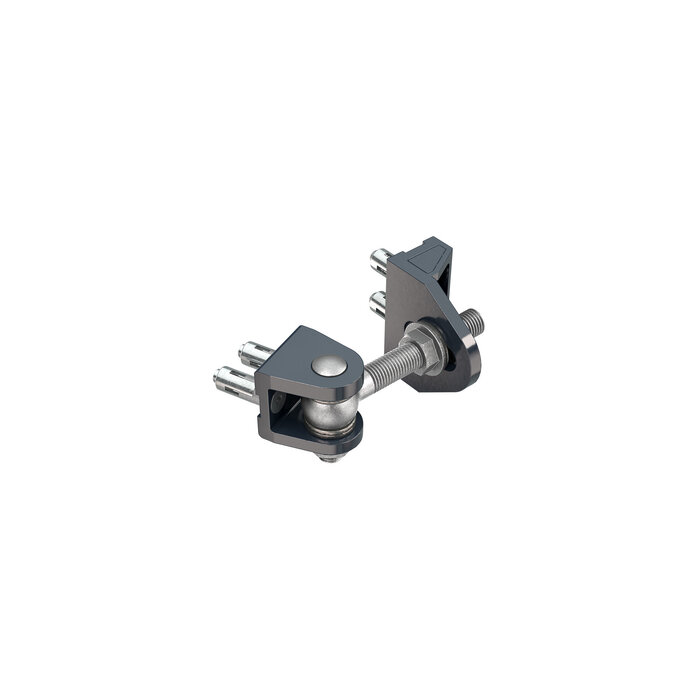

Pair of colored LOCINOX screw-on hinge BOLTONHD-4D-QF per 2 pieces. Easy and quick to attach
Article code: DSP00013389-9005
Discover the convenience of our colored 180° degree hinge, which can be quickly installed without welding.
The GBMU4D range offers a range of benefits, including vandalism resistance, height and depth adjustment, and adjustment of the distance between gate and post. Thanks to the left and right conversion, it is suitable for both left and right-handed gates.
BOLTONHD-4D is available in M16, with Quick-Fix on both sides and in 3 different colors.
Choose the correct color in the scrolling menu at the top right.
Choose speed and versatility with BOLTONHD-4D!

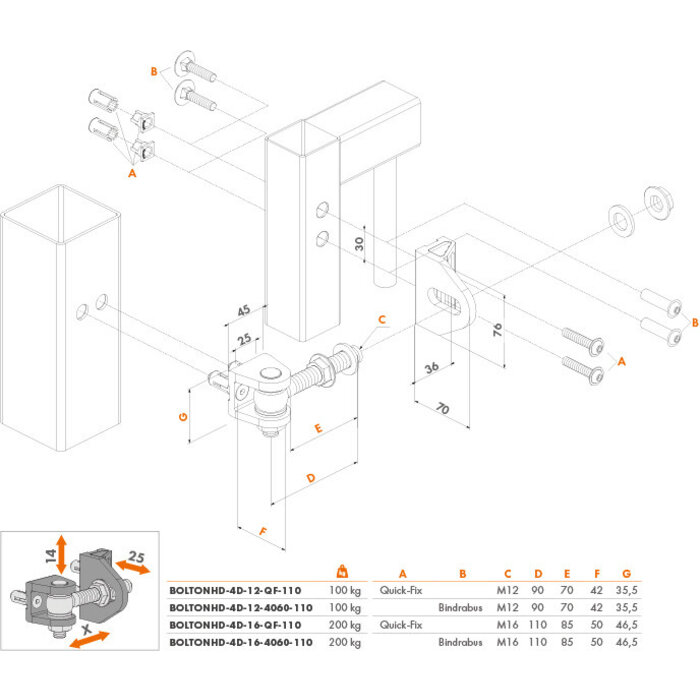

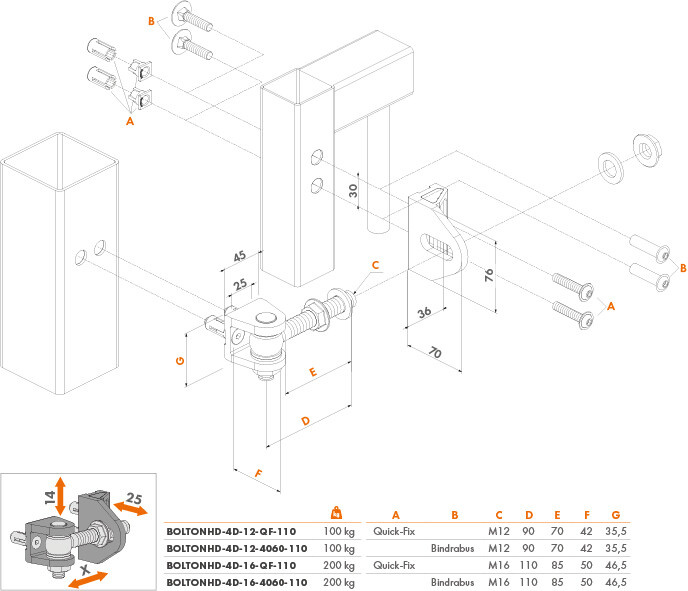

You can find all dimensions and carrying capacity of the versions in the images.
Download the installation instructions here.
unit | 2 pieces |
base | steel |
rotatable | 180° |
adjustable | 4 directions |
adjustable in height | 15mm |
adjustable in width | 25mm |
eyebolt | M16 |
