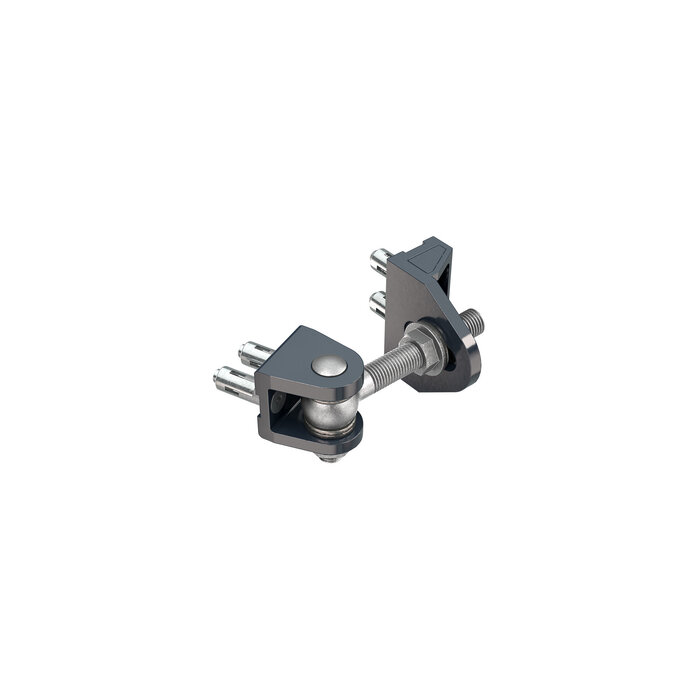

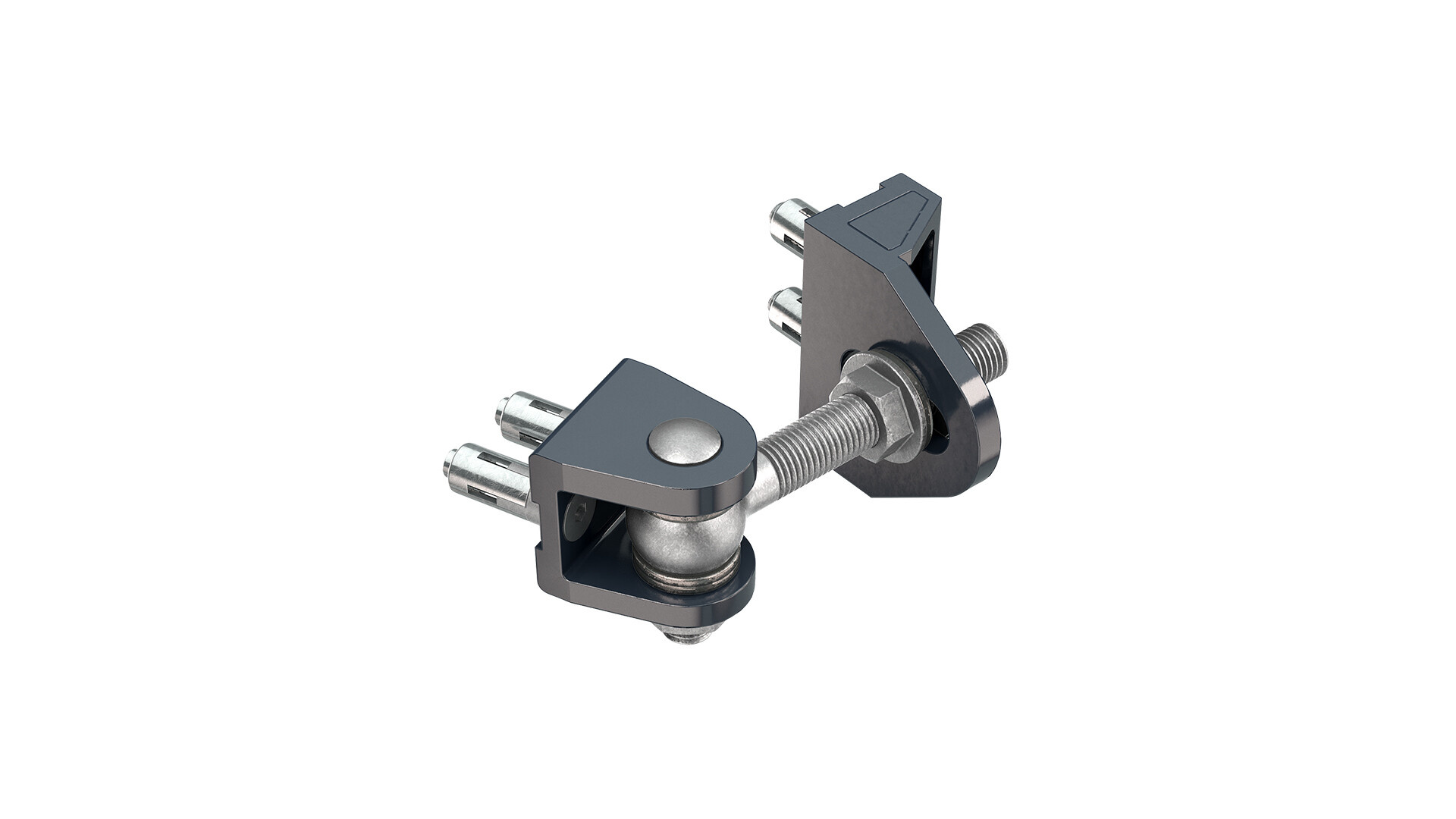

Discover the convenience of our 180° hinge, which can be mounted very quickly without welding.
The GBMU4D range offers a range of benefits, including vandalism resistance, height and depth adjustment, and adjustment of the distance between gate and post. Thanks to the left and right conversion, it is suitable for both left and right-handed gates.
BOLTONHD-4D is available in M12 and M16, with two versions: one with Quick-Fix on both sides and one with Quick-Fix on the fixed post and a "through and through" fixing on the gate side, suitable for gate frames from 40 to 60mm.
You can select these different versions in the scrolling menu at the top right.
Choose speed and versatility with BOLTONHD-4D!

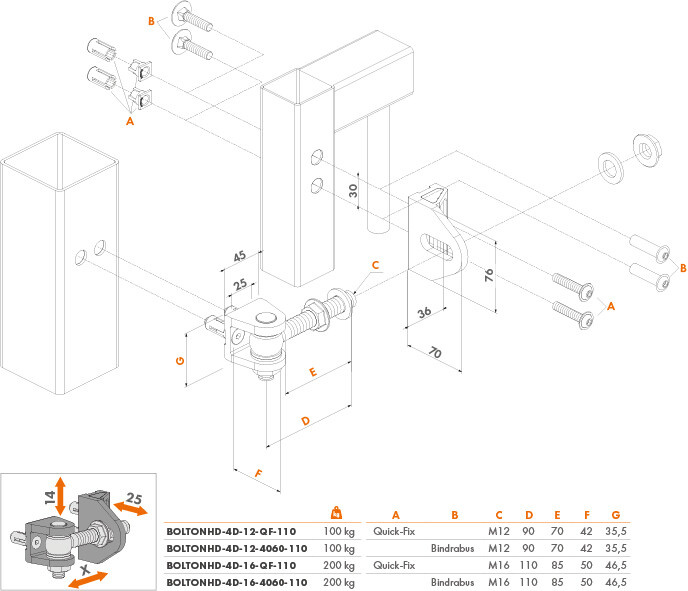

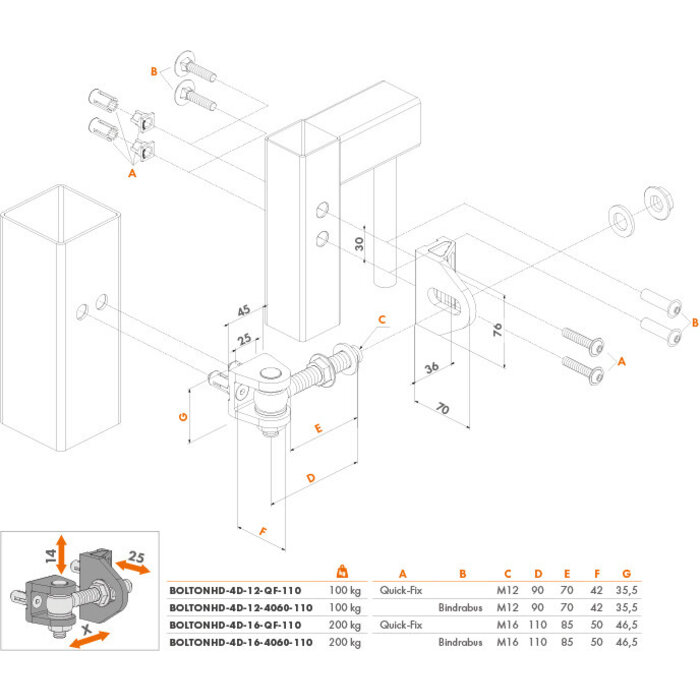

You can find all dimensions and carrying capacity of the versions in the images.
Download the installation instructions here.
unit | 2 pieces |
base | steel |
rotatable | 180° |
adjustable | 4 directions |
adjustable in height | 15mm |
adjustable in width | 25mm |
eyebolt | M12 or M16 |
framework through and through confirmation | 40x40 to 60x60mm |
