Description

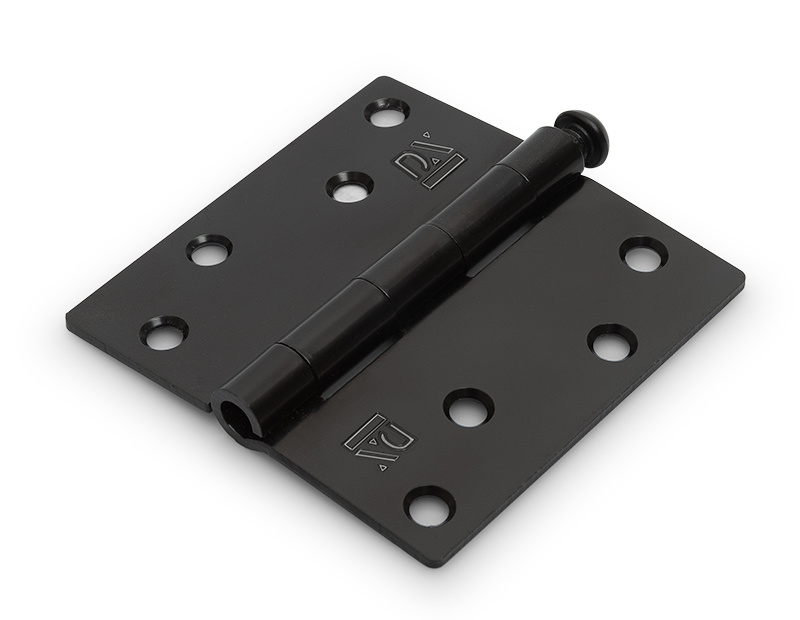

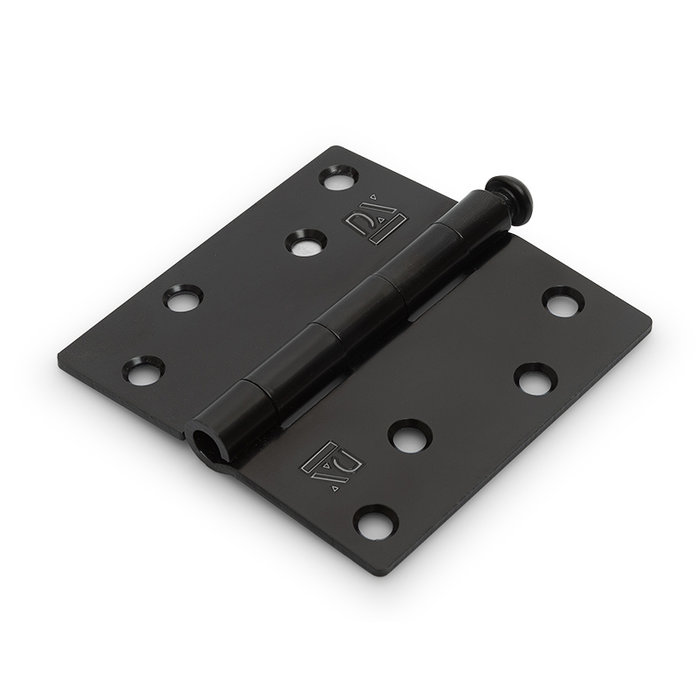

Hinge with loose pin and right angles 89x89 mm black steel lacquered
Article code: DS6110.024.8989
An environment with an industrial look or dark windows? Then this standard black steel hinge is a good choice for lighter projects indoors. Hang a light interior door that is not used too intensively with this separate pin hinge. The right angles make it possible to quickly work in this hinge with a hammer and chisel.
The loose pin of this black hinge has a serrated edge, which prevents the pin from creeping up. With this hinge you are assured of a solid basic hinge for your job.
This hinge is supplied per piece excluding mounting material .
Application |
for indoor use
|
Material | steel |
Finish |
black lacquered
|
Pin version
|
loose black lacquered knurled pin
|
Finishing corner
|
Straight corners
|
Recommended Micrometer
|
4.5 x 40mm |

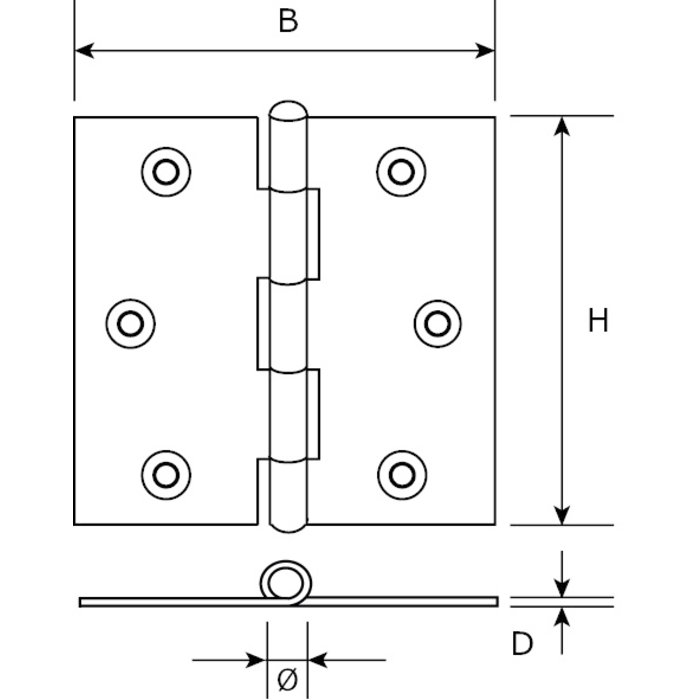

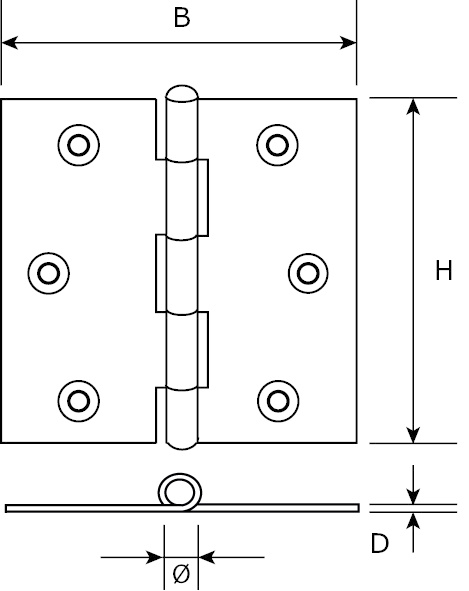

Characteristics:
H (mm) |
89 |
B (mm) |
89 |
D (mm) |
2.4 |
Ø (mm) |
12 |
carrying capacity per 3 (kg) | 45 |
carrying capacity per 4 (kg) | 60 |
