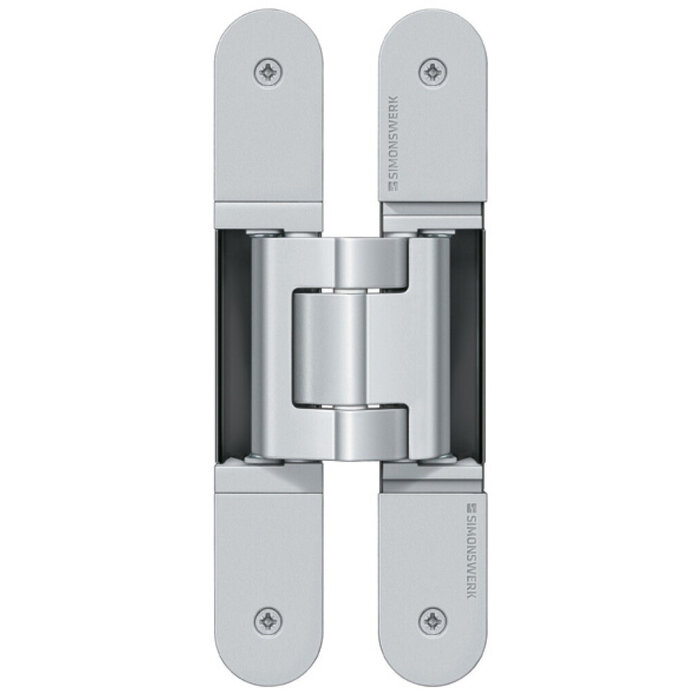

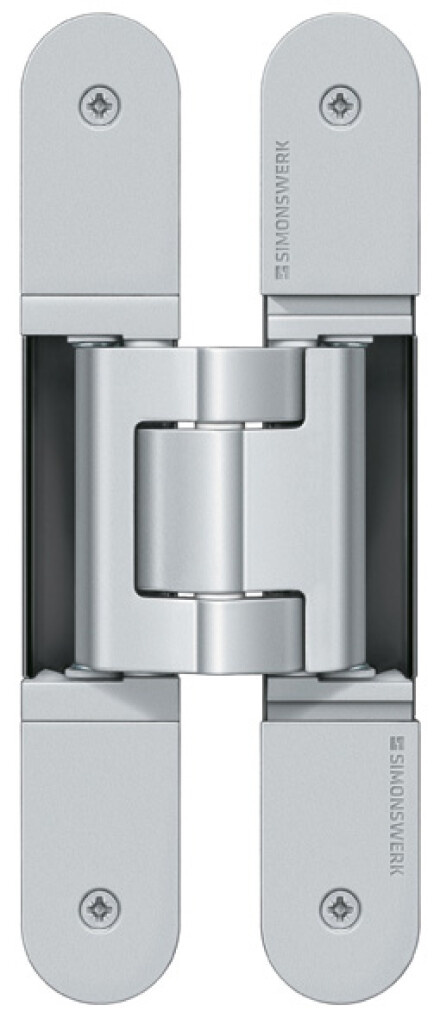

Hinge Simonswerk Tectus TE 540 3d 120 kg aluminum look F1
Article code: 1122-6540
TECTUS TE 540 3D
The hinge is completely concealed, for flush doors on wooden, aluminum and/or steel frames.

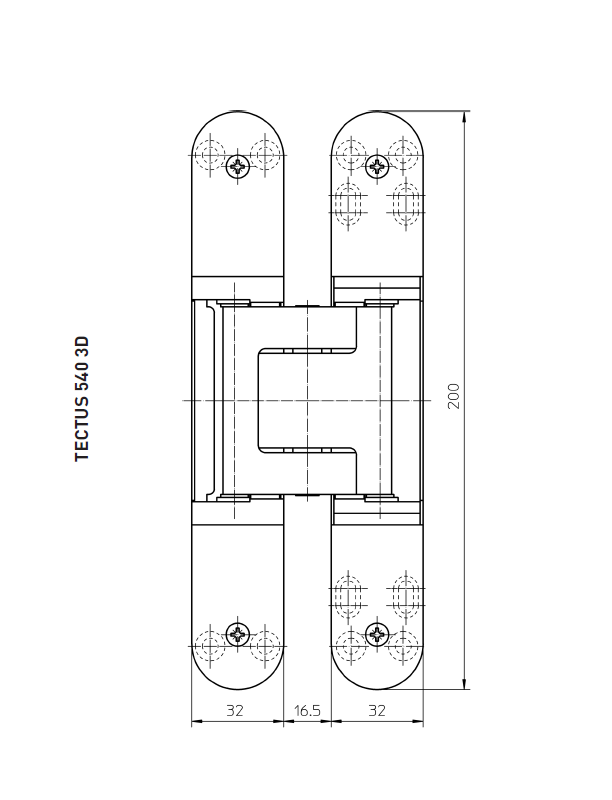

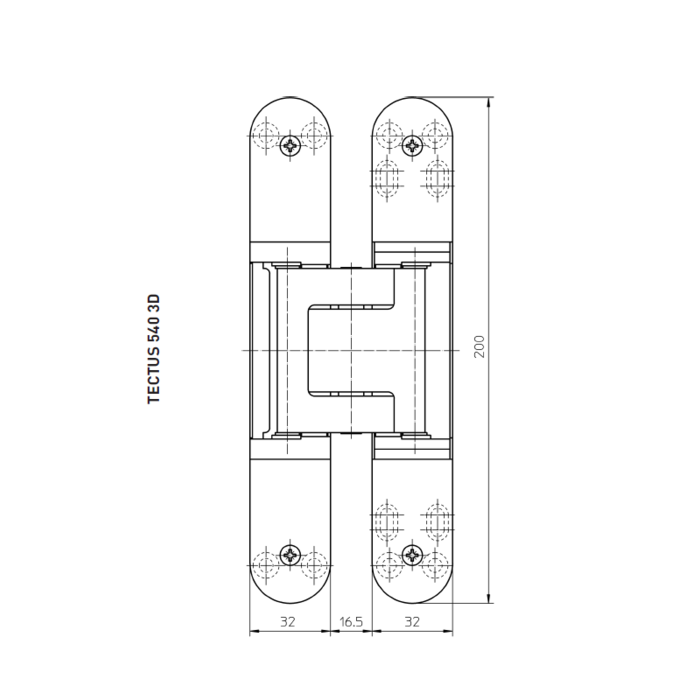

- Height (window/sash part): 200/200 mm
- Width (window/sash part): 32/32 mm
- Cutter diameter: 24 mm
3D adjustable: lateral: ± 3 mm, height: ± 3 mm, pressure: ± 1 mm
- Opening angle: 180°
- Load capacity: max. 120 kg/2 hinges
- Reversible!!! The stated permitted load is based on 2 hinges on a door leaf of 2000 mm x 1000 mm!!!
