Description

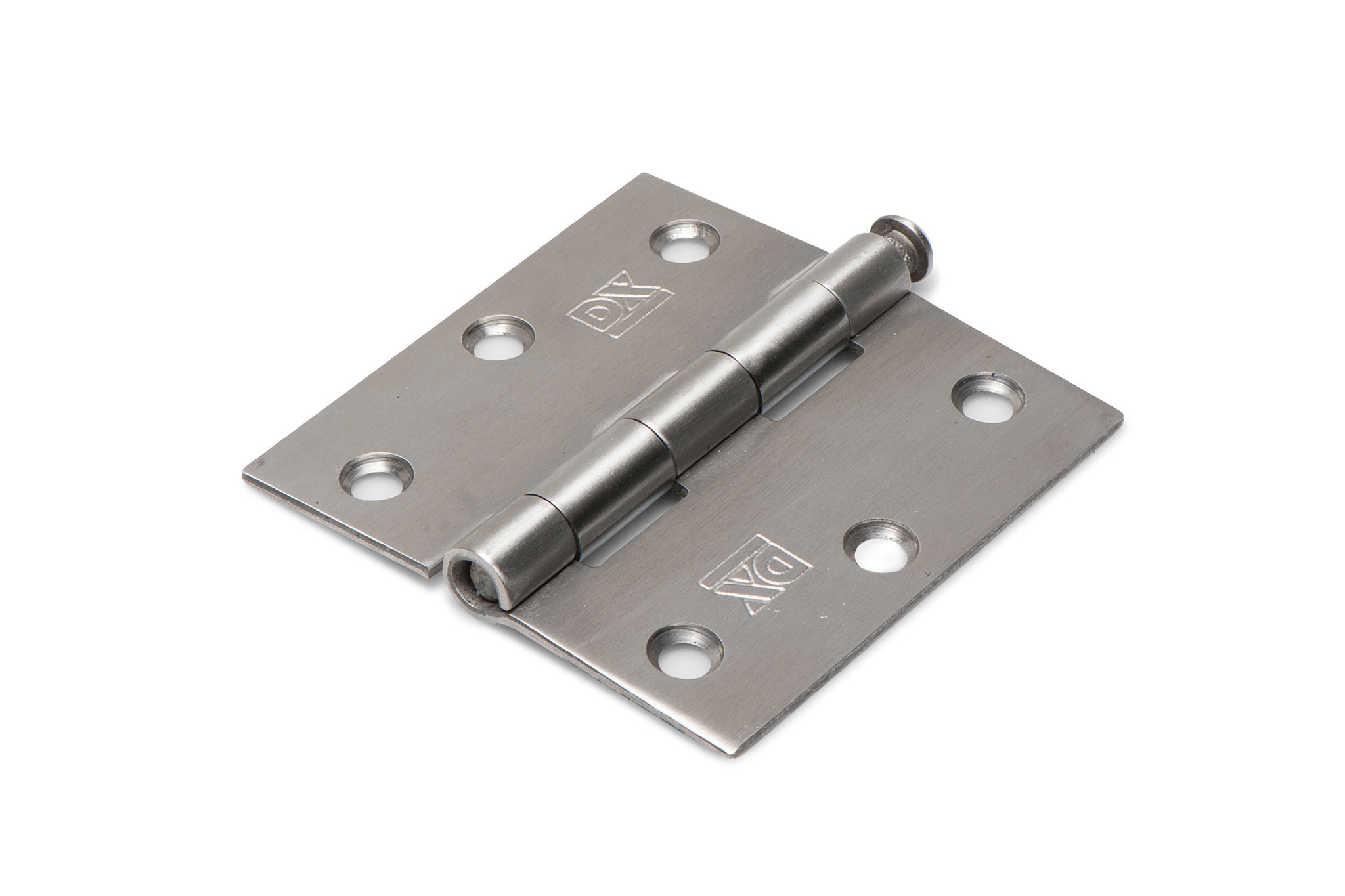

Stainless steel hinge with loose pin 76 x 76 x 2.0 mm and right angles
Article code: DS6130.033.7676
This stainless steel base hinge is anti-corrosive and therefore suitable for use in environments with high humidity. Because the hinge is brushed as a finishing touch, it has a beautiful appearance.
The hinge has right angles, which makes it possible to work it in with a chisel if you don't have a router available. The loose pin of this hinge has a serrated edge so that the pin does not creep upwards.
This hinge is supplied per piece excluding mounting material .
Material | stainless steel |
Finish | brushed stainless steel |
Pin version | Loose stainless steel knurled pin |
Finishing corner | Straight corners |
Recommended Micrometer | 4.0 x 40mm |

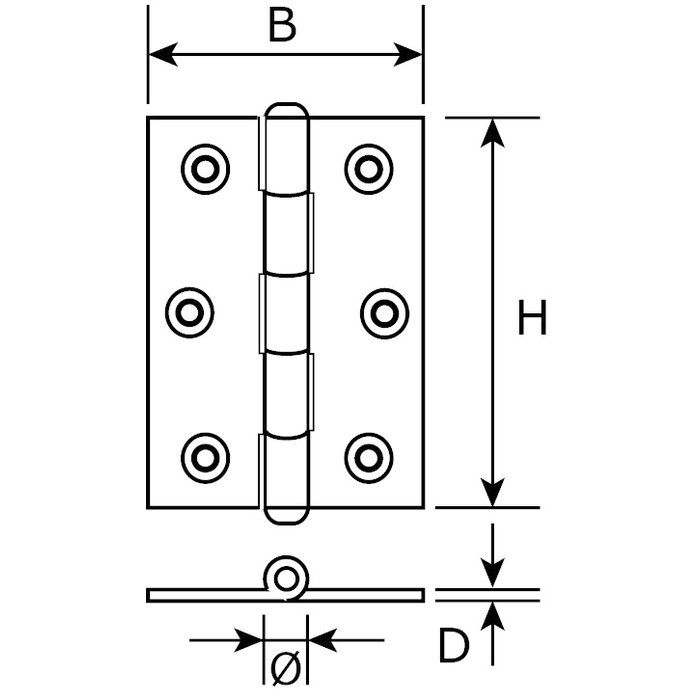

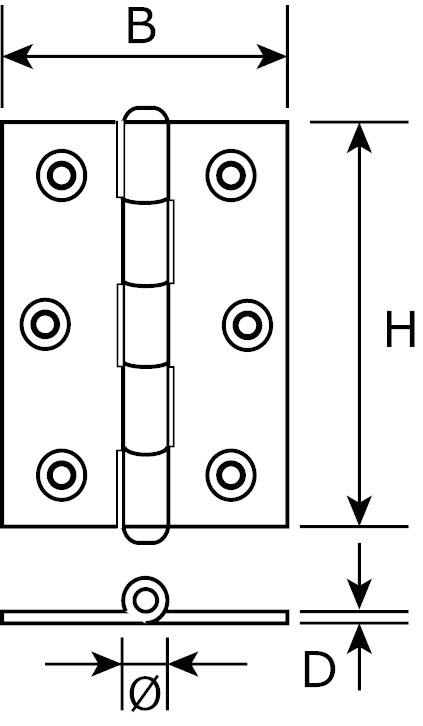

H (mm) |
76 |
B (mm) |
76 |
D (mm) |
2.0 |
Ø (mm) |
10 |
Load capacity per 3 (Kg) | 30 |
Load capacity per 4 (Kg) | 40 |
