Description

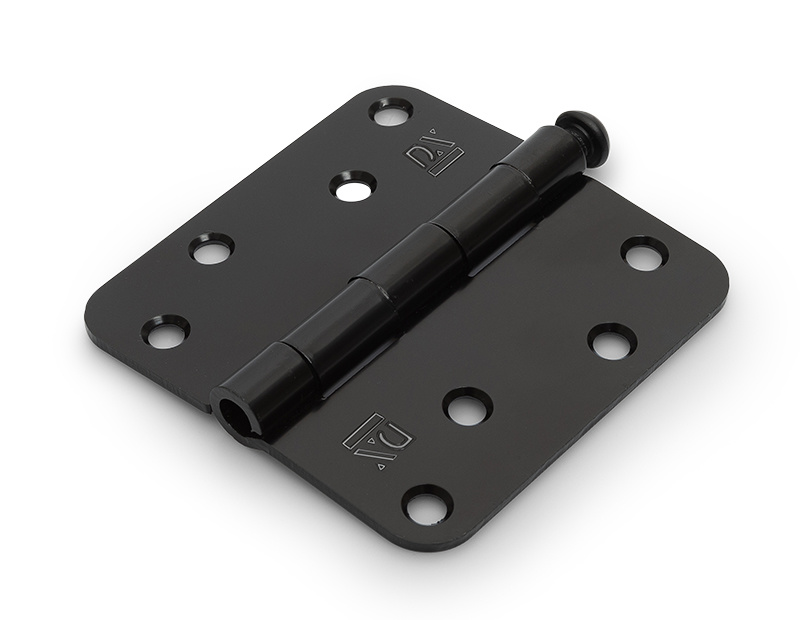

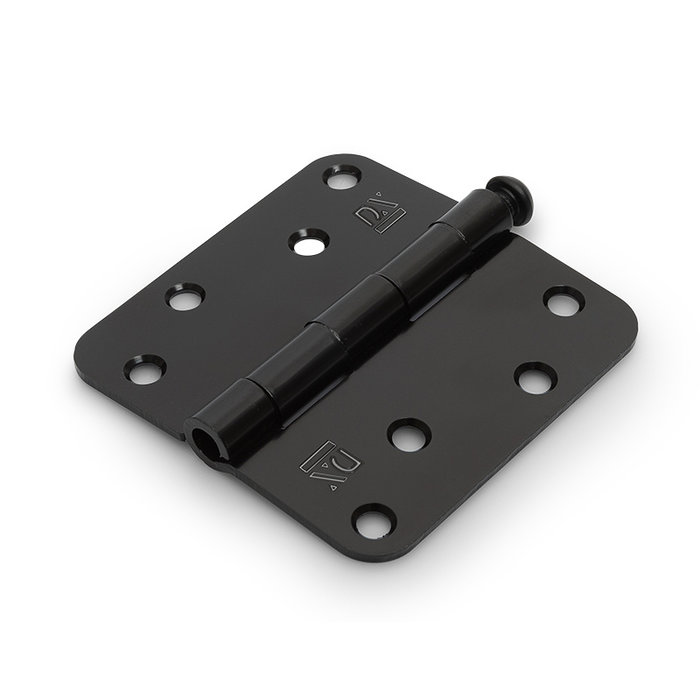

Hinge with loose pin round corners 89x89x2.4 mm black steel painted
Article code: DS6710.024.8989
An environment with an industrial appearance or dark window frames? Then this standard black steel hinge is a good choice for lighter indoor projects.
You can hang a light interior door that is not used too intensively with this loose pin hinge. Because the hinge has round corners, you need to machine them for optimal attachment.
The loose pin of this black hinge has a serrated edge that prevents the pin from creeping up. With this hinge you are assured of a solid basic hinge for your job.
Application | Indoor use |
Material | Steel |
Finish | Painted black |
Pen design | Loose black serrated pin |
Finishing corner | Round corners |
Recommended screw size | 4.5x40mm |

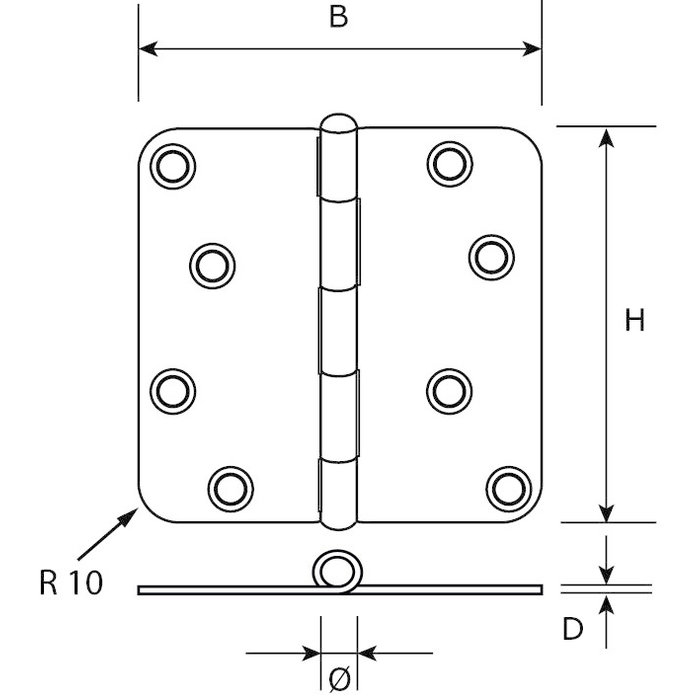

H (mm) |
89 |
B (mm) |
89 |
D (mm) |
2.4 |
Ø (mm) |
12 |
Carrying capacity per 3 (Kg) | 45 |
Carrying capacity per 4 (Kg) | 60 |
