Description
STILE window handle AVA on an oval rosette with a flat handle of 24.5 x 13 mm in black
Article code: ST O AVA R BLACK-L

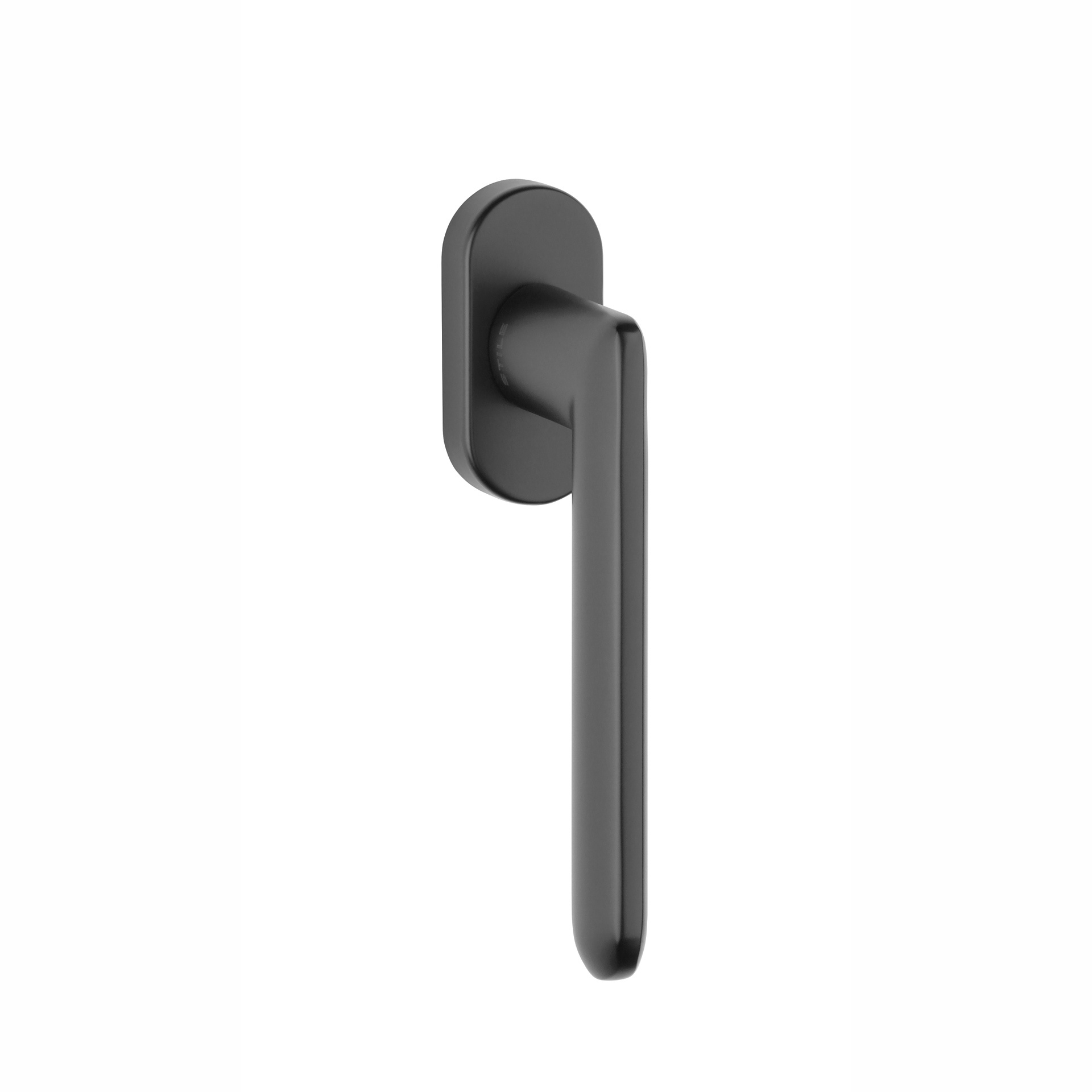

The black window handle 'AVA' in turn-tilt version has a flat L-shaped handle that is rounded at the front. This window handle is therefore extra comfortable to hold
The window handles have an aluminum base. Aluminum is known for the fact that the applied coating adheres very well, so that these handles have an extra long color fastness

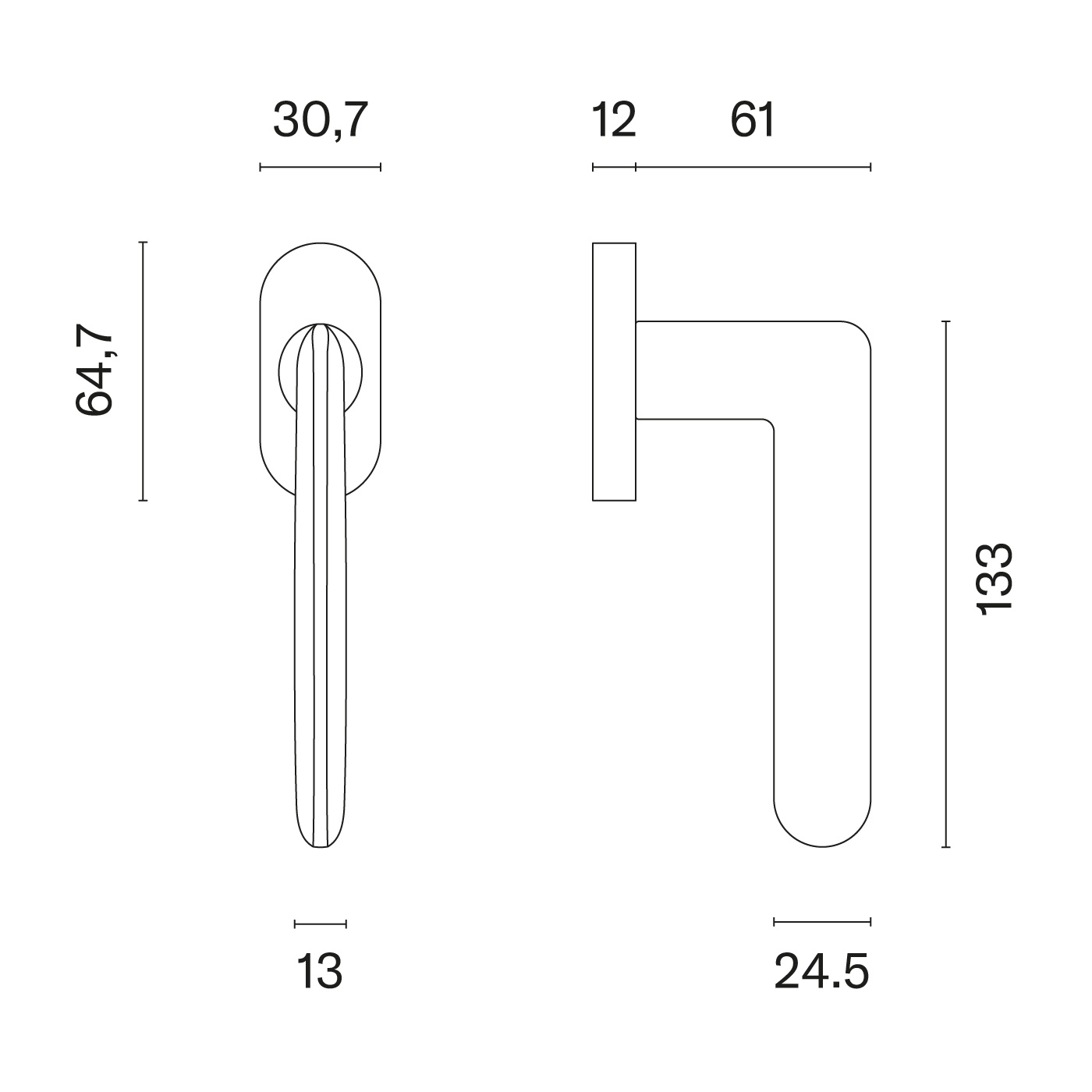

The 24.5x13 mm handle rests on a 64.7x30.7 mm oval rosette.
This black window handle, with the STILE logo, is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
By combining these window handles with the matching STILE door handles, your interior will meet all your wishes.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | Matt black |
| dimensions rosette | 64.7x30.7x12mm |
| depth | 73mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 24.5x13mm |
| mounting material | 2 bolts M5 x 40 mm included |
