Description
Hoppe stainless steel door handle Amsterdam with fixed top and quick pin E58 / 42KV / 42KVS
Article code: 3297111 - 213435

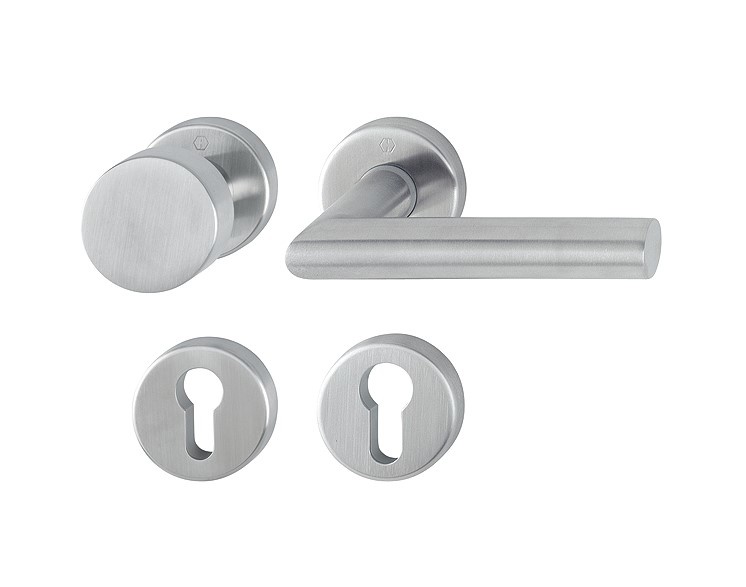

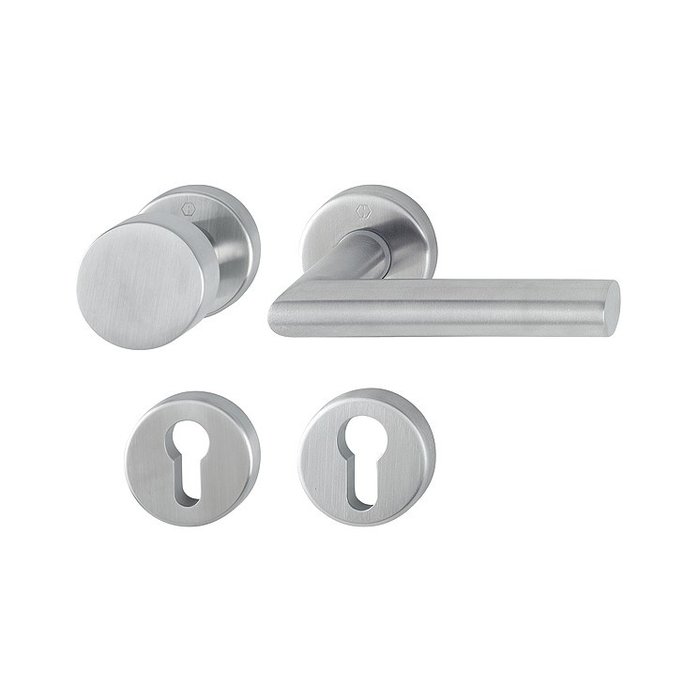

This Hoppe front door fitting set consists of a door handle 'Amsterdam' in combination with a fixed Top and PC cylinder plates. The handle has a right angle of 90 °.
The fixed top makes them very suitable for front doors and entrance doors. Due to the fixed top you can no longer enter from the outside. You can only open the door with the key to the cylinder.
These stainless steel door handles are equipped with a Hoppe quick pin. Thanks to a smart system, these door handles can be mounted quickly and it is no longer necessary to screw the handle to the pin with an Allen screw. That is why these handles are often used by installers as they save a lot of time.

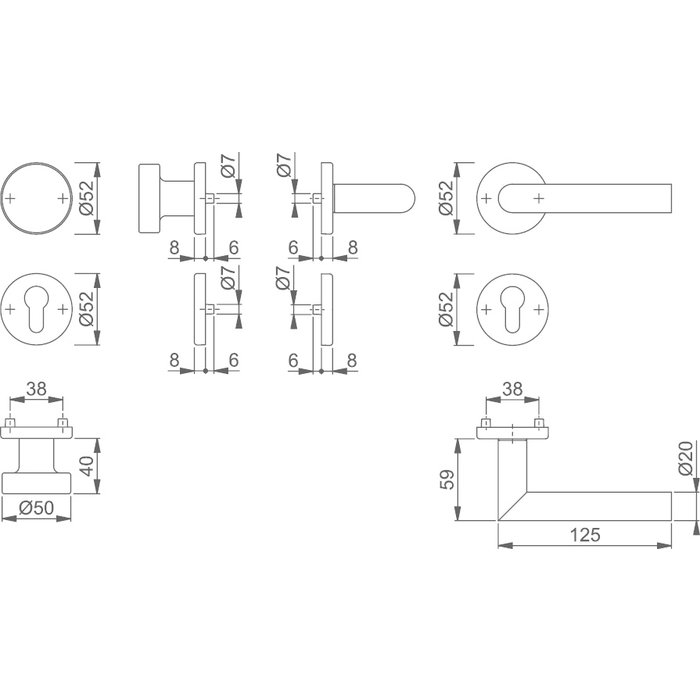

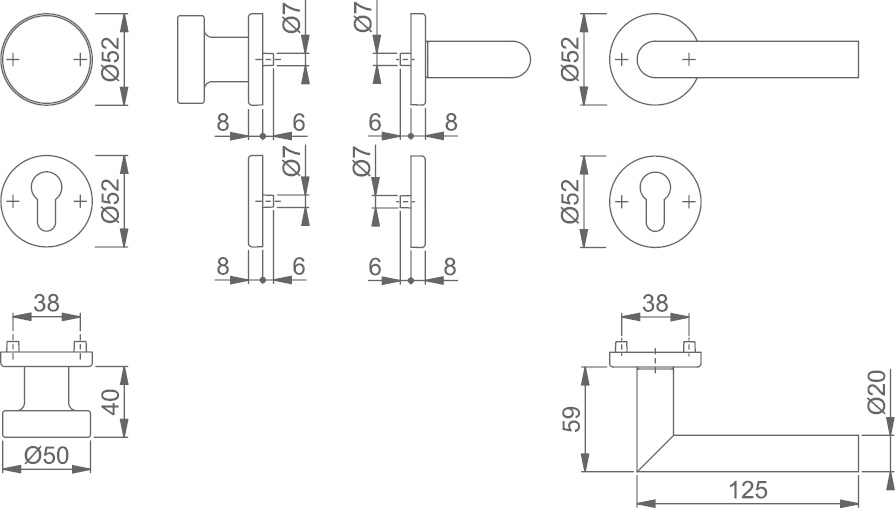

The handles of these crutches have a diameter of 20mm, the rosettes have a diameter of 52mm.
These Hoppe door handles are suitable for a door thickness of 37-42mm and have been tested in accordance with NEN EN 1906: 37-0140A. The quick pin has a diameter of 8x8mm and is already fixed in 1 hole part.
As a result, it is not possible to use these door handles in France.
These stainless steel door handles are supplied as a pair including cylinder plates and mounting materials, manual and drilling template.
HOPPE stainless steel rosette set with escutcheons for entrance doors:
- Tested in accordance with NEN EN 1906: 37-0140A , project fittings
- Bearing: fixed outside knob, loose inner door handle, retaining spring can be used on the right / left, maintenance-free plain bearing
- Connection: HOPPE Quick pin with HOPPE solid fixed / rotatable interchangeable pin (hole part)
- Sub-construction: plastic, support lugs
- Fixing: invisible, through, two-sided, universal screws; knob / handle rosettes on the inside, key rosettes mutual
Characteristics:
- Product type: Interchangeable set (58E / handle)
- Edition: Rosette set
- Material: stainless steel
- Color: F69 stainless steel matt
- Perforation: profile cylinder
- Door thickness: 37-42 mm
- Shank size: 8 mm
- Pin thickness: 8 mm
- Sub-construction: plastic
- User category: 3
- Confirmation: through-confirmation
