Hoppe stainless steel door handle Bonn with fixed top and quick pin - door thickness 57-62mm - E58/42KV/42KVS
Article code: 3307155 - 203852

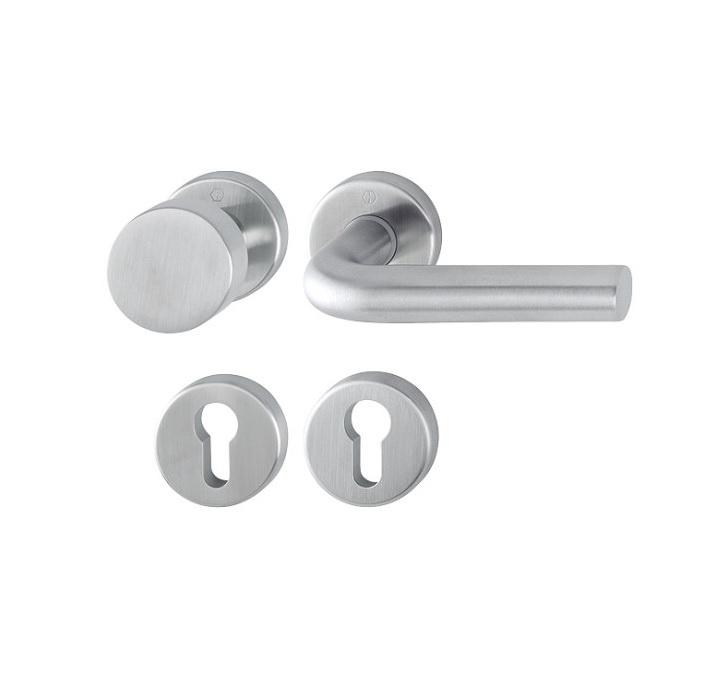

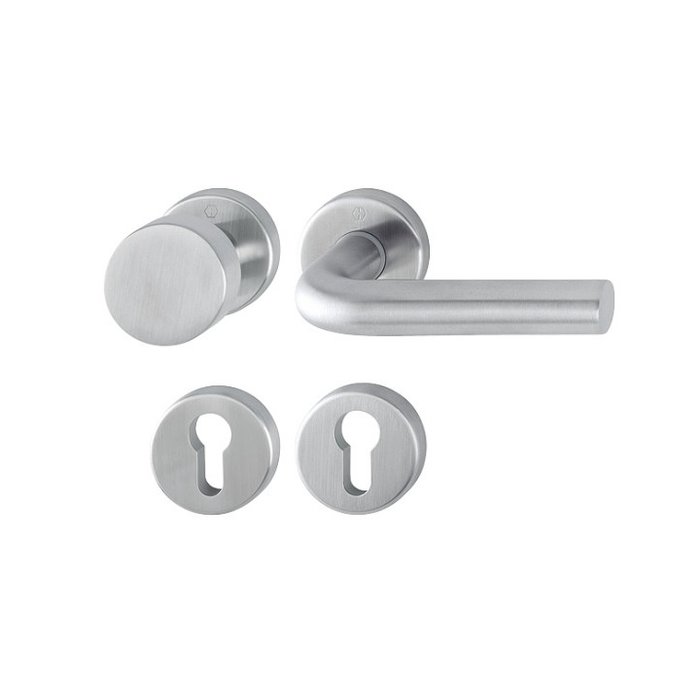

This Hoppe front door fitting set consists of a 'Bonn' door handle in combination with a fixed Top and PC cylinder plates. The handle has a curved L-shape.
The fixed top makes them very suitable for front doors and entrance doors. Due to the fixed top, it is no longer possible to enter from the outside. You can only open the door with the cylinder key.
These stainless steel door handles are equipped with a Hoppe quick pin. Thanks to a smart system, these door handles can be quickly installed and it is no longer necessary to screw the handle to the pin with an Allen screw. That is why these latches are often used by installers as they save a lot of time.

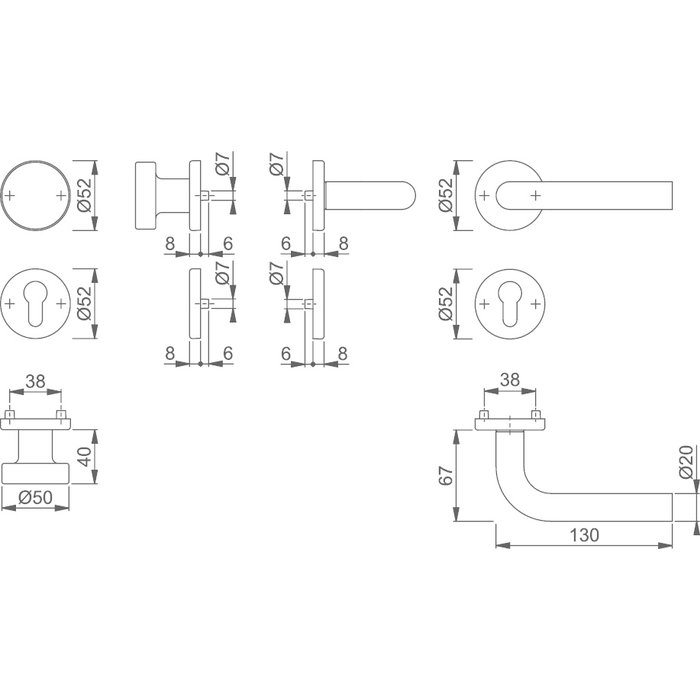

The handles of these stools have a diameter of 20mm, the rosettes have a diameter of 52mm.
These Hoppe door handles are suitable for a door thickness of 57-62mm and have been tested in accordance with NEN EN 1906: 37-0140A. The quick pin has a diameter of 8x8mm and is already fixed in 1 hole part.
This makes it not possible to use these door handles in France.
These stainless steel door handles are supplied as a pair including cylinder plates and mounting materials, instructions for use and drilling template.
HOPPE stainless steel rosette interchangeable set with key rosettes for entrance doors:
- Tested in accordance with NEN EN 1906: 37-0140A , project set
- Bearing: outside knob fixed, door handle inside loose, support spring applicable on right/left, maintenance-free slide bearing
- Connection: HOPPE quick pin with HOPPE solid fixed/rotatable interchangeable pin (hole part)
- Substructure: plastic, support lugs
- Mounting: invisible, continuous, two-sided, universal screws; knob/lever rosettes from the inside, key rosettes mutually
Characteristics:
- Product type: Interchangeable set (58E/handle)
- Version: Rosette set
- Material: stainless steel
- Colour: F69 stainless steel matt
- Perforation: profile cylinder
- Door thickness: 37-42 mm
- Pin size: 8 mm
- Pin thickness: 8 mm
- Substructure: plastic
- User category: 3
- Confirmation: through-confirmation
