Description

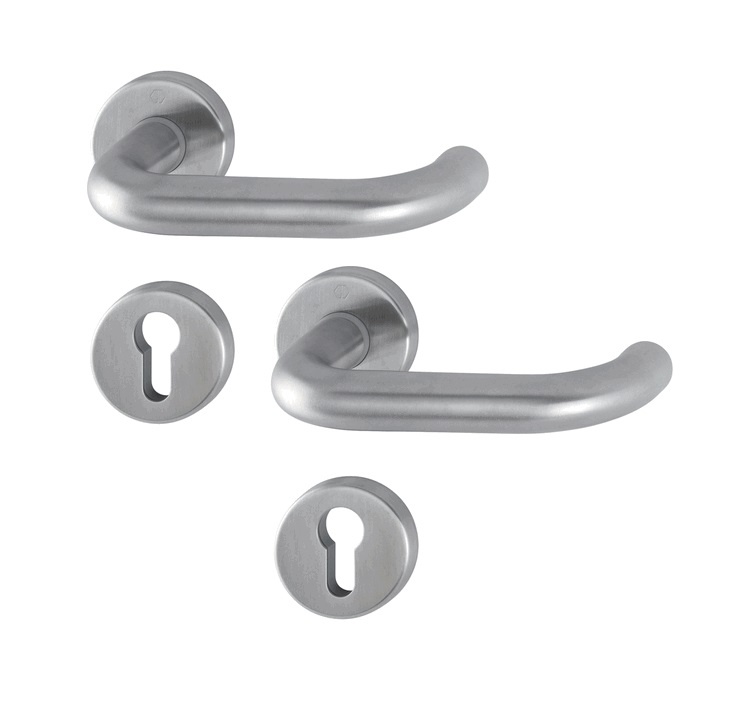

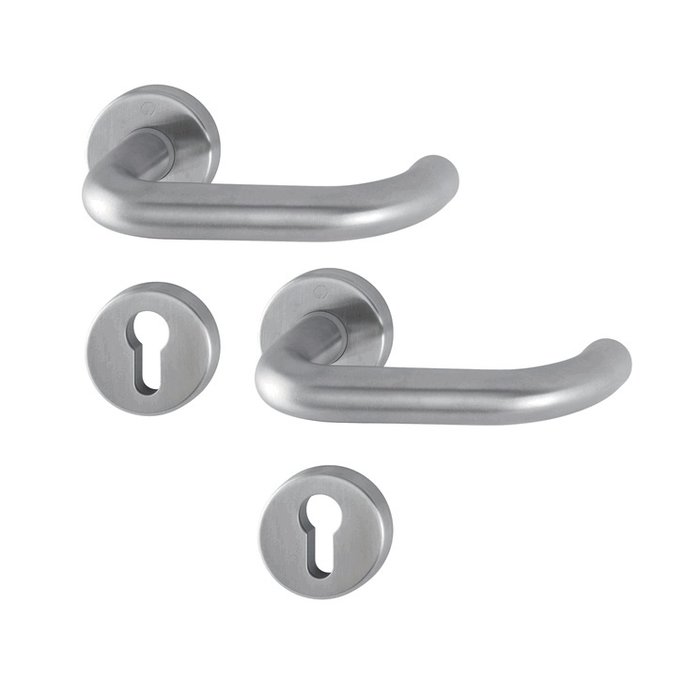

Hoppe stainless steel project set PARIS E138Z/42KV with cylinder plates and quick pin
Article code: 3290082 - 203859
These stainless steel door handles Paris from Hoppe are equipped with a quick pin and have a U-shape with double curved corners. This makes them ideal for public spaces, schools, ...
Thanks to a smart system, these door handles can be quickly installed and it is no longer necessary to screw the handle to the pin with an Allen screw.
As a result, these latches are often used by installers as they save a lot of time.

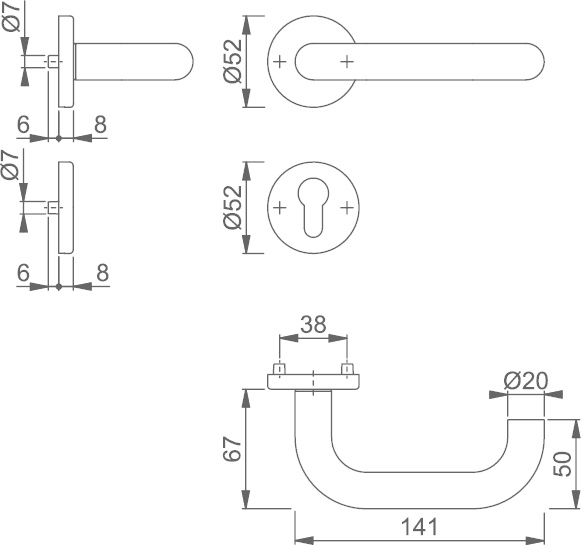

The handles of these stools have a diameter of 20mm, the rosettes have a diameter of 52mm.
These Hoppe door handles are suitable for a door thickness of 37-42mm and have been tested in accordance with NEN EN 1906: 37-0140A.
The quick pin has a diameter of 8x8mm and is already fixed in 1 hole part. This makes it not possible to use these door handles in France.
These stainless steel door handles are double sprung and are supplied as a pair including associated cylinder plates and mounting materials, instructions for use and drilling template.
