Description

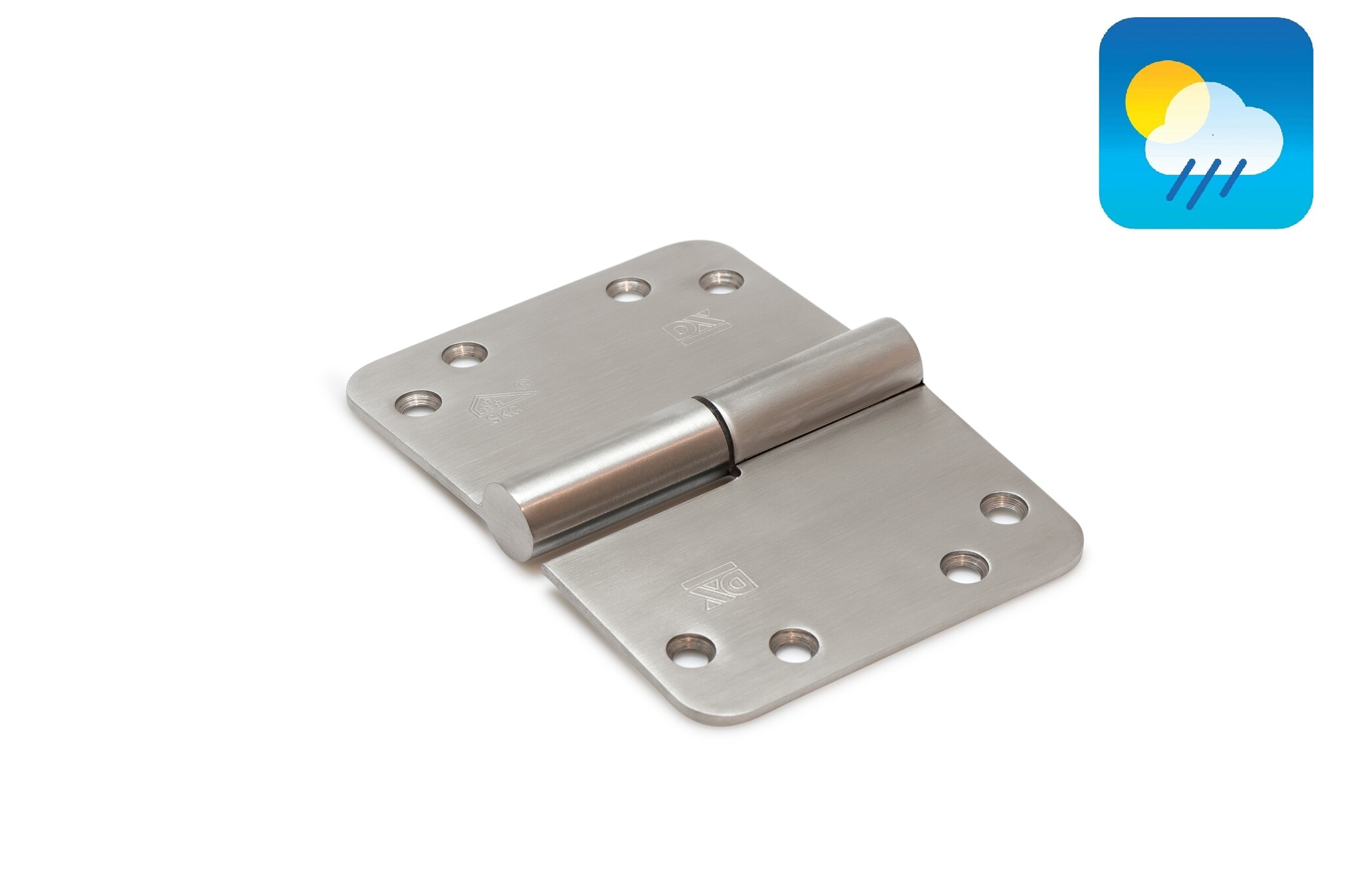

Paumelle SKG***® 89 x 125 x 3.0 mm made of stainless steel with rounded corners DIN left - Belgian right
Article code: DS6937.133.8912-5
The buttons of the hinge leaves are completely closed at the top and bottom, so that the hinge cannot be forced. As a result, even though it does not have a thief's pin, it is still burglar-resistant and has the SKG*** quality mark.
Due to its round corners, this Paumelle is suitable for working with a cutter. This hinge, with its sleek design and beautifully finished buttons, fits perfectly in a modern interior. The hinges can be used on interior and exterior doors.

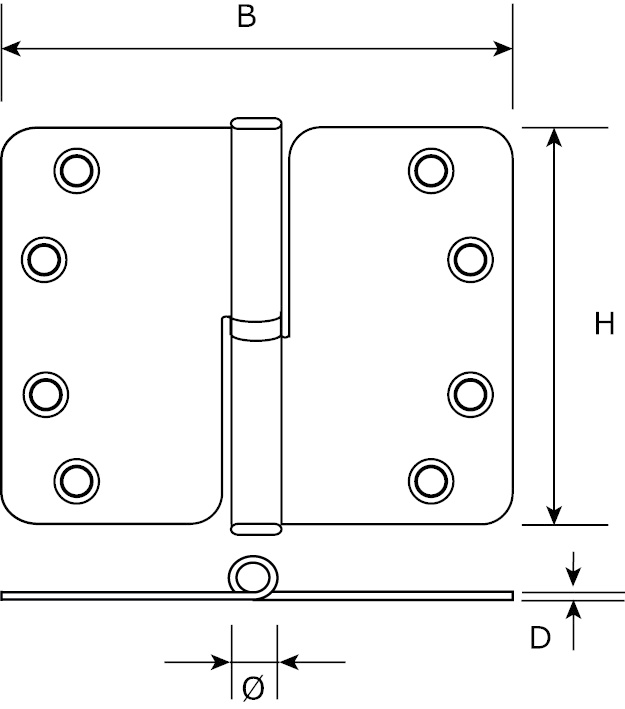

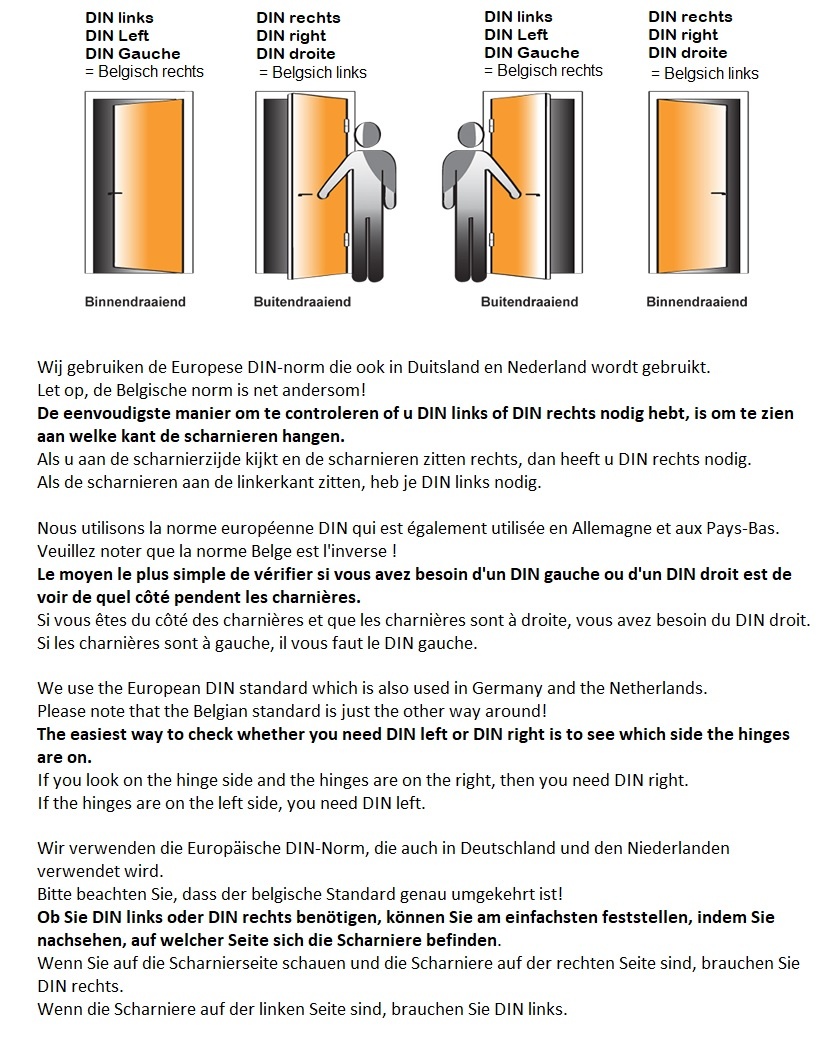

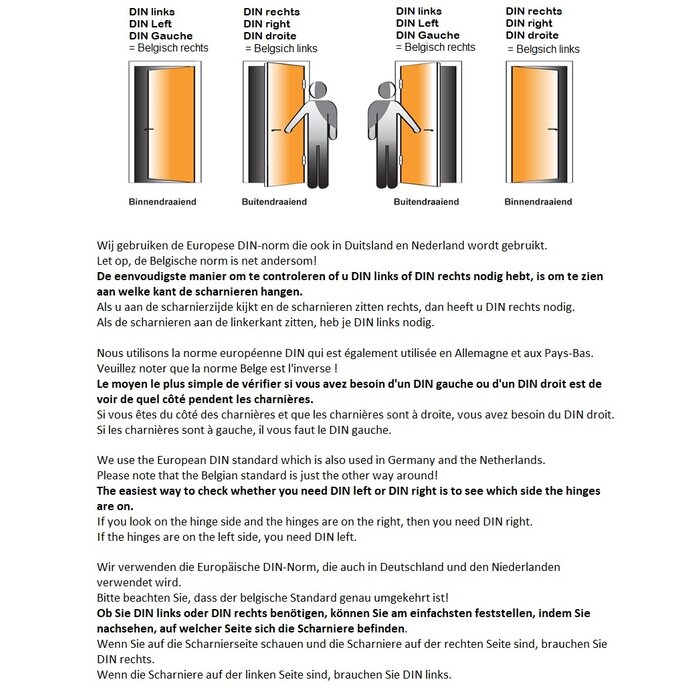

This article is a DIN left - Belgian right hinge. Take a good look at the attached drawing to ensure you order the correct hinge.
The hinge is supplied per piece excluding mounting material .
Material | Stainless steel 304 |
Finish | Brushed stainless steel |
Finishing corner | Round corners |
Standardization | SKG***® |
Certification | CE/SKH |
H (mm) | 89 |
W (mm) | 125 |
D (mm) | 3.0 |
Direction of rotation | Right(=DIN Left) |
Ø (mm) |
16 |
Carrying capacity per 3 (Kg) | 70 |
Carrying capacity per 4 (Kg) | 90 |
Fastening material | Not included |
Application | Inside and outside |
